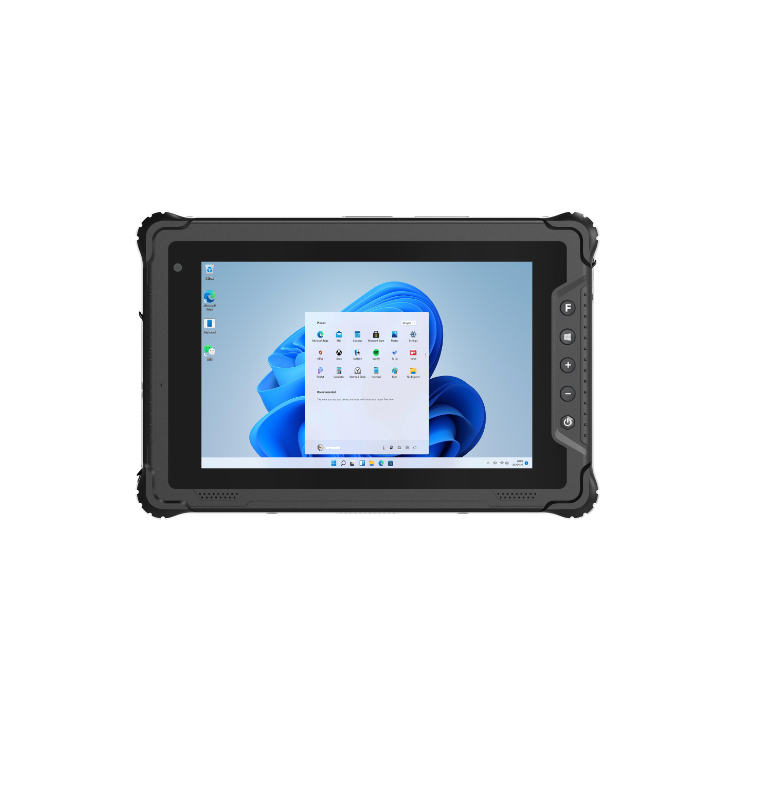

| Product Form | 8" Rugged Windows Tablet |
| Material | PC+TPU |
| Dimensions | 236.7*155.7*20.8mm |
| Weight | 818g |
| Product Color | Black |
| CPU | Intel Alder LAKE N100 |
| GPU | Intel® UHD Graphics |
| Memory | RAM 8GB LPDDR5 ROM 128GB EMMC |
| Operating System | Windows 11 Home |
| Display | Type: IPS Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡ |
| Touch Pannel | 5-Point Capacitive Screen, G+G, Panda Glass, Hardness Above 7H, Scratch-Resistant, COF, Supports 930 Stylus |
| Camera | Front 5.0MP Rear 8.0MP |
| Buttons | Power *1 (Yellow) Volume + Key *1 Volume - Key *1 P1 Key *1 (HOME Key) F Key *1 (Barcode Scanning, Connected to GPIO) |
| Speaker | Built in 8Ω/1W Waterproof Speaker *2 |
| Microphone | Sensitivity: -42dB, Output Impedance: 2.2kΩ |
| Battery | Removable Polymer Lithium-ion Battery 7.6V/5000mAh 7.5hour（Tablet product testing conditions: screen brightness of 50%, 300nit, volume of 22%, 30cm70db volume, screen long on, playing 1080P video） |
| RTC | 3V 1mAH Rechargeable Surface-Mount |
| G-Sensor | G-Sensor |
| WIFI | WIFI6 802.11(a/b/g/n/acR2/ax 1x1) Frequency: 2.4G+5.8G Dual-band WIFI intel AX101 (1216 1x1) |
| 蓝牙 | BT5.2 (BLE) |
| 2G | NA |
| 3G | WCDMA: B1/5/8 |
| 4G | EURO： LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD B38/B40/B41 |
| GPS | Supports GPS, Glonass; Capture Sensitivity: -140 dBm; Cold Start Time: <50 seconds, Hot Sstart Time: <5 seconds; GPS Frequency: 1575.42MHz Optional: GPS + BeiDou |
| 2D | Optional: Hardware Decoding Optical Resolution: 5mil Scanning Speed: 50 scans/s Supported Barcode Types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC | Optional: NXP300/NFC 13.56MHz Supports 14443A/14443B/15693/18092/mifare protocols of ISO/IEC |
| I/O Interfaces | USB 3.0 *1 (Type A) |
| Type C *1 (Data & Charing) | |
| ∮3.5mm Standard Earphone Jack *1 | |
| TF *1 | |
| SIM Card *1 | |
| DC 12V 4A Power Port x1 （Male Plug outer diameter 5.5mm） | |
| HDMI 2.0 mini *1 | |
| 12PIN Pogo Pin *1 | |
| Adapter | AC100V to 240V, 50Hz/60Hz output DC 12V/4A wall plug European Standard, with CE Certification Optional: US Standard, Chinese Standard, UK Standard |
| Rugged Features | MIL-STD-810H: 1.22m drop resistance |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Certifications | IP65 |
| CE NB | |
| FCC（know the real situation） | |
| RoHS | |
| CCC（know the real situation） | |
| MIL-STD-810H | |
| Battery: UN38.3, MSDS, Air and Maritime Reports, IEC62133 |

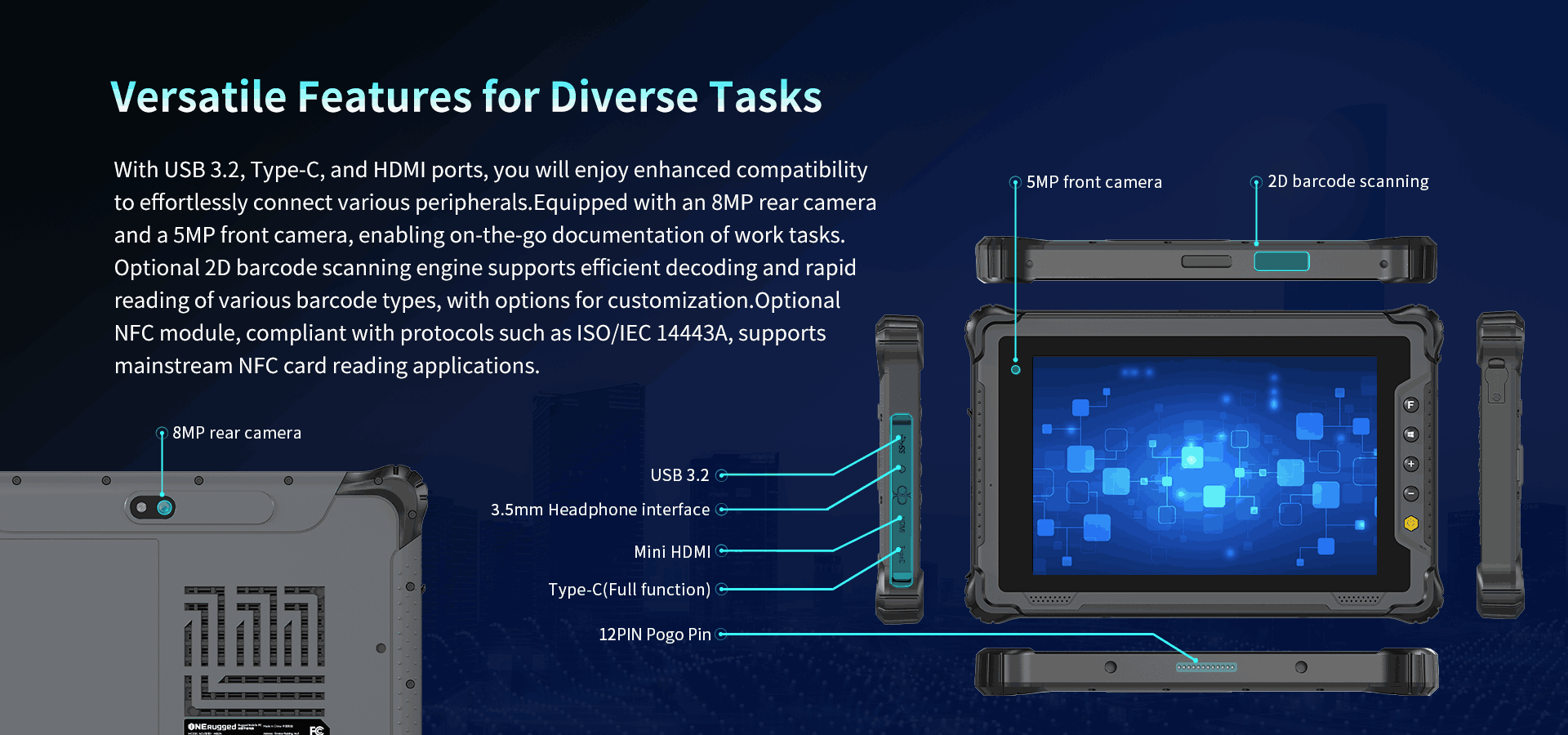

Industrial Connectivity & Rapid Data Capture
Equipped with USB 3.2, Type-C, and HDMI ports, the I88N ensures enhanced compatibility for all peripherals. This industrial Windows PC supports optional 2D barcode scanning and NFC modules for efficient data capture in any field tablet scenario.

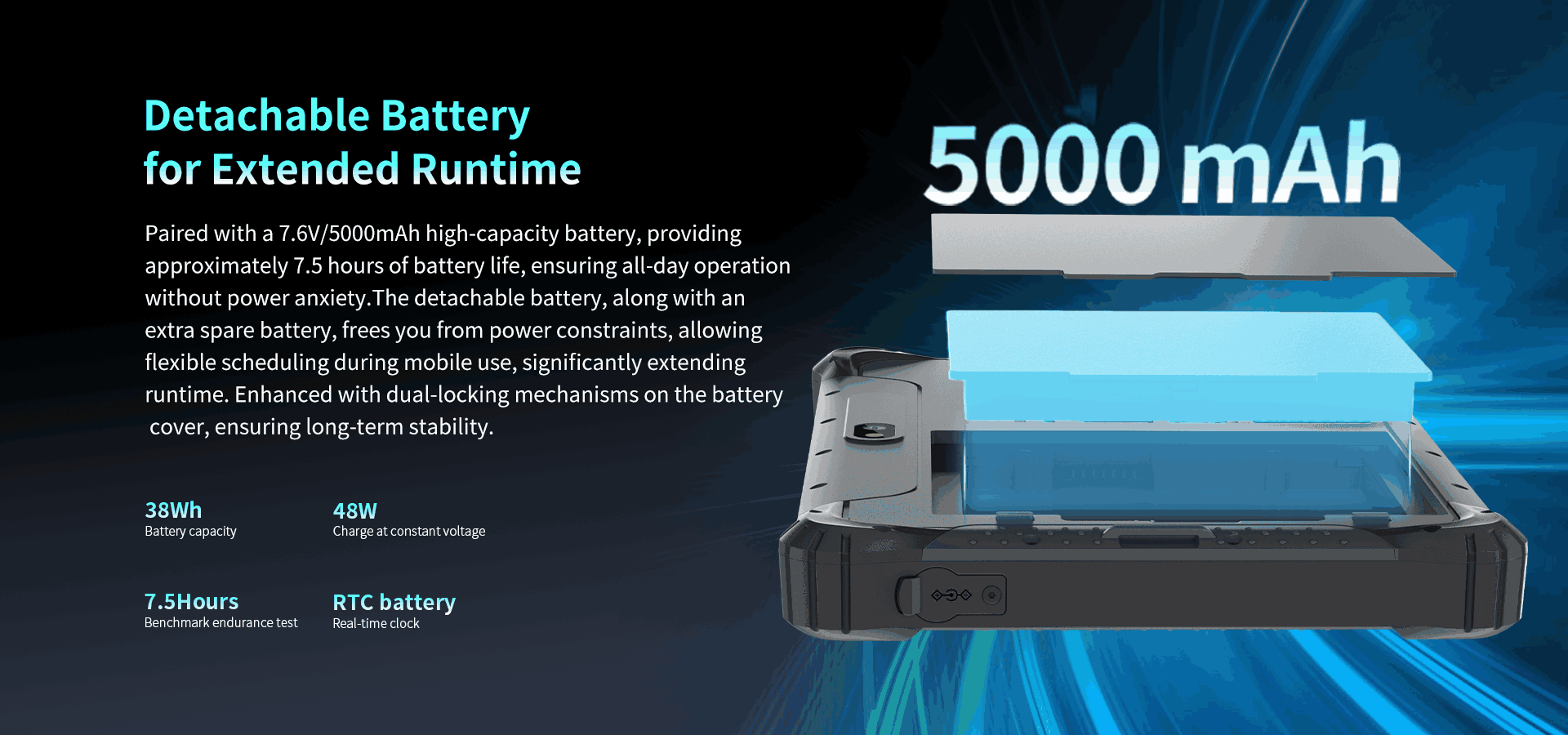

5000mAh High-Capacity & 48W Fast Charge
Paired with a 7.6V/5000mAh (38Wh) high-capacity battery, the M80N provides approximately 7.5 hours of battery life. This removable battery Windows tablet features 48W constant voltage charging and dual-locking mechanisms for maximum reliability in any industrial Windows PC scenario.
Industrial Connectivity & Rapid Data Capture
Equipped with USB 3.2, Type-C, and HDMI ports, the I88N ensures enhanced compatibility for all peripherals. This industrial Windows PC supports optional 2D barcode scanning and NFC modules for efficient data capture in any field tablet scenario.
Industrial On-Site Inspection: Used in power inspection, oil and gas field inspection, and equipment maintenance, it can collect on-site data in real time, query equipment information, and submit maintenance reports, adapting to outdoor and harsh on-site environments.
Smart Logistics & Warehousing: Applied in warehouse inventory, AGV scheduling, and delivery on-site operations, it supports barcode/RFID scanning, order processing, and real-time data synchronization with the backend system, improving operation efficiency and accuracy.
Outdoor Field Operations: Suitable for environmental monitoring, geological exploration, and emergency rescue, it can adapt to outdoor rain, dust, and extreme temperature environments, providing stable computing and communication support.
Manufacturing & Vehicle-mounted Applications: Embedded in production line on-site terminals and forklift vehicle-mounted systems, it displays production parameters, issues operation instructions, and realizes real-time interaction with the production management system, facilitating on-site operation and management.
