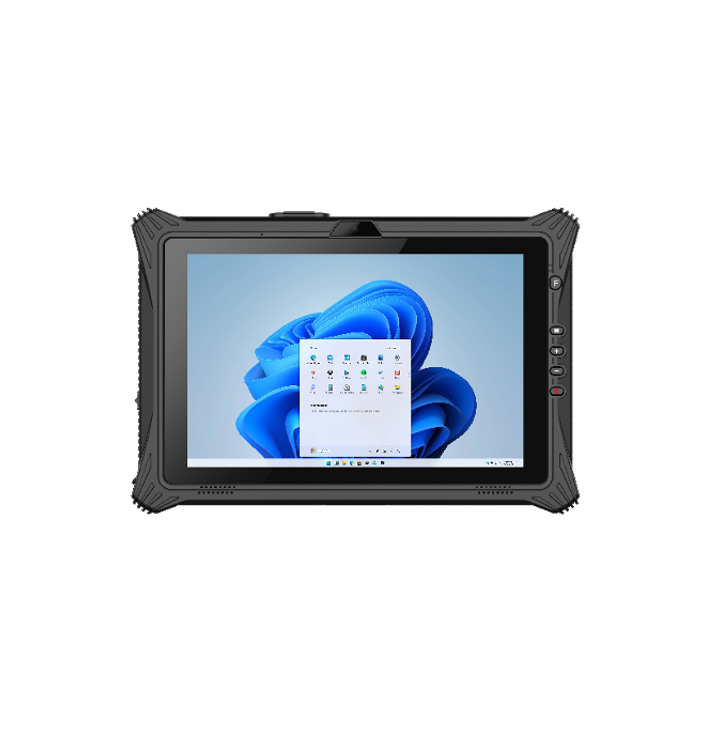

| Product Form | 10.1" Rugged Windows Tablet |
| Material | ABS+PC |
| Dimension | 289.9*196.7*21.2mm |
| Weight | 1230g |
| Product Color | Black |
| CPU | i5-1235U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 1.2GHz~4.7GHz |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | RAM 16GB DDR4L ROM 128GB SSD |
| Operating System | Windows 11 Pro (Home, IOT) 64bit, Language by default: English Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit |
| Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacity TP, G+F+F, Hardness over 7H, Scratch resistant, Support stylus |
| Camera | Front 2.0MP (USB) Rear 8.0MP (USB) |
| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Windows Home *1 F Key *1 (Barcode Scanning, Customizable without barcode) |
| Speaker | 8Ω/1W Waterproof Speaker *1 |
| Microphone | Waterproof microphone 4618, specification: - 44dB±3DB |
| Senssors | G_sensor |
| Fan | IPX5 Fan *1 |
| RTC Battery | 3V 210mAH Continuous discharge current: 0.2mA Diameter: Ø20.0mm Max Thickness: 3H.2mm |
| Small Battery | Build in Lithium-ion polymer battery, Non-removable 7.4V/860mAh |
| Big Battery | Removable Li-polyment Battery 7.4V/5000mAh 4.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 4G | MeiG 750 LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional: MeiG North America and South America modules |
| GPS | U-blox M7N, Support: GPS, glonass Optional: U-blox M8Q, Support: GPS, Beidou, glonass |
| I/O Interface | USB3.1 *1 |
| Type C (Full function/HDMI/Charging) *1 | |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.1a mini *1 | |
| SIM card *1 | |
| TF card *1，Max: 128GB | |
| DC 19V 3.42A jack *1 | |
| 12PIN Pogo Pin (USB/Docking charging) *1 | |
| Adapter | AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval Optional: EU UK |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810G | |
| Battery: UN3803, MSDS, IEC62133, aviation report, marine report | |
| Data Collection | NFC Optional NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm |
| Fingerprint Built-in | |
| Expansion Module | RJ45 board (Standard) (10/100/1000M) network port * 1, supporting customized (10/100/1000M) gigabit network speed network port |
| DB9 board (RS232) *1, 9-line full function | |
| USB2.0 USB2.0 *1, Big USB | |
| QR Code Scanner N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s |

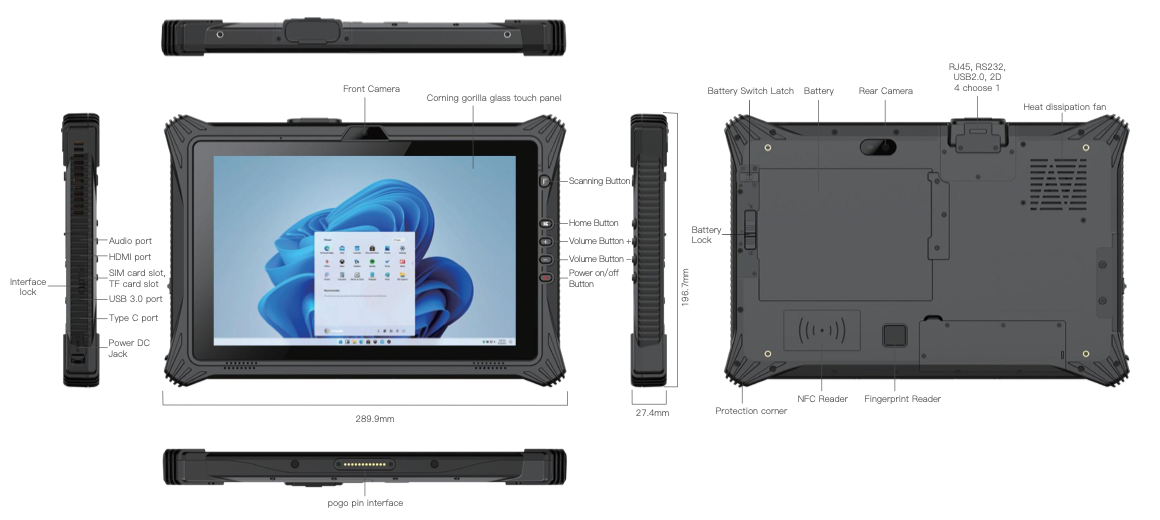

Product Six View

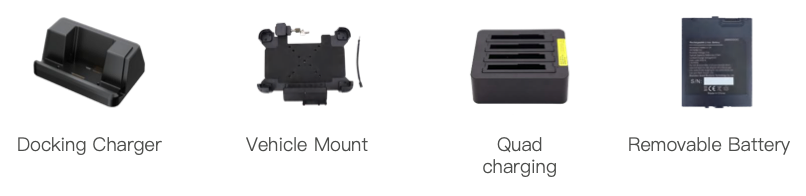

Accessoris
Second-to-none Performance
The forerunner 10.1" fully rugged tablet in the market that runs Windows 11 HOME (PRO & IOT) on the latest 12th Generation Intel® Core™ i5-1235U/17-1255U Processor (12M Cache, up to 4.40 GHz/4.70 GHz) delivers paramount perfor- mance with strong processing power for your utmost user experience.
Store all your needs
Up to 1TB of PCle SSD storage offers all the room and speed for data-intensive applications. SSD supports both PCle and SATA connection, foolproof design, just to remove and insert for upgrade.

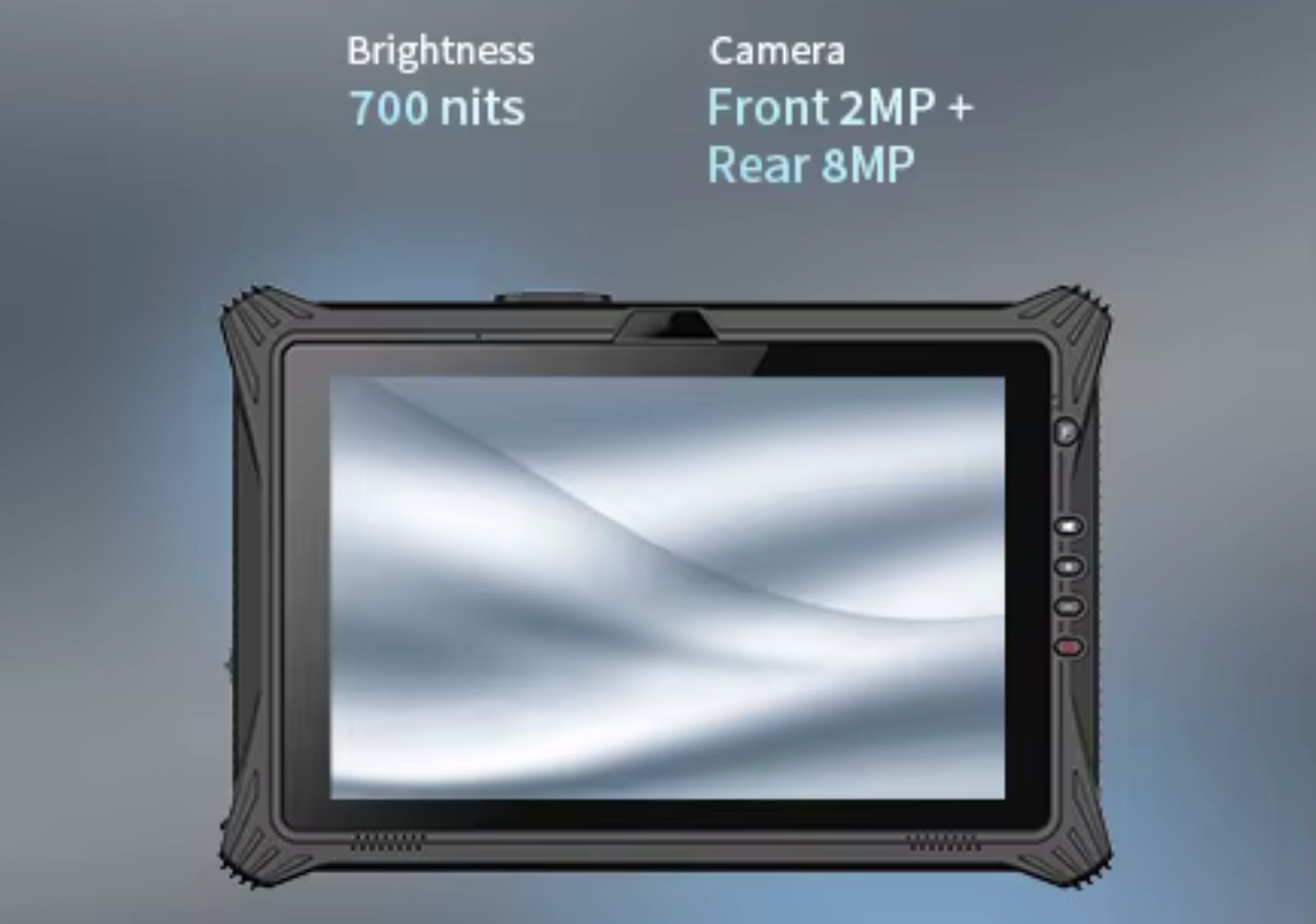

700 nits, Sunlight-Readable
I10A delivers bright, beautiful graphics on its 10.1-inch capacitive screen, designed with a 700nits higher brightness display making the I10A tablet sunlight visible with better user experi- ence, especially for outdoor uses. The 8MP rear camera delivers excellent photos and video capture.

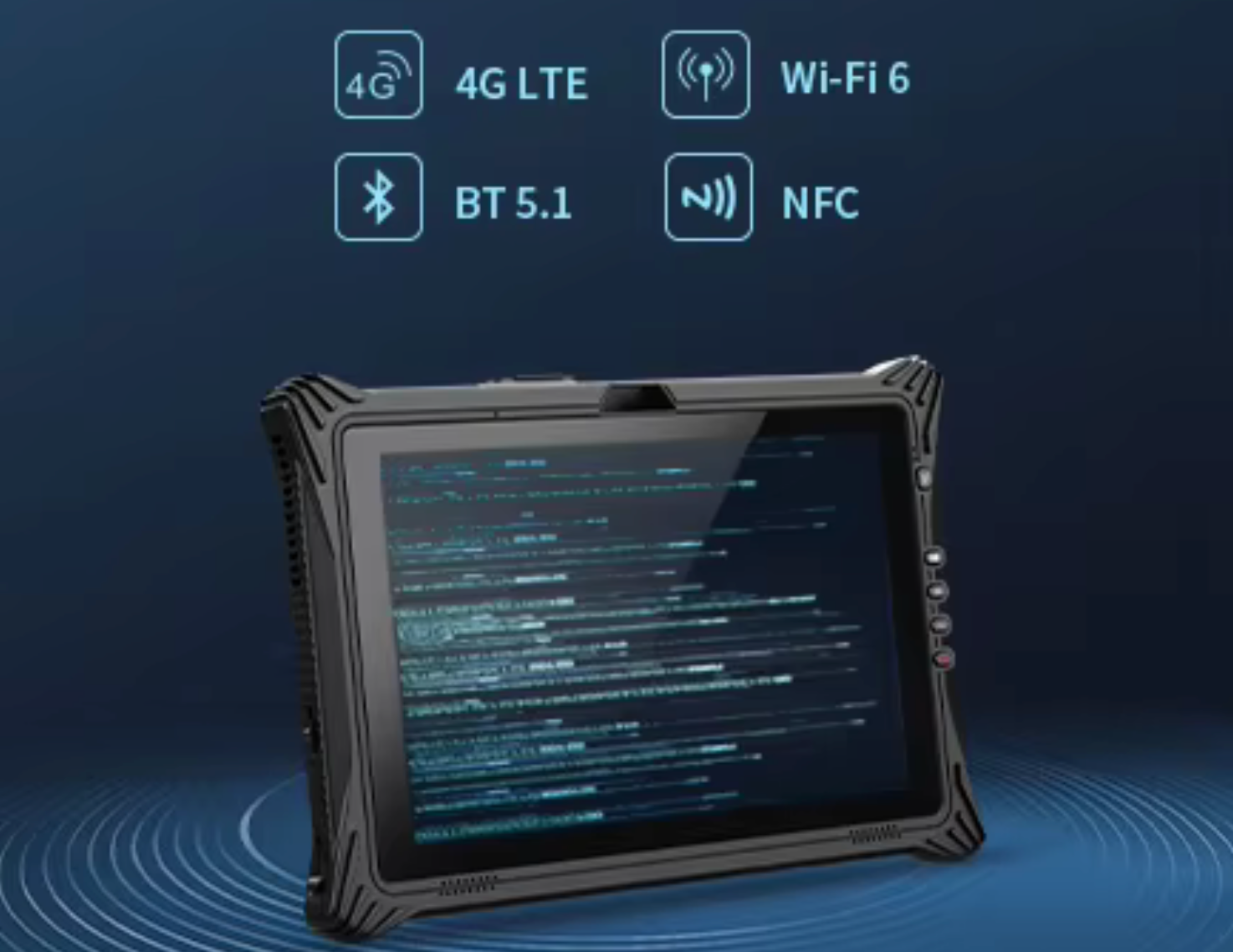

Speed up your productivity
Equipped with the latest and seamless multi-communication including Wi-Fi 6, Blue- tooth 5.1, 4G LTE and NFC reader, field operators can experience faster data transfer, less latency, and broader coverage throughout the entire task.

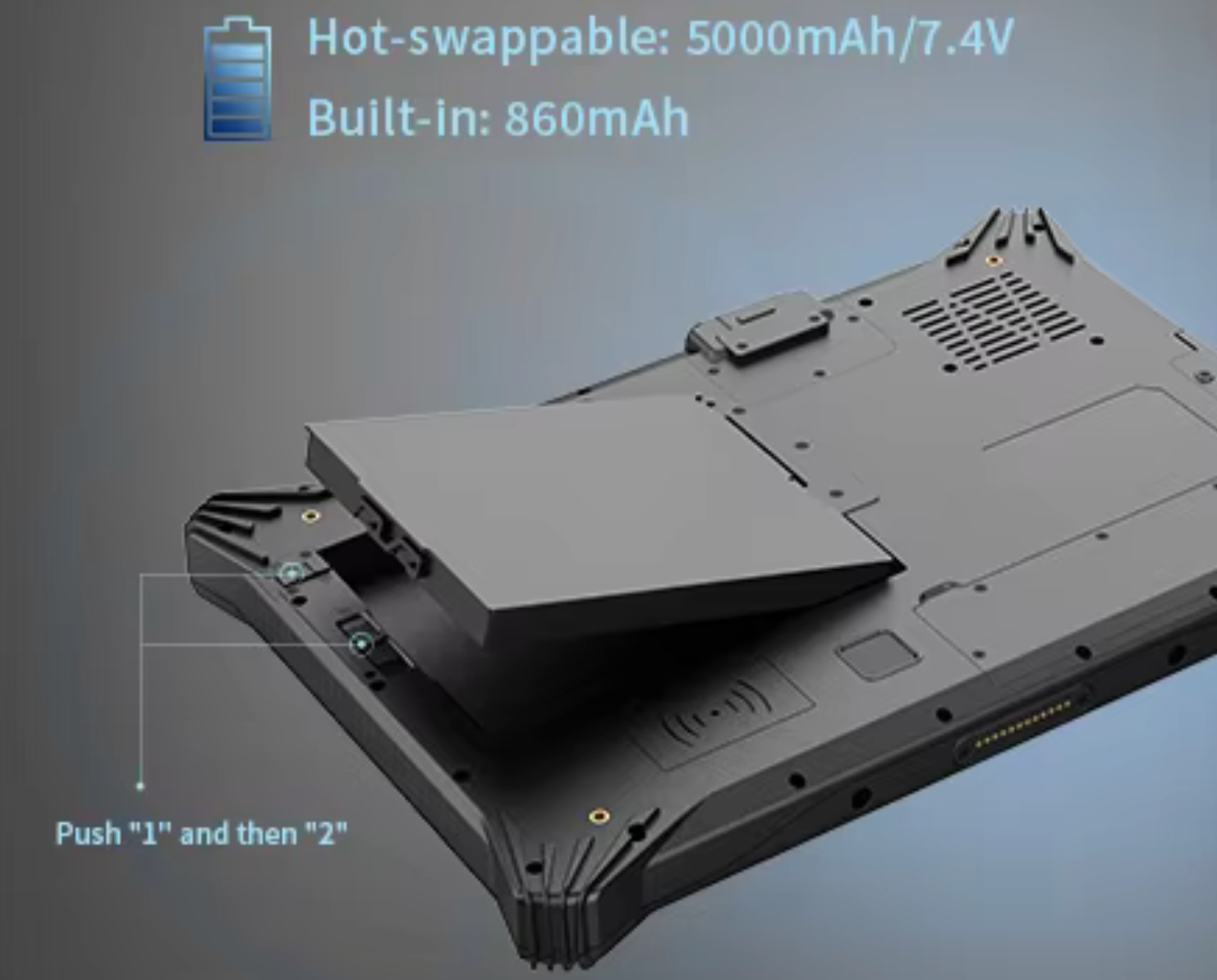

Two batteries, Long standby
The I10A's hot-swappable dual-battery design allows you to enjoy an uninterrupted working time. This unique design allow you to swape a new battery in while running important applications.
Field-tough Tool
The I10A has been independently tested and cer-tified to MIL-STD 810G and IP65 standards. It is tough enough to withstand repeated drops, extreme temperatures, altitudes, humidity, water and dust exposure.
High-performance HMI & control: Run CAD/CAM, PLC programming, and real-time MES/OEE dashboards (i7 handles multi-tasking smoothly).
Quality assurance: 2D scanning, high-res imaging, and digital work instructions on the shop floor.
Predictive maintenance: Analyze vibration/temperature data, access CMMS, and log repairs on-site.
Harsh environment readiness: Withstands oil, dust, vibration, and -20°C to 60°C temps.
Engineering & construction: View BIM/CAD blueprints, GNSS surveying, and progress documentation (700nits sunlight-readable).
Power & telecom: Substation inspections, tower maintenance, and schematic access with glove-touch support.
Oil, gas & mining: Hazardous area operations, asset tracking, and data logging in remote sites.
Always-on connectivity: Wi-Fi 6, 4G LTE, and hot-swappable dual batteries for 24/7 field work.
High-volume warehouse ops: WMS integration, batch scanning, and inventory management (16GB RAM for large datasets).
Cold chain & freezer use: Stable from -20°C to 60°C; ideal for food/pharmaceutical cold storage.
Fleet & last-mile: In-vehicle mounting, ELD compliance, GPS/BeiDou navigation, and electronic proof of delivery.
First responders: Patrol reporting, incident mapping, and real-time data access (4G LTE for rapid response).
EMS & disaster relief: Ambulance patient care reporting (PCR), triage, and EHR access in remote/mobile clinics.
Search & rescue: GNSS tracking, thermal imaging integration, and durable design for rough terrain.
Mobile clinics & home care: EHR/EMR access, prescription management, and patient data entry (IP65 for infection control).
Hospital & lab: Medical cart computing, specimen tracking, and digital pathology viewing (i5/i7 for medical imaging).
Rail & port terminals: Cargo tracking, container inspection, and manifest management in dusty/wet environments.
In-vehicle telematics: Mounted in trucks/buses for fleet monitoring, driver safety, and real-time analytics.
12th Gen i5/i7: Up to 4.7GHz, 16GB RAM, 512GB SSD (detachable) for heavy apps.
Rugged: IP65 dust/water, 1.22m drop-proof, MIL-STD-810H, wide temp (-20°C to 60°C).
Display: 10.1” FHD IPS, 700nits, glove/stylus touch, sunlight-readable.
Connectivity: Wi-Fi 6, BT 5.1, 4G LTE, GNSS (GPS/BeiDou), optional 2D/RFID/NFC.
Battery: Hot-swappable dual batteries for zero downtime in long shifts.
