Product Parameters
Screen parameters | size | 7 " |
Resolution | 1024×600 | |
visual angle | 75/75/70/75 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 500 :1 | |
Response time | 6.5 ms | |
Display area | 154.214 × 85.92 mm | |
Pixel spacing (mm) | 0.1506×0.1432 (H×V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input way | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | Intel celeron J1900 quad core 1.99G (Maximum frequency 2.4G ) |
RAM | DDR3 1333/1600M,default 2G (2G/4G optional) | |
ROM | SSD default 32 (64/128/256/512G (optional) | |
chipset | Intel Bay trail SOC | |
operating system | windows7/8/10,linux | |
Graphics card | Integrated HD graphic display core, support dynamic memory allocation (DVMT),Support VGA, HDMI, LVDS. Built in dual channel 24bit LVDS pin,Support double screen display. | |
3G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
4G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
WiFi | Dual frequency | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | support | |
Timer switch | support | |
interface | DC port | 1*DC 2.5 |
HDMI | Support HDMI data output, maximum up to 1080P | |
USB2.0 | 2 | |
USB3.0 | 2 | |
RJ45 Ethernet | 1 *Realtec8111F 1000M default single network dual network optional | |
SD/TF | Optional | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various standards (depending on 3G module) | |
RS232 | 2 *RS232 | |
RS485 | 1 (or 422) | |
RS422 | 1 (or 485) | |
GPIO | / | |
Product reliability | working temperature | -30°C to 70°C |
Storage temperature | -40°C to 80°C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 25W |
Power consumption (standby) |
| |
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 5A |

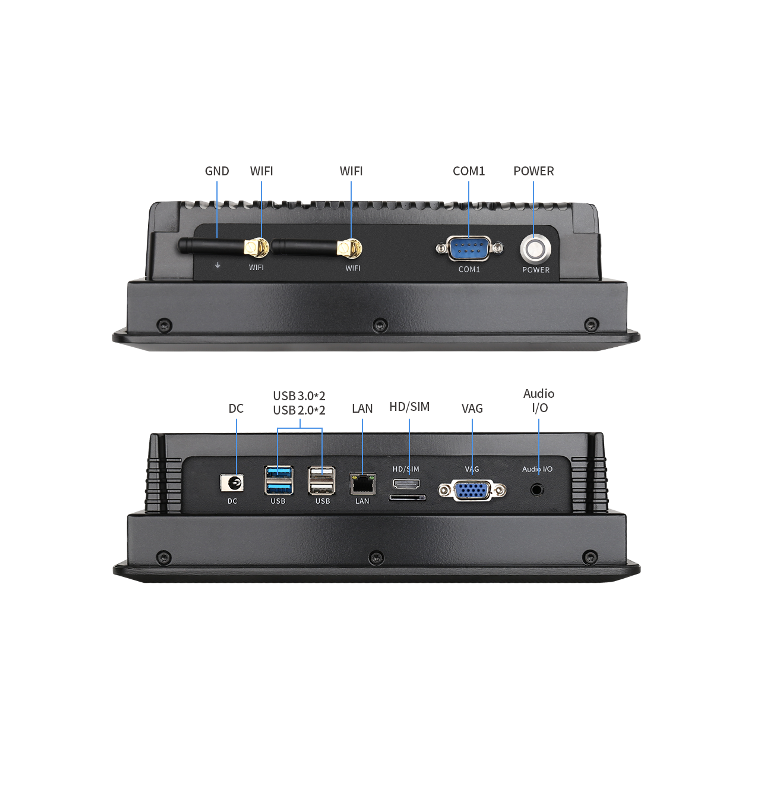

I/O Interface Panel

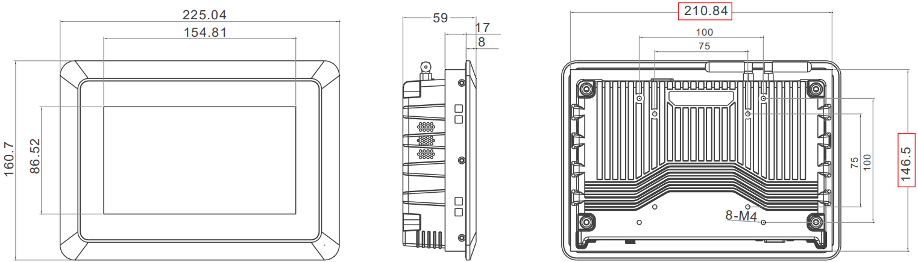

Dimensional drawing
Overall size：225.04*160.7*59mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-10℃- 60℃ Storage temperature: -20℃- 70℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- 70℃ Storage temperature: -40℃- 80℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |

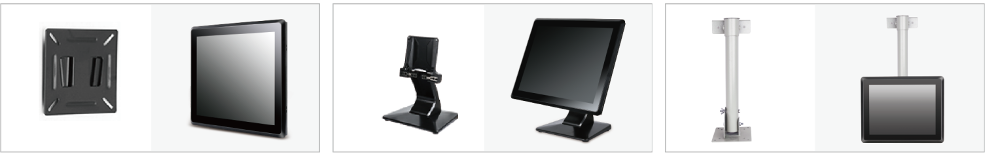

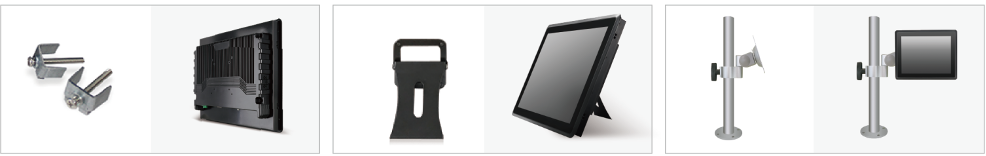

Installation method
Embedded installation | Tabletop type (louver) | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy) | Boom type installation |
Industrial automation HMI and on-site production control terminals
Smart factory workshop monitoring and operation panels
Logistics warehousing management and inventory query terminals
Intelligent building, elevator and access control display systems
Environmental monitoring, water conservancy and municipal engineering control terminals
Smart retail self-service kiosks, ordering and payment terminals
IoT edge computing, data acquisition and remote monitoring devices
Industrial equipment embedded control and man-machine interaction screens
Medical equipment auxiliary operation and display terminals
Smart agriculture, greenhouse monitoring and automatic control panels
Factory MES system workshop operation workstations
