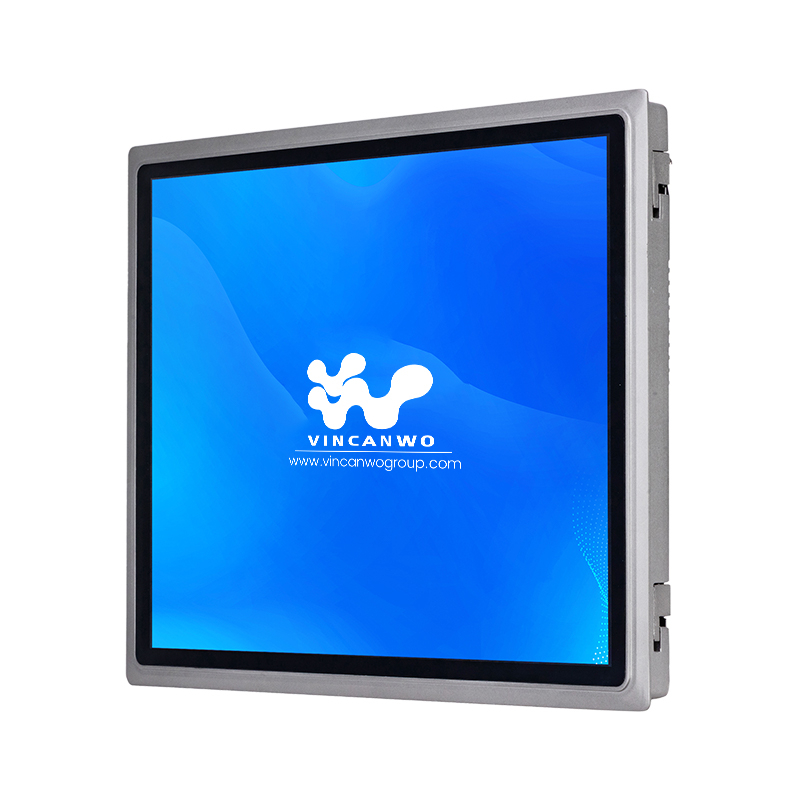

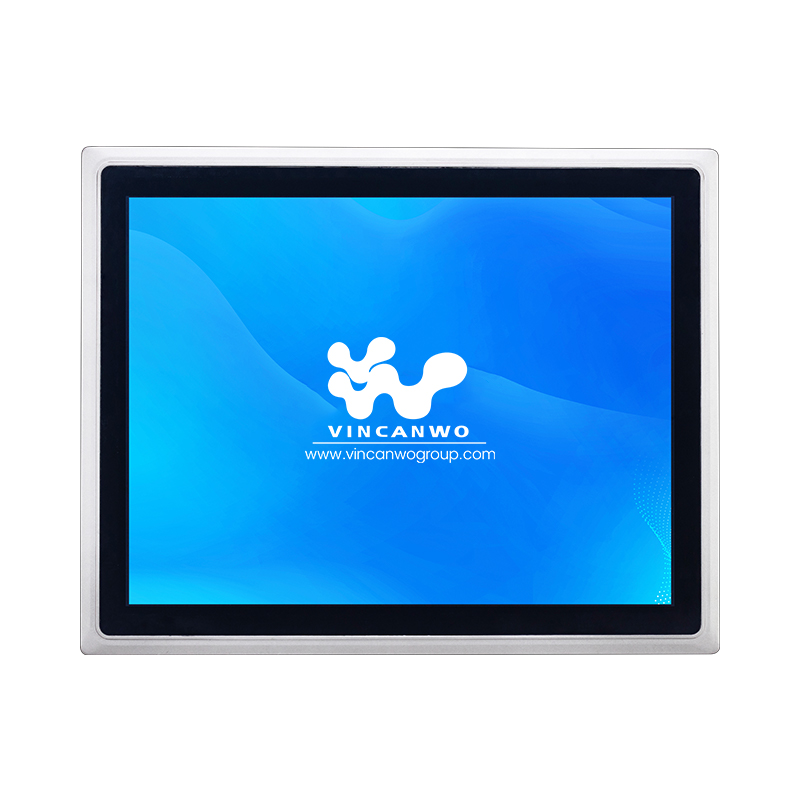

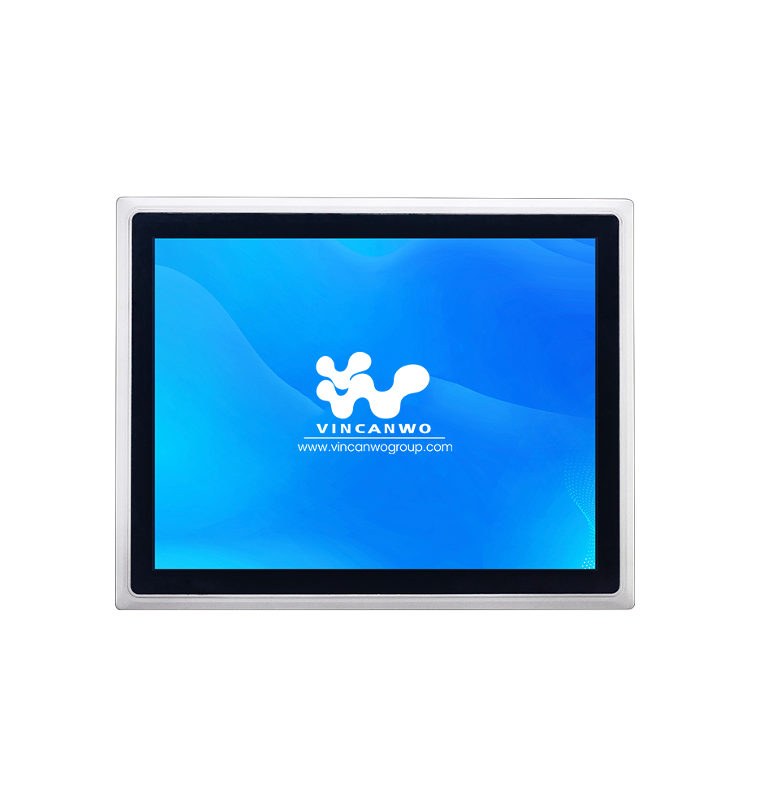

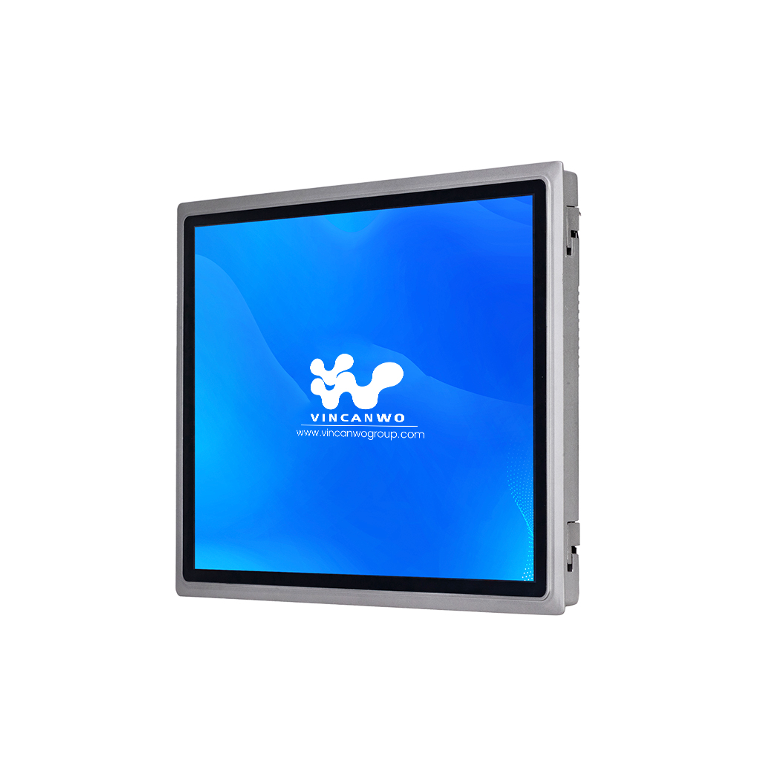

21.5" Industrial Touch Screen PC Windows 11 | TPRO-215

Key Highlights
• 21.5” Flat Front Waterproof Touchscreen
• Intel 13th Gen. Core i3/i5/i7 CPU
• Wide Range DC 9~36V Power Input
• IP65 Compliant Front Bezel
• Aluminum Housing and Fanless Design

Model:
TPRO-215
Brand:
VINCANWO GROUP
IP Rating:
IP66 Front Bezel
Screen Size:
21.5"

Availability:

Quantity:



Inquire Add to Basket

Product Description

SKU	TPRO-215
Screen Size	21.5inch
Resolution	1920*1080
Viewing Angle	89/89/89/89
Brightness	250 cd/㎡
Contrast Ratio	3000:1
Touch Screen	Capacitive, Resistive
Controller	USB interface
Durability	≥5M times of Capacitive, ≥100,000 time of Resistive
Processor	Intel® Processors
Memory	4G/8G/16G/32G
Storage	under 5th Gen.: 1 * mSATA+1 SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB）
Network	2 *RTL8111
COM	2 *RS232 (COM2 optional RS485)
USB	4*USB
Display	1 HDMI, 1 VGA
Expansion Slots	Under 5th Gen.: 1Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1M.2 (1 * M.2(KEY EWiﬁ&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052)
Operating System	Windows / Linux
Dimensions (mm)	550365.763.80
Mounting Hole Size (mm)	533*347
Gross weight (kg)	8.80
Installation methods	VESA mount/Embedded / Wall mount / Desktop
Operating Temperature	-30 ~ +70°C
Storage Temperature	-40 ~ +80°C
Storage Humidity *Non-condensing	5 ~ 95%
Power Input	1*12VDC (6A) (Option 9~36VDC Wide-range Power Input)

Core Specifications & Ruggedization

Feature	TPRO-215 Specifications
Display	21.5" FHD (1920×1080) LCD Panel, 1000 cd/m², Dragontrail Pro Glass(Anti-Reflective)
Touch Technology	Projected Capacitive(10-point, 3mm Glove Support + Wet-Hand Operation)
Rugged Rating	IP65 Front/IP54 Rear, IK08 Impact, -10°C to 50°C (95% RH non-condensing)
Processor	Intel® Core™ i5-12500TE (12C/16T, 4.4GHz) 35W TDP
Memory/Storage	16GB DDR5 SODIMM + 512GB NVMe SSD (SED FIPS 140-2)
I/O Ports	M12-X Ethernet (2.5GbE TSN), M12-A USB 3.2 (4×), M12-8 RS-485/232
Power Input	24VDC (Dual Redundant w/ 88-300V Range), 94% Efficiency
Mounting	VESA 100mm + Panel Cutout (270×190mm)

Industrial-Grade Features

Harsh Environment Readability

Sunlight Readability: 1000-nit brightness + 5% Haze anti-glare
Condensation Control: Heated Front Glass(activates >85% RH)
Chemical Resistance: Stainless Steel Bezel(316L) w/ NEMA 4X rating

Control System Integration

Isolated I/O: 4× 24V Digital Inputs + 2× Relay Outputs (5A@250VAC)
Fieldbus Support: PROFIBUS/CANopen via PCIe expansion (M.2 3052 slot)
Real-Time Clock: Super Cap Backup(±2ppm accuracy)

Thermal Management

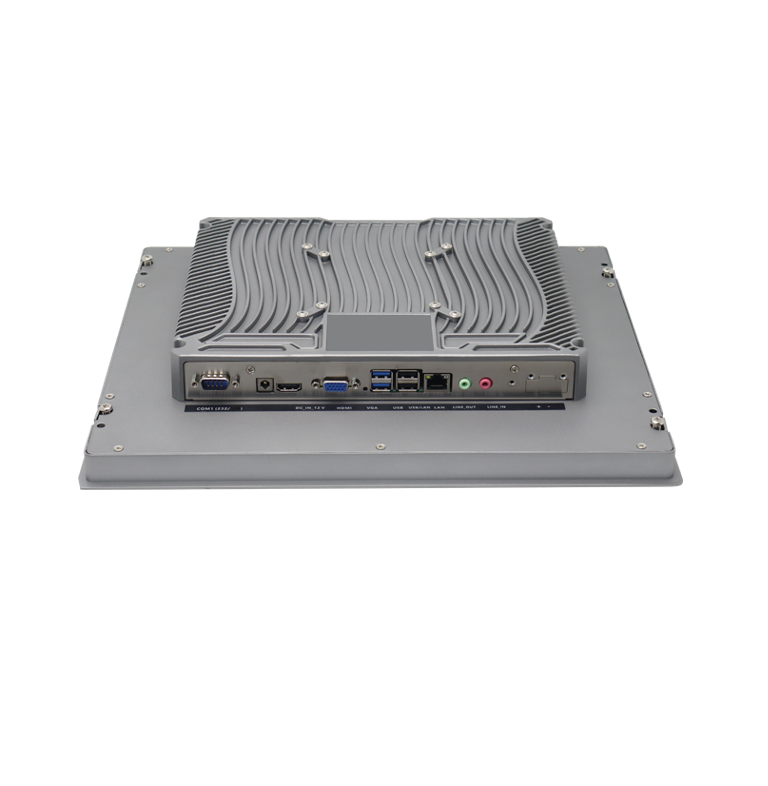

Passive Cooling: Aluminum heatsink fins (no fans, IP65 integrity)
Extended Temp: -20°C cold start w/ PTC Heater (internal)

Ruggedness Validation

Test	Performance
Vibration	3Grms (IEC 60068-2-64, 10-500Hz)
Chemical Exposure	Resists IPA, NaOH 5%, Diesel(per ISO 2812)
Thermal Shock	-20°C ↔ +60°C (200 cycles)
ESD Immunity	±15kV Air/±8kV Contact (IEC 61000-4-2)
