Model | TPRO-SEARM7 |
Display | Screen Size | 7" |
Screen Resolution | 1024 x 600 |
Screen Ratio | 5:3 |
Brightness | 300 nits |
Optional 1000 nits High-brighntess |
Touchscreen | Touch Screen | Capacitive (Multi-touch) |
Primary Components | Processor | RK3566: Quad-core ARM Cortex-A55 (up to 1.8GHz)
RK3568: Quad-Core ARM Cortex-A55 (up to 2.0GHz)
RK3288: Quad-core ARM Cortex-A17 (up to 1.8GHz)
RK3399: Hexa-core (6-core) with big (A72) & little (A53) architecture
RK3588: Octa-core (4x Cortex-A76 + 4x Cortex-A55) |
Memory | RK3566: LPDDR4 default 2G, optional 4G, 8G
RK3568: LPDDR4 default 2G, optional 4G, 8G
RK3288: DDR3 default 2G, optional 4G
RK3588: LPDDR4, 4G, 8G, 16G
RK3588S: LPDDR4, 4G, 8G, 16G |
Storage | 32GB, 64GB, 128GB, 256GB |
Operating Systems | Android | Android 7.1.2/6.0.1, 11,12,14 |
Linux | Linux 4.1.15, Debian 10, 11, buildroot |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi/Built-in PCI |
Bluetooth | Bluetooth 4.0 |
External I/O Ports | USB | 2x USB |
Serial Protocol Detail/COM | 2x RS232, option 1x RS485 |
Ethernet / LAN | 2x RJ45 GbE LAN |
Video Outputs | 1x HDMI |
Audio Ports | 1x Audio Line-Out |
Power Input Port | 3-Pin DC-In (Phoenix Type) |
Expansion Slots | Others | Speaker | 4G LTE module | 1x Mini-PCIe |
Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W |
Input Voltage Range | Optional 9-36V DC |
Weight / Dimensions | Weight | 0.92 kg |
Dimensions | 194 x 129.9 x 52 mm |
Thermal & Environmental | Operating Temperature | -30°C ~ 70°C |
Storage Temperature | -40°C ~ 80°C |
Cooling Solution | Passive – Fanless with Heatsink |
Humidity Range | 10% – 95% Non-condensing |
Enclosure | Material | Aluminum |
IP Rating | IP66 Front Bezel |
Color | Gray |
Mounting Options | Panel Mount, Desktop, VESA 100 Mount |

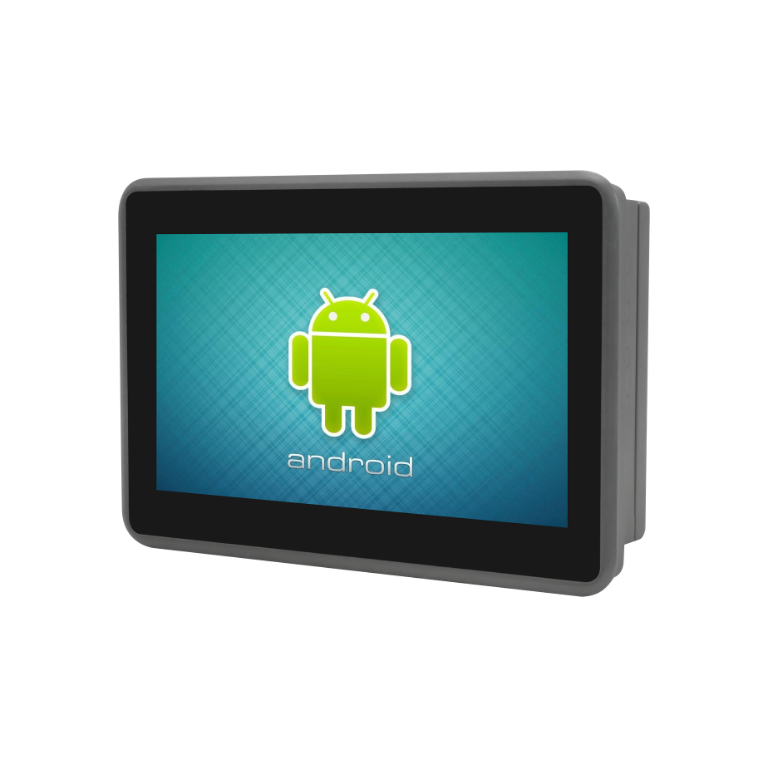

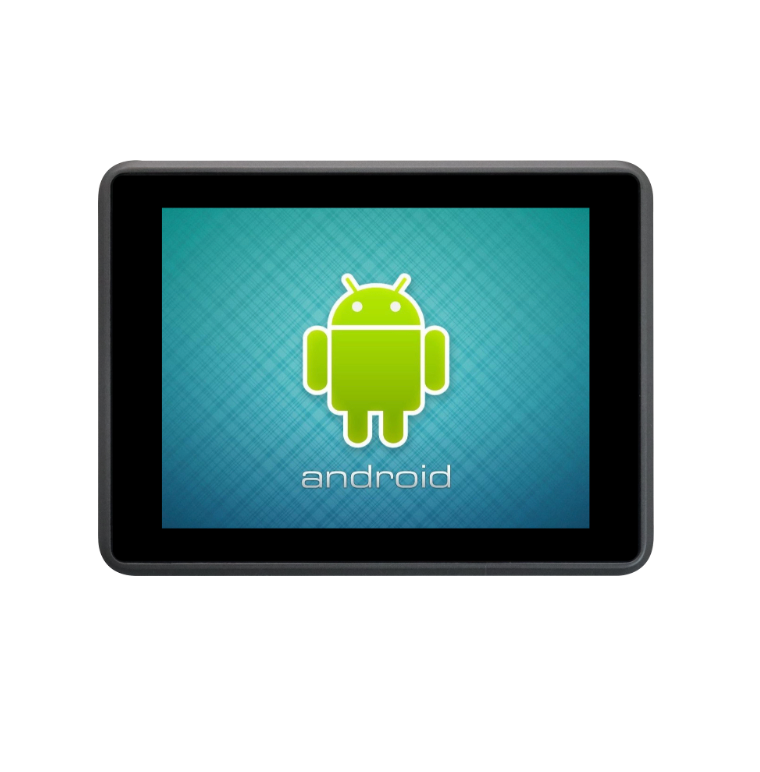

7" Android Panel PC | TPRO-SEARM7 (Vincanwo Group)
This is a fanless, rugged industrial panel PC with a 7-inch touchscreen, designed for 24/7 operation in industrial environments.
Core Features
7" True Flat IPS Display: 1024×600 resolution, 300 cd/m² brightness, 500:1 contrast ratio.
Capacitive Touchscreen: 5-point multi-touch, ≥5 million touches durability.
Industrial-Grade Ruggedness:
ARM Rockchip Processor: Low power, high reliability.
Android OS: Customizable (Android 9/10/13).
Wide Voltage Input: 9–30V DC, suitable for industrial power systems.
Multiple Mounting Options: Panel-mount, wall-mount, VESA 75/100mm.
Technical Specifications
Display & Touch
Parameter | Details |
Screen Size | 7-inch IPS |
Resolution | 1024 × 600 (16:9) |
Brightness | 300 cd/m² |
Viewing Angle | 85°/85°/85°/85° (L/R/U/D) |
Touchscreen | Capacitive, 5-point multi-touch |
Touch Durability | ≥5 million touches |
System Hardware
Component | Details |
Processor | ARM Rockchip Quad-Core |
RAM | 2GB DDR3 (optional 4GB) |
Storage | 32GB eMMC (optional 64GB/128GB) |
OS | Android 9.0/10/13 (customizable) |
GPU | ARM Mali-450 MP2 |

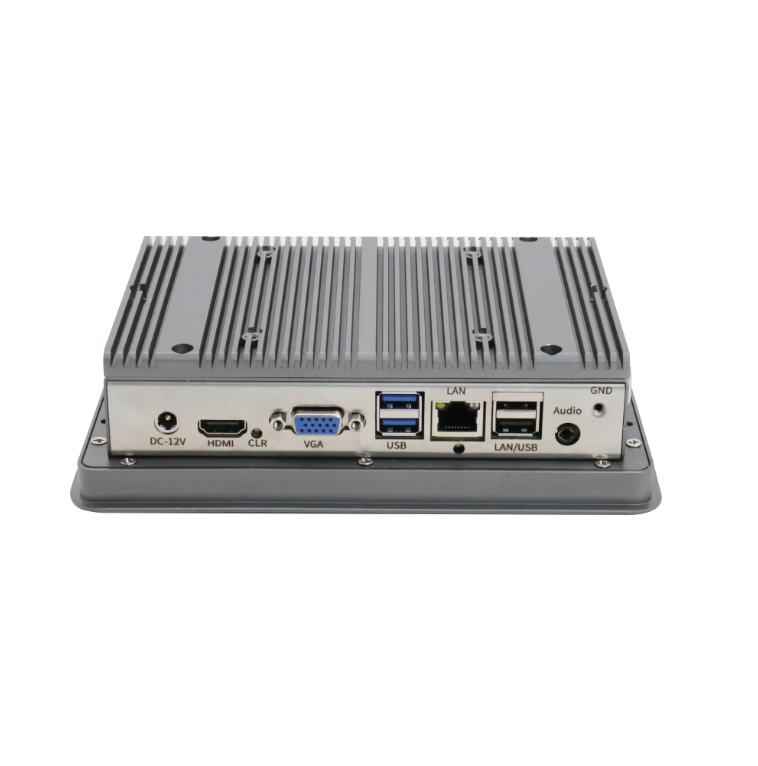

I/O Interfaces
Ethernet: 1× RJ45 (10/100Mbps).
USB: 2× USB 2.0 Host.
Serial: 2× RS232 (1× optional RS485).
Video: 1× HDMI output.
Audio: 3.5mm audio out.
Expansion: 1× Mini-PCIe (for 4G/Wi-Fi module).
Power: DC 9–30V input.
Mechanical & Environmental
Dimensions: 225.1 × 160.7 × 59mm.
Housing: Die-cast aluminum, black.
Cooling: Fanless, passive heat dissipation.
Operating Temp: -30°C ~ 70°C.
Storage Temp: -40°C ~ 80°C.
Humidity: 5%–95% RH (non-condensing).
IP Rating: Front panel IP65.
Applications
Industrial automation control panels
Smart factory HMI (Human-Machine Interface)
Logistics & warehouse terminals
Retail self-service kiosks
Medical equipment displays
Building automation systems
