SKU | VFACE-156 |
Screen Size | 15.6inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/m2 |
Contrast Ratio | 3000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |
Dimensions (mm) | 402.7*269.7*61.8 |
Mounting Hole Size (mm) | 389*258 |
Gross weight (kg) | 4.84 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |

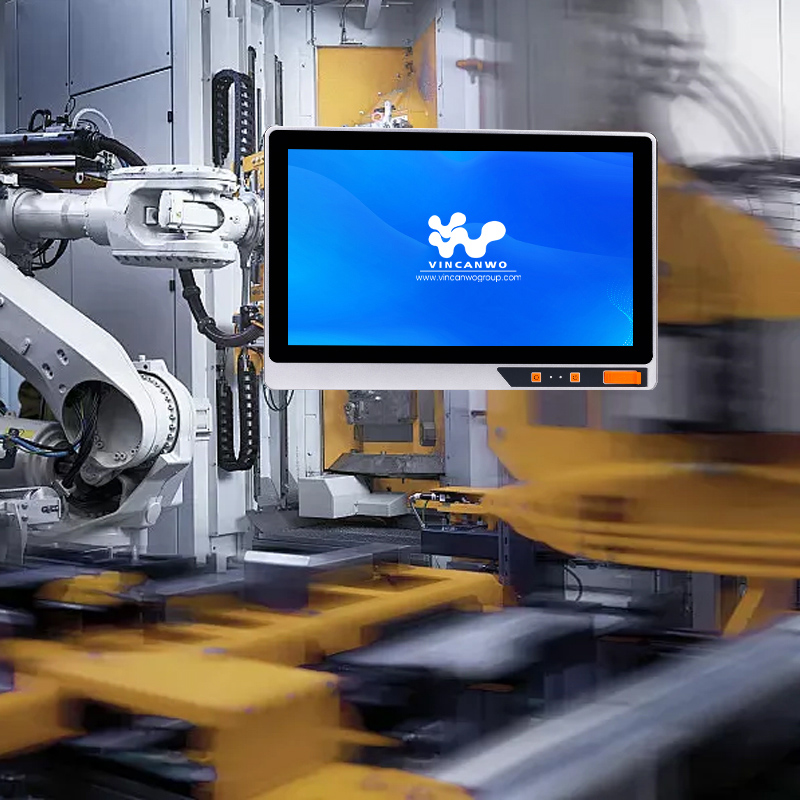

15.6 Inch Touchscreen Panel PC | VFACE-156
The VFACE-156 is a 15.6-inch industrial touchscreen panel PC. It adopts a fully enclosed fanless structure with an IP65 dustproof and waterproof front panel, delivering reliable stable performance under wide-temperature industrial environments. It is ideal for factory automation, production line monitoring, CNC equipment, intelligent logistics and other industrial application scenarios.
This panel PC features a 15.6-inch widescreen TFT-LCD display with full HD resolution. It comes standard with 10-point capacitive touch, with resistive touch optional for different operational demands. The ultra-slim flat aluminum front panel integrates a physical power button and front USB port, making on-site operation and equipment debugging more convenient.
It supports a full range of low-power Intel processors including Celeron and Core i3/i5/i7 options. With expandable DDR memory and SSD storage, the unit utilizes high-efficiency aluminum heat dissipation to achieve fanless, dust-proof and shock-proof operation.
Rich peripheral interfaces are configured onboard, including dual Gigabit Ethernet, multiple RS232/422/485 serial ports, USB 3.0/2.0, HDMI and VGA display outputs. Wi-Fi, Bluetooth and 4G module expansion are available. It supports DC 9V–36V wide voltage input to adapt to complex industrial power supply conditions.
