SKU | TPRO-SE8 |
Screen Size | 8" |
Resolution | 1024*768 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | 128G/256G/512G/1T |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485 and expansion to 5COMs) |
USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |
Dimensions (mm) | 234*187*52 |
Recommended size of holes openning (mm) | 228*181 |
Gross weight (kg) | 2.40kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) |

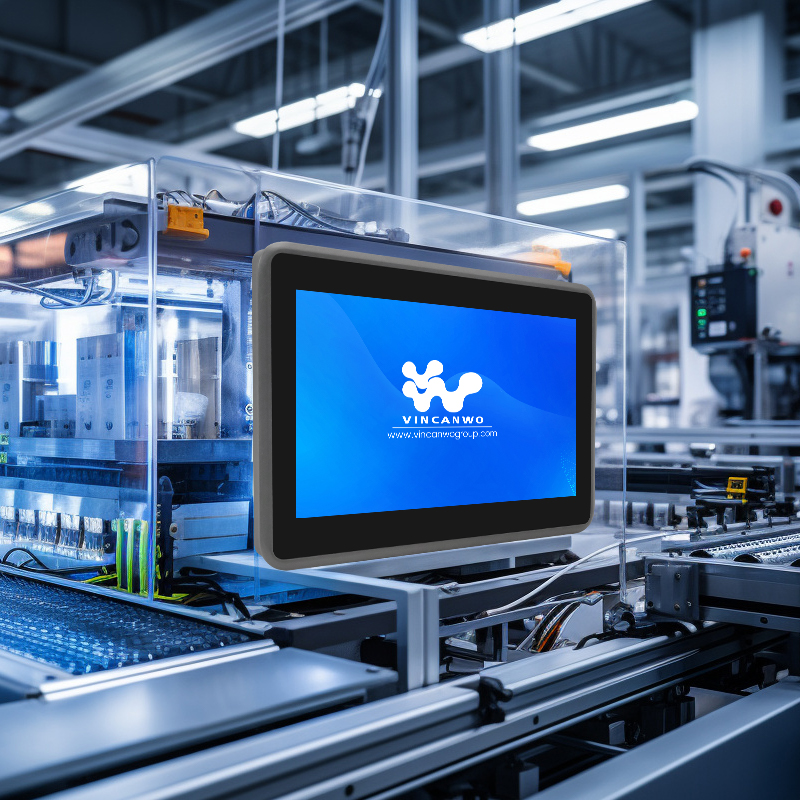

The TPRO-SE8 is an 8-inch fanless industrial all-in-one panel PC built for rugged industrial and commercial deployment, featuring an IP65 dust and waterproof front panel, low-power industrial processor, optional projected capacitive multi-touch or resistive touch, and wide temperature operation from -30°C to 70°C. With ultra-narrow bezel design, support for embedded, wall and VESA mounting, gigabit Ethernet, rich I/O including USB, RS232/RS485 and optional Wi-Fi/Bluetooth, it runs Windows IoT, Linux or Android OS, delivering stable 24/7 continuous operation, strong EMC anti-interference and full customisation on brightness, touch and interfaces for industrial automation, smart logistics, retail, smart building and IoT terminal applications.
Item | Specification |
Product Model | TPRO-SE8 |
Type | 8” Industrial All-In-One Panel PC |
Display Size | 8 inch Industrial LCD |
Aspect Ratio | 16:9 |
Resolution | 1024×768 (Optional 800×1280) |
Touch Screen | Projected Capacitive Multi-Touch / 4-Wire Resistive Touch (Optional) |
Standard Brightness | 300 cd/m² (High brightness optional) |
Cooling Design | Fanless, silent operation |
Processor | Industrial low-power embedded CPU |
Memory | Onboard DDR, configurable |
Storage | Onboard eMMC / Optional SSD |
Supported OS | Windows 10 IoT / Linux / Android |
Front Panel Rating | IP65 Dustproof & Waterproof |
Housing Material | Industrial metal enclosure, vibration & EMC resistant |
Mounting Method | Embedded flush mount / Wall mount / VESA mount |
Operating Temperature | -30°C ~ +70°C |
Network | Gigabit Ethernet; Wi-Fi / Bluetooth optional |
I/O Interface | USB ×2, RS232/RS485, HDMI, Audio, DC Power |
Power Supply | 12VDC Adapter and Power Cable, External Wide-range Voltage Power Input |
Continuous Operation | 24/7 non-stop stable running |
Application Scenarios | Industrial automation, smart logistics, retail, smart building, IoT control terminals |
Industrial factory automation control terminals
Production line HMI human-machine interface
Smart warehouse & logistics sorting control
Intelligent equipment embedded display & control
Retail self-service kiosks and ordering terminals
Smart building & building automation control panels
Smart access control & door entry management
Environmental monitoring and IoT control stations
Medical auxiliary display and bedside control terminals
Vending machine & automatic service equipment
Smart transportation and on-board industrial terminals
Workshop equipment monitoring & data acquisition terminals
