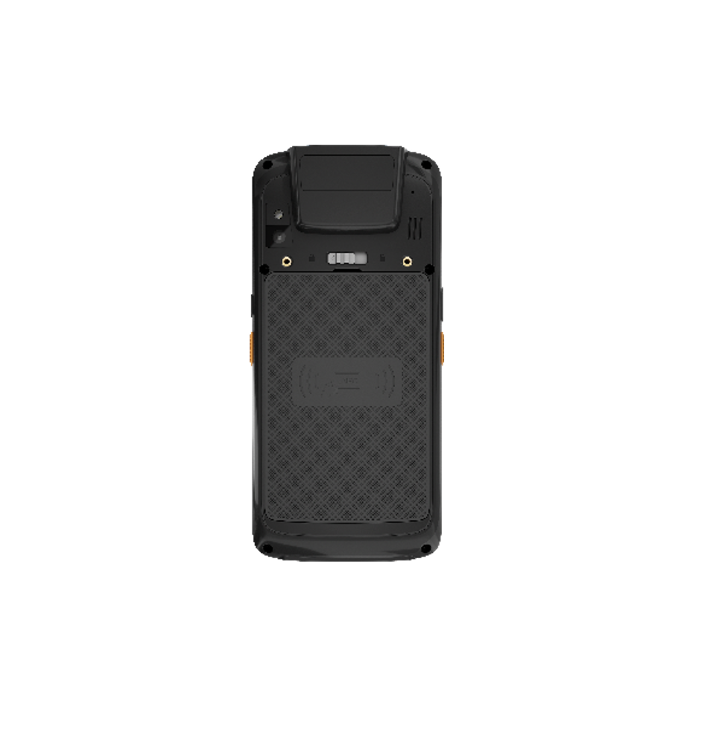

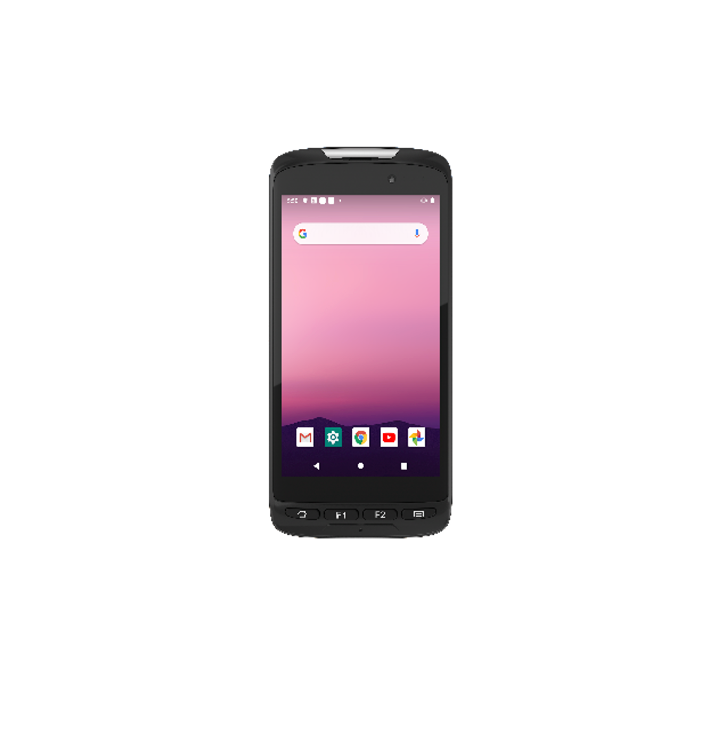

5" Rugged Android Handheld | T50

Model	T50
Performance Parameter	ARM OCTA Core CPU | Android 11 / 11 GMS 4GB RAM | 64GB ROM
Basic Parameter	Dimension	157.4 x 74.6 x 24.2 mm
	Weight	260 g
	Device Color	black
	LCD	5inch IPS 16:9, 720*1280, 350 nits
	Touch Panel	5 point capacitive, G+FF, Corning gorilla glass
	Camera	Front 5.0MP, Rear 13.0MP, Automatic focusing, PDAF support
	I/O	TF Card x 1, MAX 128GB SIM Card x 1 Micro USB 2.0 x 1 Pogo Pin (Base Charge) x 1 Φ3.5mm standard earphone jack x 1
	Power	AC100V ~ 240V, 50Hz/60Hz, DC 5V/2A
Battery	Capacity	3.8V/4000mAh
	Type	Removable polymer lithium battery
	Endurance	10.5hrs
Communication	GNSS	GPS, Glonass, Beidou(G+G+B)
	WIFI	2.4G+5G, WIFI 802.11(a/b/g/n/ac), Support AP seamless roaming
	Bluetooth	BT 5.0 LE, Transmission distance: 10m
	2G/3G/4G (Optional)	GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TDS: B34/B39 FDD: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20/B28AB TDD: B38/B39/B40/B41
	NFC	Built-in, 13.56MHz, Support ISO/IEC 14443A/B15693/18092/mifare protocols Card reading distance: 4cm
Reliability	Operate Temperature	-30 °C ~ 70 °C
	Store Temperature	-40 °C ~ 80 °C
	Humidity	95% Non-Condensing
	IP Grade	IP65
2D	Support	Optical resolution: 5mil/ scan speed: 50 times/s

Core Specifications & Ruggedization

Feature	T50 Specifications
Display	5" Sunlight-Readable IPS (1920×1080 FHD)
Brightness	1200 cd/m² (Dynamic Contrast Boost)
Touch Technology	Glove Projected Capacitive(Rain Mode + Stylus Support)
Processor	Qualcomm QCS6490 (8× Kryo 670, 3.0GHz)
Operating Temp	-30°C to +60°C (IP68 tested)
Ingress Protection	IP68 (2m/1hr waterproof), MIL-STD-810H
Drop Spec	3m to concrete (30+ drops)
Battery	12,000mAh Hot-Swappable(30+ hrs @ -20°C w/ heated battery)
Scanning	Zebra SE4850 UHD Imager(1D/2D/DPM @ 600 scans/sec) + UHF RFID (RAIN Gen2, 8m range)
Weight	580g (with battery)

---

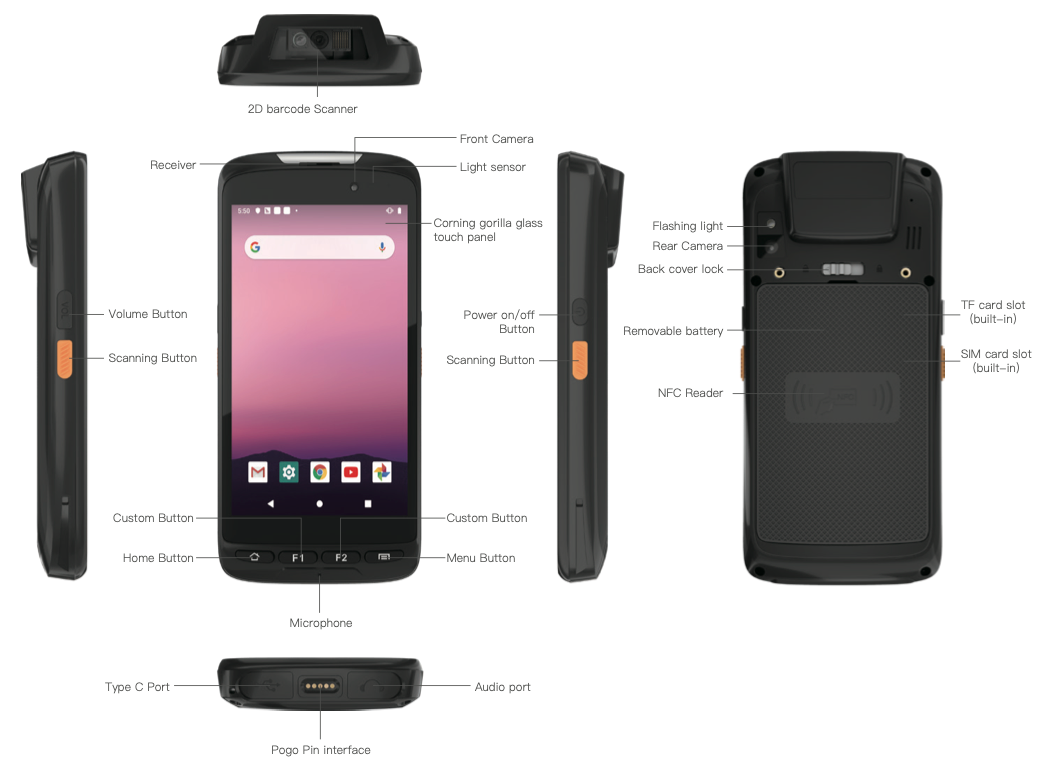

Product Six View

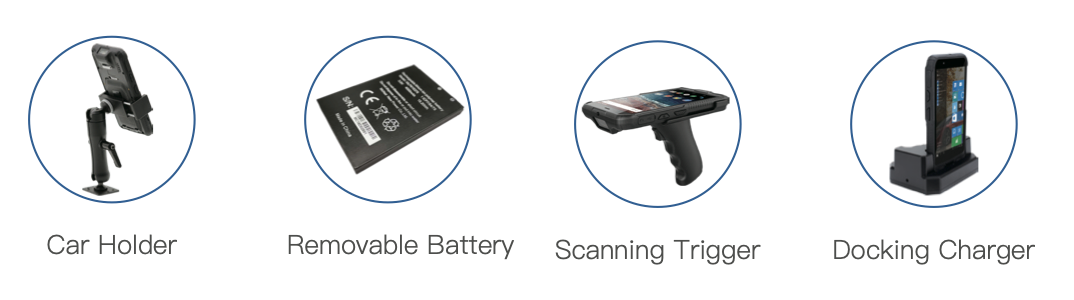

Accessoris

Key Rugged Features

1. Extreme Environment Engineering

• Chemical Resistance: Survives IPA, acetone, Skydrol (per MIL-STD-810H Method 504.3)

• Thermal Cycling: Validated -40°C to 70°C (100 cycles)

• Sealed Ports: Magnetic pogo-pin charging (IP68 when docked)

2. Field Productivity Enhancements

• Programmable Keys: 4× tactile buttons (EM1–EM4) + dedicated scan trigger

• Advanced Scanning: Ultra-Range Mode(reads 1D barcodes @ 18m), Motion Tolerance+ (2.5m/s)

• GNSS: Dual-band GPS/Galileo/GLONASS + Dead Reckoning (w/ IMU backup)

3. Power & Charging

• Hot-Swap Batteries: Supercapacitor buffer for zero-downtime swaps

• Rapid Charging: 45W USB-PD (80% in 35 min) + Qi Wireless (15W)

---

Industrial Connectivity

Interface	Field Use Case
Wireless	5G mmWave (Snapdragon X65), Wi-Fi 6E, Bluetooth 5.3
Field Protocols	OPC UA ECC, MQTT Sparkplug B, Modbus/TCP
Expansion	Smart Accessory Connector(USB-C alt mode for serial/GPIO)
Sensors	-40°C IR thermometer, 0.1% RH hygrometer, 3-axis vibration sensor

---

Target Applications

• Cold Chain Logistics: FDA-compliant temperature logging (21 CFR Part 11)

• Mining/Surveying: Underground asset tracking (BLE beacons + UHF RFID)

• Aerospace MRO: Engine part scanning (FAA AC 120-72B compliance)

• Utility Grids: NERC-CIP audit documentation with GPS-tagged photos

---

Rugged Comparison: T50 vs. Consumer Tablets

Parameter	Consumer Tablet	T50 Rugged Handheld
Display Brightness	500 cd/m²	1200 cd/m²
Operating Temp	0°C to 40°C	-30°C to 60°C
Scanning Speed	2 scans/sec (camera-based)	5 scans/sec(dedicated imager)
Battery Swapping	Not supported	<2 sec hot-swap

Deployment Best Practices

1. Environmental Hardening

• Drop Recovery: Calibrate IMU shock sensorsafter 20+ drops (replace bumper if G-force >300G)

• Decontamination: Autoclave-compatible up to 135°C (use Parker Hannifin PRD-440 seals)

2. Battery Management

• Arctic Ops: Enable Battery Heater Modebelow -15°C (consumes 15% extra power)

• Storage: Keep at 40% SOC in Faraday bagsfor EMP protection

3. Scanning Optimization

• Reflective Labels: Activate Polarized Illuminator (reduces glare 90%)

• Low-Light Ops: Use 650nm red LED for eye-safe night scanning
