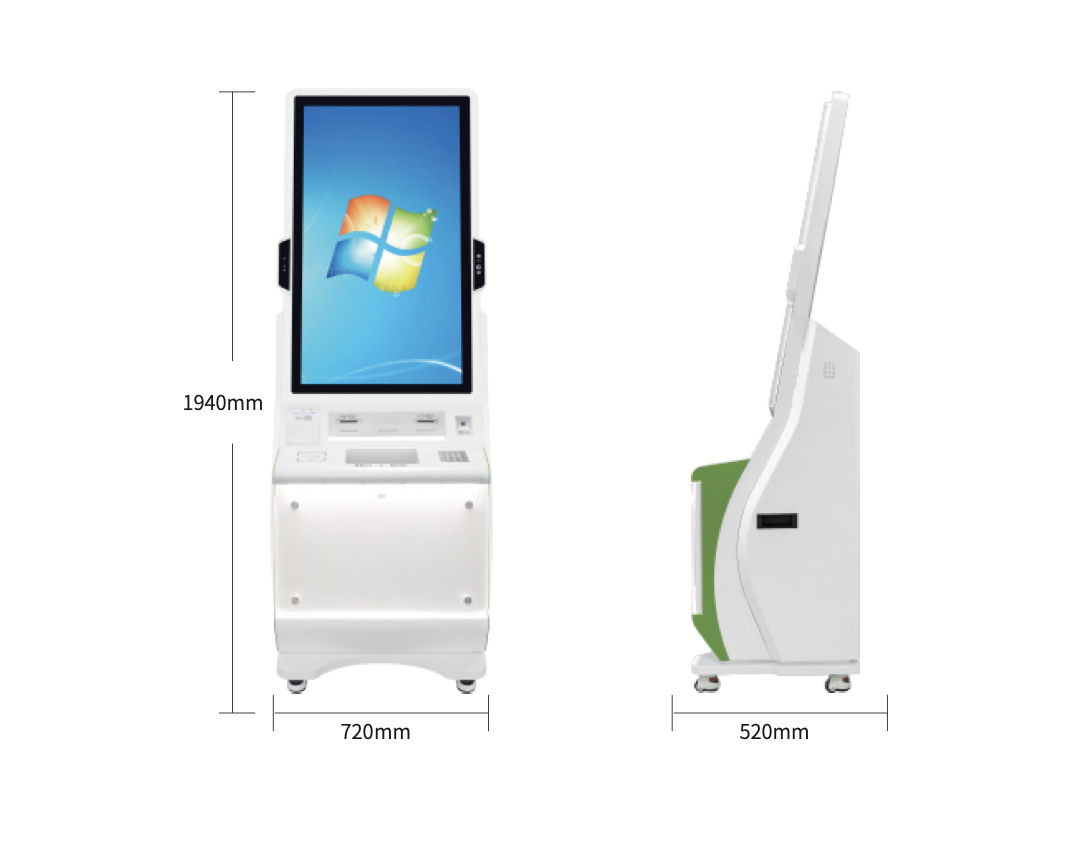

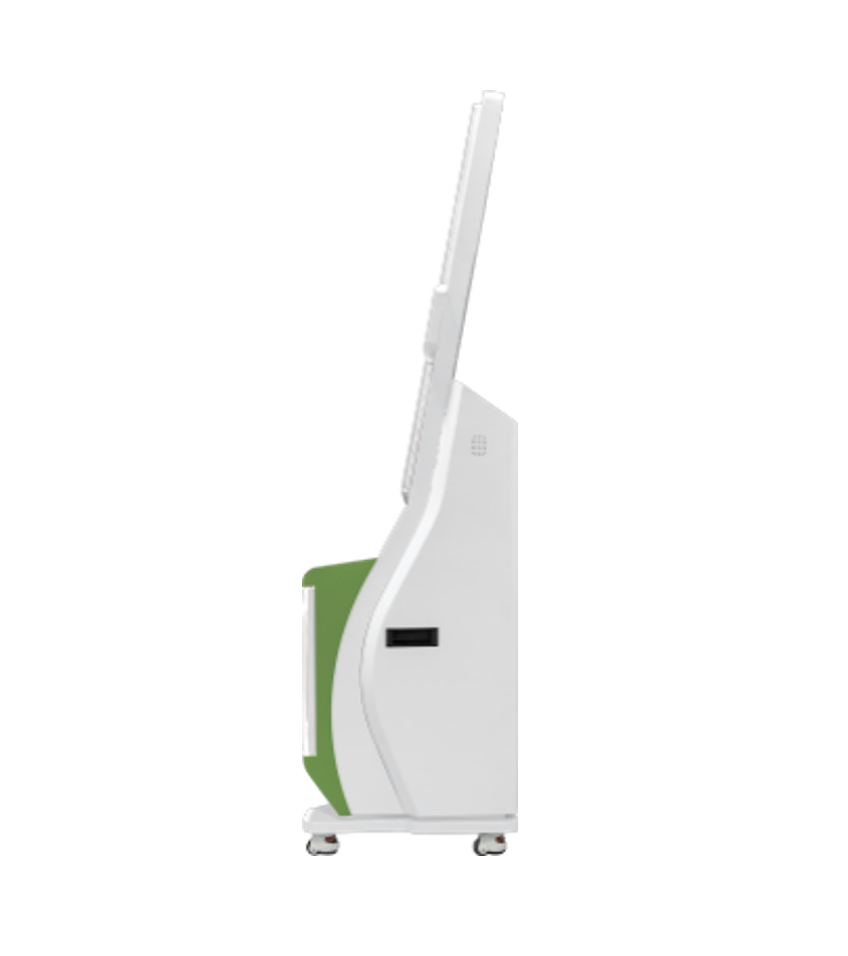

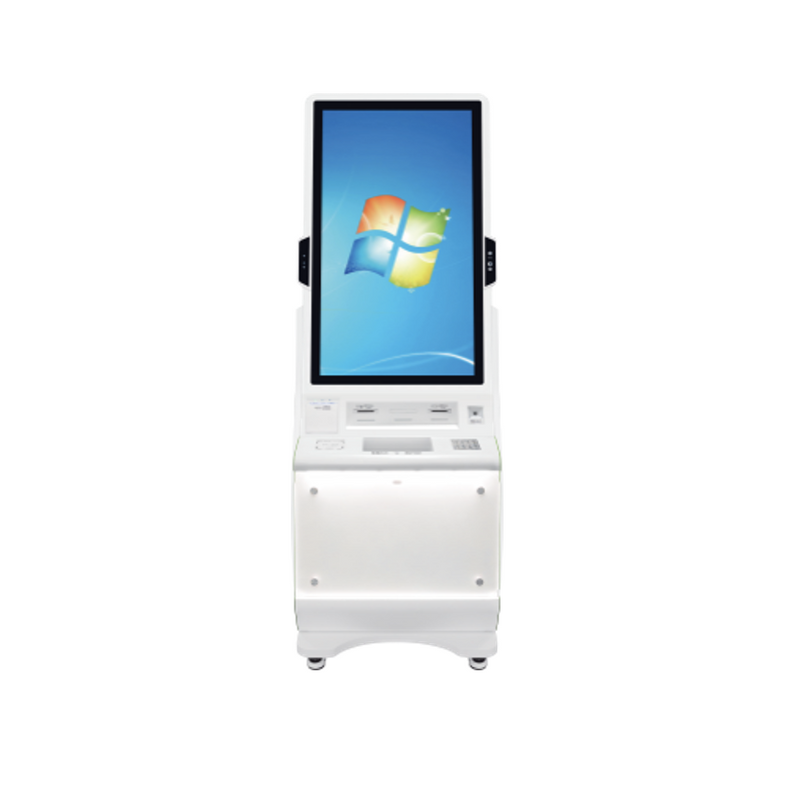

43inch Curved Screen Self-service Terminal | UIKC-430

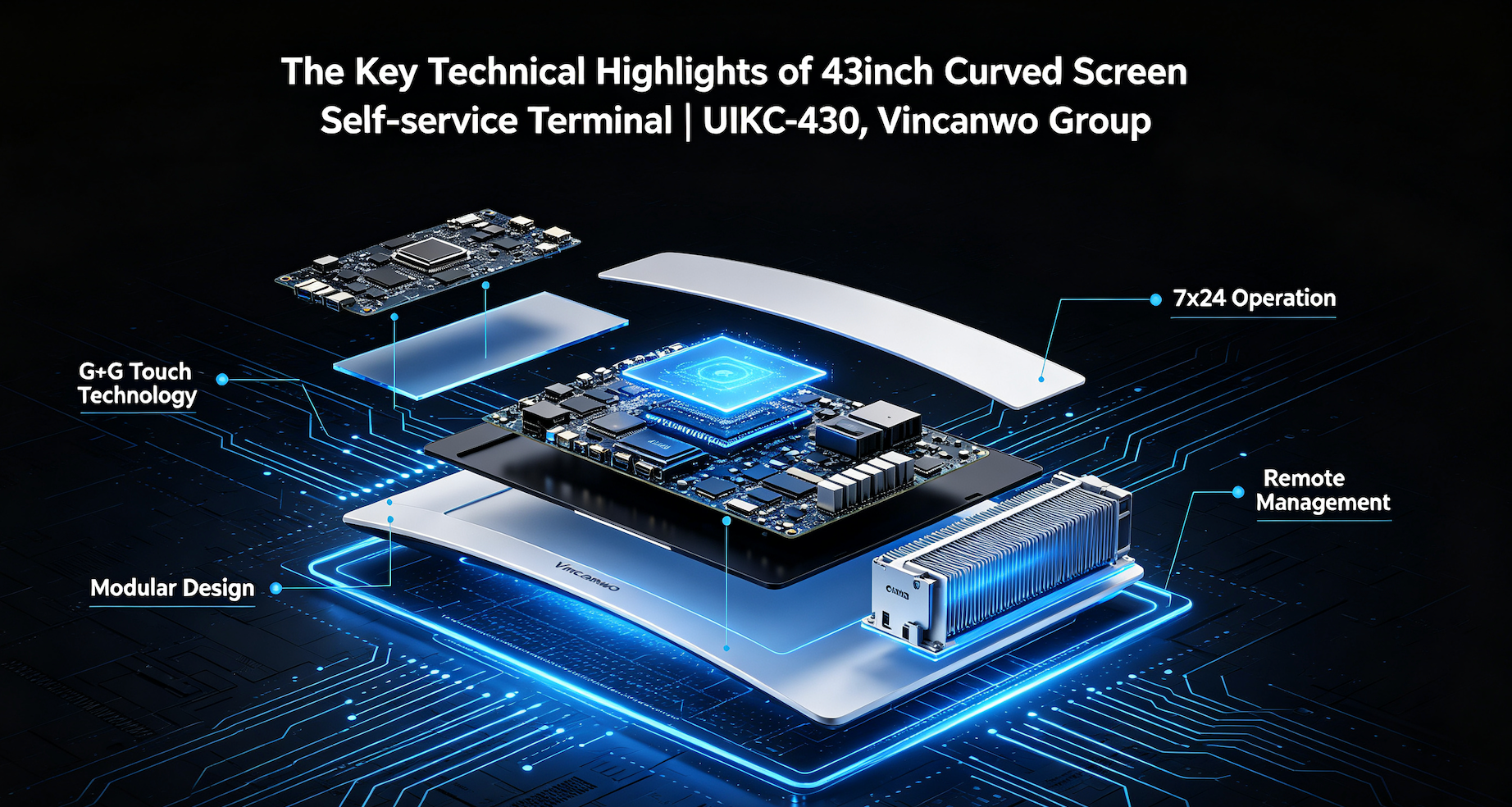

The UIKC-430 43-inch curved screen self-service terminal launched by Vincanwo Group integrates advanced display technology, high-performance hardware architecture, human-centric interactive design and industrial-grade stable structure. It is tailored for 24-hour unmanned self-service scenarios in public and commercial fields. Its core technical highlights are summarized as follows:

1. Immersive Curved Display & High-precision Touch Interaction Technology

This terminal adopts a customized 43-inch curved screen with a professional 1500R curvature, which perfectly fits the human eye’s natural viewing perspective and delivers an immersive visual experience far superior to traditional flat screens. Equipped with 16:9 ultra-wide viewing ratio and 1920×1080 Full HD resolution (4K ultra-high-definition optional), it supports 16.7 million color gamut restoration, presenting delicate and realistic image details. With a 178° ultra-wide full viewing angle, it eliminates color distortion and blurred display from all viewing directions, ensuring clear content recognition in complex lighting environments.

In terms of touch interaction, it adopts industrial-grade G+G projected capacitive multi-touch technology, supporting 10-point simultaneous touch. The touch response speed is less than 5ms, enabling smooth zooming, sliding and other interactive operations. The screen surface is covered with Mohs 7-level explosion-proof tempered glass, which can withstand more than 50 million effective clicks, featuring excellent scratch resistance, wear resistance and impact resistance. It also has strong anti-light interference capability, maintaining stable and sensitive touch response under strong sunlight and indoor highlight conditions, fully adapting to high-frequency public scene use.

2. High-performance Industrial Hardware with Stable Continuous Operation

Powered by 12th-generation Intel Alder Lake N series industrial processors (Core i3-N305 / N97 optional), the terminal achieves a maximum main frequency of 3.8GHz, delivering fast computing and response capabilities. It is configured with DDR4 high-speed memory (8GB/16GB optional) and wide-range storage (128GB to 1TB SSD), which efficiently supports multi-task concurrent operation, completely avoiding stuttering and delay during peak user traffic periods.

Different from ordinary consumer-grade equipment, it adopts a full fanless passive heat dissipation solution, which eliminates fan noise, dust accumulation and mechanical failure risks. This design enables the terminal to support 7×24-hour uninterrupted stable operation, meeting the long-term unmanned service requirements of airports, hospitals, government halls and other key scenarios. It supports dual operating systems of Windows (Windows 10 IoT/11 IoT/11 Pro) and Linux, with strong system compatibility and operational stability.

3. Industrial-grade Protective Structure & Integrated Molding Design

The terminal features an integrated one-piece molding structure with a high-strength plastic enclosure, and its front bezel reaches IP54 industrial protection level, effectively resisting dust infiltration and liquid splashing. It adapts to a wide temperature and humidity environment, with a working temperature range of 0°C to 40°C and storage temperature of -20°C to 60°C, and supports 20%-85% non-condensing humidity operation, ensuring stable performance in complex indoor environments.

The overall structure adopts modular integrated design, with standardized internal wiring and independent power supply isolation structure. It is equipped with professional strong electricity insulation and anti-leakage measures and separate strong and weak current wiring technology, which greatly improves electrical safety. Meanwhile, it supports VESA 75/100 standard mounting, with flexible installation methods and high structural compatibility.

4. Rich Expandable Interfaces & Customized Functional Modularity

UIKC-430 reserves comprehensive high-speed expansion interfaces, including 1×USB3.2 Type-C (supports DP1.4A protocol), 2×USB3.0, 4×USB2.0, 3×RJ48 COM serial ports, RJ11 interface and dedicated 4-pole latching DIN power supply port, covering all mainstream peripheral connection requirements. It is built with an independent M.2 2280 expansion slot and a dedicated functional expansion board slot, supporting expanded 12V/24V powered USB and isolated LAN modules.

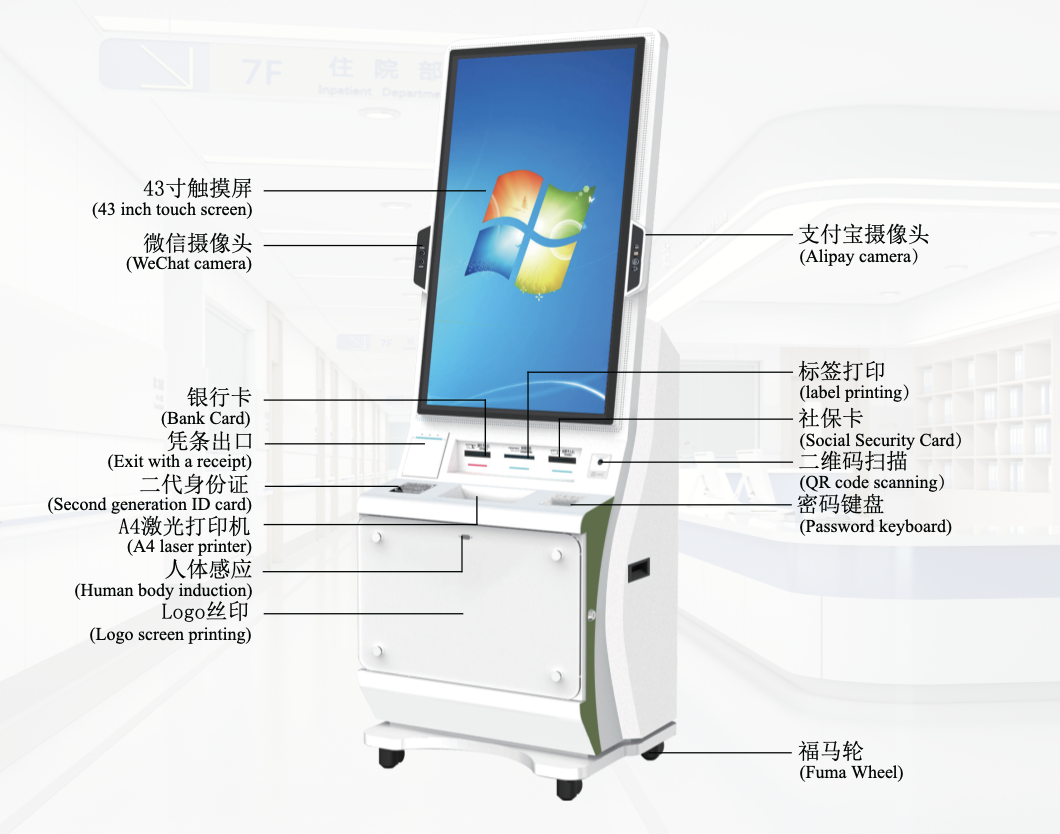

Functionally, it supports highly customized module expansion, optional 5MP high-definition face recognition camera, high-capacity paper box printing module, ID card reader, scanner and POS payment module, realizing one-stop self-service processes such as information query, identity verification, payment and ticket printing. In addition, it supports customized UI interfaces, equipment colors and multi-language systems, and can be adapted to industry-specific software such as hospital HIS systems and catering ordering systems, meeting personalized scenario demands.

5. Low Power Consumption & Intelligent Remote Operation and Maintenance

Adopting energy-saving LED backlight technology, the terminal has ultra-low operating power consumption, with standby power consumption as low as 0.8W and a backlight service life of more than 50,000 hours, greatly reducing long-term energy consumption and equipment replacement costs. The modular disassembly and assembly design simplifies parts replacement and daily maintenance, effectively lowering post-operation and maintenance costs.

It supports intelligent remote management functions, including real-time online status monitoring, remote equipment restart, system upgrade, volume adjustment and timed switch setting. It also supports breakpoint resume transmission for program updates, avoiding repeated downloads and improving maintenance efficiency. The 24-hour unmanned intelligent operation mode effectively reduces manual intervention and labor costs while improving service efficiency.

6. Wireless High-speed Connection & Multimedia Adaptation

The terminal is optional with WiFi 6E and Bluetooth 5.2 high-speed wireless modules, realizing stable and high-speed network transmission and wireless device pairing. Built-in high-fidelity 3W speakers, it supports voice broadcast and audio prompt functions, matching visual interaction to form a multi-dimensional human-computer interaction system, optimizing the overall user operation experience.

The UIKC-430 43-inch curved screen self-service terminal is a human-centric, industrial-grade interactive device developed by Vincanwo Group. Featuring immersive curved display, ultra-smooth multi-touch interaction, 7×24-hour stable operation and highly customizable functional modules, it is widely applied in public service, commercial retail, transportation, medical care, hospitality and smart venue scenarios. It effectively replaces manual service links, improves service efficiency and user experience, and realizes standardized, intelligent and unmanned service management. Its main application fields are detailed as follows:

1. Government & Public Service Halls

In government service centers, community service halls and public institution offices, the UIKC-430 serves as an all-in-one self-service service terminal. It supports self-service information inquiry, business declaration, form printing, certificate inquiry and service appointment. The large curved screen provides clear and user-friendly operation guidance, reducing queuing pressure and manual consultation workload. With stable long-term operation performance and public-oriented interactive design, it helps build unmanned, efficient and standardized smart public service platforms.

2. Transportation Hub Scenarios

Widely deployed in airports, railway stations, subway stations and highway service areas, the terminal is used for ticket inquiry, itinerary checking, passenger service consultation, station navigation and public notice display. Its anti-glare screen and sensitive touch response adapt to high-flow and complex lighting environments in transportation hubs. The industrial-grade stable structure can adapt to long-term high-frequency operation, providing passengers with convenient 24-hour self-service and alleviating the service pressure of on-site staff.

3. Hospital & Medical Institutions

In general hospitals, specialized hospitals and community medical centers, the UIKC-430 supports medical self-service processes including registration, appointment inquiry, medical report printing, expense inquiry and payment settlement. The immersive curved display optimizes the operation experience for the elderly and patients, while the dust-proof and stable hardware design meets the long-term continuous operation requirements of medical environments. It simplifies medical service procedures, shortens patient waiting time and improves the intelligent service level of medical institutions.

4. Commercial Retail & Shopping Malls

In shopping malls, brand chain stores, supermarkets and commercial complexes, the terminal acts as a smart shopping guide and interactive marketing device. It supports store navigation, commodity inquiry, preferential activity display, member point inquiry and self-service order checking. The high-definition curved screen delivers stunning visual display effects, helping merchants release promotional content in real time, enhance store brand image, and create an interactive and intelligent shopping atmosphere to boost customer consumption willingness.

5. Hotel, Catering & Hospitality Industry

Suitable for high-end hotels, chain restaurants and scenic spot reception centers, the terminal realizes self-service check-in and check-out, room service inquiry, catering ordering, scenic spot ticket booking and travel strategy inquiry. The humanized interactive interface simplifies guest operation steps, reduces front desk manual service pressure, and improves the overall service efficiency and intelligent grade of hotels and catering venues.

6. Smart Park & Campus Venues

In industrial parks, office parks and university campuses, the UIKC-430 is applied for visitor registration, access inquiry, park navigation, campus notice release and daily service handling. It standardizes visitor management, realizes unmanned reception services, and provides convenient information inquiry channels for park employees, teachers and students, greatly improving the refined management level of smart parks and smart campuses.

7. Exhibition & Cultural Venues

For exhibition centers, museums, science and technology museums and cultural exhibition halls, the terminal serves as an intelligent exhibition and explanation device. It supports exhibition introduction, cultural knowledge popularization, exhibition area navigation and interactive experience. The curved immersive display enhances the viewing and interactive experience of exhibitions, realizing innovative and intelligent exhibition display modes and enriching the audience’s visiting experience.
