UIKC-320
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | UIKC-320 | |
Primary Components | Processor Family | Intel Celeron or Core I series 12th Generation Alder Lake N |
Processor Model | Core i3-N305, Intel Processor N97 | |
Processor Speed | Up to 3.6 GHz, Up to 3.8 GHz | |
Memory Type | 1x DDR4 SO-DIMM | |
Memory Support | 8GB, 16GB | |
Storage Support | 128GB-1TB | |
Display | Screen Size | 32” |
Resolution | 2560x1440 | |
Screen Ratio | 16:9 | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports | USB | 1x USB 3.2 Type-C (DP 1.4A), 2x USB 3.0, 4x USB 2.0 |
Serial / Com | 3x RJ48 COM | |
Serial Protocol Detail | RS232 | |
Video Outputs | 1x DisplayPort via USB-C Alt Mode | |
Other Ports | 1x RJ11 | |
Power Input Port | 4-Pole DIN (latching) | |
Power | Input Voltage Range | 12-48V DC |
Standard Power Adapter | 19Vdc, 3.42A, 65W US AC | |
Operating Systems | Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
Linux | Linux | |
Expansion Slots | Internal M.2 | 1x M.2 2280 M-Key for NVMe or SATA SSD |
Expansion Module support | 1x Expansion Board Slot with Options for Powered USB (2x 12V, 1x 24V) and Isolated LAN (1x RJ45, 1x DB9 COM) | |
Multimedia | Speakers | 1x 3W Speaker |
Camera | Optional 5MP Webcam | |
Thermal & Environmental | Operating Temperature | -10°C ~ +50°C |
Storage Temperature | 20°C - 60°C | |
Cooling Solution | Passive – Fanless | |
Humidity Range | 20% – 85% Non-condensing | |
Enclosure | Material | Steel Chassis |
IP Rating | IP54 Front Bezel | |
Color | White, Black or customized colors | |
LED Indicator Light | Power | |
Control Buttons | Power Button | |
Mounting Options | VESA 1000 mount, vESA 75 Mount, Stand | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi 6E |
Bluetooth | Optional Bluetooth 5.2 | |

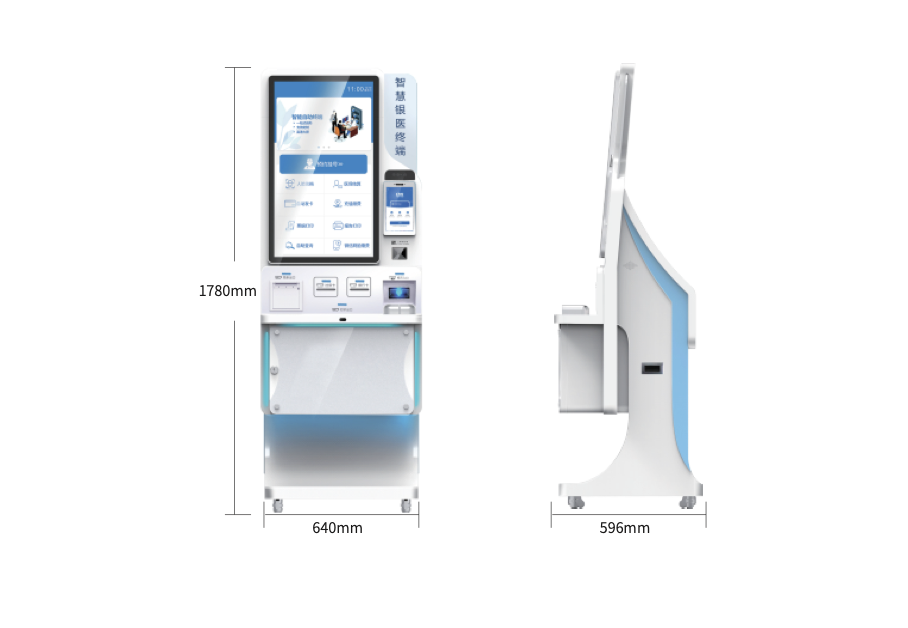

Weight / Dimensions | Dimensions | 640x596x1780 mm |
Certification | Certifications | CE, RoHS, LVD, FCC |
1,Streamline Medical Insurance Services and Improve Efficiency
One - stop service coverage: It integrates a full range of medical insurance - related functions including appointment, registration, medical insurance settlement, payment, and medical report printing. Patients can handle all necessary procedures independently through the terminal without queuing at multiple windows, which significantly shortens their waiting time.
24/7 uninterrupted operation: Adopting an industrial - grade low - power mainboard, the terminal supports round - the - clock continuous operation and is equipped with a scheduled automatic on/off function. This enables patients to handle medical insurance business at any time, which is especially convenient for those who seek medical treatment outside of regular working hours.
2,User - Friendly Operation and Wide Adaptability
Easy - to - use interaction methods: The 32 - inch large - size LCD touch screen provides a clear display interface. The functional layout is in line with ergonomic principles, allowing even the elderly who are not familiar with intelligent devices to operate it easily. In addition, it supports AI voice guidance and face recognition login, and can also read ID cards and electronic medical insurance certificates quickly, realizing contactless medical treatment and lowering the operation threshold for users.
Customizable functional modules: The terminal can be customized for functional modules and UI interface styles according to the actual needs of medical institutions such as hospitals or medical insurance halls. For example, it can add targeted service functions according to the characteristics of the institution's business volume and user groups.
3, Stable and Reliable Operation with Strong Durability
Excellent hardware configuration: Equipped with an Intel Core i5 processor with a main frequency of no less than 3.3GHz, along with no less than 8G of memory and 256G of solid - state hard disk. This configuration ensures smooth operation of the terminal without lag when dealing with concurrent businesses or running complex service programs.
Easy maintenance and long service life: It adopts an overall front - maintenance design. The standard thermal printer is equipped with an easy paper loading and anti - paper jam mechanism, which simplifies the daily maintenance process for staff. Meanwhile, the industrial - grade hardware components and power - saving design help extend the service life of the equipment and reduce the frequency of failures.
4, Strong System Compatibility and High Data Security
Seamless connection with hospital systems: It has passed the national medical and health information interconnection level 4A certification, and is pre - installed with standard interfaces for 12 mainstream HIS manufacturers including Wanda, Neusoft, and Donghua. It also uses original API intelligent routing technology, which shortens the system docking cycle to 3 days and avoids data isolation problems.
Comprehensive data security protection: The terminal has obtained the third - level equal protection certification. It adopts encrypted transmission technology for user identity information and medical insurance transaction data. This effectively prevents the leakage of sensitive information such as patients' personal and medical records, and guarantees the security of users' medical insurance rights and interests and information privacy.
5, Reduce Operational Costs for Medical Institutions
It can take over most of the counter - handled businesses such as registration and payment, which reduces the demand for manual window staff in medical institutions and lowers labor costs. Moreover, the terminal has a stable operation performance and fewer failures. Coupled with a spare parts warehouse with sufficient core components and efficient after - sales services such as 7×24 - hour on - site engineers and AR remote guidance, it minimizes the loss caused by equipment downtime to the operation of the institution.

Key Applications:
Hospitals, telecommunications service halls, rail transit, airports, banks, hotels, scenic spots, schools, factories, self-service service halls.
