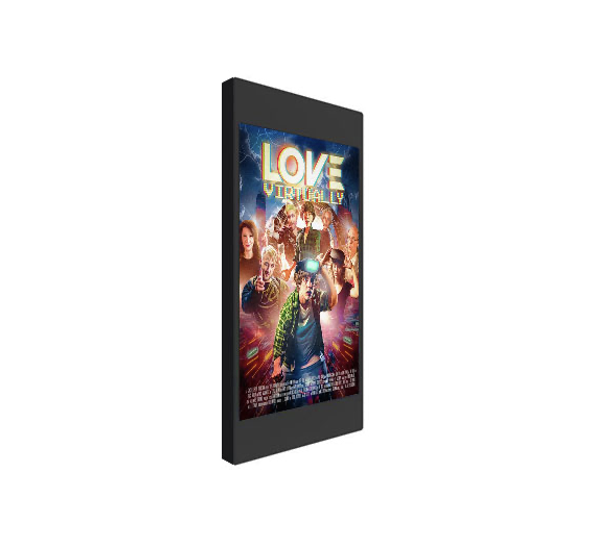

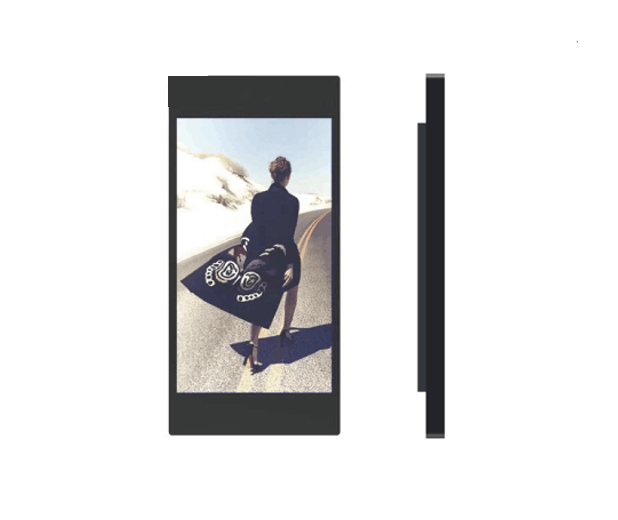

Outdoor Wall Mounted Digital Display | V200
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| Panels | ||||
Panel Size | 43″/49″/55″/65″/75″/86″/98″ | |||
Panel Type | LCD | |||
Resolution | 1080*1920/2160*3840 | |||
Brightness(nits) | 2000~4000 nits | |||
Contrast Ratio | 1200:1/3000:1 | |||
Operating Life (hours) | 50000~60000 | |||
Orientation | Portrait | |||
Installation | Wall Mounted/Hanging | |||
| Touch Screen | ||||
Touch Type | Capacitive Touch | |||
Number of Touch Points | 10~40 | |||
Interface | USB | |||
| Environment | ||||
Operating Environment | Outdoor | |||
Operating Temperature | -30°C~70°C | |||
Storage Temperature | -40°C~80°C | |||
Humidity | 10%~1000% RH Non-condensing | |||
| Media Connectivity | ||||
Operating System | Driver Board Version | Standalone Version | Android Version | Windows Version |
Interface | HDMI, VGA, DVI | HDMI, USB | HDMI, USB | HDMI, VGA, USB |
Ram | None | 16G |
| 4G+128G ~ 32G+512G |
| Optional Configurations | ||||
Custom Colors | Yes | |||
Touch Screen | Yes | |||
Wifi Access Point | Yes | |||
| Enclosure | ||||
Dustproof & Waterproof | IP55 / IP65 | |||
Glass Type | IK10 Anti-reflective Glass | |||
"Outdoor Wall Mounted Digital Display | V200", this describes a high-brightness, weatherproof digital signage solution engineered for 24/7 operation in extreme outdoor environments. Below are the technical specifications, deployment insights, and industry benchmarks:
| Feature | V200 Specifications |
|---|---|
| Display Type | 43"– 98" LCD Direct-View |
| Brightness | 2,000–2,500 nits(sunlight-readable) |
| Resolution | 1920×1080 (FHD) to 3840×2160 (4K) |
| Viewing Angle | 178° H/V (IPS technology) |
| Operating Temp | -30°C to +70°C (active heating/cooling) |
| Ingress Protection | IP55/65 (dust-tight, waterproof) |
| Vandal Resistance | 8mm tempered glass + anti-glare coating |
| Power Consumption | 300–700W (depending on size/brightness) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Mounting | Aluminum wall bracket (VESA 600×400/800×400) |
Environmental Resilience
Heating/Cooling System: Thermostatically controlled (-20°C heater, +45°C fans)
Corrosion Resistance: 6063-T5 aluminum chassis with powder coating (salt spray tested per ASTM B117)
UV Protection: Polycarbonate layer prevents yellowing
Optical Enhancements
Auto-Dimming Sensor: Adjusts brightness (0–100%) based on ambient light (200–100,000 lux)
Optical Bonding: Eliminates air gaps → reduces fogging + boosts contrast by 40%
Rain-Sensing Mode: Boosts brightness during precipitation
Connectivity & Control
Inputs: HDMI 2.0 (4K@60Hz), DisplayPort 1.4, SDI (broadcast), RJ45
Remote Management: SNMP, HTTP/HTTPS API, 4G/5G cellular backup
Content Scheduling: Cloud-based CMS (BrightSign, Scala compatible)
Transportation: Bus/train timetable displays (EN 50155 certified)
Retail: Drive-thru menu boards, shopping mall promos
Public Safety: Emergency alert systems (CAP protocol support)
Smart Cities: Traffic/parking guidance, air quality dashboards
| Requirement | V200 Solution |
|---|---|
| Sunlight Readability | ≥2,500 nits + optical bonding |
| Weatherproofing | IP66/IP67 + conformal-coated PCBs |
| Wind Load Resistance | 150 km/h (with reinforced bracket) |
| Thermal Range | -40°C cold-start capability |
| Certifications | UL 60950, RoHS, ETL, ISO 14001 |
| Component | Energy-Saving Tech | Annual Savings* |
|---|---|---|
| LED Drivers | Constant current PWM dimming | 15–20% vs. analog |
| Thermal System | Geothermal heat pipes (passive cooling) | 30% cooling energy |
| Dark Mode Scheduling | Auto-sleep (0–5% brightness at night) | $120/unit/year |
| *Based on 24/7 operation @ $0.12/kWh |
Structural Safety
Use 316 stainless steel anchors for coastal/high-corrosion zones
Calculate wind load torque:
Force (N) = Display Area (m²) × Wind Pressure (Pa) (e.g., 2m² × 800Pa = 1,600N → M12 bolts required)
Electrical Protection
Install Type 2 surge arrestors (IEC 61643-11) on power/data lines
Use IGBT-based voltage regulators for brownout protection
Maintenance
Seal cable glands with silicone paste (annual reapplication)
Clean surfaces with soft cloth (never abrasive cleaners)
| Challenge | Commercial Display | V200 Industrial |
|---|---|---|
| Temperature | 0°C to 40°C | -40°C to 50°C |
| Humidity | 80% RH non-condensing | 100% RH condensing |
| Brightness | 350–500 nits | 2,500+ nits |
| Vandalism | Acrylic front (scratch-prone) | 8mm tempered glass |
| MTBF | ≤30,000 hours | ≥100,000 hours |
