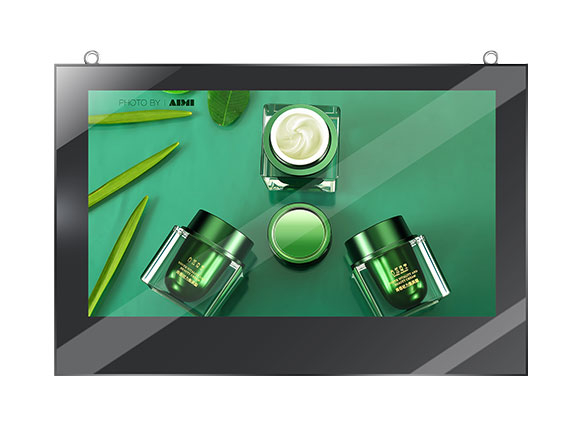

"Full Glass" Design Philosophy:
Bezel-Less Front: Tempered glass extends edge-to-edge (<2mm bezel), creating a sleek "floating" visual effect.
Material: Chemically strengthened tempered glass (5-8mm thickness) with anti-reflective (AR) + anti-glare (AG) coating.
Seamless Surface: No metal frame interrupting the viewing area; glass is bonded directly to the display panel.
Aesthetic Impact: Ideal for military, retail, corporate campuses, high-end hospitality.
Enhanced Outdoor Performance:
Brightness: ≥ 3,000 nits (typically 3,500–5,500 nits) – Higher than V100 for harsher sunlight.
Contrast Ratio: ≥ 5,000:1 (with dynamic backlight control).
IP Rating: IP66 (dust-tight, powerful water jets) or IP69K (resists high-pressure/steam cleaning).
Temperature Range: -30°C to 60°C (with wider options like -40°C to 70°C).
Heating System: Advanced adaptive heaters(rear + edge) with frost sensors for rapid cold-start.
Ruggedized Construction:
Enclosure: Marine-grade stainless steel/aluminum with corrosion-resistant coating.
Impact Resistance: IK08/IK10-rated tempered glass (withstands 20J+ impacts).
Sunhood: Integrated retractable hood (automatic or manual).
"Maintenance-Free" Features:
Fanless Cooling: Passive thermal management via heatsink chassis.
Solid-State Storage: 64GB–256GB eMMC + microSD slot (no HDDs).
Remote Diagnostics: Cloud-based monitoring (power usage, temp, brightness, pixel health).
Auto-Brightness: 0–5,500 nits adjustment via ambient light sensor.
Connectivity & Hardware:
HDMI 2.0 (with loop-out)
2x GbE (PoE++ optional)
USB 3.0 (IP67-rated sealed connectors)
RS-232/485 for legacy devices
Processor: ARM Cortex-A76/A78 (e.g., Rockchip RK3588) or Intel® Celeron N5105.
OS: Android 12/13, Linux (Yocto/Ubuntu), or proprietary RTOS.
I/O (Weatherproof):
Wireless: Wi-Fi 6, Bluetooth 5.2, 5G/4G (optional).
Audio: 2x 20W speakers (IP65-rated grilles).
Mounting & Security:
VESA: Heavy-duty 600x400mm or 800x400mm bracket.
Anti-Vandal: Tamper-proof Torx/Tamper-Resistant screws, internal motion sensors.
Theft Deterrence: Kensington lock + GPS tracking module (optional).
Luxury Retail: Boutique storefronts, high-end mall directories.
Corporate HQs: Architectural wayfinding, brand showcases.
Smart City Hubs: Premium public info kiosks, tourist centers.
Stadiums & Resorts: VIP entry displays, outdoor event guides.
Transportation: Airport premium lounges, ferry terminals.

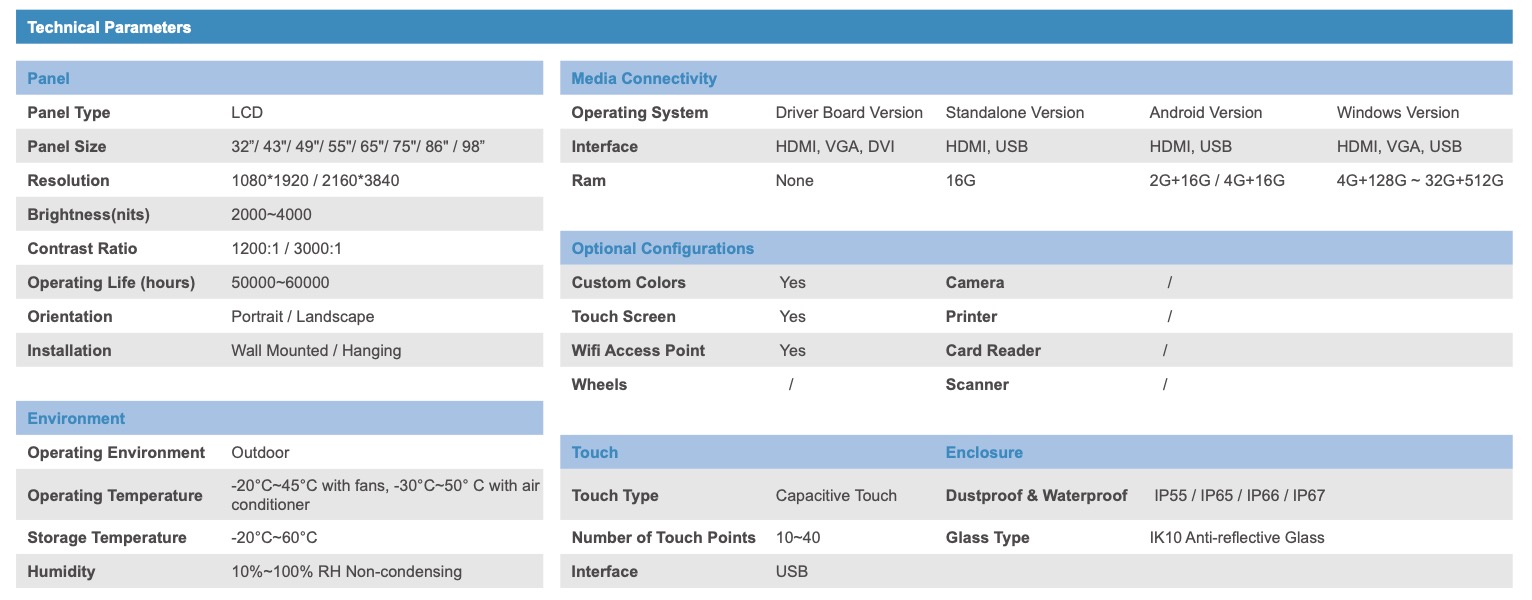

Critical Selection Checklist
| Factor | V130 Requirement |
|---|---|
| Brightness | ≥ 3,500 nits (direct sun) / ≥ 2,000 nits (shade) |
| Glass Durability | IK10 rating + anti-fingerprint coating |
| Thermal Range | -30°C to 70°C |
| Connectivity | Dual PoE++ ports for single-cable power+data |
| Content Management | Compatible with Scala, Signagelive, BrightSign |
| Certifications | UL/cUL 62368-1, ETL, FCC, CE, RoHS |
| Warranty | 3–5 years (including backlight) |
Aesthetic Premium: Eliminates visual clutter; blends into modern architecture.
Durability: Single pane resists moisture ingress better than multi-layer bezels.
Easier Cleaning: Flat surface prevents dirt accumulation in seams.
Optical Clarity: Glass-bonded panels reduce internal reflection (+15% perceived brightness).
