| Quantity: | |
|---|---|

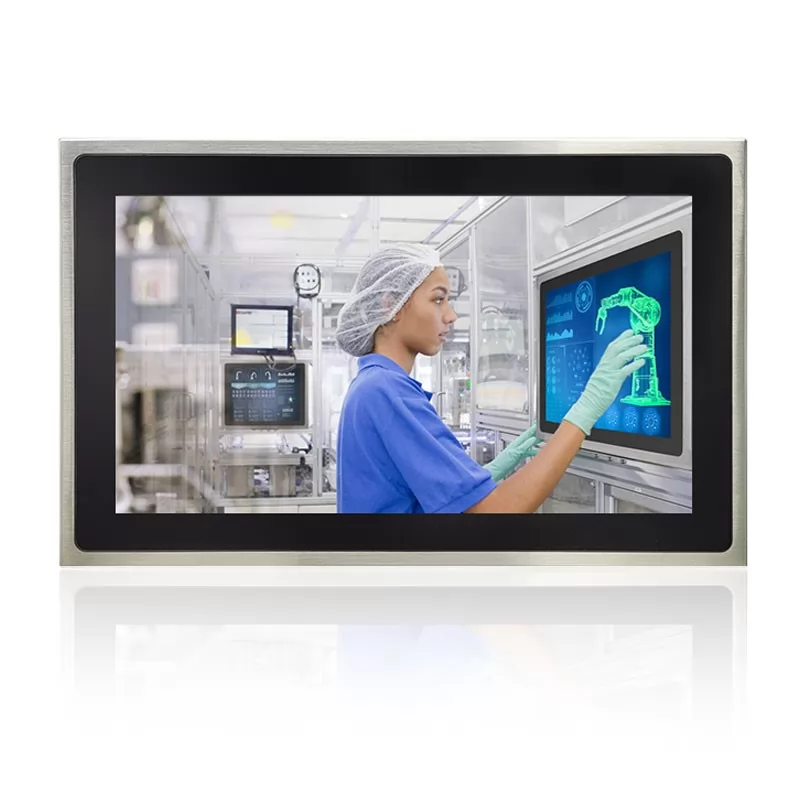

Product and Model | 32" Stainless Steel Touch Panel PC, Full IP67 Waterproof | VSC-32 |
PC | |
CPU | Intel® Core, i3-1115G4, Dual Core , Quad Threads, Base 1.7 GHz, Turbo 4.1 GHz, Fanless |
Other CPU Optional | |
Chipset | SOC |
Memory | 1*SO-DIMM DDR4 3200MHz Max32GB |
Hard Drive Capacity | 1 M.2 (NGFF) Key-M Slot (PCIe x4 NVMe SSD, 2242/2280), 1 Mini PCI-E Slot (mSATA, SATA3.0), 1 SATA3.0 7P Connector (with 1 SATA Power Header) |
Graphics | Intel® Iris® Xe Graphics |
Expansion Slots | 1 * M.2 (NGFF) Key-E Slot (PCIe+USB2.0, WIFI+BT, 2230) |
Audio | Audio Codec |
1 * Front Audio Header (Line-Out + MIC) | |
1 * Line-Out + MIC 2in1 3.5mm Jack (default CTIA, OMTP Standard SEL by res) | |
2 * Amplifier, 5-W (per channel) into an 8-Ω Loads | |
Network | Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps) |
Wireless Network | WIFI, Bluetooth, 4G, GPS Optional |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |

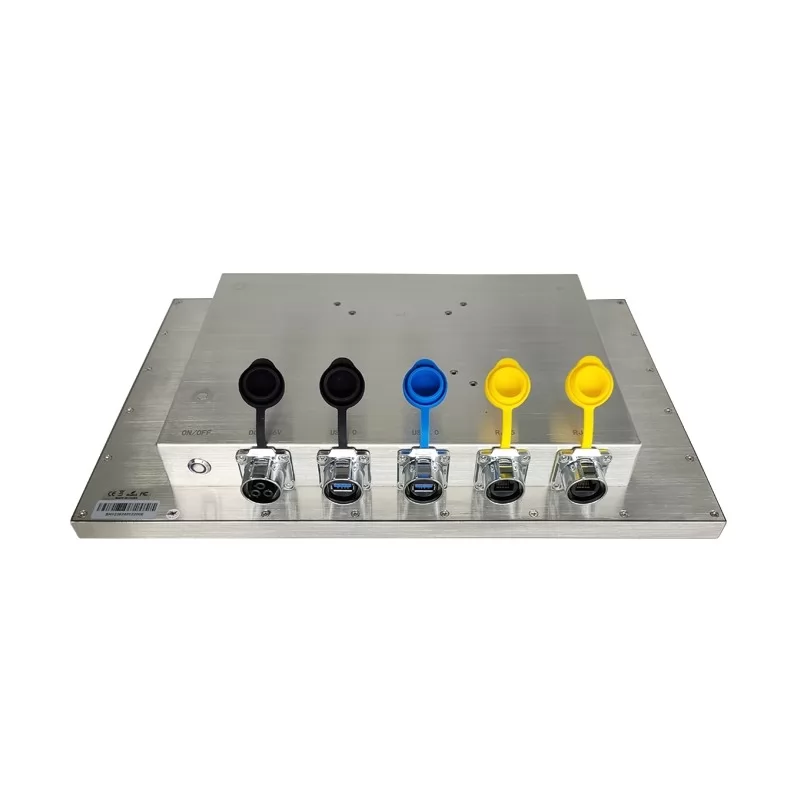

External I/O Ports | |
USB | 2x IP67 USB 3.0 |
HDMI | 1x IP67 HDMI |
LAN | 1x IP67 RJ45 |
COM | 2x IP67 RS232 |
Power input | 1x IP67 12V DC |
Other | 1x IP67 Power on/off button |
LCD panel | |
Panel size | 32" |
Display active area | 698.4(W)x392.85(H) mm / 27.496x15.467 in |
Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Brightness (cd/m²) | 300 nits (1000 nits sunlight readable optional) |
Brightness control | PWM software to adjust brightness |
Contrast ratio | 1000:1 |
View angle | 89°/89°/89°/89° (R/L/U/D) |
Support color | 16.7M |
Backlight | WLED, 50K hours |
Touch panel | |
Touchscreen Type | 10 Points capacitive touch |
Surface Hardness | 7H |
Surface treatment | N/A |
Luminousness | ≥90% |
Touch controller IC | EETI 80 |
Available touch drivers | Windows, Linux, Android, Mac |
Touch bonding | Air bonding (Optical bonding Optional) |
Touch optional | Non touch, IR touch, Resistive touch optional |
Power Supply | |
Working voltage | 12V DC (9-36V DC Optional) |
Power consumption | 80W |
Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
Enclosure | |
Material | Stainless Steel 304 |
Finish | Wire drawing |
Color | Black, Silver optional |

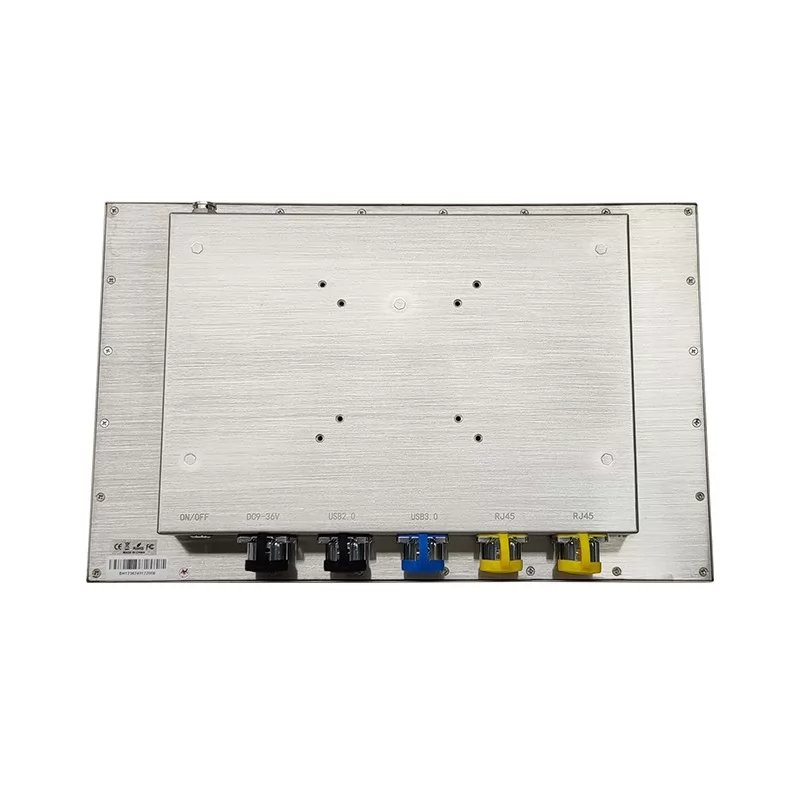

Mounting | VESA mount 75x75/100x100mm |
IP rating | Full panel IP67 waterproof |
Cooling system | Passive - Fanless |
Operating Environment | |
Temperature Range | Operating: -30 to 70°C, storage :-40 to 80°C |
Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
Vibration | GB/T 2423.10-2019 |
Shock | GB2423.5 |
EMC | Class B |
Packing Details | |
Product weight | Net weight 20.8kg |
Product dimension | 623×389×57mm |
Packing info | 1pc/ctn 98×68×24cm 30kg |

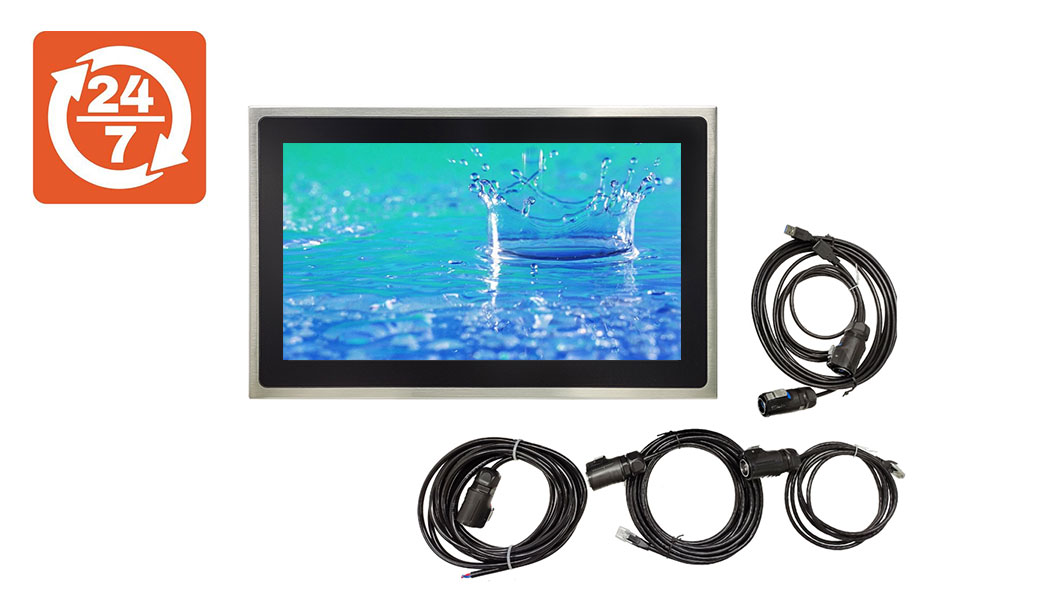

Accessories | Power adapter, Power plug, Waterproof LAN cable, Waterproof USB cable*2, Waterproof COM cable*2, Waterproof HDMI cable |
Other | |
Certificates | CE, FCC, RoHS |
This 32-inch industrial touch panel PC adopts a full stainless steel housing and boasts full IP67 dust and waterproof protection. Featuring a fanless design, it delivers outstanding durability, corrosion resistance and easy cleaning performance. It operates steadily in humid, dusty, splash-prone and hygiene-demanding environments.
32-inch industrial display with responsive touch functionality
Full stainless steel enclosure, anti-corrosion and easy to sanitize
Complete IP67 rating for dust tightness and water immersion resistance
Fanless cooling structure for long-term reliable operation
Wide operating temperature range, strong environmental adaptability
Multiple mounting options: embedded, wall mount
Food processing, pharmaceutical manufacturing, marine facilities, chemical plants, outdoor industrial sites and other harsh working areas.
