| Quantity: | |
|---|---|
Product Name | 21.5" Precise Stainless Steel Waterproof Industrial Computer | VS-2605-215 | |
Display | Screen Size | 21.5" |
Screen Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 250 nits optional 1500 nits | |
Touch Screen | Touch Screen | 5 Wire Resistive, Projected Capacitive (Multi-touch) |
Hardness | Resistive: 3H, P-cap: 7H | |
Primary Components | Processor Family | Intel Core I series 12th Generation Alder Lake |
Processor Model | Core i5-1245UE | |
Processor Speed | Up to 4.4 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 2280 NVME SSD slot | |
Storage Support | 128GB-2TB | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility | Security Hardware | fTPM 2.0 |
Peripherals & Wireless Connectivity | WiFi | Optional Wi-Fi 6 802.11 AX Dual Band, with Robust Flat Antennas |
Bluetooth | Optional Bluetooth 5.3 | |
Sim Card | 1x SIM Card Slot | |
Barcode Scanner | Optional 1D/2D Barcode Scanner | |
RFID | Optional RFID Reader | |
External I/O Ports | USB | 2x M12 8Pin for USB 1/2 and USB 3/4 |
Serial / Com | 2x M12 8-pin for COM | |
Serial Protocol Detail | RS-232/422/485 | |
Ethernet / LAN | 1x M12 8pin RJ45 Gbe LAN | |
Video Outputs | Optional Display Port 1.4 through USB-C | |
Other Ports | Optional 1X USB-C 3.2 through M20 connector on bottom Bezel | |
Power Input Port | M12 type 5-PIN DC-in | |
Power | Input Voltage Range | 12-36V DC |
Standard Power Adapter | AC 100 ~ 277V / DC output 24V, 5A, 120W, IP68 | |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - +80°C | |
Cooling Solution | Passive – Fanless | |
Humidity Range | 10% – 90% Non-condensing | |
Enclosure | Material | Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
IP Rating | IP66, IP69K, NEMA 4X | |
Color | Stainless Steel | |
Control Buttons | Brightness Down, Brightness Up, Power Button | |
Mounting Options | Floor Stand, Swing Arm, Table Mount, VESA 100 Mount, Wall Mount | |
Weight / Dimensions | Weight | 12.00 kg |
Dimensions | 557 x 348.5 x 58.5 mm | |
Certification | Certifications | CE, FCC |

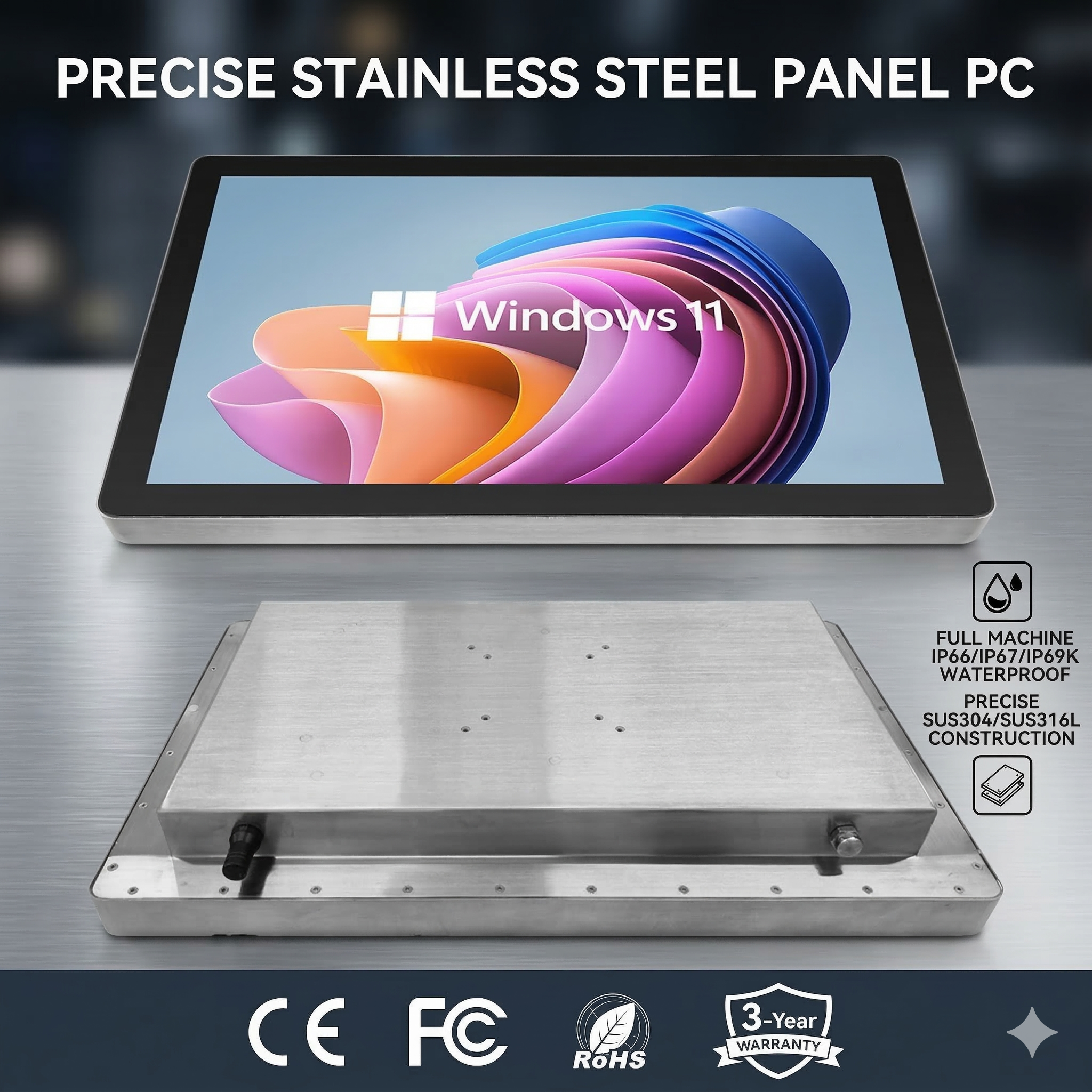

Industrial waterproof panel PC built with stainless steel casing, designed for harsh industrial environments. Features superior waterproof protection, stable wide-temperature operation and flexible installation.

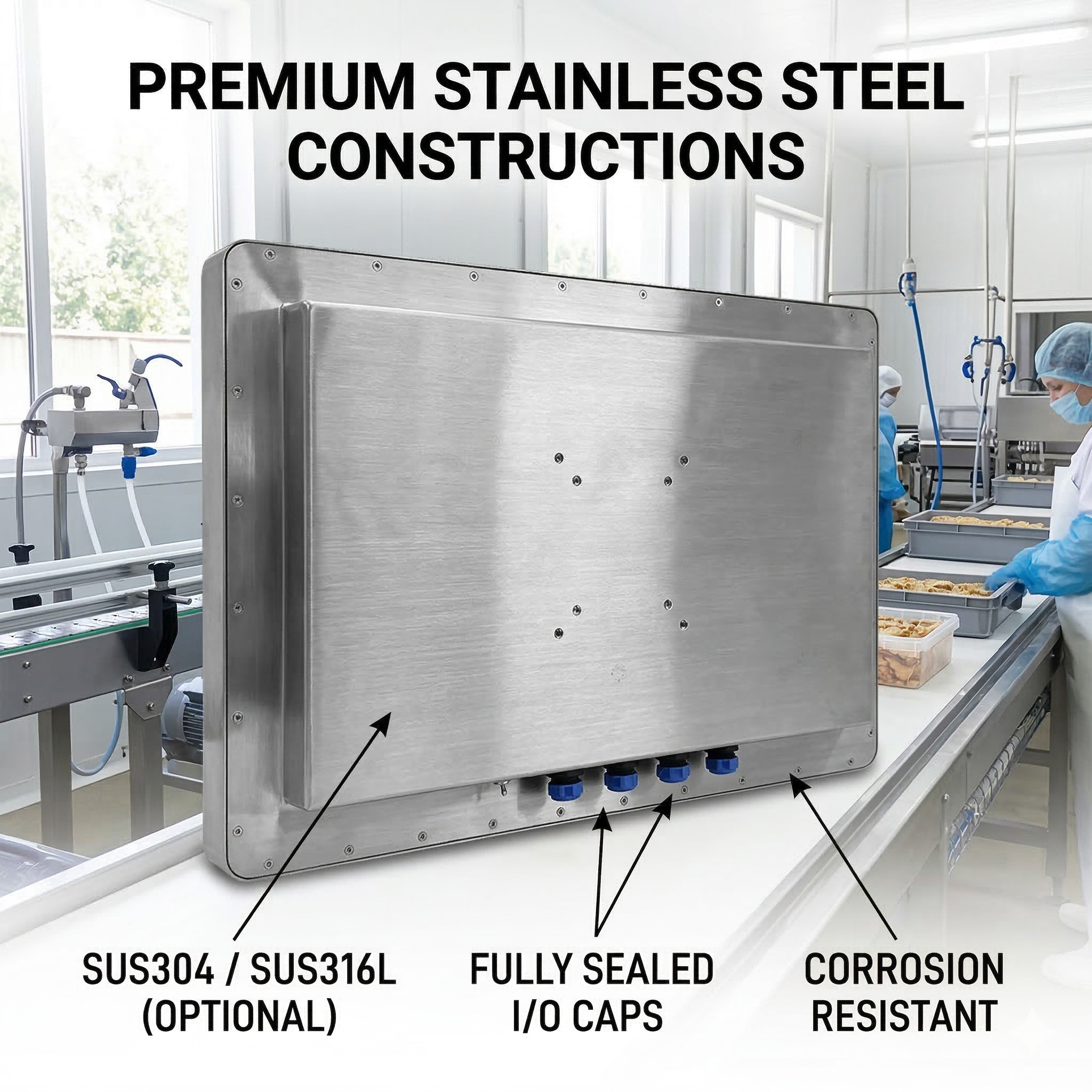

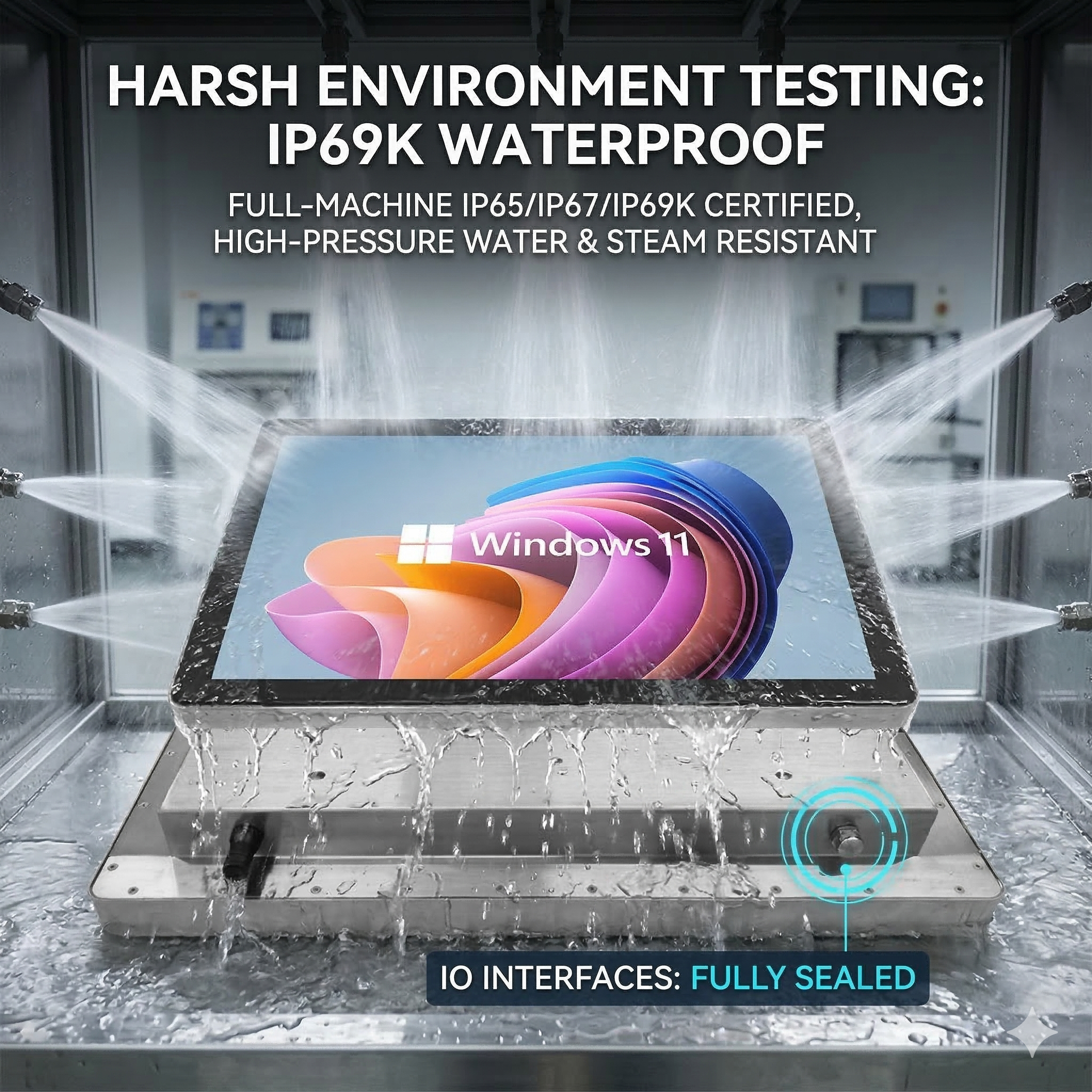

1, 304 Stainless Steel Housing Corrosion and abrasion resistant. IP67 full machine protection, IP69K front panel withstands high-pressure water flushing.
2, Fanless Heat Dissipation Sealed no-fan structure, steady working range: -30℃ ~ 70℃. Low failure rate and silent running.

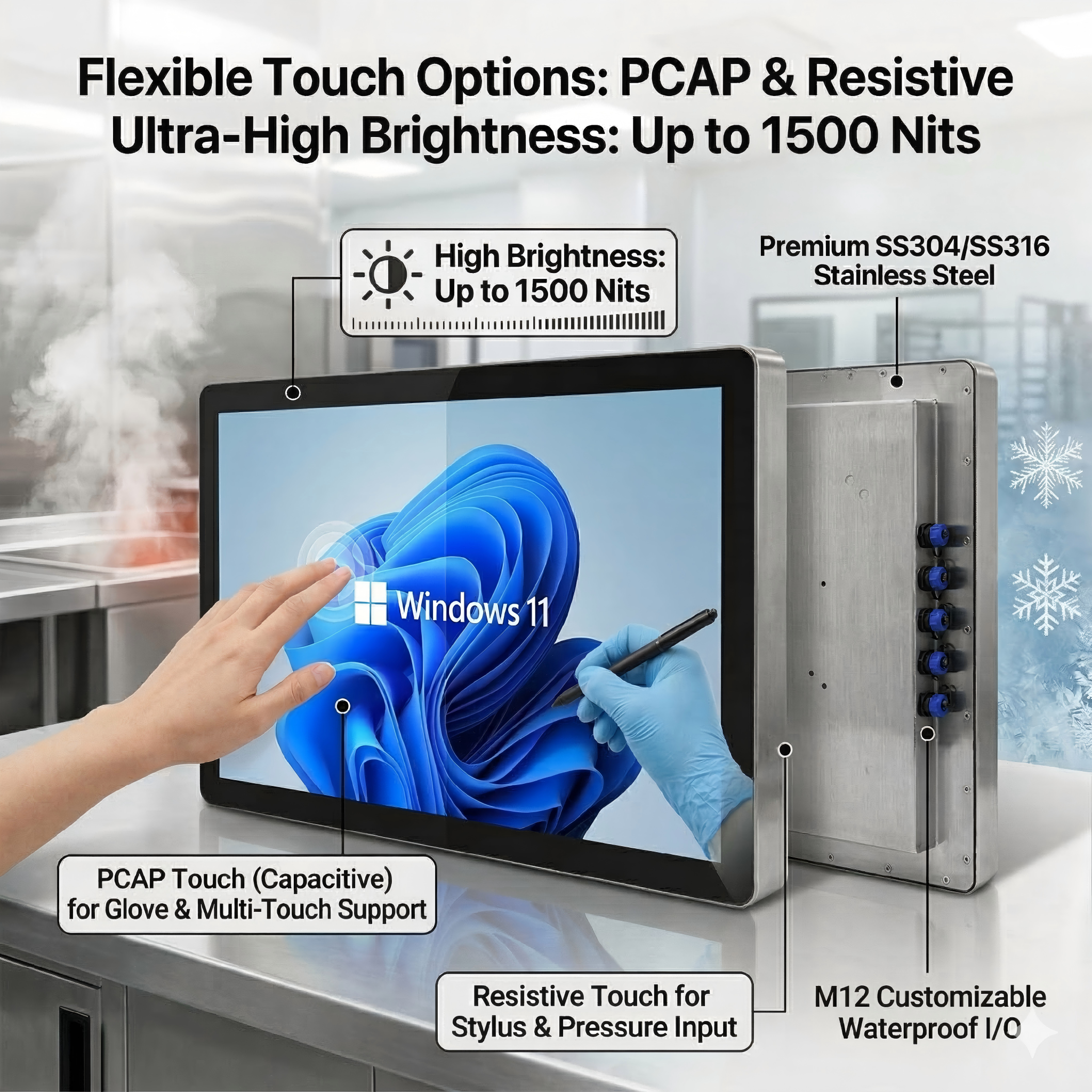

3, 21.5-inch FHD High Bright Touch Screen 1920×1080 resolution, 1000cd/m² brightness, visible under direct sunlight. 10-point capacitive touch supports operation with water droplets.
Reliable Industrial Performance
DC 9-36V wide voltage input with strong anti-interference. Compatible with Windows, Linux and Android systems.
Processor: Intel J series / Core i3/i5/i7
Memory: 4GB / 8GB / 16GB DDR4
Storage: 64GB~512GB SSD
Food processing, pharmaceutical factory, chemical industry, outdoor monitoring, logistics warehouse and other severe industrial sites
