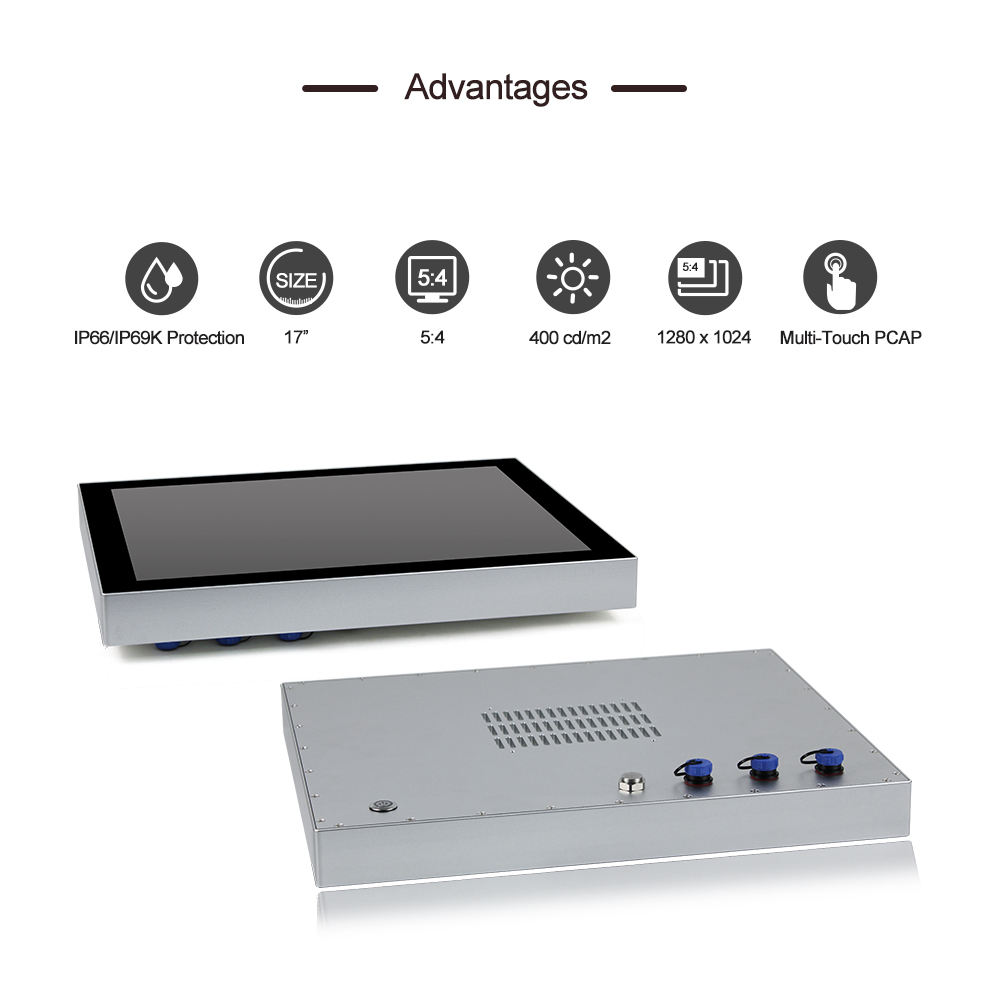

Display | Screen Size | 17" |
Screen Resolution | 1280 x 1024 (SXGA) |
Screen Ratio | 4:03 |
Brightness | 350 nits, Optional 1000 nit High Brightness |
Touch Screen | Touch Screen | Projected Capacitive, Resistive |
External I/O Ports | Video | 1 x Waterproof Connector For H-DMI / VGA ( Optional ) |
USB | 1 x SP13 Waterproof Connector For Touch USB2.0 |
Other I/O Interface | 1 x Power Switch |
Power | Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Input | 1 x SP13 Waterproof Connector For 12V~24V DC |
Power Consumption | ≦30W |
Multimedia | Speakers | Optional Speaker |
Thermal & Environmental | Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 80°C |
Cooling Solution | Passive – Fanless |
Humidity Range | 10% – 90% Non-condensing |
Enclosure | Material | Optional SUS316 Stainless Steel, SUS304 Stainless Steel |

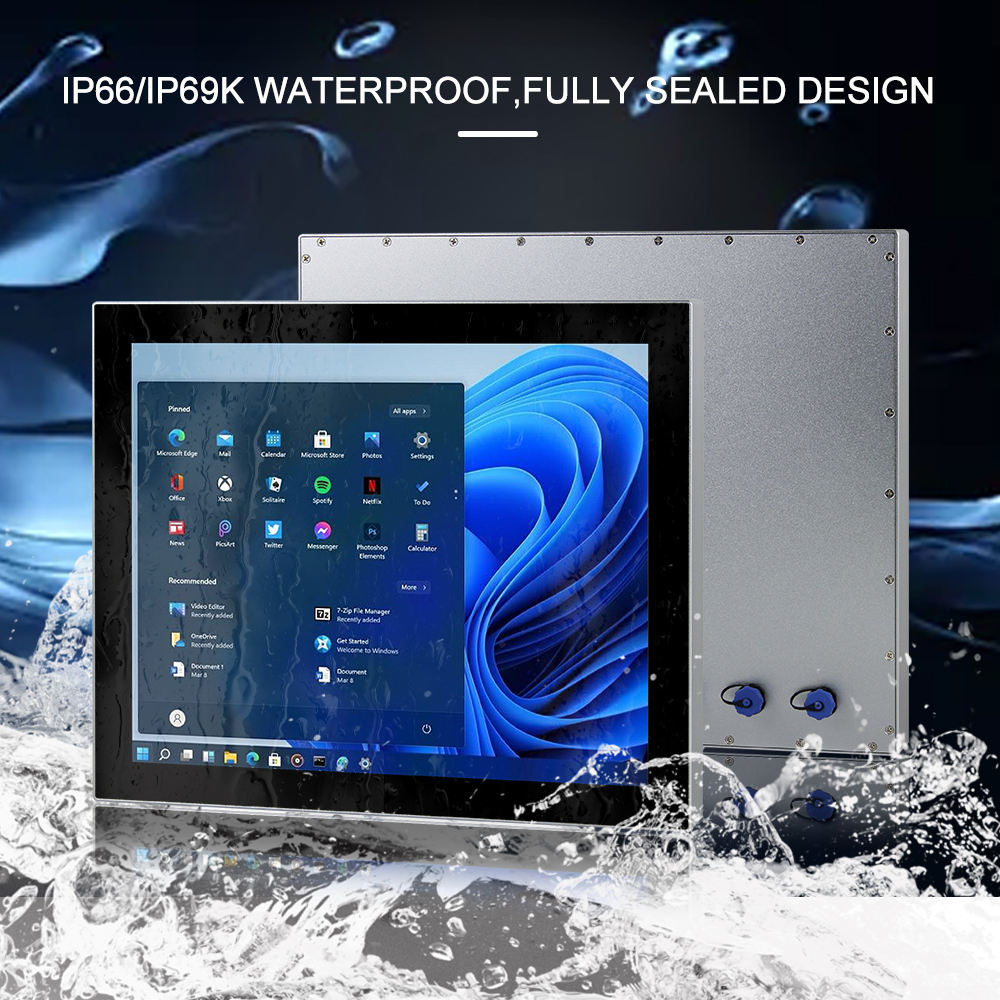

IP Rating | IP66, IP69K |
Control Buttons | On-Screen Display (OSD), Touchscreen Lock for Cleaning |

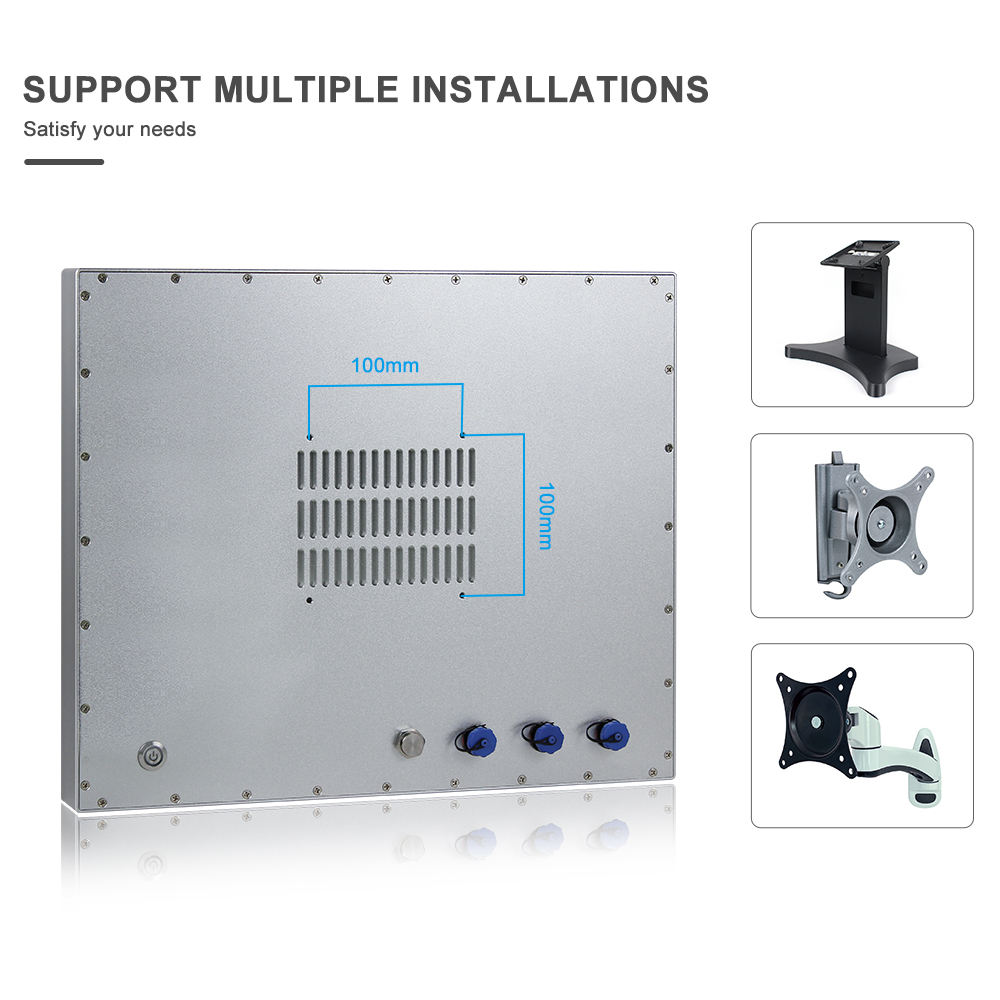

Mounting Options | VESA 75 Mount, Stand, Wall |
Weight / Dimensions | Weight (net) | 4.5 kg |
Dimensions | 393 x 325 x 42 mm |
Certification | Certifications | CE, FCC |
