Model | OPC-32 | |
Product Name | 32" Industrial Fanless Panel PC | |
Display | Screen Size | 32" |
Screen Resolution | 1920 x 1080 | |
Screen Ratio | 16:9 | |
Brightness | 250 nits | |
Optional 1000 ~ 2000 nits High-brighntess | ||
Touchscreen | Touch Screen | Capacitive (Multi-touch) |
Primary Components | Processor Family | Intel Processors |
Processor Model | 13th/12th/10th/8th/7th/6th/5th/3th|i3/i5/i7, J1800,J1900,J6412,N5095,N100 | |
Memory Type | DDR3, DDR4 | |
Memory Support | 4GB,8GB,16GB,32GB | |
Storage Type | 1x mSATA/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB, 1x M.2/1x 2.5" SATA Drive Bay for SSD/HDD ≤2TB | |
Storage Support | MS:128GB~512GB | M.2: 128GB ~ 1TB | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro |
Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | |
Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
Bluetooth | Optional Bluetooth 5.3 | |
External I/O Ports | USB | 4x USB |
Serial Protocol Detail/COM | 2x RS232/RS485, 5x COM option | |
Ethernet / LAN | 2x RJ45 GbE LAN, Optional 4 GbE LAN ports to PoE, 5x LANs | |
Video Outputs | 1x HDMI, 1x VGA, Optional 1x DisplayPort, supports DP++ | |
Audio Ports | 1x Audio Line-Out | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W |
Input Voltage Range | Optional 9-36V DC | |
Expansion Slots | Internal M.2 | 1x Mini PCIe WiFi&BT or 4G LTE, 1x M.2(KEY E WiFi&BT 2230)/1x M.2 (KEY B 4G/5G LTE 3052) |
Others | Speaker, 4G module, 5G module, 4x LAN, 5x LAN, 4x LAN upgrades to PoE | |
Weight / Dimensions | Weight | 10.50 kg |
Dimensions | 770.7 x 465.6 x 57.2 mm | |
Thermal & Environmental | Operating Temperature | -30°C ~ 70°C |
Storage Temperature | -40°C ~ 80°C | |
Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Metal Chassis |
IP Rating | IP65 Front Bezel | |
Color | Black | |
Mounting Options | Panel Mount, VESA 100 Mount | |

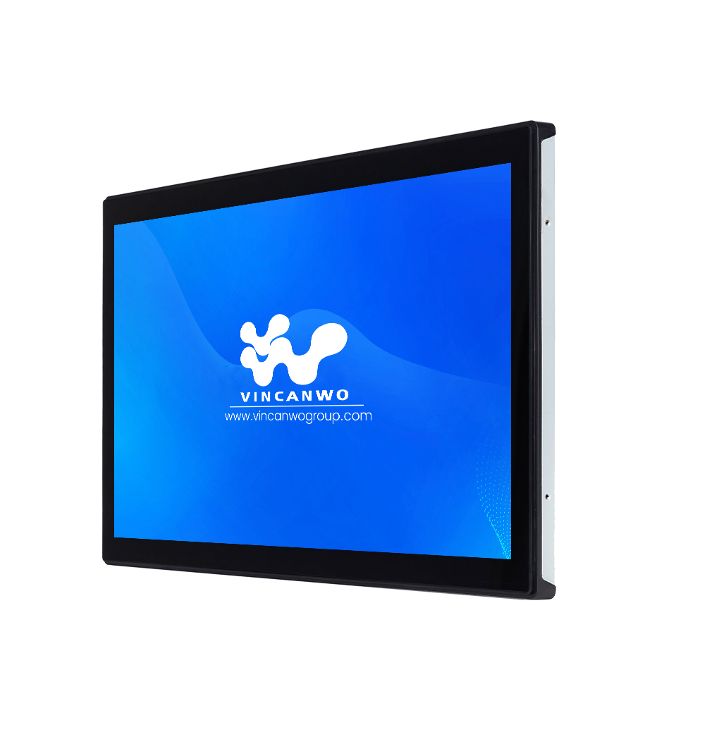

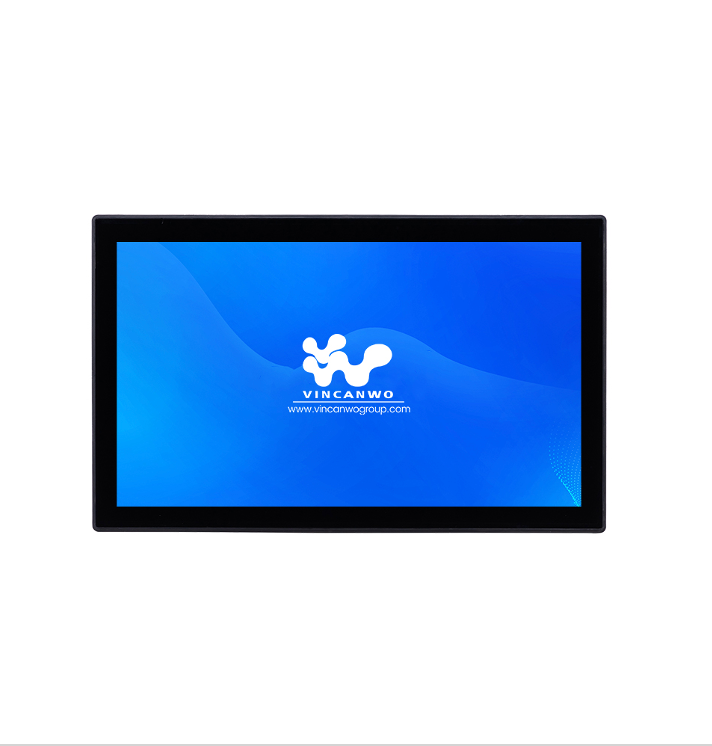

The OPC-32 is a 32-inch all-in-one fanless industrial panel PC, built for stable operation in harsh industrial scenarios.
Display: 32-inch industrial-grade screen, high brightness, wide viewing angle, supports capacitive/resistive touch
Cooling Design: Fully fanless structure, dust-proof and vibration-resistant, long service life
Performance: Equipped with mainstream industrial processors, stable for long-duration continuous operation
Protection: Front panel with IP65 dust and water resistance
Environment: Wide temperature adaptation, works reliably in factory workshops and industrial sites
Mounting: Supports embedded, wall-mounted and desktop installation

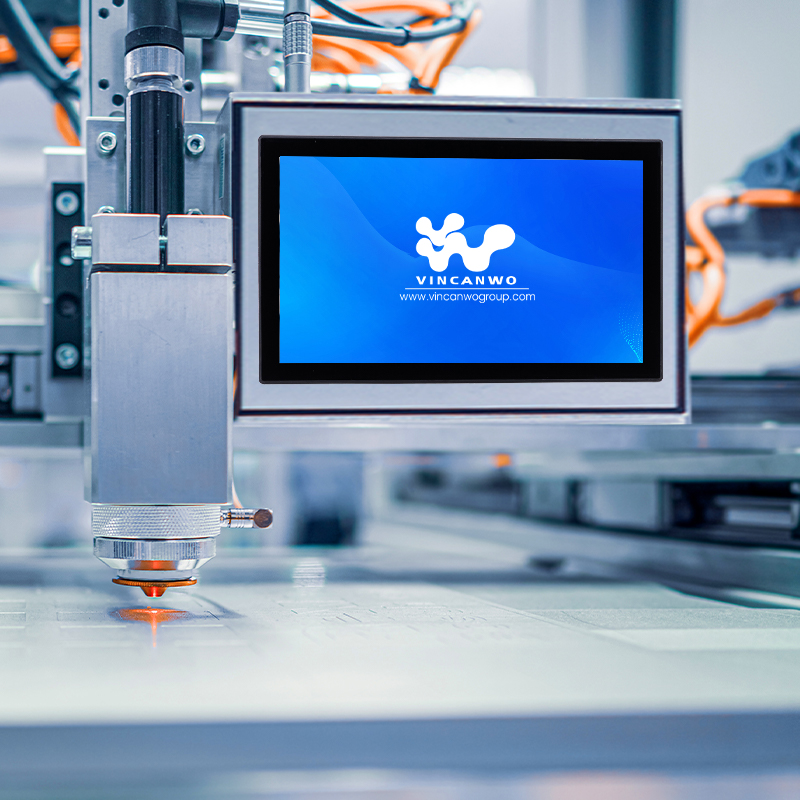

Factory production line HMI and central control terminals
Industrial monitoring and equipment operation management
Smart workshop visualization system
Logistics warehouse management stations
Public facility monitoring and industrial kiosks
