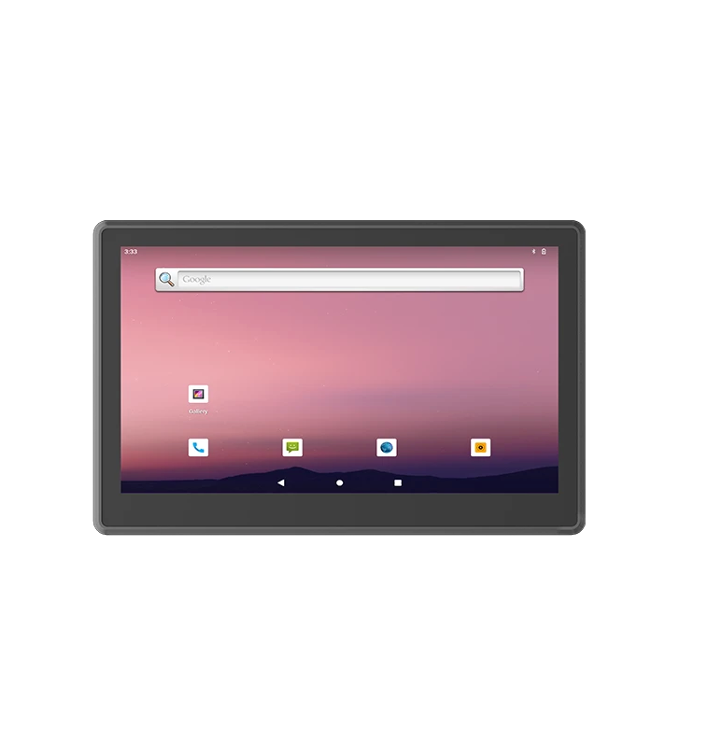

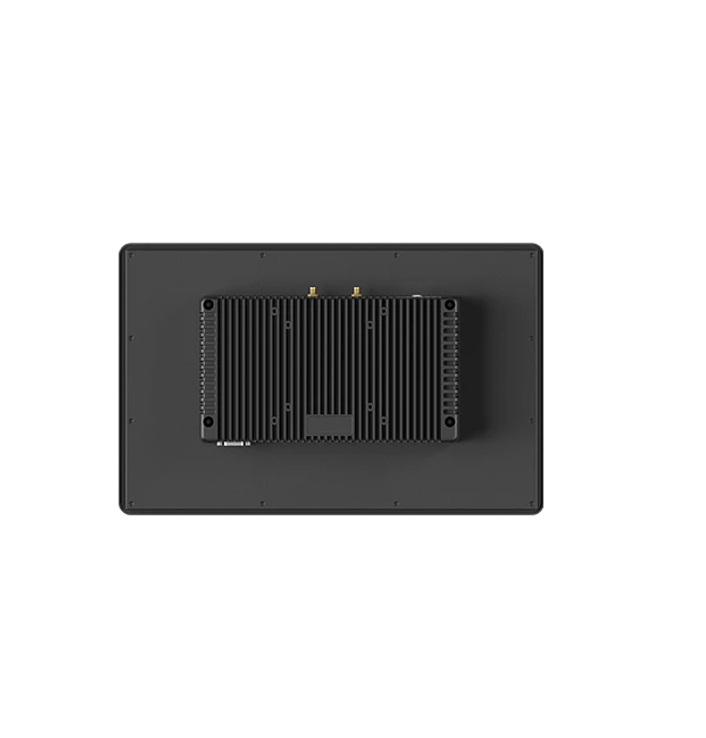

15.6" Android Embedded Industrial PC Rockchip RK3568 | VP-0517-156R

Product Name

15.6" Android Embedded Industrial PC Rockchip RK3568

Model

VP-0517-156R

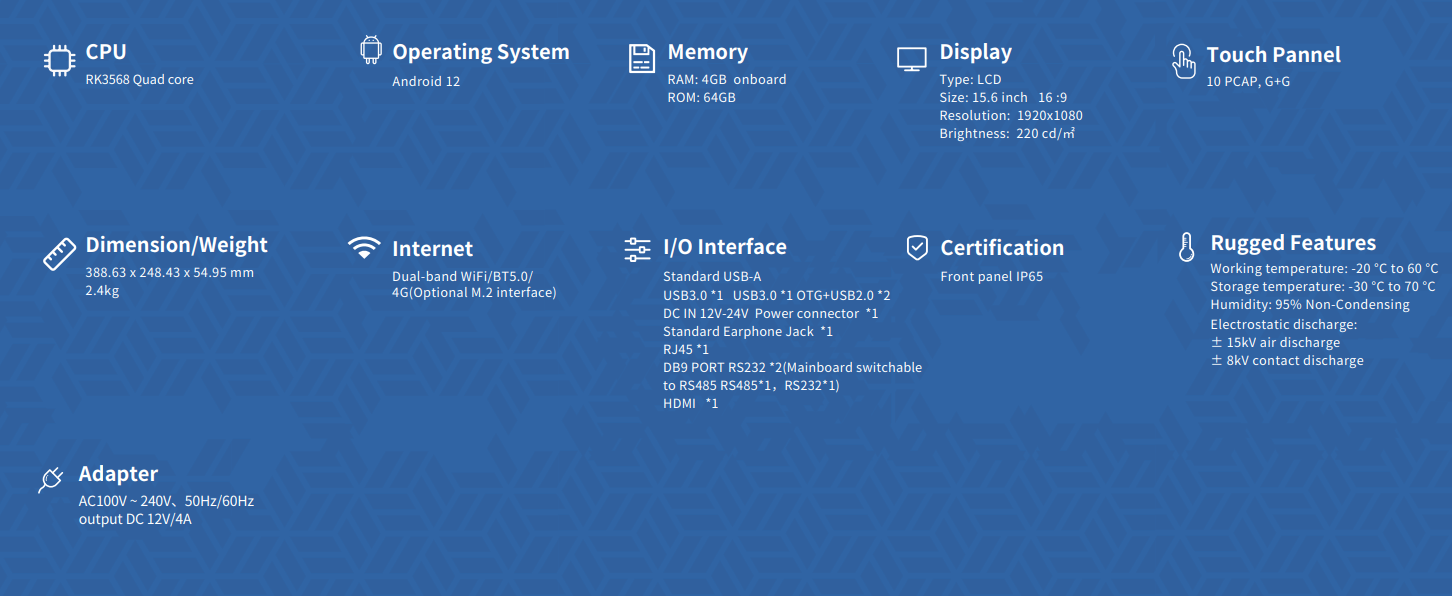

Basic
parameters

Dimension

388.63 x 248.43 x 54.95 mm

Product weight

2.4KG

Product color

Black

Display

Size: 15.6 inch 16 :9
Resolution: 1920x1080

Touch screen

10 PCAP, G+G

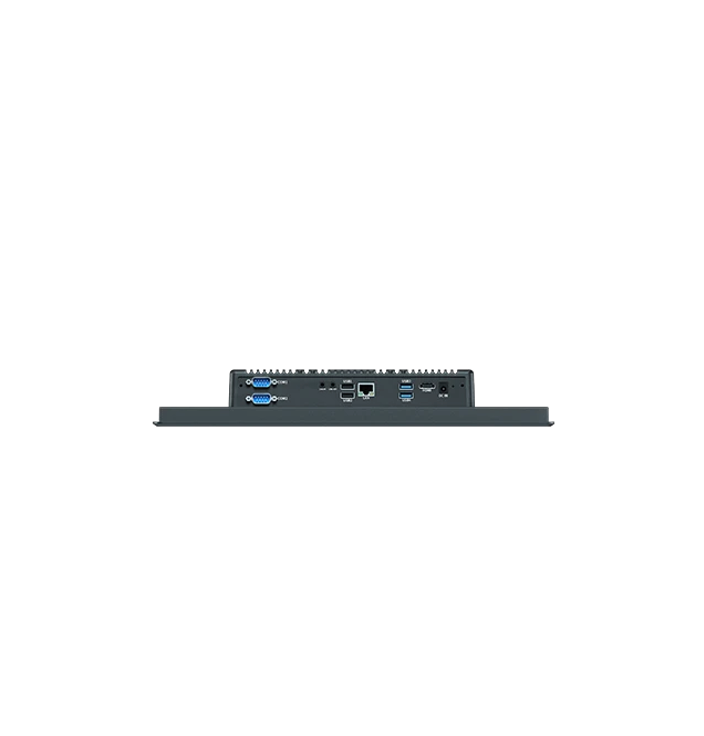

I/O Interface

Standard USB-A
USB3.0 1 USB3.0 1 OTG+USB2.0 2
DC IN 12V-24V Power connector 1
Standard Earphone Jack*1
RJ45 1
DB9 PORT RS2322
(Mainboard switchable to RS485 RS485*1，RS232*1) HDMI *1

Power adapter

AC100V ~ 240V、50Hz/60Hz
output DC 12V/4A

Wireless
Communications

WIFI

Dual-band WiFi/BT5.
4G(Optional M.2 interface)

Bluetooth

BT5.0(BLE)

2G/3G/4G/5G

4G

Performance
parameters

CPU

RK3568 Quad core

Operating system

Andriod 12.0

Memory

4GB

Storage capacity

64GB

Product
reliability

Environment

· Operating temperature: -20°C to +60°C
· Storage temperature: -30°C to +70°C
· Humidity: 95% (non-condensing)

Protection level

IP65 certified, MIL-STD-810H certified

Drop height

1.22m drop resistance
