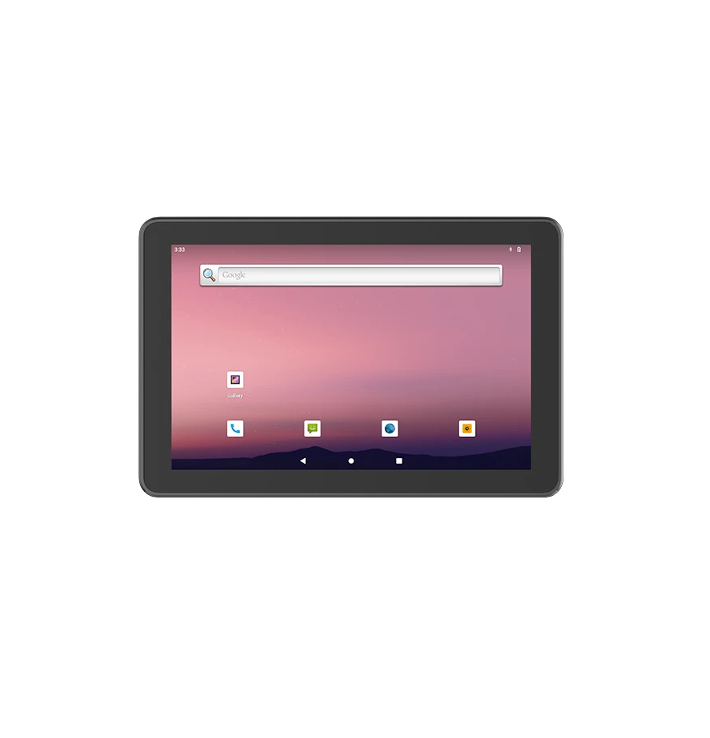

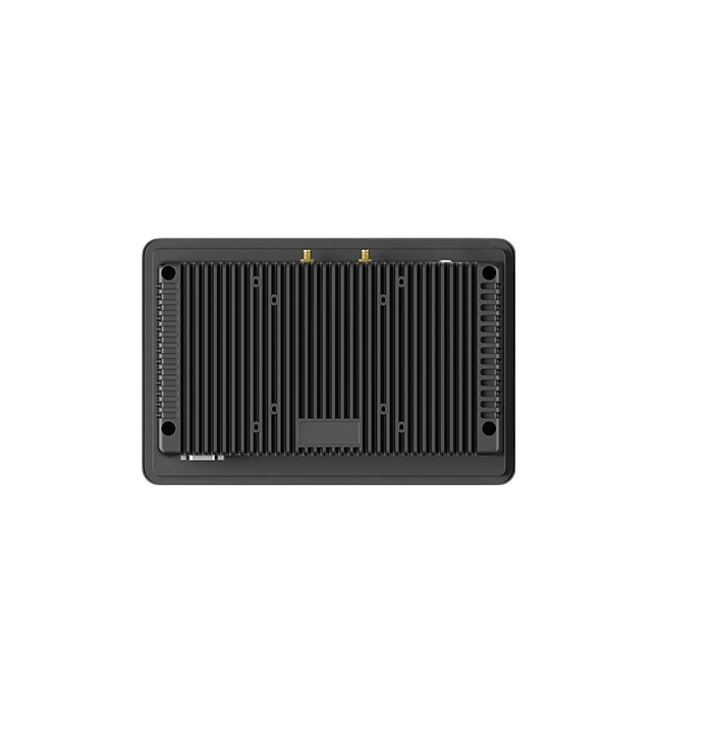

Product Name | 10.1" Android Industrial PC Rockchip RK3568 |
Model | VP-0516-101R |
Durability | · Front panel IP65 compliant
· ±8kV contact discharge, ±15kV air discharge |
Operating System | · Android 12 |
Processor | · RK3568
(up to 2.0GHz, 4 cores) |
Graphics | · Mali-G52-2EE |
Memory | · 4GB LPDDR4x on board |
Storage | · 64GB eMMC |
Display | · 10.1", HD (800x1280), 700 nits
· 10-point capacitive touch screen |
Audio | · Optional 2W speaker |
Keyboard
& Input | · Power key x1 |
Network
& Connectivity | · Intel® Wi-Fi 5（802.11 ac）
· Bluetooth® 5.0
· Optional 4G LTE
LTE-FDD: B1/3/5/7/8/20
LTE-TDD: B40
WCDMA: B1/5/8
GSM: 900/1800
China (China Unicom, China Telecom, China Mobile),
Europe, the Middle East, Africa, Taiw |

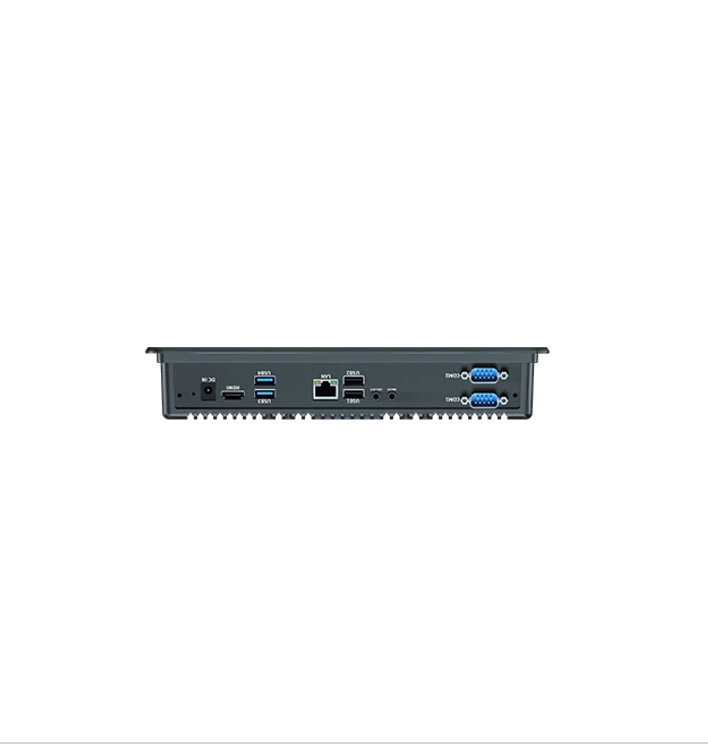

I/O Interface | · Micro SD card x1
· SIM card x1
· USB 3.0 (Type-A) x1
· USB 3.0 OTG (Type-A) x1
· USB 2.0 (Type-A) x2
· 3.5mm audio jack x1
· HDMI 2.0 Type-A x1
· 10/100/1000 Ethernet (RJ45) x1
· Serial port (RS232: D-sub, 9-pin) x2
Optional RS232 x1/RS485 x1
· 5.5mm DC in jack x1 (supports 12-24V)
· SMA x2 |
Battery
& Charging | · 100-240V, 50Hz-60Hz, 48W
· Separate RTC 3V/220mAh |
Environment | · Operating temperature: -30°C to +70°C
· Storage temperature: -40°C to +80°C
· Humidity: 95% (non-condensing) |
Dimension | · 257.2 mm (L) × 170 mm (W) × 45.95 mm (H) |
Weight | · 1.2 kg |
Accessories | · Standard: Adapter, Hook assembly, Antenna, CableAC
· Optional: Antenna |
