SKU | VFACEH-121 |
Screen Size | 12.1” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/㎡ |
Contrast Ratio | 1200:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |

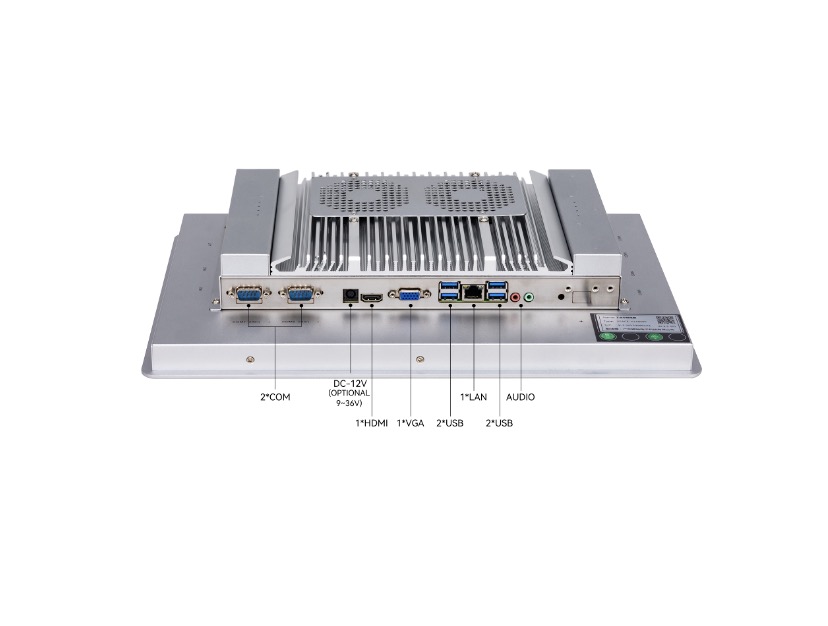

Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

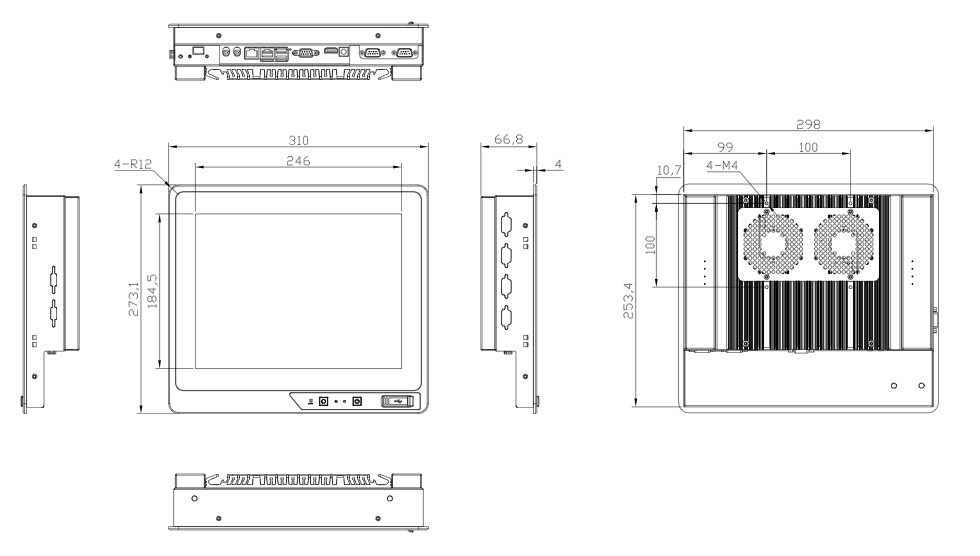

Dimension | 310x273.1x66.8mm |
Mounting Hole Size | 301x256mm |
Gross Weight | 3.52kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
There are the most advantages of the 12.1" High-performance Panel PC | VFACEH-121:
Powerful Performance: The VFACEH-121 is equipped with a high-performance Intel processor, providing fast and reliable computing power for demanding applications.
Compact Form Factor: The 12.1" display size of the Panel PC makes it compact and space-saving, ideal for installations where space is limited.
Rugged Design: The VFACEH-121 features an IP65-rated front panel protection, making it suitable for use in harsh industrial environments where dust, water, and other contaminants may be present.
Connectivity Options: The Panel PC offers a range of connectivity options, including USB ports, Ethernet, and serial ports, allowing for easy integration with other devices and systems.
Touchscreen Interface: The VFACEH-121 features a touchscreen interface, providing intuitive control and navigation for users, enhancing user experience and productivity.
Clear Display: The 12.1" display offers crisp and clear visuals, making it ideal for applications that require detailed information to be displayed.
Versatility: The VFACEH-121 is a versatile Panel PC that can be used in a wide range of industrial and commercial applications, providing a reliable and efficient computing solution.
Overall, the VFACEH-121 offers a combination of powerful performance, rugged design, compact form factor, and versatile connectivity options, making it a valuable asset for organizations looking for a high-performance Panel PC for their applications.
>Applications:
The 12.1" High-performance Panel PC | VFACEH-121 is suitable for a variety of industrial and commercial applications that require a reliable and high-performance computing solution. The most common applications of the VFACEH-121 include:
Industrial Automation: The Panel PC can be used in industrial automation systems for monitoring and controlling manufacturing processes, machinery, and equipment.
HMI (Human Machine Interface): The VFACEH-121 is ideal for use as an HMI device in industrial settings, providing operators with a user-friendly interface to interact with machines and systems.
Control Systems: The Panel PC can be integrated into control systems for monitoring and controlling various processes in industries such as manufacturing, energy, and transportation.
Data Acquisition: The VFACEH-121 can be used for data acquisition applications, collecting and analyzing data from sensors and devices in real-time.
Digital Signage: The Panel PC can be used for digital signage applications in retail stores, airports, hotels, and other public spaces to display information, advertisements, and interactive content.
Medical Equipment: The VFACEH-121 can be integrated into medical equipment and devices for healthcare applications, such as patient monitoring, diagnostic imaging, and medical records management.
Transportation: The Panel PC can be used in transportation systems for vehicle monitoring, fleet management, and passenger information displays.
Energy Management: The VFACEH-121 can be used in energy management systems for monitoring and controlling energy consumption, power distribution, and renewable energy sources.
Overall, the VFACEH-121 is a versatile Panel PC that can be used in a wide range of applications across various industries, providing a reliable and high-performance computing solution for critical operations and processes.
