Product Name and Model | 23.8" Industrial Embedded Panel PC, Ratio 16:9 Multi-Touchscreen-Monitor | CP-6710-238 | |
Primary Components | Processor Family | Intel Core I series 8th Generation Whiskey Lake-U |
Processor Model | Core i3 8145UE | |
Processor Speed | 2.2 GHz, Up to 3.9 GHz | |
Memory Type | 1x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB | |
Storage Type | 1x M.2 SATA3 2242 Slot | |
Storage Support | M.2: 256GB-1TB | |
Display | Screen Size | 23.8" |
Screen Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 250 nits | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch) |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
External I/O Ports | USB | 4x USB 3.0 |
Serial / Com | 2x COM | |
Serial Protocol Detail | Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2) | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Video Outputs | 1x DisplayPort | |
Audio Ports | 1x 3.5mm Audio Line-Out | |
Power Input Port | DC-in Jack (Phoenix Type) | |
Power | Input Voltage Range | 9-36V DC |
Standard Power Adapter | 12Vdc, 5A, 60W Adapater and cable | |
Compatibility | Security Hardware | TPM 2.0 |
Multimedia | Speakers | Optional Speaker |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - +80°C | |
Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Aluminum |
IP Rating | IP66 Front Bezel | |
Color | Gray | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional Wi-Fi 6 |
Bluetooth | Optional Bluetooth 4.0 | |
Weight / Dimensions | Weight | 14.8 kg |

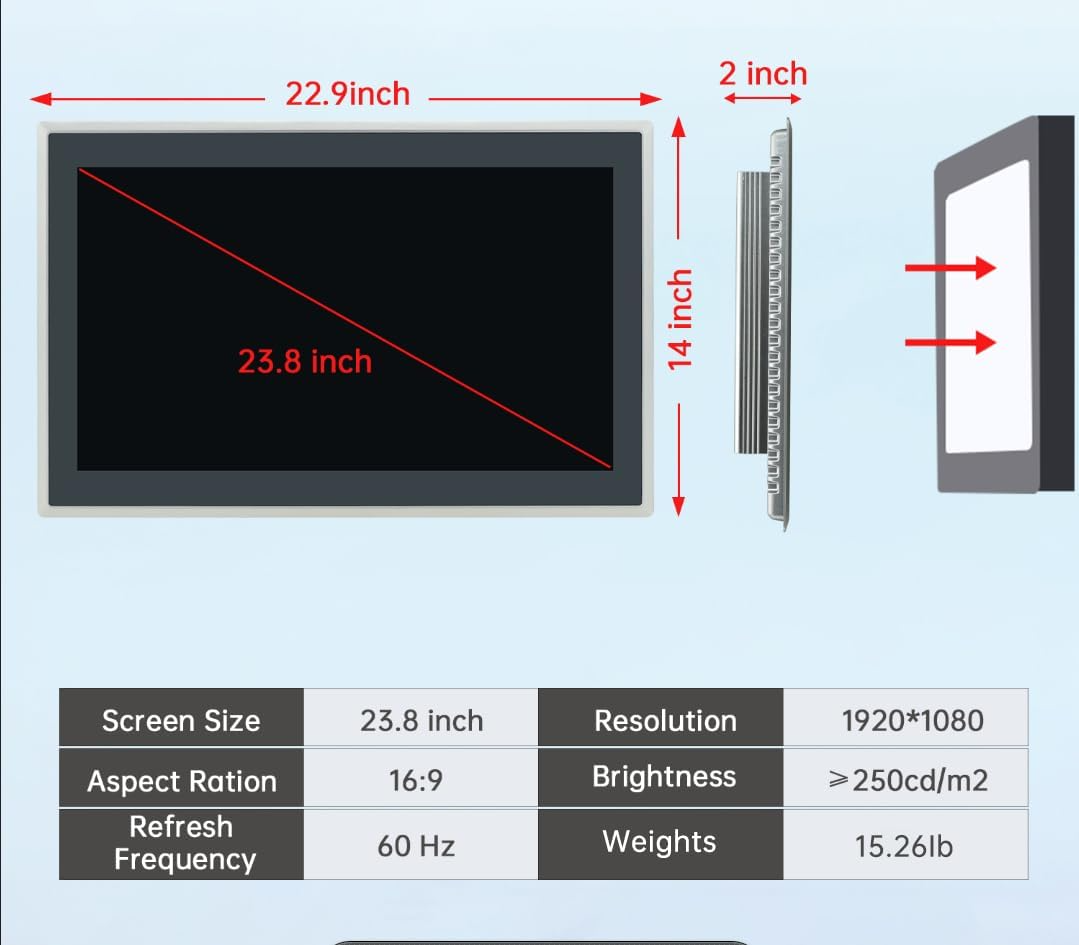

Dimensions | 640 x 65.1 x 395 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
Fully dustproof structure, stable operation in dusty environments
Pressure and impact resistant against bumps and vibration
High & low temperature resistant for extreme working conditions
Supports 24/7 non-stop industrial operation
Low maintenance rate and long service life
23.8" 16:9 widescreen for clear multi-scenario display
10-point multi-touch: support multi-finger gestures and multi-user operation
23.8" 16:9 widescreen: perfect for HMI, monitoring and multi-window display
Embedded structure: space-saving, suitable for cabinet and equipment installation
Industrial tough touch screen: scratch-resistant and durable for 24/7 use
Wide viewing angle & clear display for on-site viewing
Intuitive touch operation, no extra mouse/keyboard needed
Good compatibility with mainstream industrial software and systems
Multiple installation ways: embedded, wall-mounted and console installation
Adapt to dusty, fluctuating temperature and high-pressure industrial environments
Serve as HMI, monitoring screen and data display for different work needs
Compatible with mainstream industrial software and systems
Widely used in smart manufacturing, logistics, energy and transportation
Unified hardware model simplifies deployment and maintenance

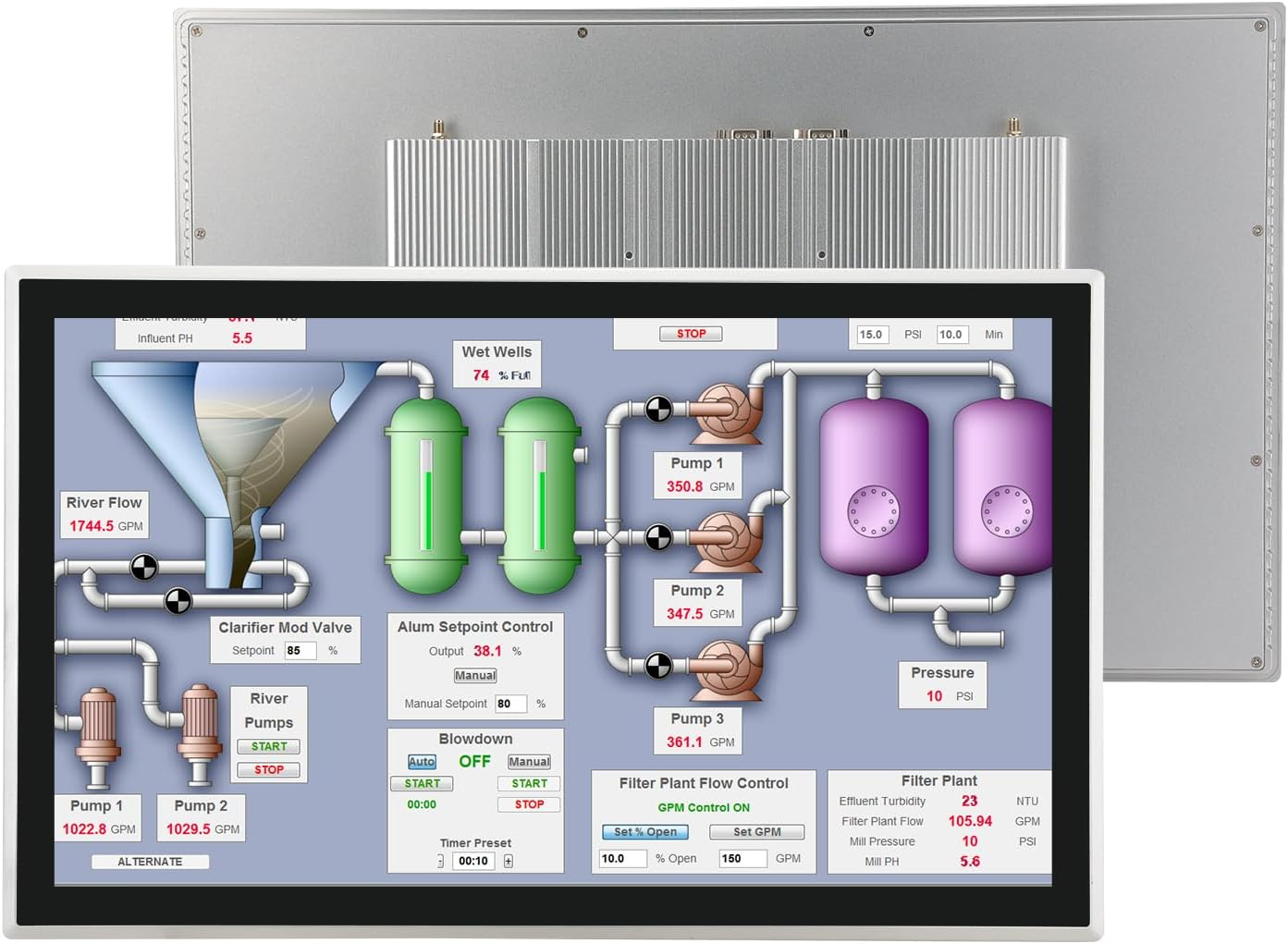

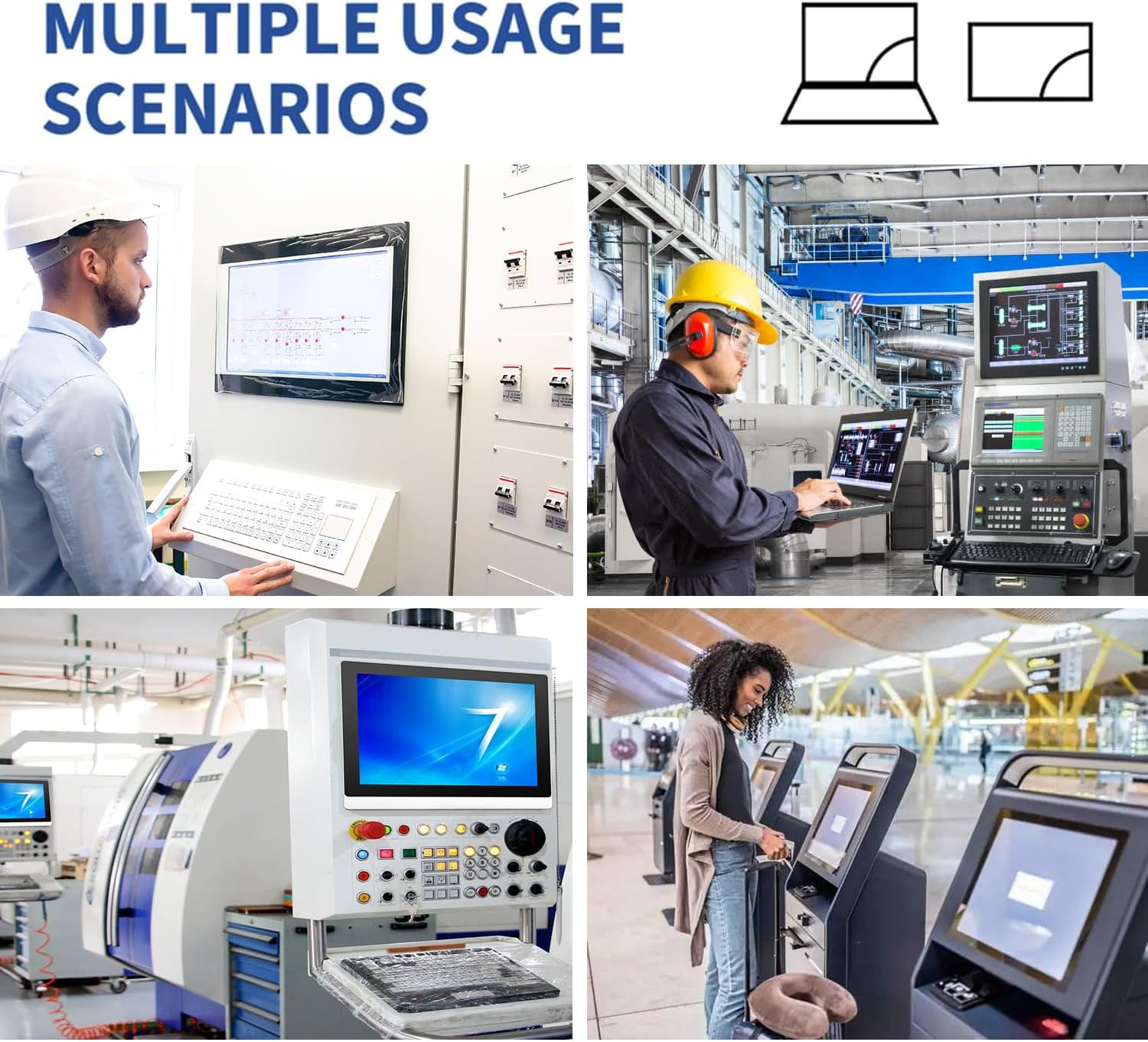

Industrial HMI and production line control
Factory central monitoring & alarm management
Industrial park video surveillance & security
Smart warehouse and logistics management
Energy & power system monitoring
Intelligent traffic roadside terminals
Environmental quality monitoring
Embedded display for automated industrial equipment
