SKU | 19” Touch Screen Panel PC | TPRO-19 |
Screen Size | 19inch |
Resolution | 1280 * 1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive or Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
Memory | 4G/8G/16G |
Storage | under 5th Gen.: 1 * mSATA/1 *SATA (2 .5” Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA (2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) expansion to 5COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

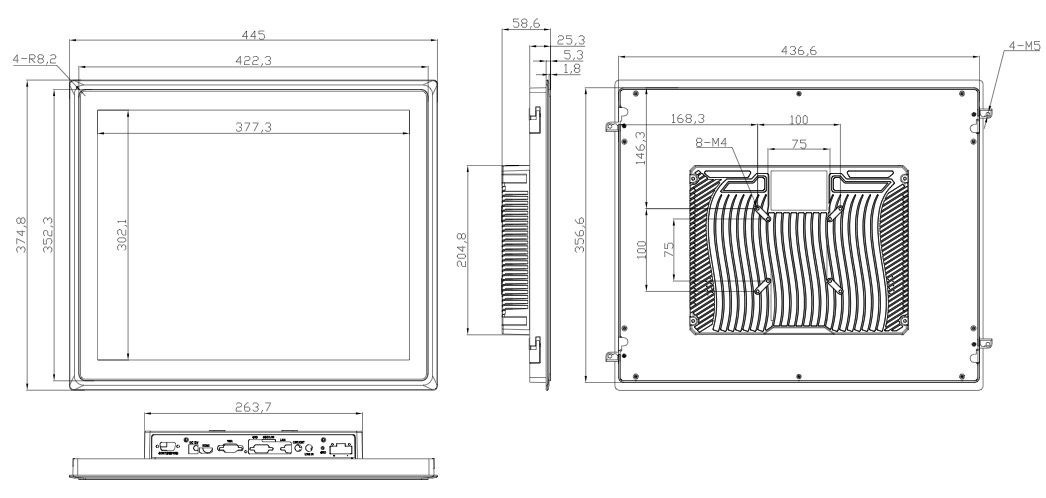

Dimensions (mm) | 445 *374.8 *58. 6 |
Mounting Hole Size (mm) | External embedded: 439 *359 Internal embedded: 423 .8 *353. 8 |
Gross weight (kg) | 5.70kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantages:
· Increased productivity:
Reduce errors and increase accuracy.
· Faster navigation:
Allow users to navigate through menus, files, and applications quickly and easily.
· Improved efficiency:
Save time and reduce the risk of repetitive strain injuries.
· Assistive technology:
Helpful for users with physical health issues that make using a mouse and keyboard difficult.
· Durable:
Built to last a long time and withstand harsh environmental conditions.
· Easy to clean:
Easy to clean and maintain.
· Secure and reliable:
Offer excellent security and reliability.
>Product Applications:
· Food processing:
Used in meat, fish, and dairy processing
· Manufacturing:
Used to control machines and manage inventory and production
· Medical:
Used in hospitals and other medical facilities
· Agriculture:
Used in farms and cow sheds
· Transportation:
Used in transportation systems
· Energy management:
Used to keep track of energy use
· Product testing:
Used to test products
Other applications
· Smartphones:
Used in smartphones running Android or iOS
· Tablets:
Used in tablet computers
· Point-of-sale (POS) systems:
Used in POS systems
· Infotainment systems:
Used in automobile infotainment systems
· Smart appliances:
Used in smart appliances
· Automated teller machines (ATMs):
Used in ATMs
· Electronic voting machines:
Used in electronic voting machines
