SKU | 17” Fanless All In One PC | TPRO-17 |
Screen Size | 17inch |
Resolution | 1280 * 1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive or Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
Memory | 4G/8G/16G |
Storage | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) expansion to 5COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

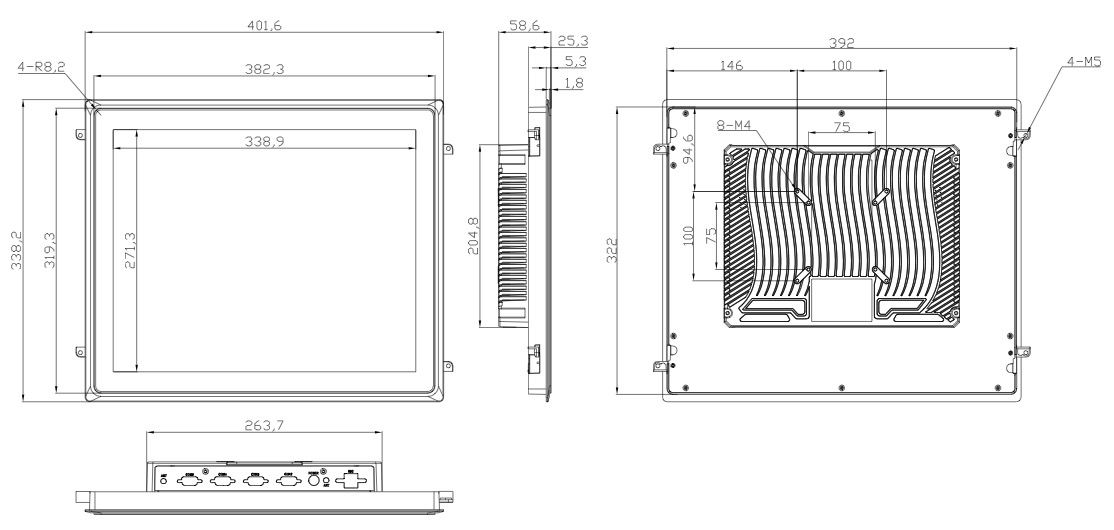

Dimensions (mm) | 401.6 *338.2 *58. 6 |
Mounting Hole Size (mm) | External embedded: 394 *324 Internal embedded: 383 .8 *320. 8 |
Gross weight (kg) | 5.65kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantages:
· Durability:
More durable than traditional PCs because of fewer moving parts and are less prone to malfunctioning.
· Low power consumption:
More energy efficient than traditional PCs.
· Quiet operation:
Silent because of fanless cooling system.
· Resistance to dust and debris:
Designed to resist dust and debris, which can clog fans in traditional PCs.
· Shock and vibration resistance:
Designed to withstand shock and vibration.
· Environment operability:
Operate in harsh environments, such as those with extreme temperatures or in areas with dust or particle accumulation.
· Small footprint:
Compact and have a small form factor.
· Lower operating costs:
Have lower operating costs than traditional PCs.
>Product Applications:
Hospitality
Self-service check-in kiosks:
Can be used in hotels and airports to provide self-check-in and verification
Retail
POS kiosks:
Can be used to streamline transactions in retail stores
Public spaces
Interactive information kiosks:
Can be used in museums, educational institutions, and public spaces to provide access to maps and event schedules
Secure access control
Fingerprint readers and RFID readers:
Can be used in corporate offices, government buildings, and healthcare facilities to enhance security
More Benefits:
Reduced downtime:
Have fewer moving parts, which reduces the chance of components failing.
Vibration resistance:
Designed to be resistant to vibrations.
Vibration resistance:
Designed to be resistant to vibrations.
Lower operating costs:
More energy efficient and require less maintenance
Quiet operation:
Quieter than computers with fans.
