| SKU | TPRO-15 |
| Screen Size | 15" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 500W times / Resistive: ≥ 10W times |
| Processor | Intel® Processors |
| Memory | Under 5th Generation: DDR3, 4G / 8G |
| Storage | Under 5th Gen: 1*mSATA+1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) |

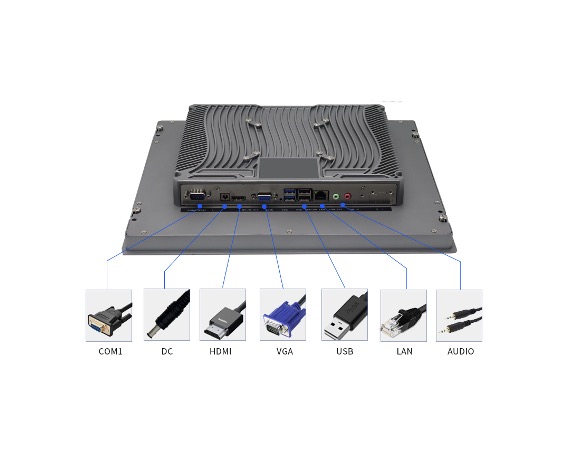

| Network | 1*LAN |
| COM | 2 *RS232 (COM 2, optional RS485) |
| USB | 4*USB |
| Display | 1 *HDMI, 1*VGA |
| Expand Slot | Under 5th Gen: 1*Mini PCIE WiFi&BT or 4G LTE |
| Operating System | Windows / Linux |

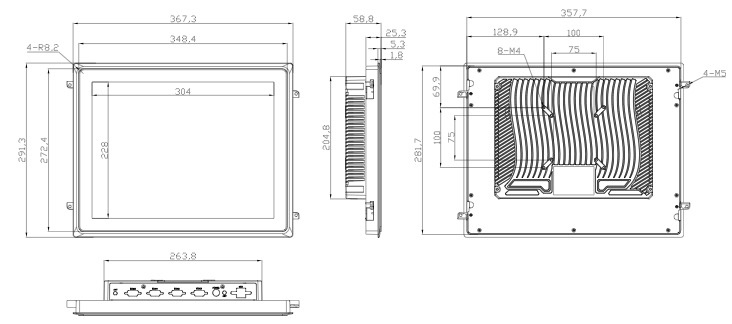

| Dimensions (mm) | 367.3*291.3*58.8 |
| Hole Sizes (mm) | External: 359*283 |
| Internal: 350*274 | |
| Individual Gross Weight (KG) | 3.75 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
| Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | 12VDC (6A) (Optional 9 ~ 36V Wide-range Power Input) |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Manual, 1 *Warranty Card |
>Product Advantage:
· Durability: Built with industrial-grade materials and a reinforced structure to resist shock and vibration. Designed to be resistant to dust, moisture, and corrosive environments.
· Temperature tolerance: Operate in a wide range of temperatures, from polar regions to high-temperature steelmaking plants.
· Power: Have a wide voltage range and accept variable power input. Also be paired with a vehicle's ignition.
· Cooling: Often fanless and ventless to prevent foreign particles from getting in. And have solid-state components and cooling.
· Display: High-bright screens with anti-reflective coating for readability in sunlight.
· Support features: Come with built-in GPS and wireless connection.
· Versatility: Come in different forms, such as laptops, tablets, and rack-mounted systems.
· Long life: Typically have a minimum life of 3–5 years.
Our Vincanwo brand 15" Rugged Industrial Computer | TPRO-15 can be used in a variety of industries, including oil and gas, where used for monitoring and controlling drilling and production operations.
>Product Application
· Construction: Used for site inspections, surveys, calculations, and project management.
· Security and surveillance: In security and surveillance systems, such as in mass transit vehicles.
· Fleet management: Used in-vehicle panel PCs on trucks, ships, and in container ports.
· Industrial automation: Run automation software, regulate factory equipment, and control complex applications.
· Oil and gas: Facilitate reliable process automation.
Features
· Fanless design: Fanless design to prevent dust and dirt from entering the computer.
· Industrial-grade components: Made from industrial-grade components, which are more dependable.
· Durability and reliability: Designed to provide the necessary durability and reliability required for efficient worksite operations.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shipment.
