Product Name and Model | 19" IP69K Computer | VSC-7010-19 | |
Primary Components | Processor Family | Intel Core I series 12th Generation Alder Lake |
Processor Model | Core i5-1245UE | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD | |
Storage Support | 32GB-1TB | |
Display | Screen Size | 19" |
Screen Resolution | 1280 x 1024 (SXGA) | |
Screen Ratio | 5:4 | |
Brightness | 350 nits, Optional 1000 nit High Brightness | |
Touch Screen | Touch Screen | Projected Capacitive, Resistive |
Hardness | Resistive: 3H, P-cap: 7H | |

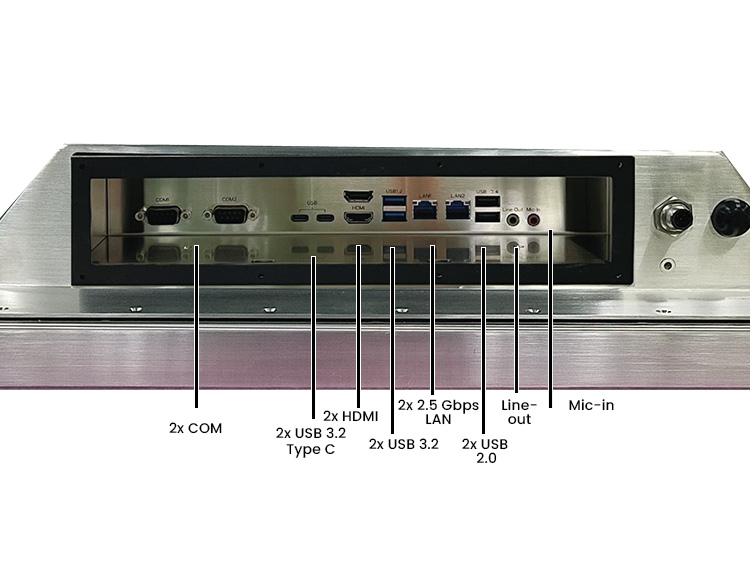

External I/O Ports | USB | 2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C |
Serial / Com | 2x COM | |
Serial Protocol Detail | 2x RS-232/422/485 | |
Ethernet / LAN | 2x RJ45 2.5 GbE LAN | |
Video Outputs | 2x Display Port 1.4a via USB-C, 2x HDMI 2.0b | |
Audio Ports | 1x Audio Line-Out, 1x Mic-In | |
Power | Input Voltage Range | 12-36V DC |
Standard Power Adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Linux | Linux | |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support, 1x M.2 Type E |
Multimedia | Speakers | Optional Speaker |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - +80°C | |
Cooling Solution | Passive – Fanless | |
Humidity Range | 10% – 90% Non-condensing | |
Storage Humidity | 10% – 90% Non-condensing | |
Enclosure | Material | Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
IP Rating | IP66, IP69K | |
Color | Stainless Steel | |
Control Buttons | Brightness Down, Brightness Up, Power Button | |
Mounting Options | Swing Arm, Table Mount, VESA 100 Mount, Wall Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi + Bluetooth Flat Antenna Kit |
Sim Card | 1x Nano SIM Card Slot | |
Barcode Scanner | Optional 1D/2D Barcode Scanner | |
RFID | Optional RFID (Cannot coexist with barcode scanner) | |
Weight / Dimensions | Weight | 7.39 kg |

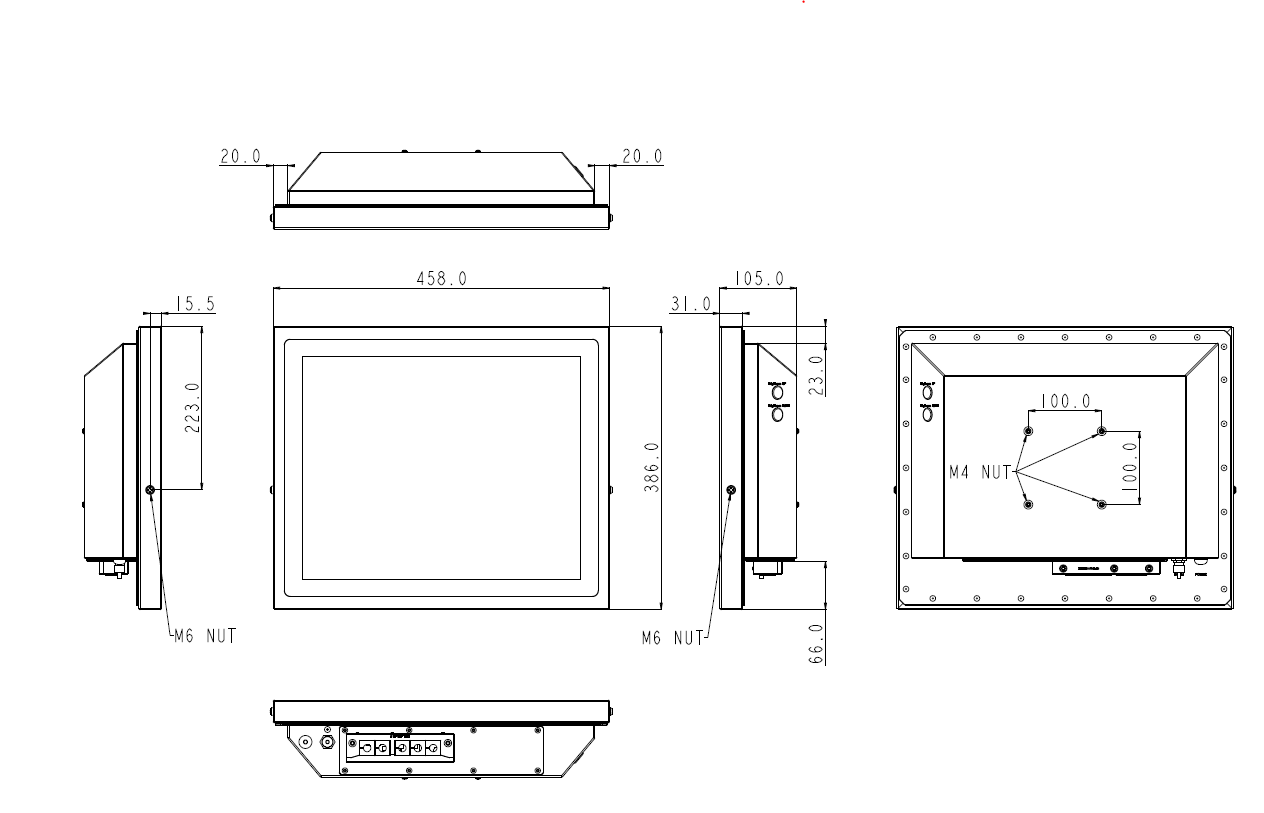

Dimensions | 458 x 396 x 105 mm | |
