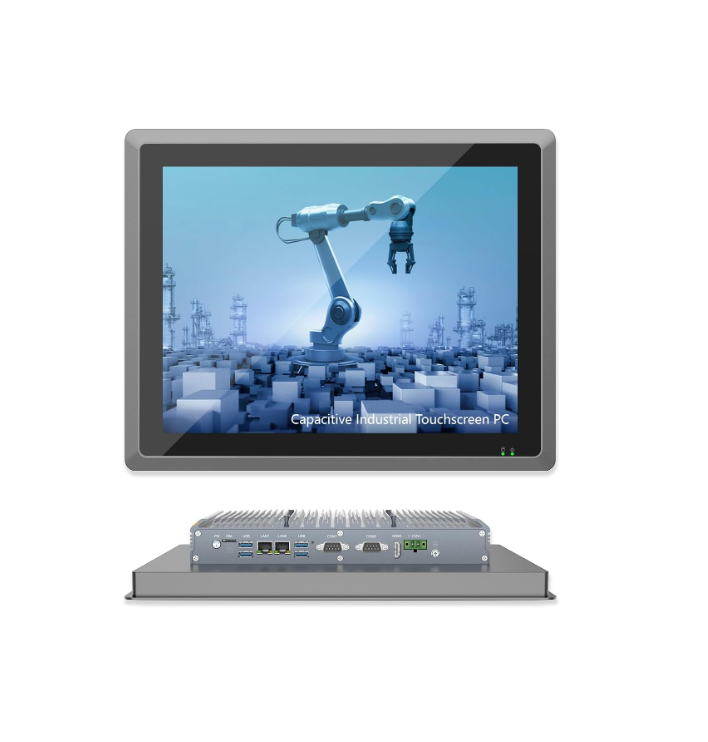

Product Name and Model | 19" Fanless Industrial Embedded Panel PC | 10 Point Capacitive Industrial Touch Screen | CP-6710-19 | |
Primary Components | Processor Family | Intel Core I series 12th Generation Alder Lake |
Processor Model | Core i3-1215U | |
Processor Speed | 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz, Up to 4.4 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x M.2 2280 NVME SSD slot | |
Storage Support | M.2: 256GB-1TB | |
Display | Screen Size | 19" |
Screen Resolution | 1280 x 1024 (SXGA) | |
Screen Ratio | 5:4 | |

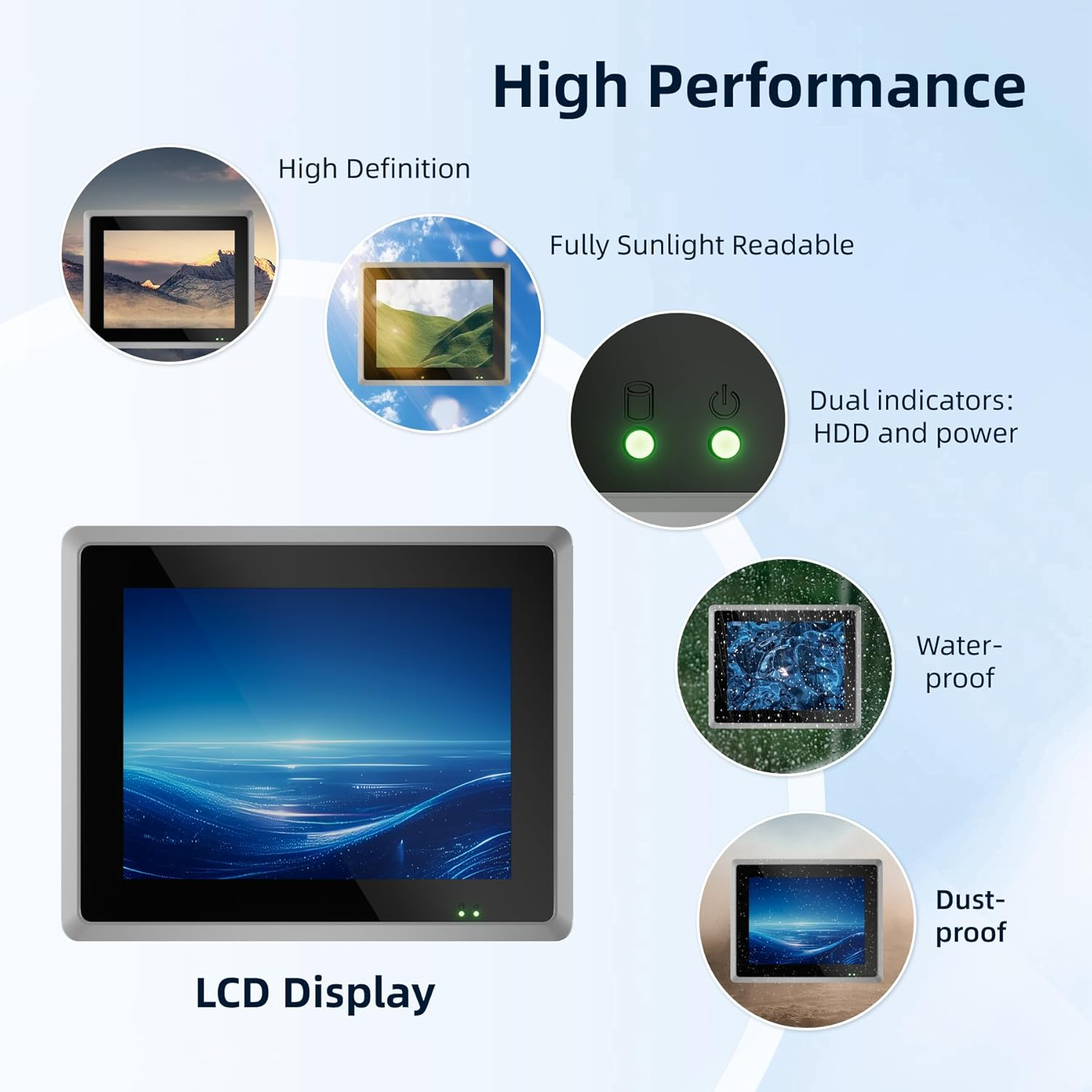

Brightness | 350 nits, Optional 1000 nit High Brightness | |

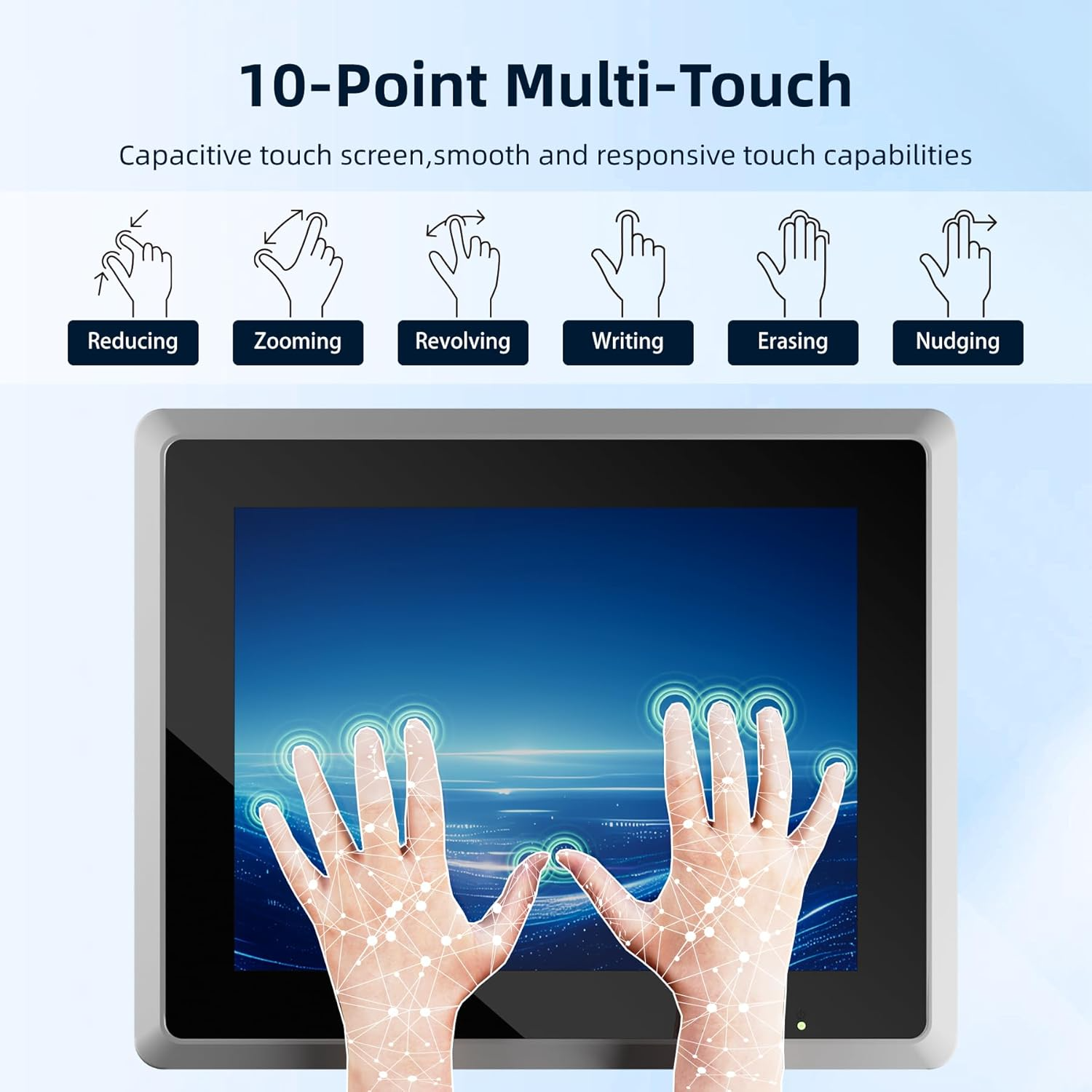

Touch Screen | Touch Screen | Projected Capacitive (Multi-touch), Resistive |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |

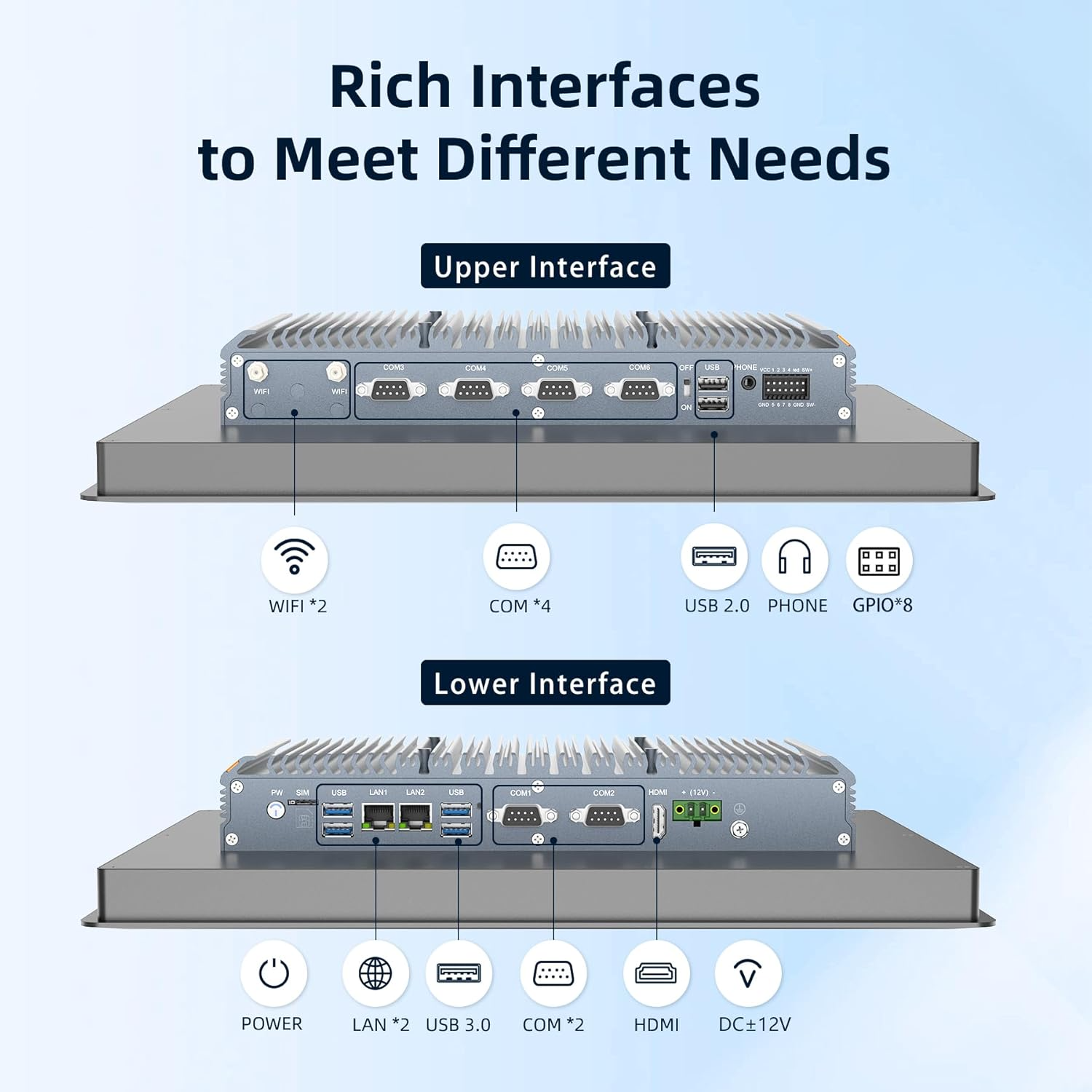

External I/O Ports | USB | 2x USB 2.0, 2x USB 3.0 |
Serial / Com | 3x COM | |
Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Video Outputs | 3-Pin DC-In (Phoenix Type) | |
Audio Ports | 1x 3.5mm Audio Line-Out | |
Power Input Port | DC-in Jack (Phoenix Type) | |
Power | Input Voltage Range | 9-36V DC |
Standard Power Adapter | 12Vdc, 5A, 60W Adapater and cable | |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Multimedia | Speakers | Optional Speaker |
Thermal & Environmental | Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - +80°C | |

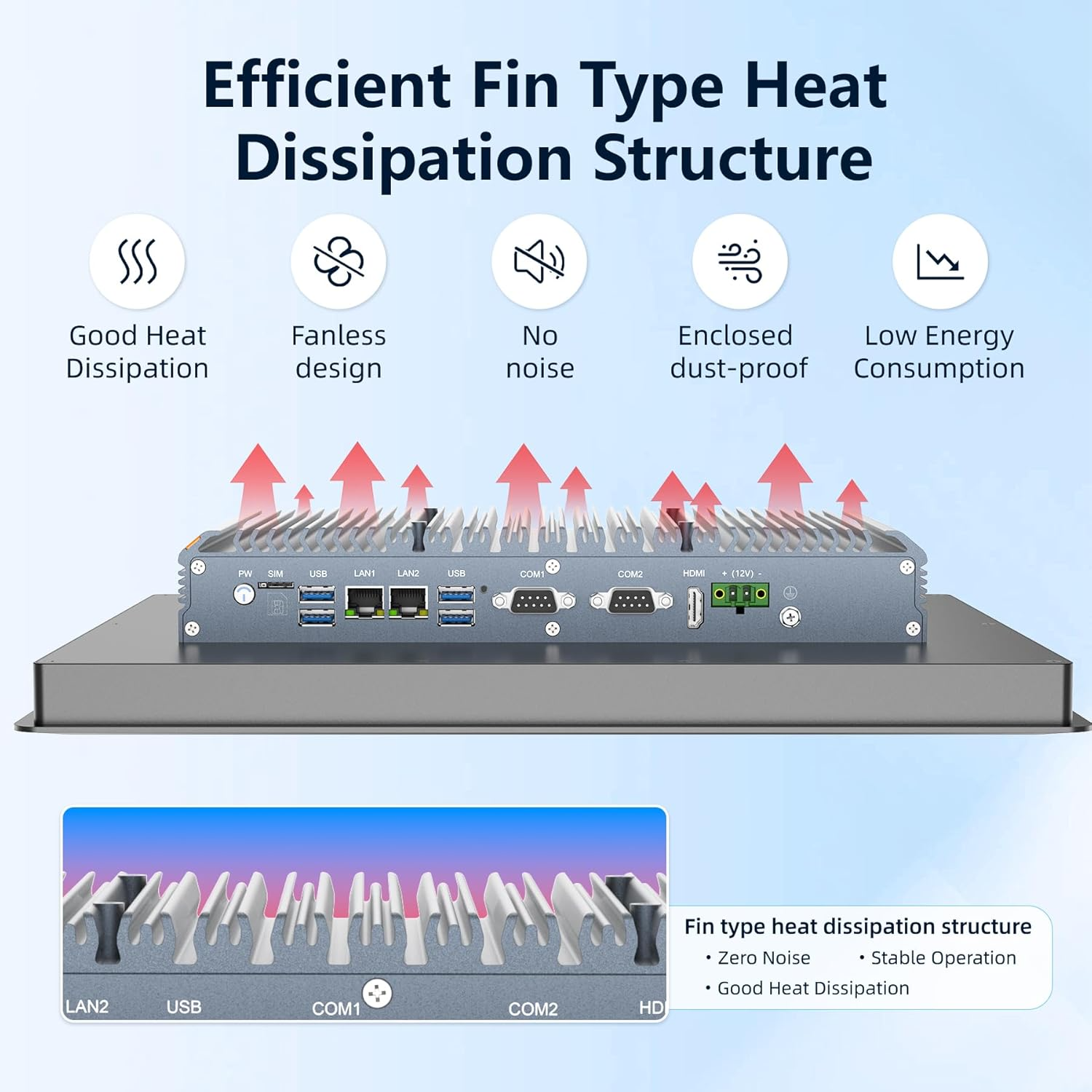

Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 95% Non-condensing | |
Enclosure | Material | Aluminum |
IP Rating | IP66 Front Bezel | |
Color | Gray | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
Bluetooth | Optional Bluetooth 5.3 | |
Weight / Dimensions | Weight | 5.70 kg |
Dimensions | 468 x 78 x 380 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
Robust computing power for complex industrial tasks
Smooth multi-task running under high load
Outstanding graphics performance for display and visual applications
No performance drop thanks to optimized fanless heat dissipation
Fast response and low latency for industrial control
Good compatibility and flexible expandability
Stable high-performance output for 24/7 continuous operation
Compact body saves installation space
Standard 19-inch size fits most industrial cabinets
Multiple mounting ways for flexible layout
Simple installation with no complex operations
Vibration-resistant structure for stable fixing
Easy access for daily inspection and maintenance
Flush embedded design for neat overall layout

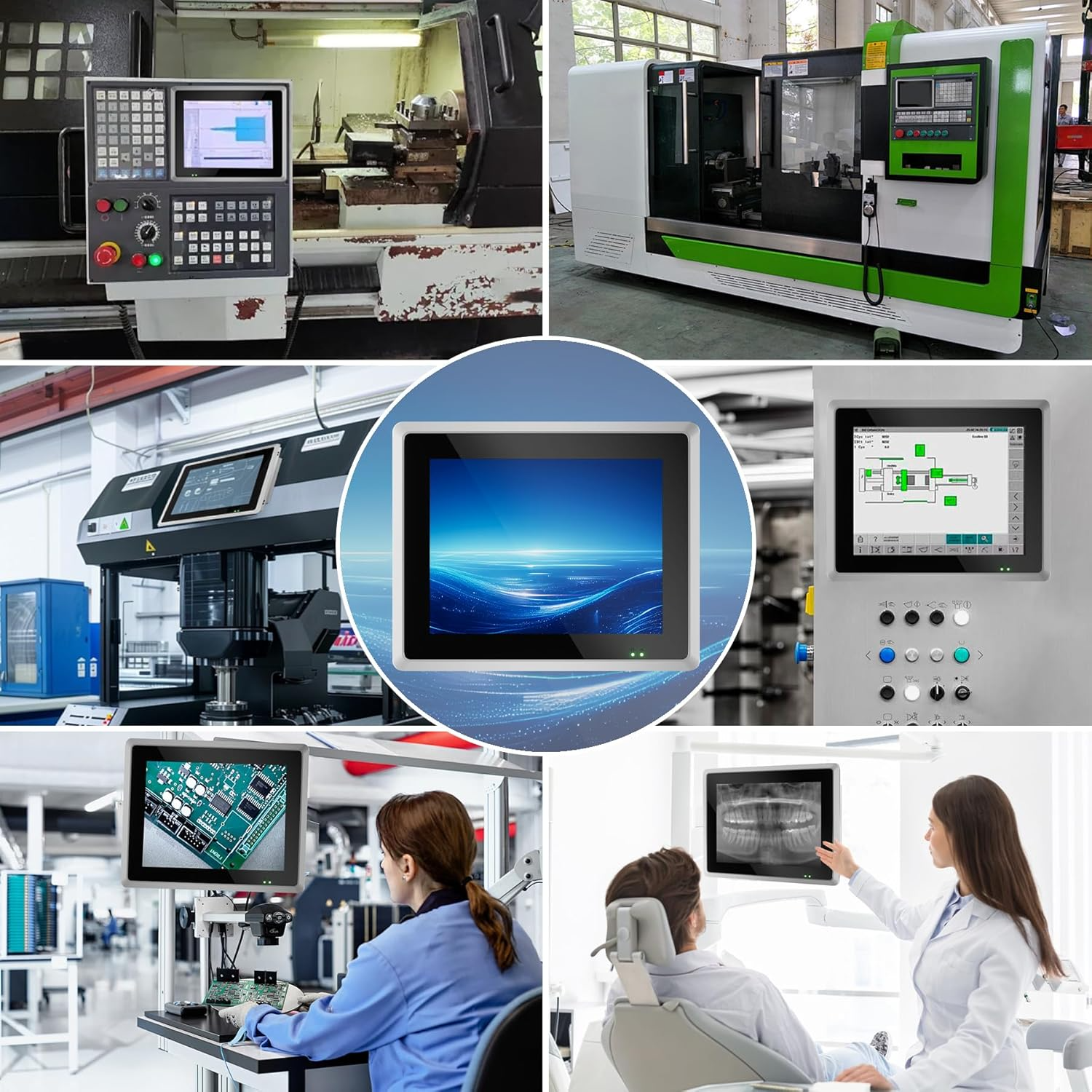

Production line HMI and machine control
Factory central monitoring and control rooms
Embedded display terminal for automated machinery
Smart warehouse and logistics management
Power and new energy equipment monitoring
Traffic control and roadside monitoring stations
Industrial environmental & safety monitoring
Smart building and facility automation
