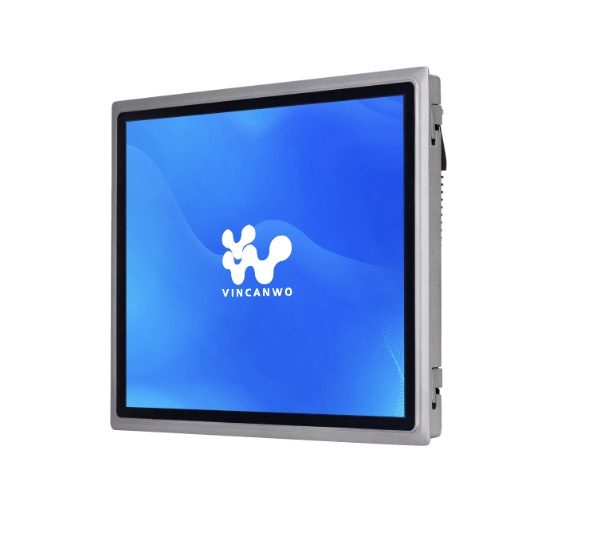

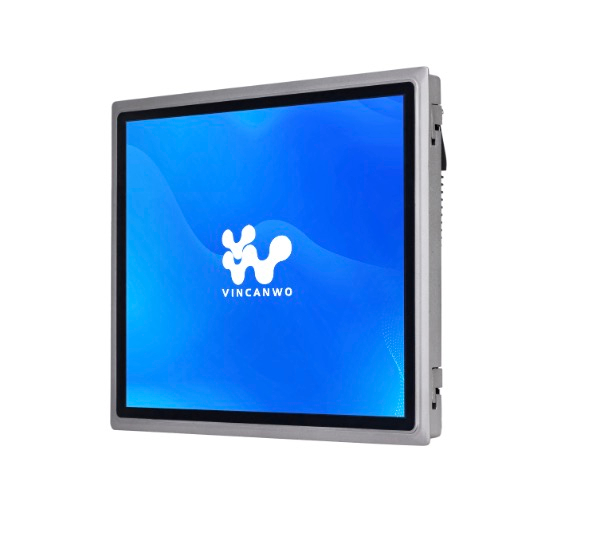

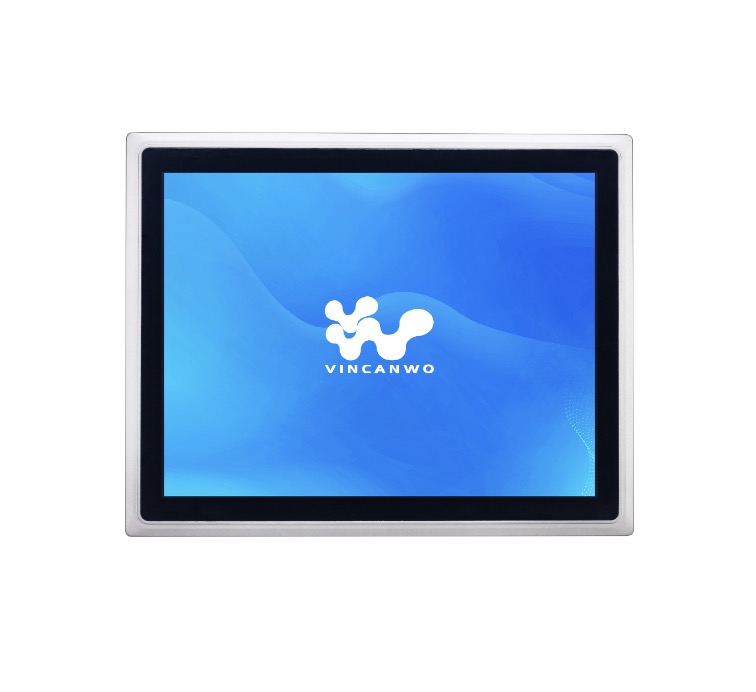

SKU | 15.6” Panel PC | TPRO-156 |
Screen Size | 15.6inch |
Resolution | 1920 * 1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive or Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA/1 *SATA (2 .5” Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA (2 .5” Mechanical hard disk capacity ≤2TB） |

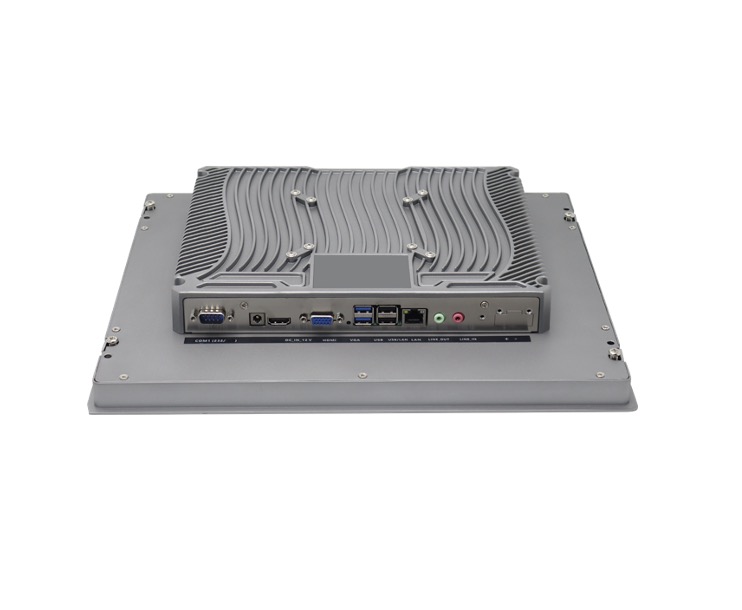

Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) expansion to 5COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

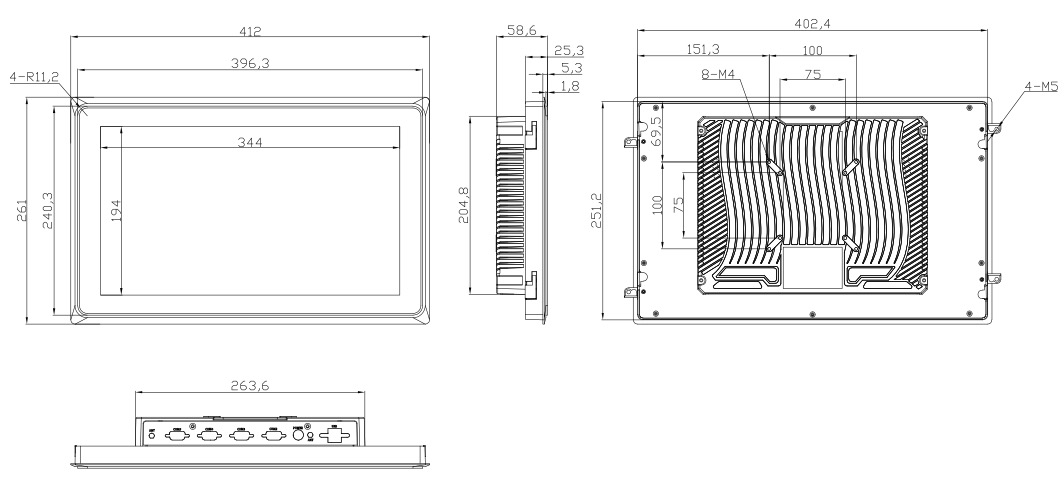

Dimensions (mm) | 412 *261 *58. 6 |
Mounting Hole Size (mm) | External embedded: 404 *253 Internal embedded: 397 .5 *241. 8 |
Gross weight (kg) | 3.80kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantages:
· Compact size:
Designed to be small, taking up less space than traditional desktop PCs.
· Durability:
Built to withstand harsh industrial environments, including dust, water, shock, and vibration.
· Touchscreen interface:
Use a touchscreen instead of a keyboard and mouse, which can increase productivity and reduce input errors.
· Easy to install:
Designed to be easy to install and require fewer cables than traditional desktop PCs.
· Versatile:
Configured for a variety of tasks, from basic functionality to complex tasks.
· Customization:
Customized with a range of options for display size, CPU, and connectivity.
· Fanless:
Fanless cooling systems, which means no dust enters the internal parts.
· Noiseless:
Fanless cooling system operates quietly, which can help people work more efficiently.
>Product Applications:
· Telecom:
Monitors and controls telecom equipment, such as cell towers, to ensure phone and internet service is reliable
· Energy grids:
Monitors energy grids to ensure a stable flow of electricity to homes and businesses
· Manufacturing:
Helps manage tasks like inventory and production, and test products
· Food and beverage:
Monitor and control processes in food and beverage production
· Oil and gas:
Monitor and control processes in oil and gas production
· Automotive:
Monitor and control processes in automotive production
· Water and wastewater:
Monitor and control processes in water and wastewater production
Our Vincanwo brand 15.6" Panel PC | TPRO-156Panel designed to run HMI/SCADA software, which allows operators to monitor and control processes.
