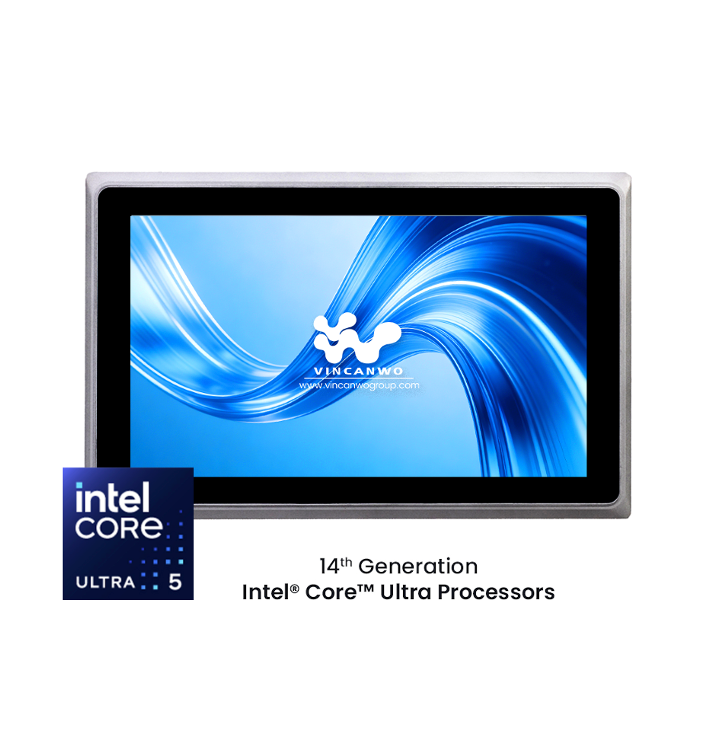

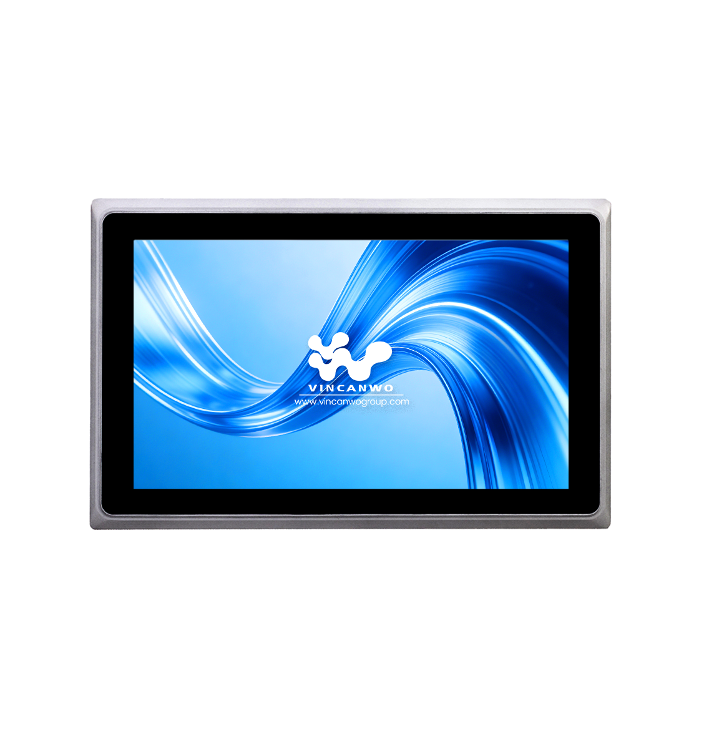

Product Name and Model | 15.6" Core Ultra Panel PC | CP-UPRO-156 | |
Primary Components | Processor Family | Intel Core Ultra Series 14th Generation Meteor Lake |
Processor Model | Core Ultra 5 - 125U | |
Processor Speed | 2x Low-Power Efficient Cores up to 2.1GHz, 2x Performance Cores up to 4.3GHz, 8x Efficient Cores up to 3.6GHz | |
Memory Type | 1x DDR5 SO-DIMM | |
Memory Support | 32GB | |
Storage Type | 1x M.2 M Key 2242 NVME SSD Slot, 1x M.2 M Key 2280 NVME SSD Slot | |
Storage Support | 128GB-1TB | |
Display | Screen Size | 15.6" |
Screen Resolution | 1920 x 1080 (Full HD) | |
Screen Ratio | 16:9 | |
Brightness | 250 nits, Optional 1000 nits High-brighntess | |
Touch Screen | Touch Screen | Projected Capacitive (Multi-touch), Resistive |
External I/O Ports | USB | 1x USB 3.2 Type C (PD Input/DP Alt Mode), 2x USB 3.2 |
Serial / Com | 2x COM | |
Serial Protocol Detail | COM1 and COM2 both support RS232/422/485 (COM 2 is an Optional Expansion) | |
Ethernet / LAN | 1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN | |
Video Outputs | 1x DisplayPort via USB-C Alt Mode, 1x HDMI | |
Audio Ports | 1x 3.5mm Audio Line-Out/Mic-In | |
Power Input Port | 3-Pin DC-In (Phoenix Type: -/NC/+), Optional POE, USB Type-C PD Input | |
Power | Input Voltage Range | 12-24V DC |
Max Power Consumption | 60W | |
Standard Power Adapter | Optional 100W USB-C PD PSU, Optional 90W 3-Pin Terminal Block PSU (19V/4.74A) | |
Operating Systems | Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
Linux | Linux Ubuntu 24.04 or above (Contact your sales rep for more information) | |
Compatibility | Security Hardware | fTPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 2242 M-Key slot for NVMe SSD or AI Accelerator, 1x M.2 2280 M-Key slot for NVMe SSD |
Expansion Module support | I/O Expansion Area comes by default with 2x USB 2.0 Ports, Options for 2nd COM and 8-Pin GPIO/DIO are Available | |
Thermal & Environmental | Operating Temperature | -30℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ | |

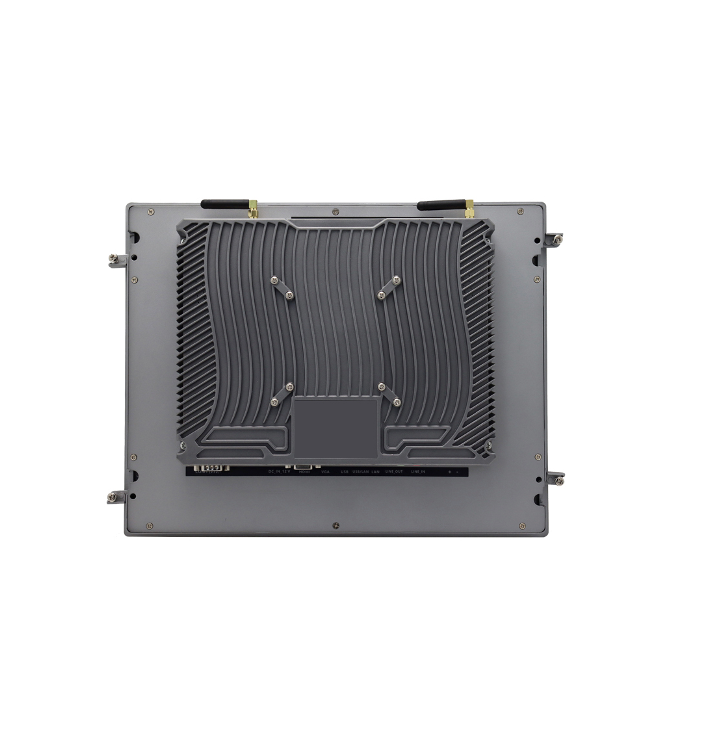

Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 90% Non-condensing | |
Storage Humidity | 10% – 93% Non-condensing | |
Enclosure | Material | Aluminum |
IP Rating | IP66 Front Bezel | |
Color | Gray | |
Control Buttons | Power Button | |
Mounting Options | Panel Mount, VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi 6E |
Bluetooth | Optional Bluetooth 5.2 | |
Weight / Dimensions | Weight | 3.80kg |
Dimensions | 412 x 261 x 58.6 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
The CP-UPRO-156 (15.6” Core Ultra Panel PC) from Vincanwo Group is a high‑end, fanless industrial HMI with Intel Core Ultra performance, a slim rugged design, and AI‑ready edge computing—ideal for smart manufacturing and harsh‑environment control.
Processors: Intel Core Ultra 5 125U (10C/12T) or Ultra 7 155U (12C/14T), up to 4.8 GHz.
Integrated NPU: Delivers 10 TOPS AI inference for local machine vision, anomaly detection, and predictive maintenance—no GPU required.
Arc Graphics: Hardware acceleration for 4K video and multi‑display HMI interfaces.
OS Support: Windows 10/11 Enterprise, Linux; long‑term lifecycle (7+ years).
Slim Profile: Only 35mm thick with a solid aluminum unibody—lightweight yet durable.
Fanless Cooling: Passive vapor chamber + phase‑change material (PCM) for 0–50°C operation; zero moving parts, dust‑proof, silent.
IP66 Front Panel: Dust‑tight and resistant to low‑pressure water jets—safe for washdown, food/beverage, and dusty factory floors.
Wide Voltage: 9–36V DC input with over voltage/reverse polarity protection—works with industrial/vehicle power.
15.6” FHD (1920×1080): 1000 cd/m² sunlight‑readable brightness.
OptiBond™ Pro Direct Bonding: <1% reflectivity, superior contrast, and glove/wet‑hand 10‑point capacitive touch—works with industrial gloves or wet fingers.
50,000‑hour Backlight Lifespan: Long‑term reliability for 24/7 operation.
Dual GbE LAN: Redundant networking for IIoT and real‑time data transfer.
Multiple I/O: USB 3.2, USB‑C, HDMI, VGA, RS‑232/485 COM, GPIO/DI‑DO.
Dual M.2 Slots: NVMe Gen4 SSD (up to 1TB) + M.2 for Wi‑Fi/5G wireless modules.
EMI/EMC Compliance: CE/FCC/RoHS certified for industrial electromagnetic interference environments.
Multiple Mounts: Panel, wall, VESA (75×75/100×100), and DIN‑rail options.
Low Power: Ultra‑low 15–25W consumption—saves energy in remote/battery‑powered sites.
Long Lifespan: Industrial components with MTBF > 50,000 hours; 3‑year warranty + 7‑year product availability.
Customization: OEM/ODM for I/O, touch, brightness, and branding.
Smart Manufacturing: HMI, machine vision inspection, robotic control, and predictive maintenance.
Food & Beverage: Washdown‑grade control panels with IP65 front and glove touch.
Pharmaceuticals: Cleanroom HMI with fanless, dust‑free operation.
Logistics/Warehousing: AGV/AMR control, inventory management, and barcode scanning.
Smart Cities/Buildings: Building automation, energy management, and interactive kiosks.
