Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times
Processor
Intel® Processors
Memory
Under 5th Generation: DDR3, 4G / 8G
Storage
Under 5th Gen: 1*mSATA+1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB)
Network
1*LAN
COM

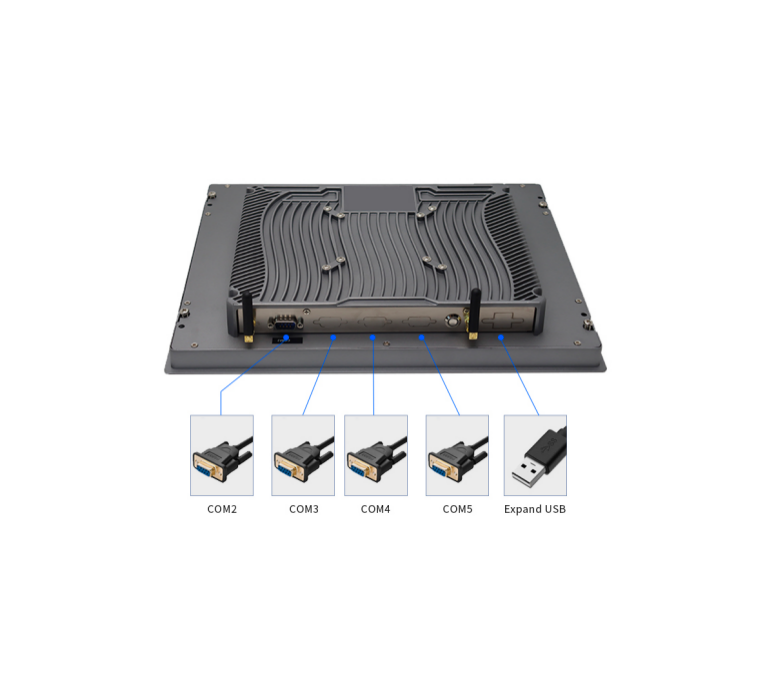

2 *RS232 (COM 2, optional RS485)
USB
4*USB
Display
1 *HDMI, 1*VGA
Expand Slot
Under 5th Gen: 1*Mini PCIE WiFi&BT or 4G LTE
Operating System
Windows / Linux

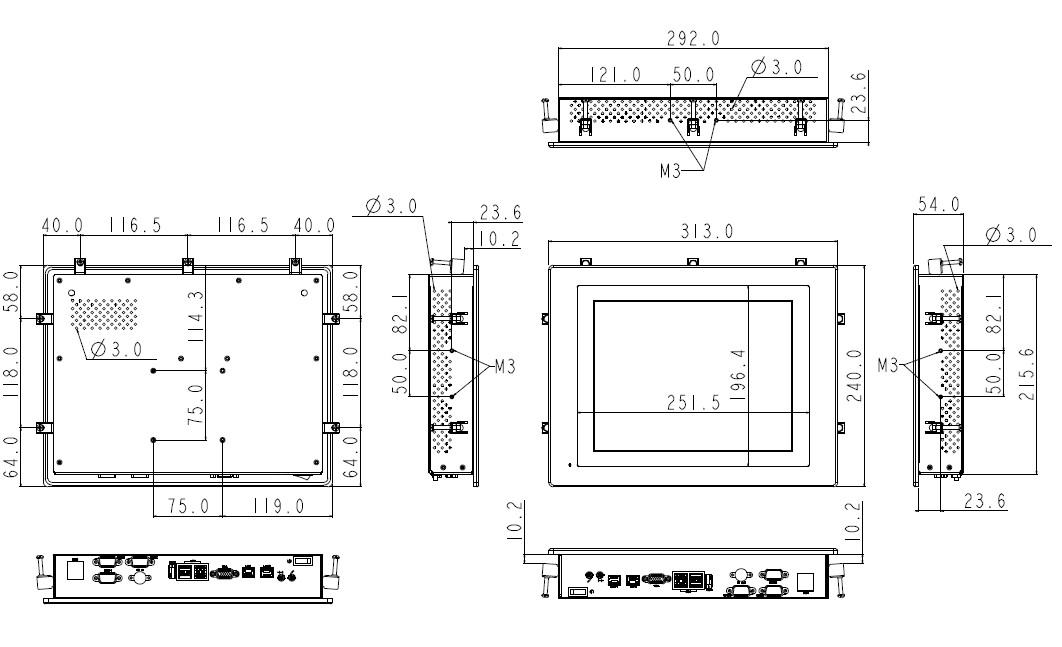

Dimensions (mm)
277.3*224.5*55.8
Hole Sizes (mm)
External: 270*218
Internal: 266*213
Individual Gross Weight
(KG)
2.75
Mounting Options
Embedded / Wall-mounted / Desktop
Operating Temperature
-30 ~ +70℃
Storage Temperature
-40 ~ +80℃
Storage Humidity
*Non-condensing
5 ~ 95%
Power Input
12V DC (6A) (Optional 9 ~ 36V)
1. Full Fanless & Low-Power Industrial Design The TPRO-104 adopts a completely fanless, fully enclosed heat dissipation structure, eliminating fan failure, dust inhalation and noise issues. Equipped with low-power industrial-grade processor, it supports 24/7 uninterrupted stable operation. The passive heat dissipation design greatly reduces power consumption and maintenance costs, delivering higher reliability for long-term industrial deployment.
2. Rugged Industrial-Grade Protection Built with high-strength die-cast aluminum alloy housing, the front panel features IP66 dustproof and waterproof rating, effectively resisting water splashes, dust, oil stains and fine particles in harsh workshop environments. It supports wide-temperature operation ranging from -30°C to +70°C and withstands industrial vibration and impact, ensuring stable performance in extreme working conditions.

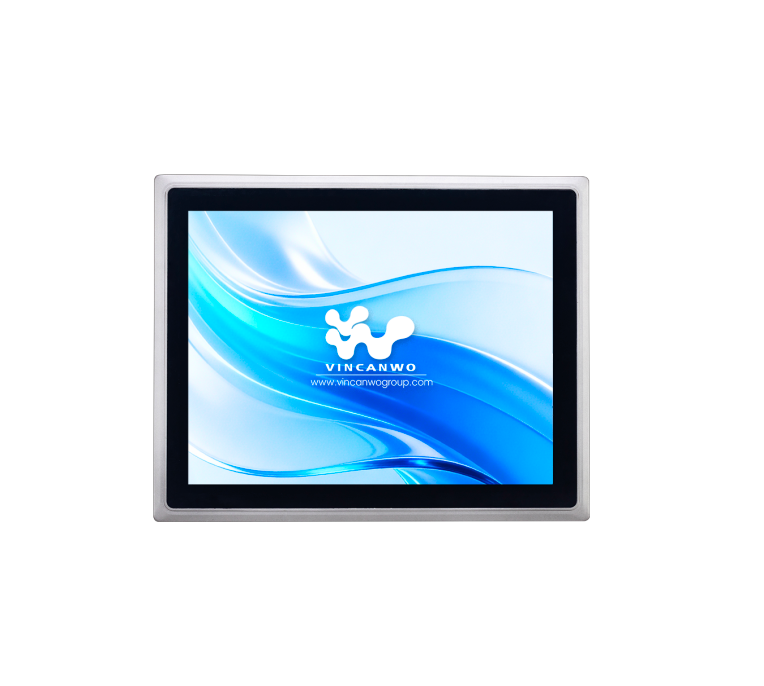

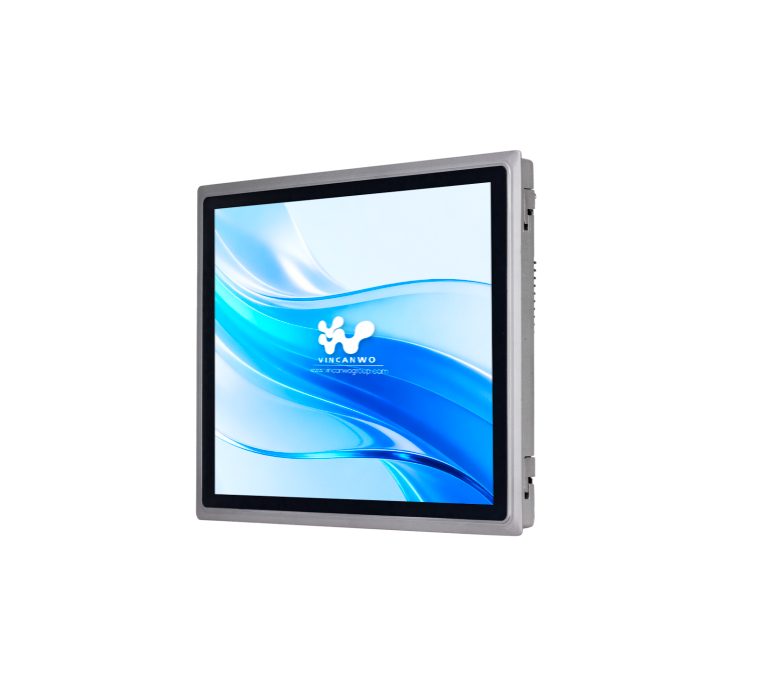

10.4-inch High-Clarity Touch Display Featuring a 10.4-inch industrial-grade square LCD screen with standard industrial resolution, ultra-wide viewing angle and high contrast ratio, the device presents clear and delicate display effects. It supports multi-point capacitive touch and optional resistive touch, compatible with glove touch operation. With anti-glare surface treatment, it ensures readable visuals even under strong ambient light.

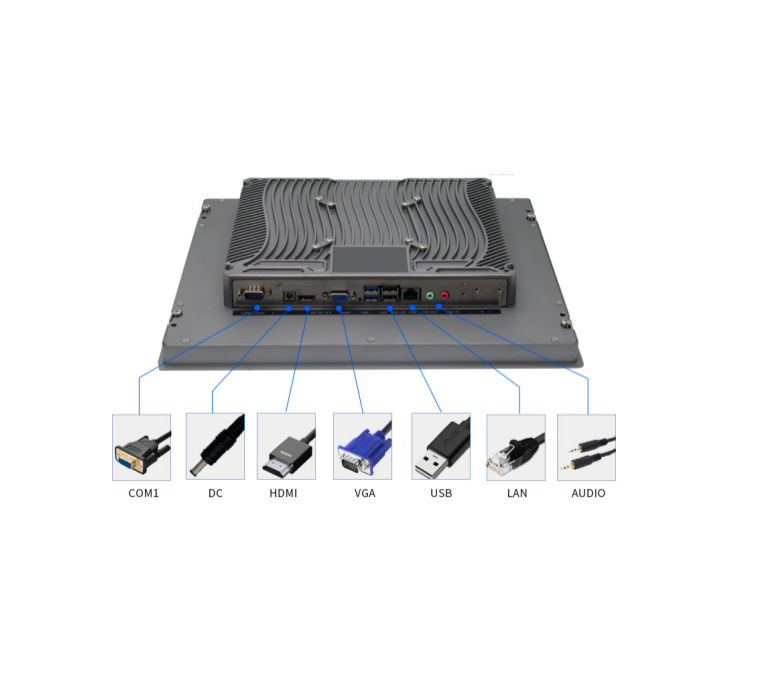

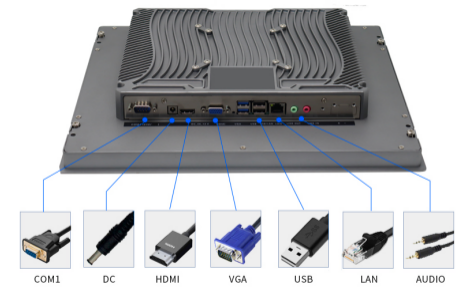

Rich Expandable I/O & Strong Compatibility Comes with complete industrial interface resources including Gigabit Ethernet, USB, HDMI, VGA, RS-232/RS-485 serial ports, supporting connection with PLC, sensors, servo equipment and various industrial peripherals. It supports mainstream Windows and Linux operating systems, with reserved expansion slots for customized functions such as 4G module, WIFI, Bluetooth and storage upgrade, meeting diverse industrial access and control demands.
Flexible Installation & High Integration The all-in-one compact body supports multiple installation methods including embedded, wall-mounted, desktop and VESA mounting, adapting to different equipment cabinets and field installation scenarios. Its highly integrated design saves installation space and simplifies on-site wiring and equipment integration.
1. Factory & Industrial Automation Serves as HMI human-machine interaction terminal for automated production lines, CNC machine tools, assembly equipment and industrial robots, realizing real-time equipment parameter monitoring, data acquisition, operation control and production status statistics.
2. Intelligent Machinery & Equipment Widely applied in packaging machinery, textile equipment, injection molding machines and printing machinery, providing stable visual control and data interaction functions for mechanical automation systems.
3. Energy & Environmental Monitoring Used in power distribution cabinets, new energy equipment, environmental monitoring stations and water treatment systems, supporting long-term stable data monitoring, equipment operation scheduling and remote system management.
4. Smart Transportation & Logistics Applicable to vehicle-mounted industrial control terminals, warehouse intelligent management equipment and logistics sorting systems, adapting to vibration and temperature-changing working environments to ensure continuous and reliable operation.
5. Commercial & Industrial Self-Service Terminals Suitable for industrial query terminals, factory access control terminals and on-site monitoring display terminals, realizing convenient man-machine interaction and information display in industrial scenarios.
