SKU | VFACEH-104 |
Screen Size | 10.4” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/㎡ |
Contrast Ratio | 900:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | D81 (LGA1150) |
Memory Type | 2x DDR3 4G, 8G, 16G |
Storage Type | 1x mSATA 1x SATA |

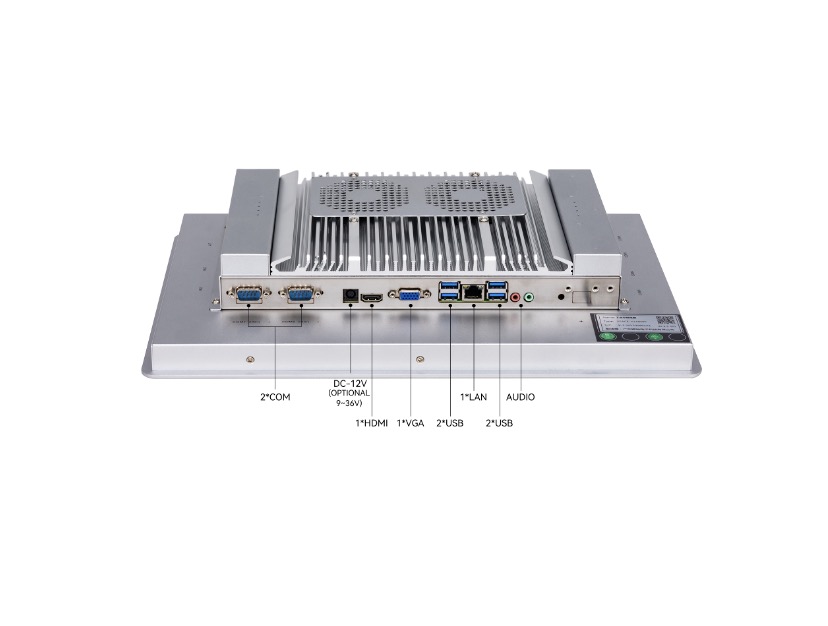

Ethernet / LAN | 1x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

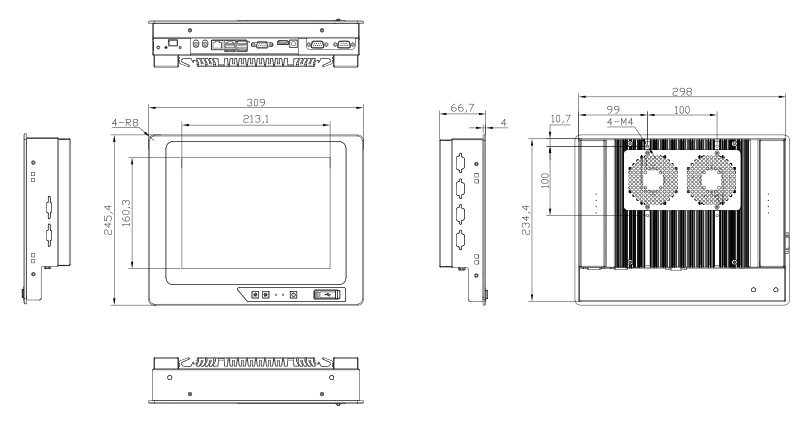

Dimension | 309x245.4x66.7mm |
Mounting Hole Size | 301x237mm |
Gross Weight | 3.54kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
Speed and Performance:
Our Vincanwo brand 10.4” High-performance Panel PC | VFACEH-104 is designed to handle computationally intensive tasks, offering faster processing speeds and improved responsiveness compared to standard panel PCs.
Space-Saving Design:
As a combined industrial PC and monitor, the eliminate the need for a separate computer unit, saving valuable space in applications where space is limited.
Durability and Reliability:
Built for demanding environments, the 10.4” High-performance Panel PC | VFACEH-104 is often designed with robust materials and components to withstand harsh conditions, ensuring reliability and longevity.
Versatility:
10.4” High-performance Panel PC | VFACEH-104 can be used in a wide range of applications, including industrial automation, manufacturing, and data acquisition, offering flexibility in their deployment.
Touchscreen Capabilities:
Come with touchscreen technology, providing intuitive and user-friendly interaction for operators.
Customization:
Customized to meet specific needs, with options for different operating systems, processors, and storage capacities.
>Product Applications
Our Vincanwo brand 10.4” High-performance Panel PC | VFACEH-104 is designed for rugged environments, find applications in industrial automation, manufacturing, healthcare, transportation, and retail, serving as HMI's, interactive displays, and more.
Industrial Automation and Control Systems:
Human-Machine Interface (HMI):
Act as the primary interface for operators to monitor and control machinery, processes, and equipment in real-time.
Data Visualization:
Allow for the display and analysis of complex data from industrial processes, enabling informed decision-making.
Machine Control:
Used to directly control and operate industrial machinery, robots, and other equipment.
Manufacturing:
Production Monitoring
Provide a user-friendly interface for operators to track production efficiency, identify bottlenecks, and optimize processes.
Quality Control:
Used for visual inspection, data logging, and analysis to ensure product quality.
Smart Factories:
Play a crucial role in the realization of Industry 4.0 objectives, serving as the interface between humans and machines in smart factories.
Healthcare:
Interactive Patient Monitoring:
Used to display real-time patient data, vital signs, and medical images, facilitating quick and accurate diagnoses.
Diagnostic Tools:
Integrated into medical devices to provide a user-friendly interface for doctors and nurses to perform tests and procedures.
Medical Record Management:
Can be used to store and manage patient records, allowing for easy access and retrieval of information.
Transportation and Logistics:
Fleet Management:
Can be used to track the location and status of vehicles, manage routes, and optimize logistics.
Vehicle Tracking:
Integrated into vehicles to provide real-time data on location, speed, and other parameters.
Public Information Kiosks:
Used in airports, train stations, and other public transportation hubs to provide information and services to the public.
Retail and Hospitality:
Self-Service Kiosks:
Used for self-service checkouts, ticket purchasing, and other retail applications.
Point-of-Sale Systems:
Used as a point-of-sale terminal for retail and hospitality businesses.
Interactive Displays:
Used to create engaging and interactive customer experiences in retail environments.
Other Applications:
Digital Signage:
To display dynamic and engaging content in public spaces.
Machine Vision:
For image processing and analysis in industrial applications.
Smart Home:
As a control center for smart home devices and systems.
Exploration and Production of Oil and Gas Resources:
For monitoring and controlling oil and gas extraction processes.
Logistics Robot Mobile Solution:
To control and monitor the movement of logistics robots.
