| Quantity: | |
|---|---|
Product Form | 10.1" Rugged Windows Tablet |
Material | PC+10%GF |
Dimension | 274.9*188.7*23.1 mm |
Weight | 1140g |
Product Color | Black |
CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, |
GPU | Intel® HD Graphics Gen 11 LP |
Memory | RAM 8GB DDR ROM 128GB Emmc |
Operating System |
|
Display | Type: FHD Optional: Type: HD |
Touch Pannel | 10 points tempered glass capacitive screen G+G, hardness 7H |

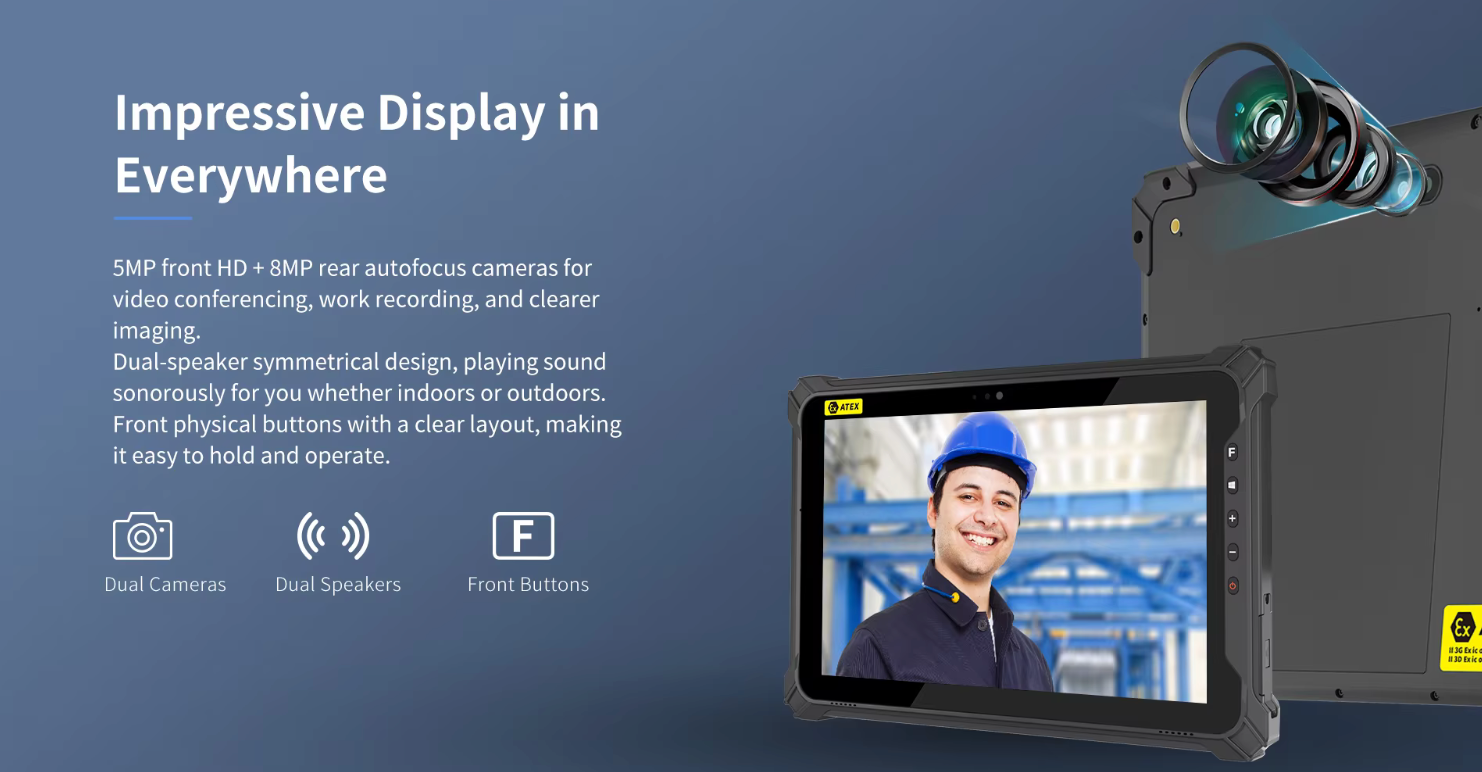

Camera | Front 5.0MP |
Buttons | Power 1 |
Speaker | 8Ω/1W Speaker *2 |
Microphone | Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ |
Senssors | G_sensor |
RTC | Built in polymer lithium ion battery, with capacity of 3V/1mAh |
Battery (Tablet) | Removable Li-polyment Battery |
WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m |
4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), |

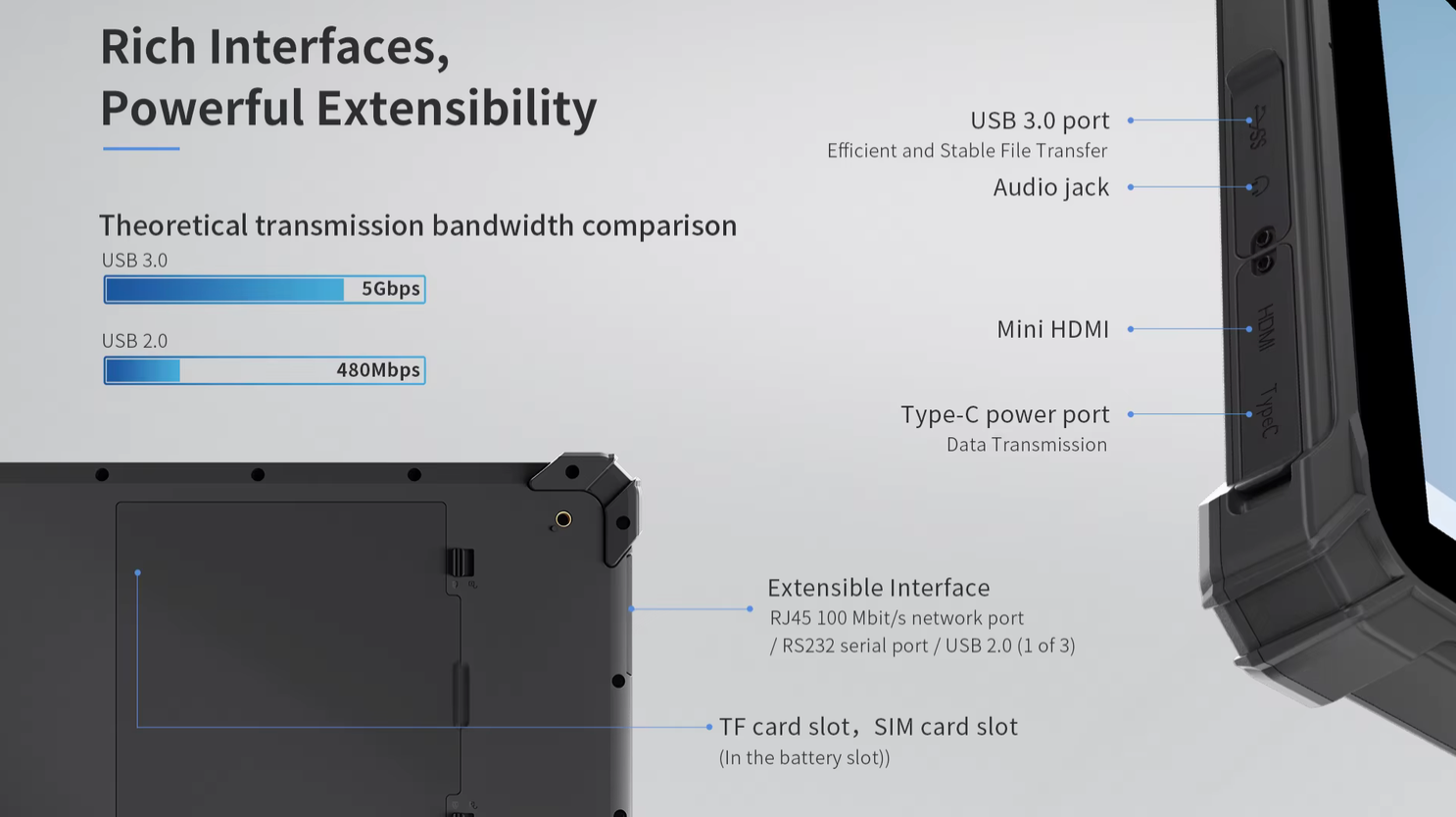

I/O Interface | USB3.0 1 (USB A port, HOST data transmission), Type C 3.1 1 (Charging and Data transmission, Full function Type-C) |
∮3.5mm Standard earjack *1 | |
HDMI 2.0a mini *1 | |
Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) | |
12PIN Pogo Pin *1 (Charging interface, USB signal connection base) | |
One out of Three | RJ45 network port *1 (10/100M adaptive) Standard |
DB9 serial port *1 (RS232) | |
USB 2.0 *1 | |
Adapter | PD Fast Charge Adapter +Type-C Data Cable（1m） |
Indicator Light | Blue indicator 1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) |
Rugged Features | MIL-STD-810G: 1.22m drop |
Working temperature: -30 °C to 70 °C | |
Storage temperature: -40 °C to 80 °C | |
Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
Humidity: 95% Non-Condensing | |
Certification | IP65 |
CE | |
FCC | |
CCC | |
Battery: UN38.3, MSDS, Air and Maritime Reporting, IEC62133 | |
China Energy Conservation Certification | |
ECM 23 ATEX-B | |
MIL-STD-810G | |
Data Collection | QR Code Scanner |
NFC |

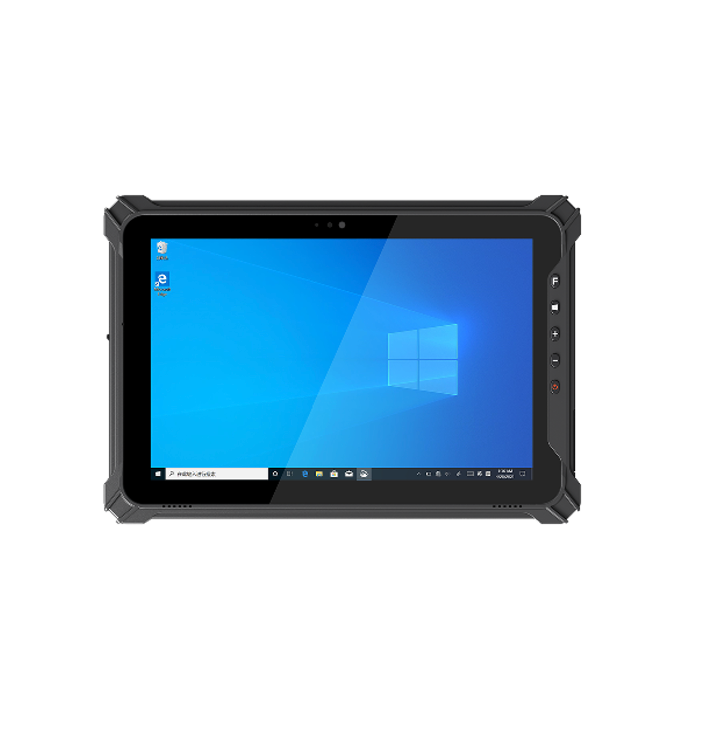

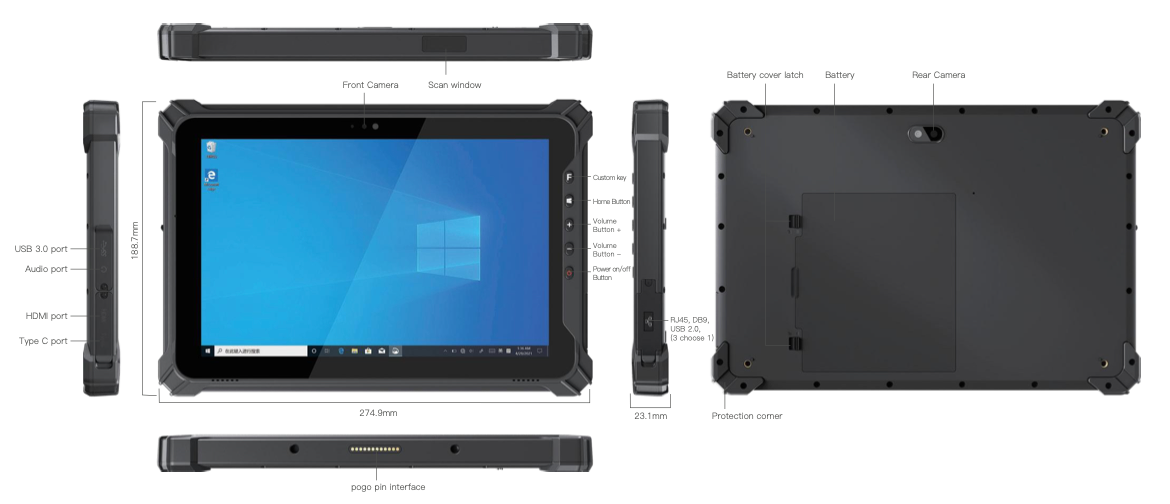

Product Six Views

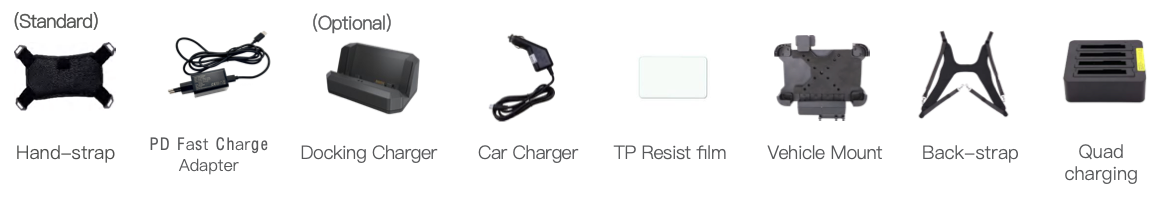

Accessories
11th Generation Celeron® Processor, Incredible Performance
Powered by Intel Celeron® N5100 Processor based on the Jasper Lake platform, showing lower power consumption and en-hanced processing speed, its CPU performance over the previous Atom® x5-Z8350 CPU improved by about 75%.

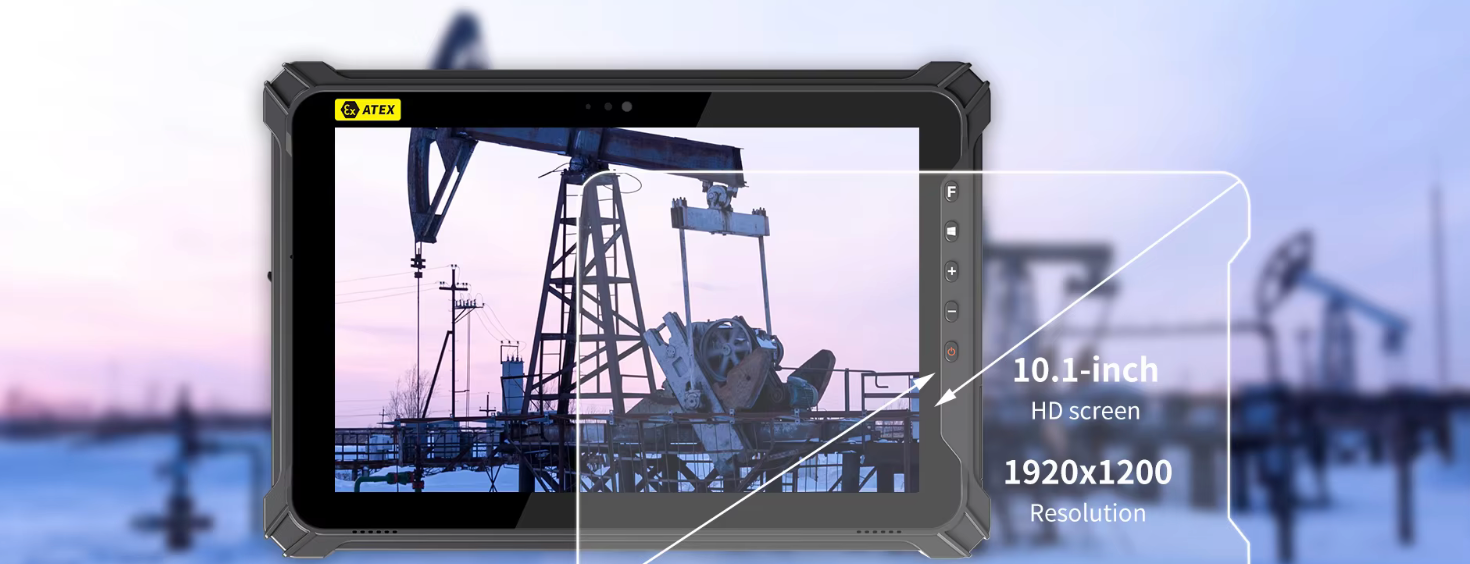

Size, Presentation, and Details
A 10.1-inch HD screen provides a larger size of view, and the high resolution of 1920 x 1200 ensures clear imaging. The I17J (EX) supports a 10-point capacitive touch panel with high-hardness tempered glass, which effectively improves the hardness and scratch-proof performance.

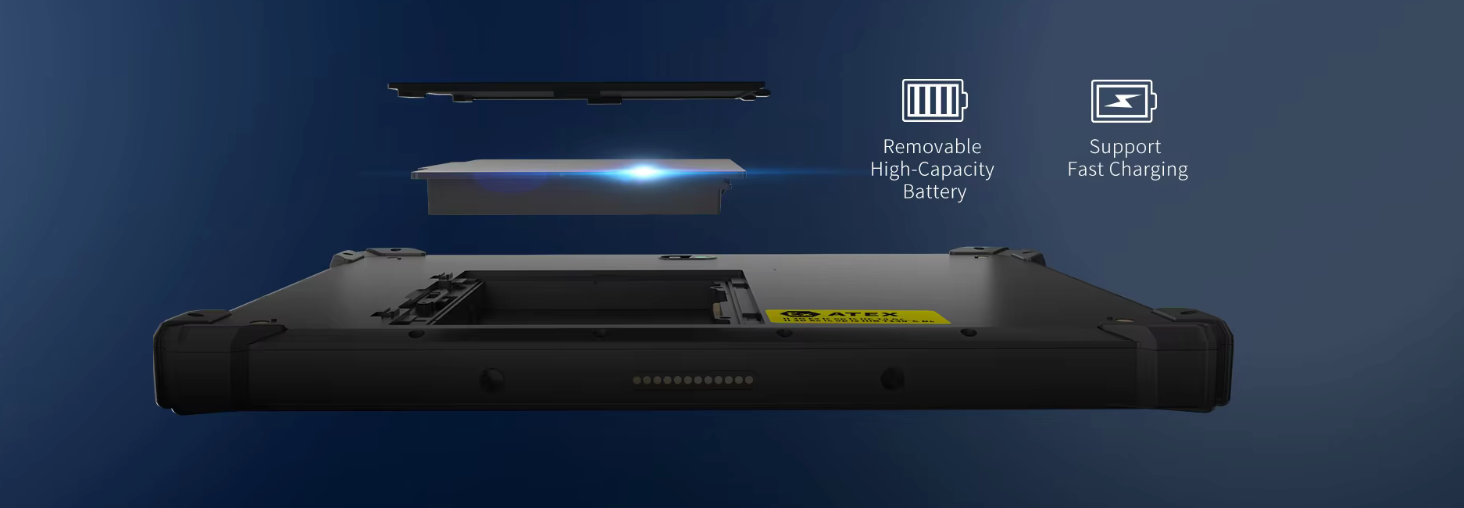

Removable and Hot-Swappable Battery for All-Day Work
Up to 5000 mAh / 7.6V battery capacity delivers up to 8 hours of runtime. It supports 65W fast charging via Type‑C interface, enabling faster charging speed and longer standby time.
The battery is removable, and the Type‑C interface can power the device even without the battery installed, ensuring uninterrupted operation at all times.
Multi-Scenario Application Experience

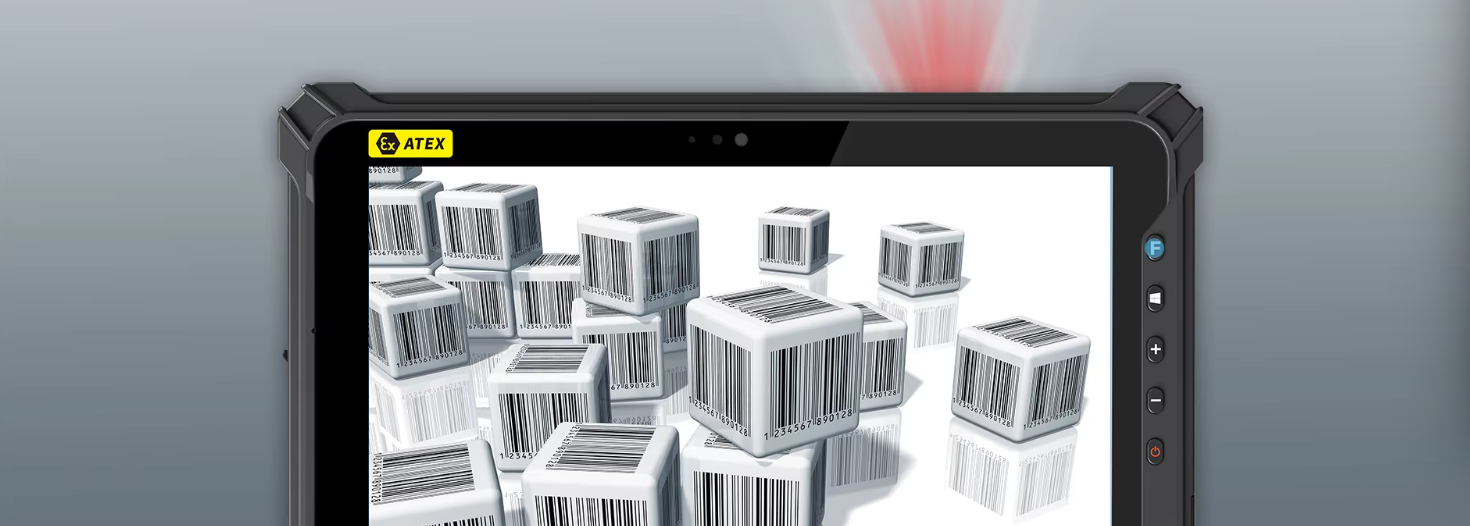

An optional professional 2D scanning engine provides enhanced scanning and imaging capabilities. The custom F key is the scanning key, which can be held directly and the scanning function can be triggered at a moment's touch. Rich expandable accessories such as docking chargers, vehicle mounts, hand-straps, car chargers, and multiple charging docks bring users a personalized multi-scene experience.
The I17J 10.1” ATEX-B certified rugged Windows tablet is intrinsically safe and explosion-proof, specially designed for hazardous explosive, flammable gas and dust environments. It meets ATEX-B safety standards, combined with industrial rugged design, perfectly deployed in high-risk industrial sites.
Onshore and offshore oilfield field inspection, well site data collection
Refinery, petrochemical plant patrol, equipment parameter monitoring
Pipeline inspection, leak detection and maintenance work order management
Safe operation in flammable gas explosive zones
Chemical workshop production data recording and process monitoring
Hazardous material inventory management and warehouse inspection
Pharmaceutical factory dust-explosion risk area daily patrol and quality checking
Safe mobile operation in volatile chemical environments
Underground mine routine patrol, equipment maintenance checking
Mine asset management, safety inspection and real-time data reporting
Coal mine dust and gas hazardous area mobile office and site logging
Oil depot tank area inspection, fuel inventory counting
Gas station daily safety patrol, facility maintenance record
Hazardous area asset checking and digital workflow processing
Chemical container inspection, dangerous goods manifest verification
Terminal flammable cargo yard patrol and safety management
On-site barcode scanning, cargo data entry in explosive-risk zones
Gas power plant, energy storage station hazardous area inspection
Urban gas pipeline station field maintenance and data recording
Safe onsite operation in enclosed flammable space
ATEX-B explosion-proof certification: Safe for flammable gas, dust and explosive hazardous areas
Full rugged performance: IP65 dustproof & waterproof, drop and vibration resistant
Windows system compatible with industrial inspection, MES, asset management software
10.1-inch sunlight-readable screen, support glove touch for site operation
Optional barcode scanner, NFC, 4G LTE and GNSS for all-round field work
