| Product Form | 10.1" Rugged Windows Tablet |
| Material | PC+TPU+10%GF |
| Dimension | 280.4*187*26.6 mm |
| Weight | 1014g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR ROM 128GB EMMC Optional: 4GB Optional: 64GB, Compatible 128GB/256GB |
| Operating System | Windows 11 Home Optional: Windows 11 Pro Windows 11 Home/IOT Windows 10 Pro/Home/IOT |
| Display | Type: FHD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 400cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G, hardness above 7H, scratch resistant ,930 stylus |
| Camera | Front 5.0MP (MIPI) Rear 8.0MP (MIPI) |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized P Key *1 (HOME Key), When there is no scanning function, it can be customized |
| Speaker | 8Ω/1W Waterproof BOX Speaker *1 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| RTC | Built in RTC clock button battery |
| TPM | Built in TPM SLB9670VQ2.0 FW7.85 |
| Battery (Tablet) | Removable Li-polyment Battery 5000mAh/7.4V 6.5 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI Intel 9461 |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 2G/3G/4G | MeiG 750 VE LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional, South America or North America module |
| GPS | Support GPS, Glonass |

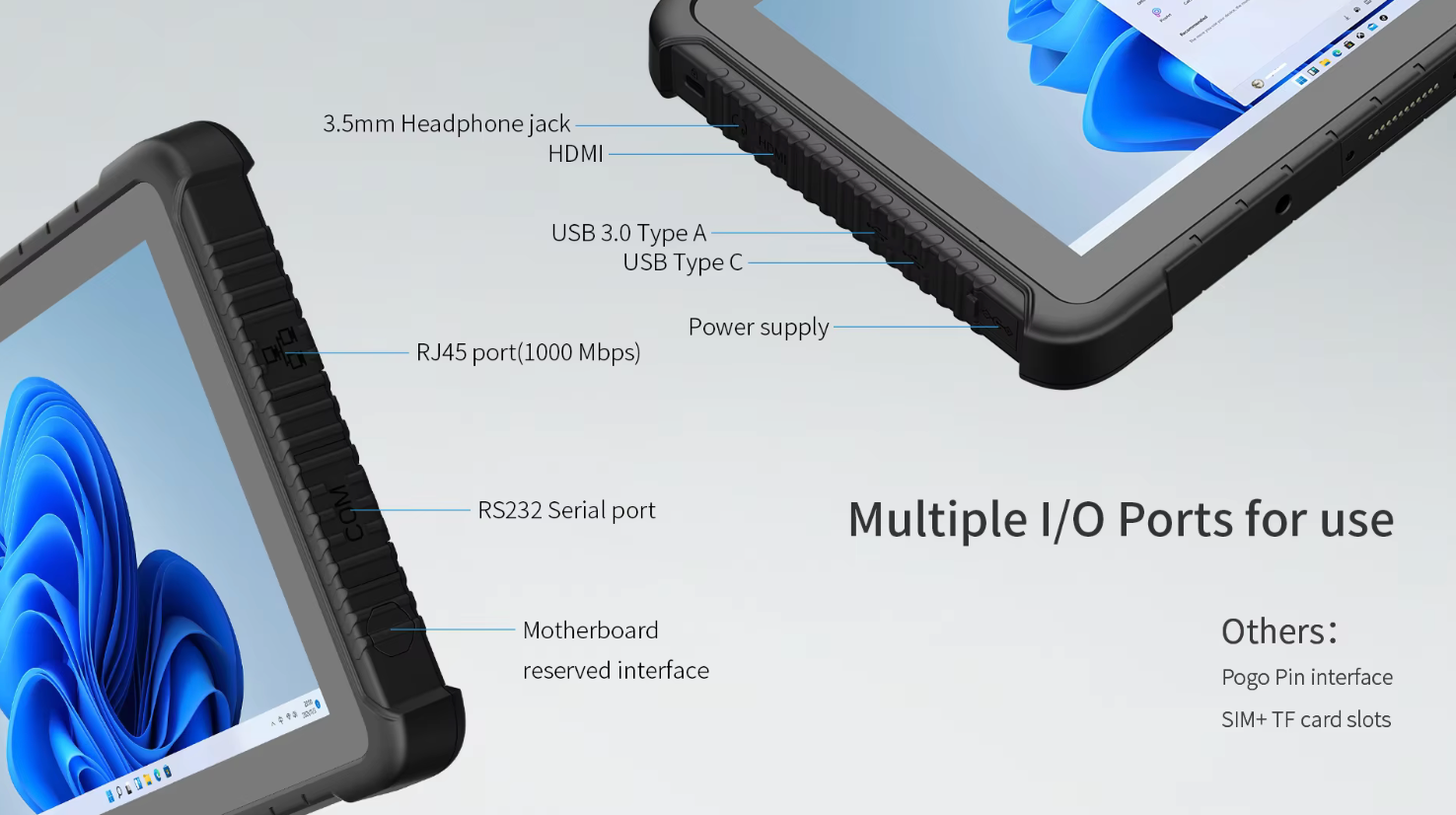

| I/O Interface | USB3.0 *1, Type C *1 (USB3.0/HDMI/Charging) |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.0a mini *1 | |
| SIM card *1 | |
| TF card *1，Max: 512GB | |
| DC 12V 4A ∮4.0mm jack *1 | |
| 12PIN Pogo Pin *1 | |
| DB9 serial port *1 (RS232) TTL level | |
| RJ45 network port *1 (10/100 adaptive) | |
| Reserved Interface | USB *1, Restructuring |
| Serial port *1, Restructuring | |
| Adapter | AC100V ~ 240V 50Hz/60Hz Output DC 12V 4A Optional: US, UK, EN |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE NB | |
| FCC | |
| CCC | |
| MIL-STD-810G | |
| Battery: UN3803, MSDS, Aviation report, Marine report, IEC62133 | |
| Data Collection | Barcode Scanner Optional: MOTO SE655 Optical resolution: 5mil scan speed: 50 times /s Code system: UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11 |
| QR Code Scanner Optional: Honeywell N3680 hard decoding Optical resolution: 5mil scan speed: 50 times /s Code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse | |
| NFC Optional: NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm | |
| Fingerprint Optional |

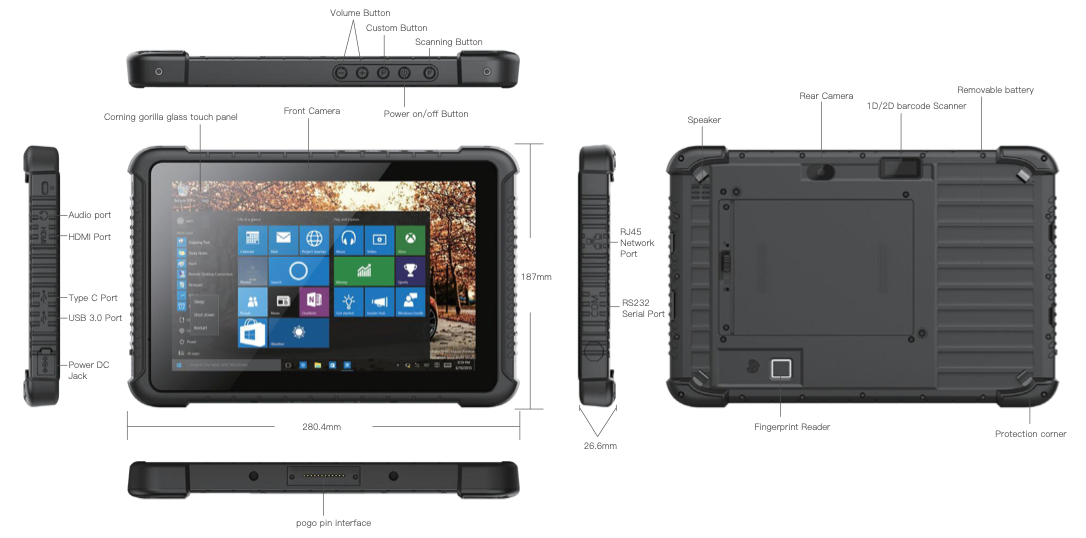

Product Six View

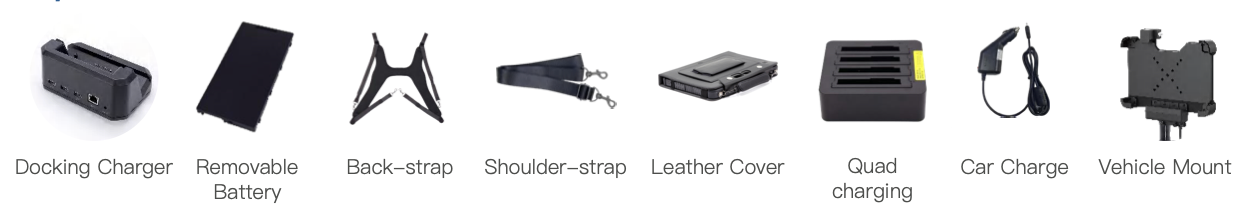

Accessories
Extraordinary performance
The Intel Celeron quad-core (4M Cache, up to 2.80 GHz) processor makes everything that much faster, so you spend less time waiting and more time doing. Coupled with 8GB + 128GB (Maximum 8GB+256GB optional) memory capacity, it gives you an extraordinary experience.
Go for a bigger vision
I16J comes with a 1200 x 1920 FHD resolution 10.1-inch screen and supports a 10-point capacitive touch and stylus, letting every image burst with detail and clarity. The extraordinarily user-friendly and safe Windows 11 operating system makes it easy to execute various tasks and instructions.
Stay connected at all times
High-speed 2.4G/5.8G dual-band WIFI, 4G LTE networks and Bluetooth 5.1 ensure that no matter how much data you need, you can maintain stable speeds almost everywhere. An accurate GPS positioning function helps you find any location you want.

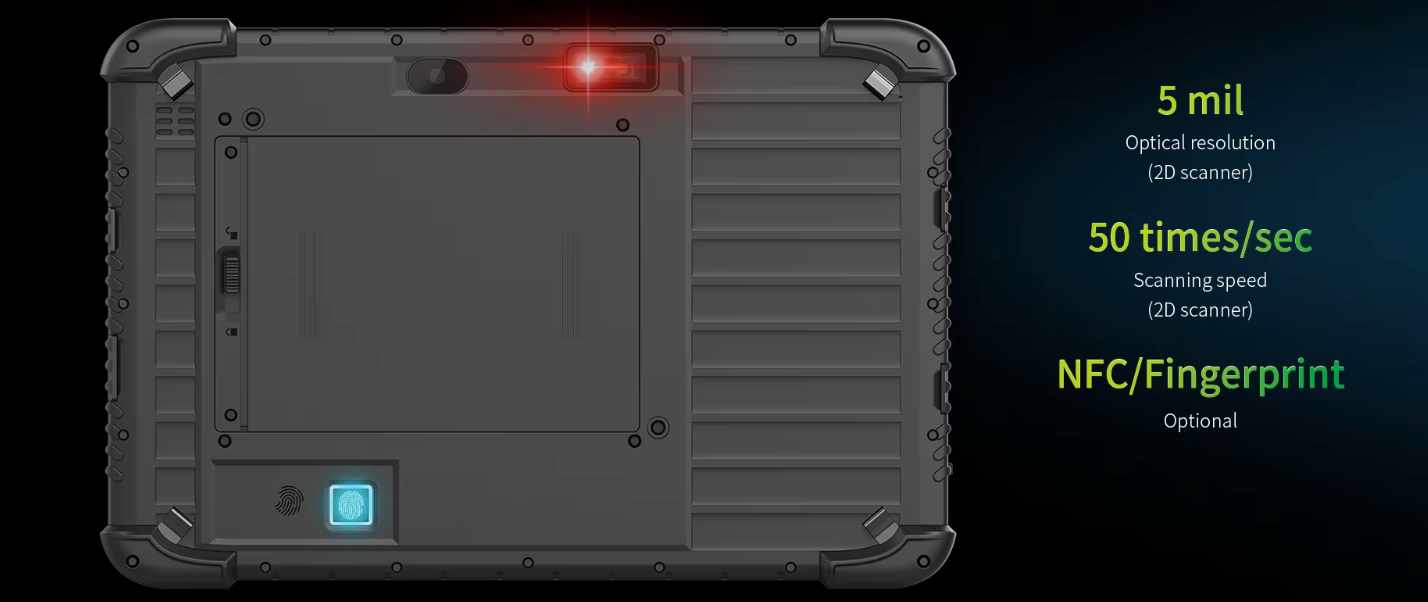

Prepare for high-accuracy data collection
Professional optional 1D/2D scanning engine brings efficient data collection capabilities. Wide scanning range and distance, so you do not need to align the barcode when using it deliberately.
Empower Your Day
I16J is equipped with an impressive battery power of 5000mAh that can go up to 6.5 hours on standby. The detachable battery lets you stay connected for a very long time. Moreover, its high durability is suitable for all mission-critical field operations.
Daily stocktaking, inbound/outbound goods registration
Barcode / QR code scanning and inventory data entry
WMS system running, simple order picking and warehouse scheduling
Lightweight portable design for staff all-day handheld operation
Chain store stock count, shelf replenishment checking
Offline store data collection, membership and order management
Simple POS auxiliary inquiry and daily business statistics
Digital work order viewing and production progress recording
On-site simple quality inspection and defect logging
Workshop data entry, equipment routine inspection checklist
Low power consumption ensures long working hours on shift
Community property, urban road, landscape maintenance patrol
Water supply, pipeline, basic utility onsite inspection and form filling
Patrol route recording, work order receiving and onsite feedback
Driver handheld order checking, route navigation
Electronic proof of delivery, signature capture
Light load of logistics management software, stable long-time standby
Industrial vocational training mobile classroom
Government community mobile service registration and information inquiry
Outdoor public information checking and mobile office
Cold storage, food factory low-temperature daily operation
Dustproof, waterproof, drop-proof for factory workshop and warehouse harsh environment
Intel N5100 Quad-Core: Low power, low heat, stable running Windows 10/11 for daily industrial software
Cost-effective entry-level rugged tablet, perfect for standard workflow scenarios
10.1-inch portable size, handheld and optional mountable
Full rugged protection: dustproof, waterproof, drop resistant
Long battery life, supports all-day mobile work
Expandable with scanner, NFC, 4G LTE for multi-scene customization
