| Quantity: | |
|---|---|
| Product Form | 10.1" Rugged Windows Tablet with Permanent Car Mount |
| Material | Magnesium Alloy |
| Dimension | 278.6*184.5*21.3mm |
| Weight | 1190g |
| Product Color | Black |
| CPU | i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | RAM 16GB DDR4L ROM 128GB SSD |
| Operating System | Windows 11 Pro (Home, IOT) 64bit, Language by default: English Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit |
| Display | Type: LCD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacity TP, G+F+F, Hardness over 7H, Scratch resistant, Support stylus |
| Camera | Rear 8.0MP (USB) With flashlight |
| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Windows Home *1 F Key *1 (Barcode Scanning, Customizable without barcode) |
| Speaker | 8Ω/1W Waterproof Speaker *1 |
| Microphone | Waterproof microphone 4618, specification: - 44dB±3DB |
| Senssors | G_sensor |
| Fan | IPX5 Fan *1 |
| TPM | Built-in, TPM2.0 |
| RTC Battery | 3V 210mAH Continuous discharge current: 0.2mA Diameter: Ø20.0mm Max Thickness: 3H.2mm |
| Small Battery | Build in Lithium-ion polymer battery, Non-removable 7.4V/860mAh 10min ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) |

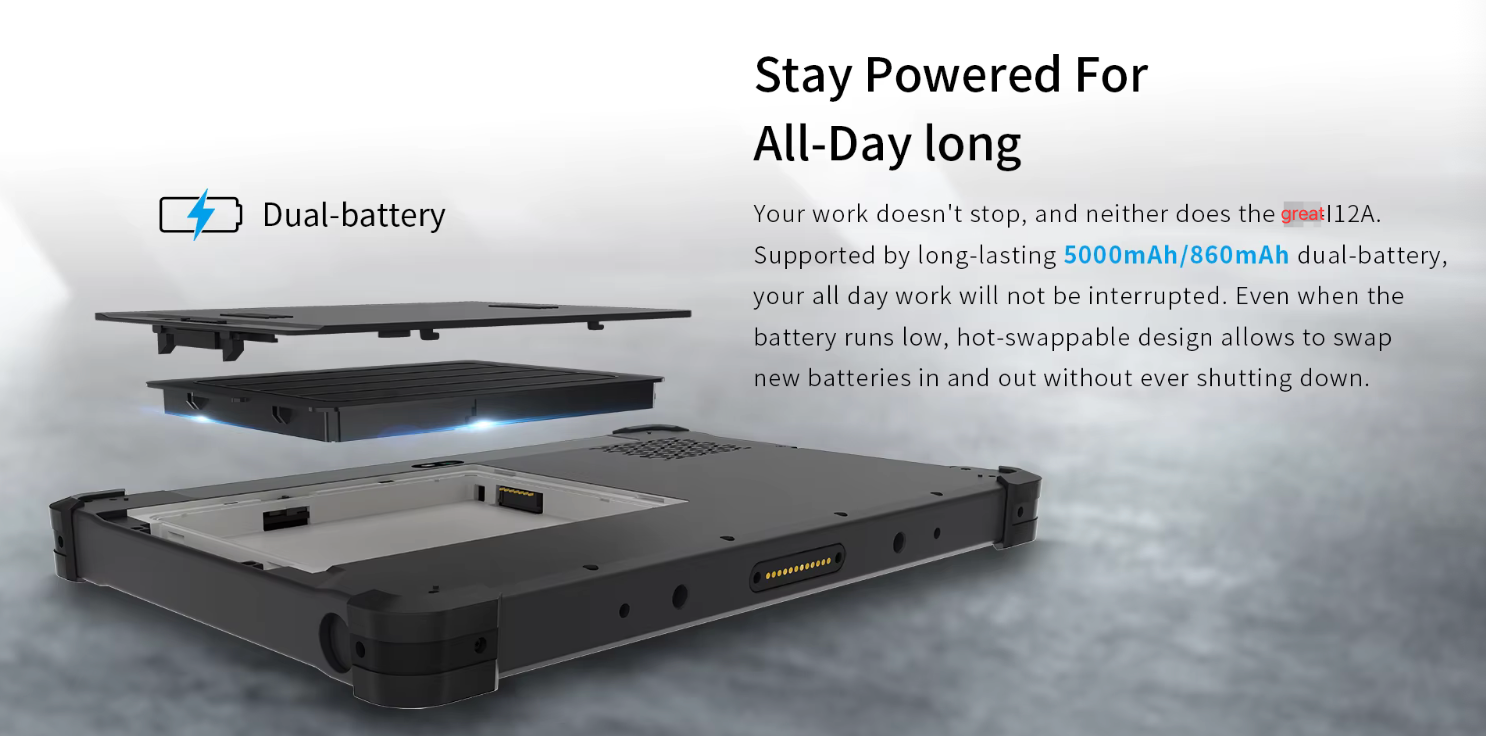

| Big Battery | Removable Li-polyment Battery 7.4V/5000mAh 4.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 4G | EC25-EC (European version) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan |
| GPS | U-blox M7N, Support: GPS, glonass Optional: U-blox M8Q, Support: GPS, Beidou, glonass |
| I/O Interface | USB3.0 *1 |
| Type C (USB3.0/HDMI/Charging) *1 | |
| ∮3.5mm Standard earjack *1 | |
| Optional, Mass customization HDMI 2.1a mini *1 | |
| SIM card *1 | |
| TF card *1，Max: 512GB | |
| DC 19V 3.42A ∮5.5mm jack *1 | |
| 12PIN Pogo Pin (USB/Docking charging) *1 | |
| SMA_GPS Antenna interface | |
| Optional, Support mass customization of power aviation plug | |
| Adapter | AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval Optional: EU UK |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE-NB | |
| CCC | |
| MIL-STD-810G | |
| Battery: UN3803, MSDS, IEC62133, Aviation report, Marine report | |
| Data Collection | QR Code Scanner Optional, Honeywell N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s (USB) The plastic shell needs to be replaced (only batch remaking is supported) |

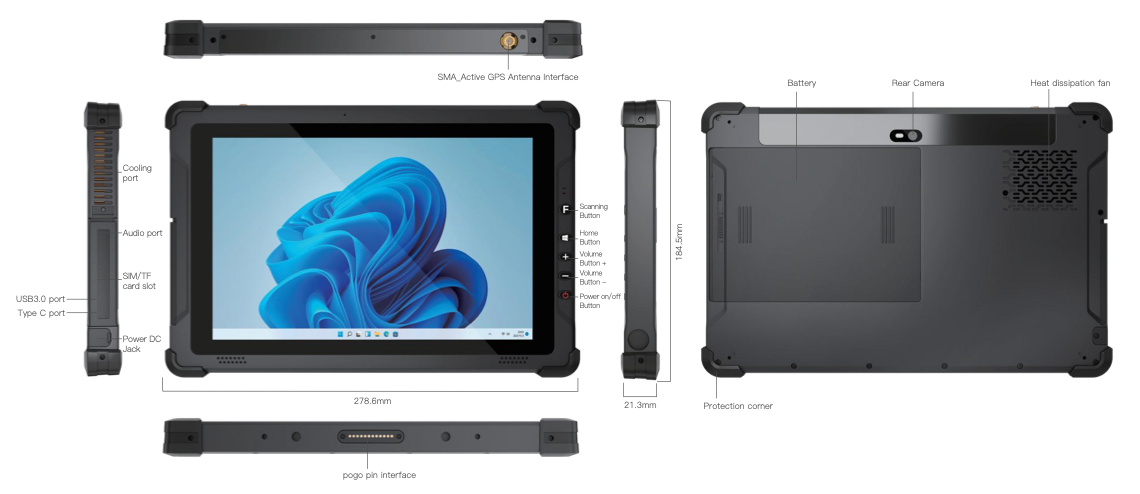

Product Six View

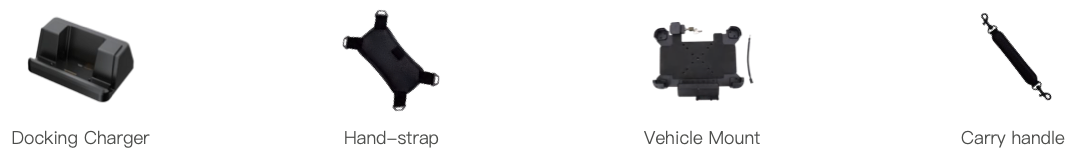

Accessories
Not Just Portable

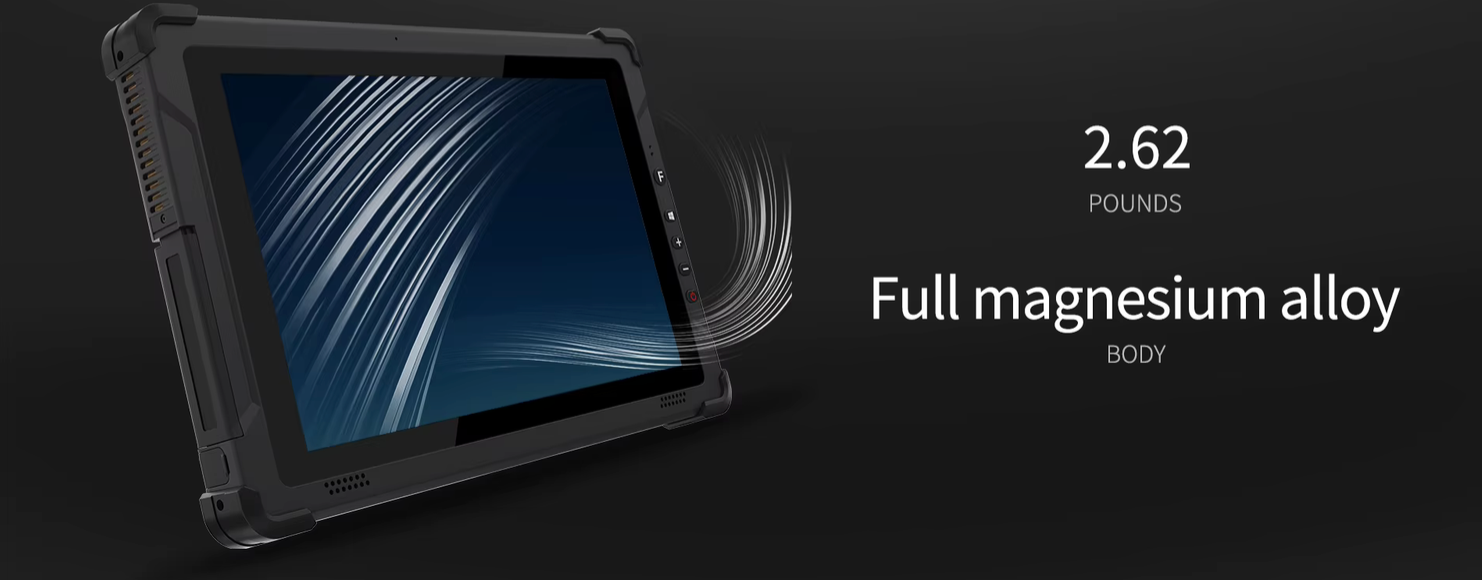

The I12A is lightweight for a rugged device at just 1190g, and it's only 21.3 mm thick. Benefit of a magnesium alloy body, I12A provides outstanding adaptability and mobility for various in-the-field work situations.
See More, Scroll Less
With 10.1-inch, 1920 ×1200 resolution IPS screen, I12A can jot down worksite comments, view pictures in high resolution and review work plans clearly and with ease. I12A will react and operate in full capacity in any environment with the protection of enhanced Corning Gorilla Glass.
Efficient For Each Tasks
I12A tablet operates on a superlative Intel® Core™ i5-1235U/i7-1255U processors,which is designed for maximum mobile performance and productivity. With the greater computing and GPU performance with reduced power consumption, I12A is a ideal device for situations where complex tasks require blistering speed.

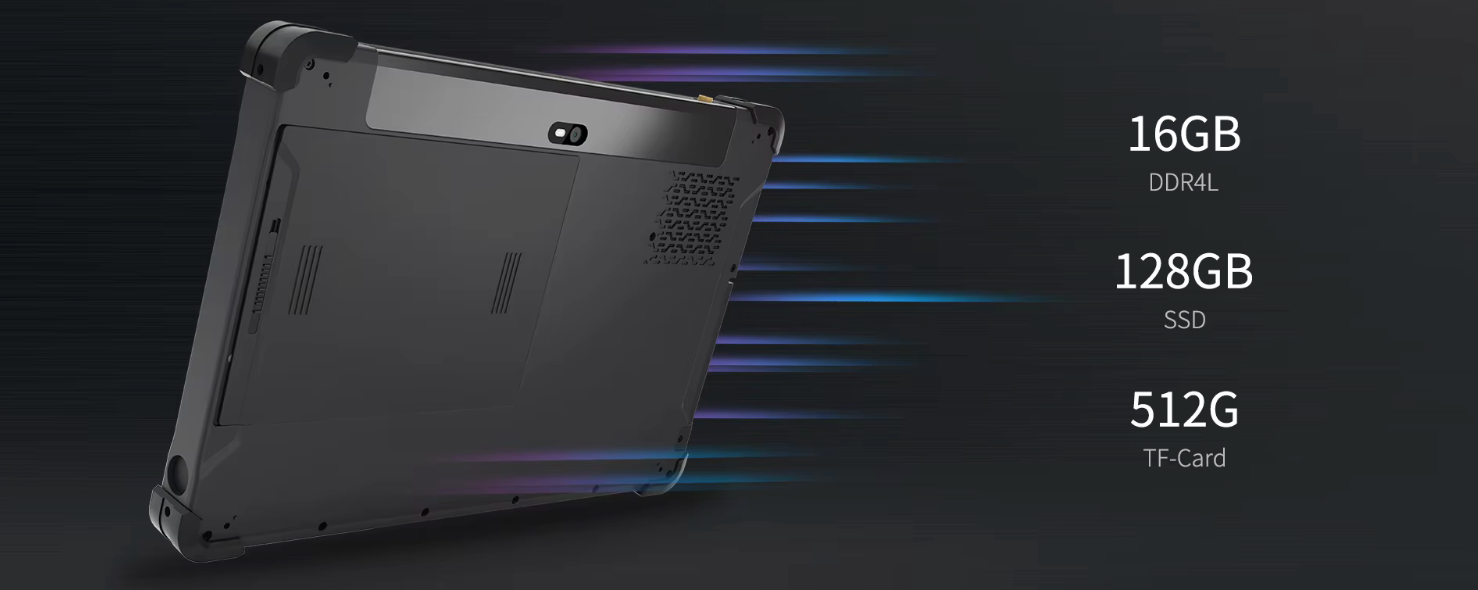

Bigger Space For Your Larger Files
I12A owns 16GB RAM+128GB ROM, offering top-of-the-line computing capability and massive storage capacity.
Moreover, it supports T-flash Card that can extend to 512G. Even there is more tasks in a while, the loading will not slow down.

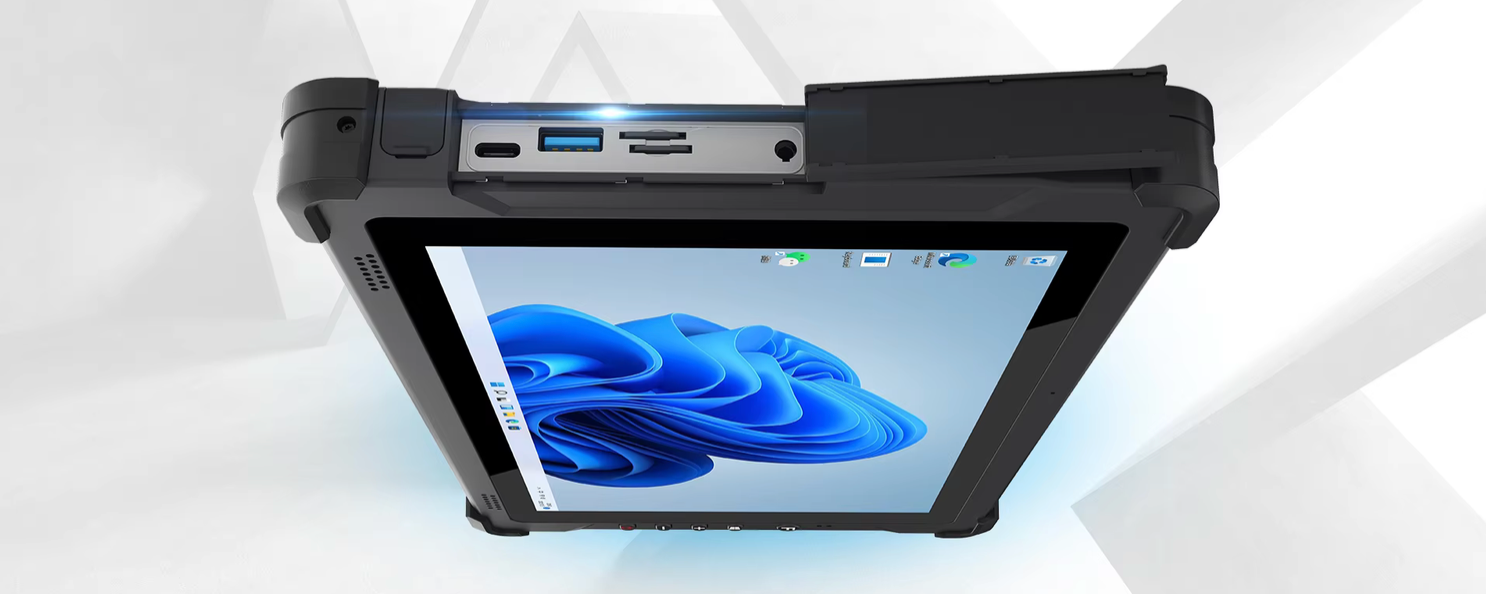

Connect To More
I12A has several connectivity options to fit your workflow, including full-featured USB Type-C, USB 3.0, HDMI mini port and POGO Pin connector. Abundant 1/0 port configuration means legacy equipment need not be left out. And with the POGO Pin that enables drop-in charging and accessory compatibility.
Get More Done Effortlessly
You can rely on I12A for seamless transition and access to information anywhere. It features the latest in wireless connectivity, which enables super fast connection to access points or network devices. Built-in 4G LTE provides for direct connections to cellular networks even you are not in a office.
Permanent dashboard mounting for trucks, delivery vans, logistics vehicles
Real-time fleet GPS tracking, route navigation, and dispatch order receiving
Electronic Logging Device (ELD) compliance, driver work hour recording
Proof of delivery, electronic signature capture, barcode parcel scanning
Stable anti-vibration design adapts to bumpy road conditions
Fixed installation for police patrol cars, traffic police vehicles
Real-time database query, license plate recognition, case information checking
On-site incident recording, evidence photo/video storage
Wireless 4G/Wi-Fi real-time back-end command center connection
Sunlight-readable display clear view under strong outdoor light
Mounted on engineering vehicles, survey cars, road maintenance trucks
On-site CAD/BIM drawing viewing, construction progress recording
GNSS high-precision positioning, terrain survey and data logging
Real-time reporting of construction site conditions and work order feedback
Dustproof, waterproof, drop-proof adapts outdoor construction harsh environment
For water supply, power grid, telecom, urban maintenance vehicles
On-board asset inspection, equipment maintenance checklist filling
Real-time fault reporting, work order receiving and task scheduling
View circuit diagrams, pipeline layouts and facility archives anytime in the vehicle
Ambulance, fire rescue, disaster relief vehicle permanent installation
Patient electronic medical record checking, emergency rescue data recording
Real-time scheduling, rescue route planning and resource coordination
Shockproof and rugged structure adapts high-speed driving and emergency scenarios
Container transport vehicles, forklift on-board fixed terminal
Container manifest checking, cargo inventory and yard scheduling
Real-time warehouse data synchronization and goods inbound/outbound management
Custom permanent vehicle mount: Anti-vibration, stable fixation, no loose falling during driving
Full rugged specs: IP65 dust & waterproof, military-grade drop and vibration resistance
Windows system compatible with all fleet management, dispatching and industrial software
Sunlight-readable touch screen, support glove operation while driving
Rich connectivity: 4G LTE, Wi-Fi, Bluetooth, GNSS for uninterrupted mobile network
Long-life vehicle power supply compatible, support constant power on board
