| Product Form | 8" Rugged Android Tablet |
| Material | PC+TPU+10%GF |
| Dimension | 227.7*150.8*24.7 mm |
| Weight | 680g |
| Product Color | Black, batch color optional |
| CPU | MT6789 2*A76 2.2GHz，6*A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4 ROM 128GBGB |
| Operating System | Android 14 / GMS， Optional Android 12 / GMS |
| Display | Type: IPS Size: 8 inch 16:10 Resolution: 800*1280 Brightness: 700cd/㎡ |
| Touch Pannel | 5 points capacitive screen, G+G, hardness 6H, anti scratch |
| Camera | Front 5.0MP Rear 13.0MP |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *1 (Barcode Scanning) |
| Speaker | 8Ω/1W Waterproof BOX Speaker *1 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor |
| Battery (Tablet) | Built-in Li-polyment Battery 6000mAh/3.7V 7 hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual-band WIFI. |
| Bluetooth | Bluetooth BT5.2 (BLE) class1 Transmission distance: 10m |
| 2G/3G/4G | GSM：2+3+5+8 WCDMA：1+2+5+8 TDD：38+39+40+41N(2535mhz~2655mhz) FDD：1+2+3+4+5+7+8+17+20+28a+28b |
| GPS | Support: GPS+Glonass+Beidou;Capture sensitivity:-140 dBm;Cold start time:<50 seconds,Hot start time:<5 seconds,GPS frequency:1575.42MHz,Glonass frequency:1602MHZ, Frequency for Beidou: B1 1.561GHz |
| I/O Interface | Standard USB 2.0 *1, Type C *1 (Data & Charing) |
| ∮3.5mm Standard earjack *1 | |
| SIM card *1 | |
| TF card *1，Max: 512GB | |
| DC 5V 3A ∮3.5mm jack *1 | |
| 12PIN Pogo Pin *1 | |
| Adapter | AC100V ~ 240V 50Hz/60Hz Output DC 5V 3A American standard has passed CE certification Optional: EU EN |
| Type-C cable | Type-C cable |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE NB | |
| MIL-STD-810G | |
| Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 | |
| Data Acquisition | Two-dimensional code Optional: Zebra SE4710 Optical resolution:5mil Scanning speed:50 times/sec Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC Support ISO/IEC 14443A protocol, reading distance: 3-5cm |

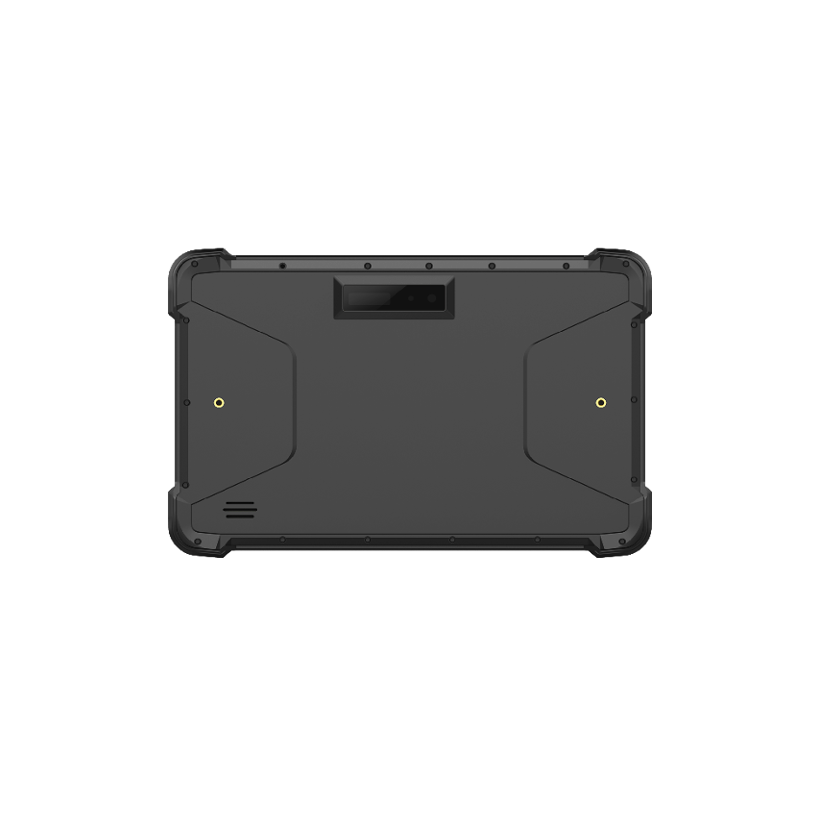

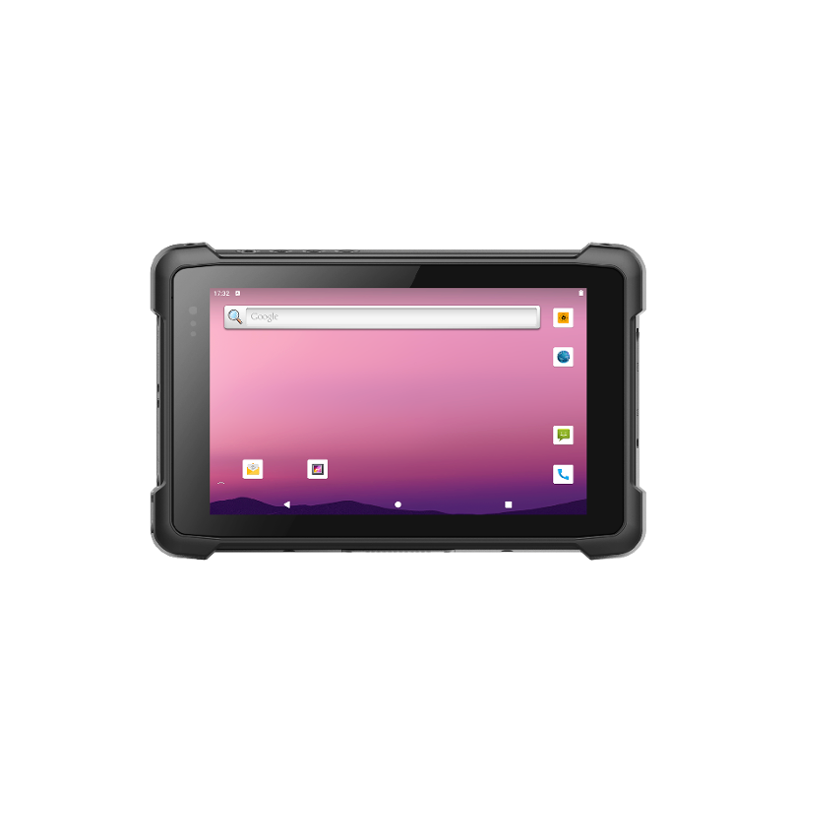

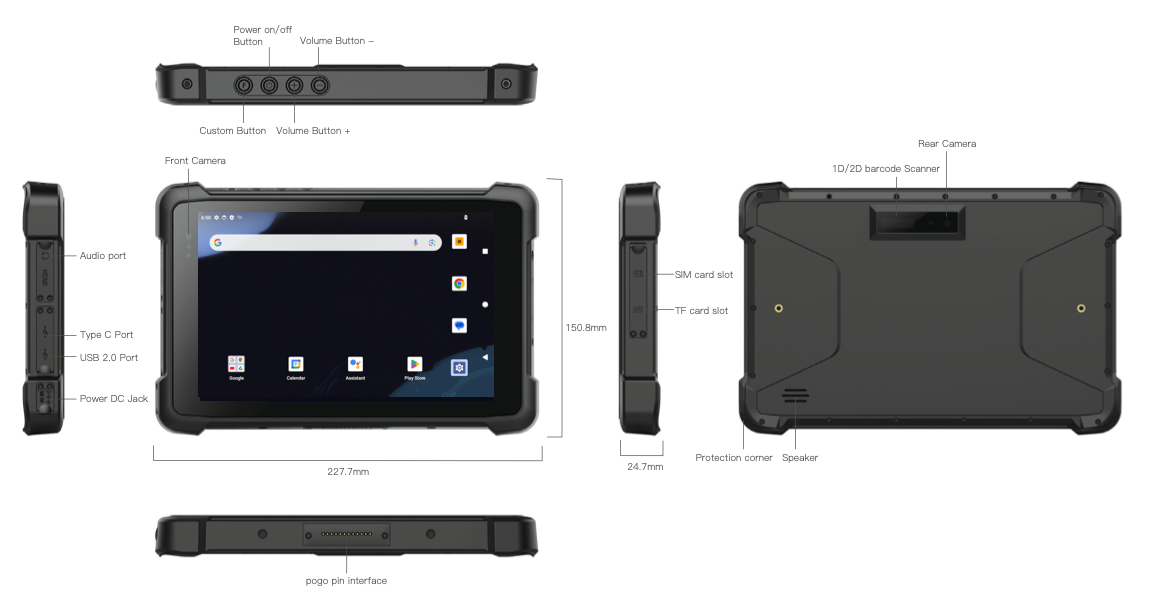

Product Six Views

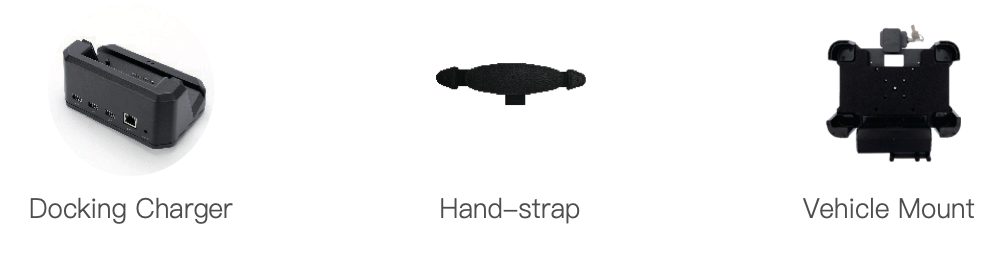

Accessories
Portable design for mobile office
Break boundaries and visual limitations
Long endurance for all-day work
6000mAh/3. 7V high-capacity battery lasts for 7h when fully charged, supporting the all-day shift. Supports wired charging and wireless charging, such as DC port fast charging, or couples with the Pogo Pin port and docking charger, to achieve an instant charge for your device.
