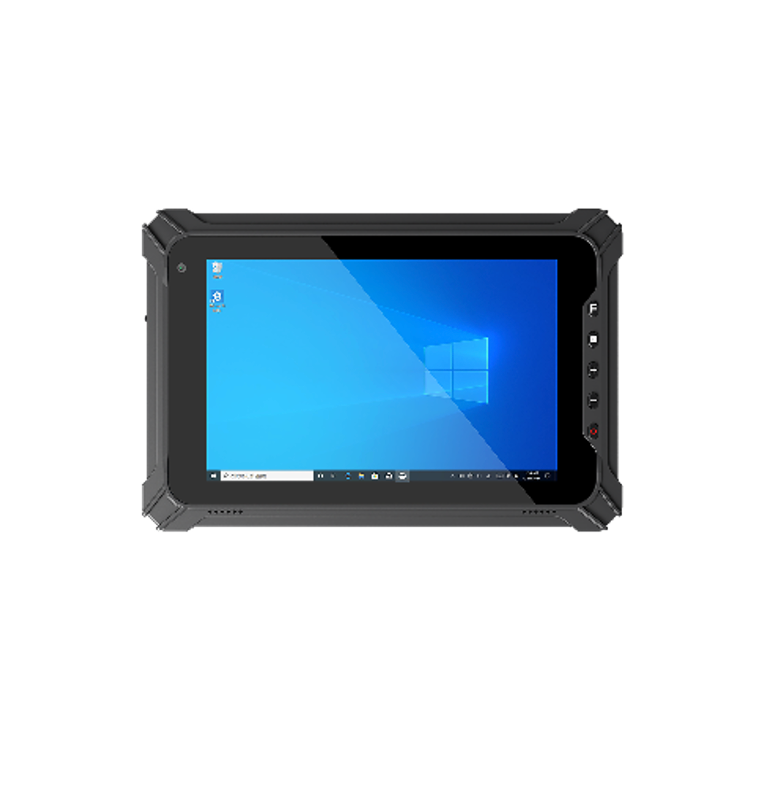

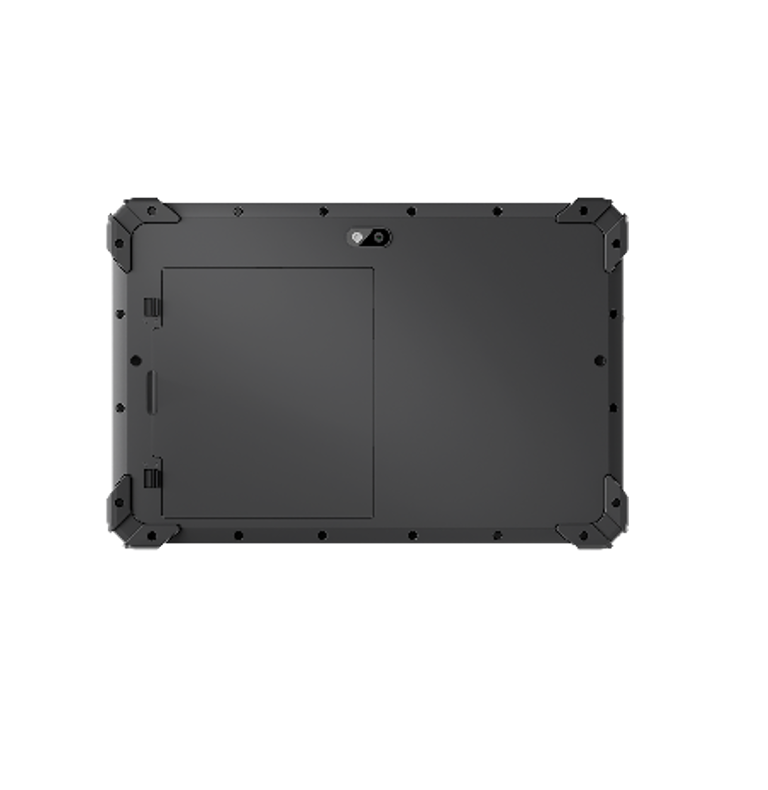

| Product Form | 8" Rugged Windows Tablet |
| Material | PC+TPU |
| Dimension | 236.7*155.7*20 mm |
| Weight | 910g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR ROM 128GB Emmc |
| Operating System | Windows 10 Home Optional: Windows 10 Pro Windows 10 IOT |
| Display | Type: TFT Optional: Type: TFT Size: 8 inch 16:10 Size: 8 inch 16:10 Resolution: 1200*1920 Resolution: 800*1280 Brightness: 550cd/㎡ Brightness: 700cd/㎡ |
| Touch Pannel | 5 points tempered glass capacitive screen G+G, hardness 7H |
| Camera | Front 5.0MP Rear 8.0MP, support auto focus, with flashlight function |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized Home Key *1 |
| Speaker | 8Ω/1W Speaker *2 |
| Microphone | Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| RTC | Built in polymer lithium ion battery, with capacity of 3V/1mAh |
| Battery (Tablet) | Removable Li-polyment Battery 5000mAh/7.6V 7 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m |
| 4G | Eurasian: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional, EC25-AF, 750-VA, 750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), Cold start time is not more than 60s |
| I/O Interface | USB3.0 *1 (USB A port, HOST data transmission), Type C 3.1 *1 (Charging and Data transmission, Full function Type-C) |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.0a mini *1 | |
| Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) | |
| 12PIN Pogo Pin *1 (Charging interface, USB signal connection base) | |
| Adapter | PD Fast Charge Adapter +Type-C Data Cable（1m） |
| Indicator Light | Blue indicator *1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp *1 (Low power red flickers, red is always on when charging, green is always on when full) |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| FCC | |
| CCC | |
| MIL-STD-810G | |
| Modular Options | QR Code Scanner Honeywell N3680 |
| NFC Optional: NXP300 NXP NFC 13.56MHz Supports 14,443A/14,443B/15,693/18,092/mobile protocol under ISO/IEC. Card reading distance: 4cm |

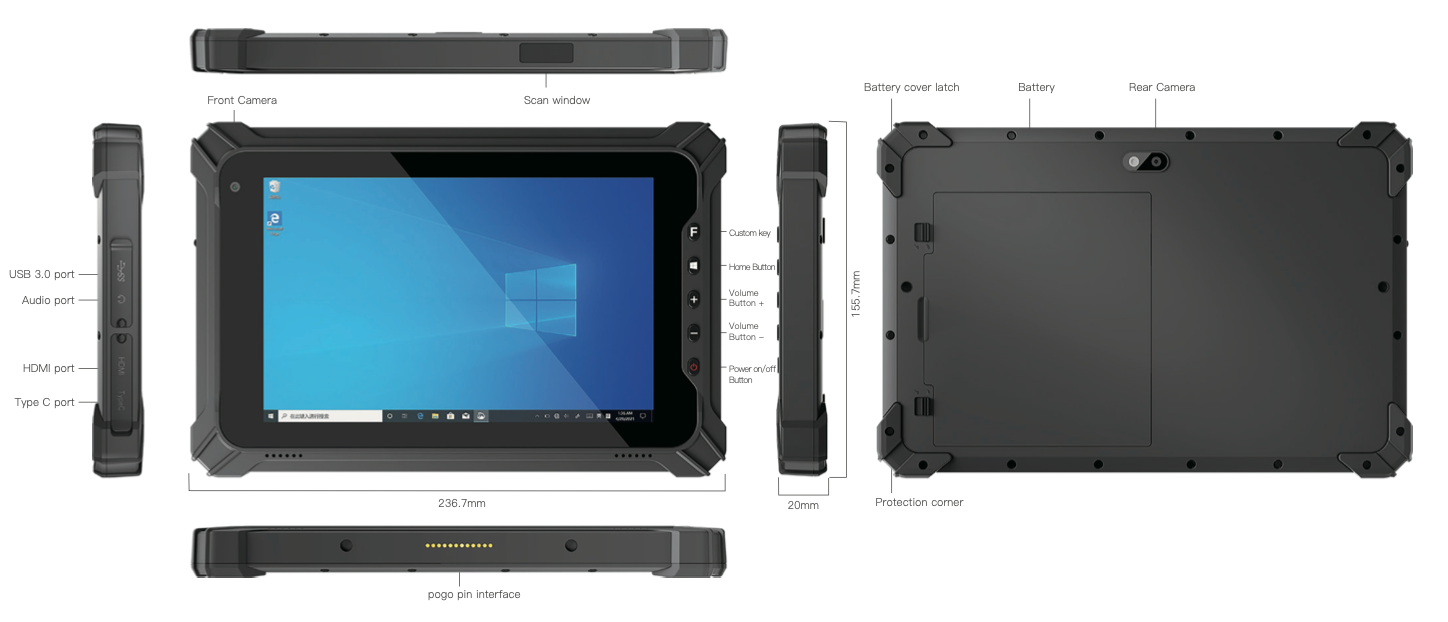

Product Six Views:
FHD Display & Shock-Absorbing Body
Featuring an 8-inch FHD screen with 700 Nits high brightness, the I87J delivers vivid images at 1920×1200 resolution. Its PC material back panel and TPU frame provide robust drop resistance for any industrial Windows PC field work.
5000mAh High-Capacity & 48W Fast Charge
Paired with a 7.6V/5000mAh (38Wh) high-capacity battery, the I87J provides approximately 7.5 hours of battery life. This removable battery Windows tabletfeatures 48W constant voltage charging and dual-locking mechanisms for maximum reliability in any industrial Windows PC scenario.
Dual-Band Wi-Fi 6 & Optional 5G
The I87J features built-in 2.4GHz and 5.8GHz Wi-Fi 6 chips, significantly boosting speed and stability. With an optional 5G module and Bluetooth 5.2, this industrial Windows PC ensures worry-free communication and precise GPS navigation.

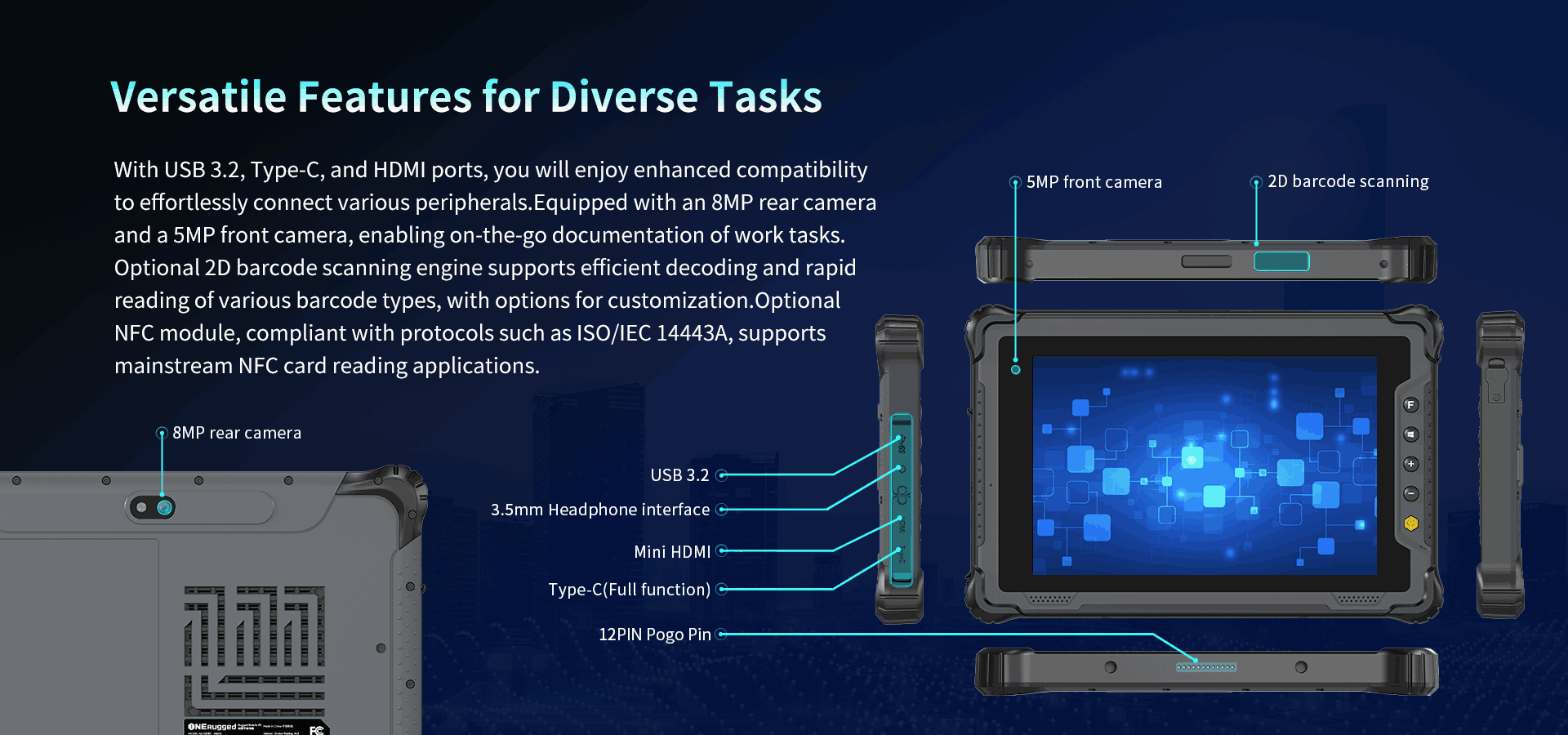

Industrial Connectivity & Rapid Data Capture
Equipped with USB 3.2, Type-C, and HDMI ports, the I87J ensures enhanced compatibility for all peripherals. This industrial Windows PC supports optional 2D barcode scanning and NFC modules for efficient data capture in any field tabletscenario.

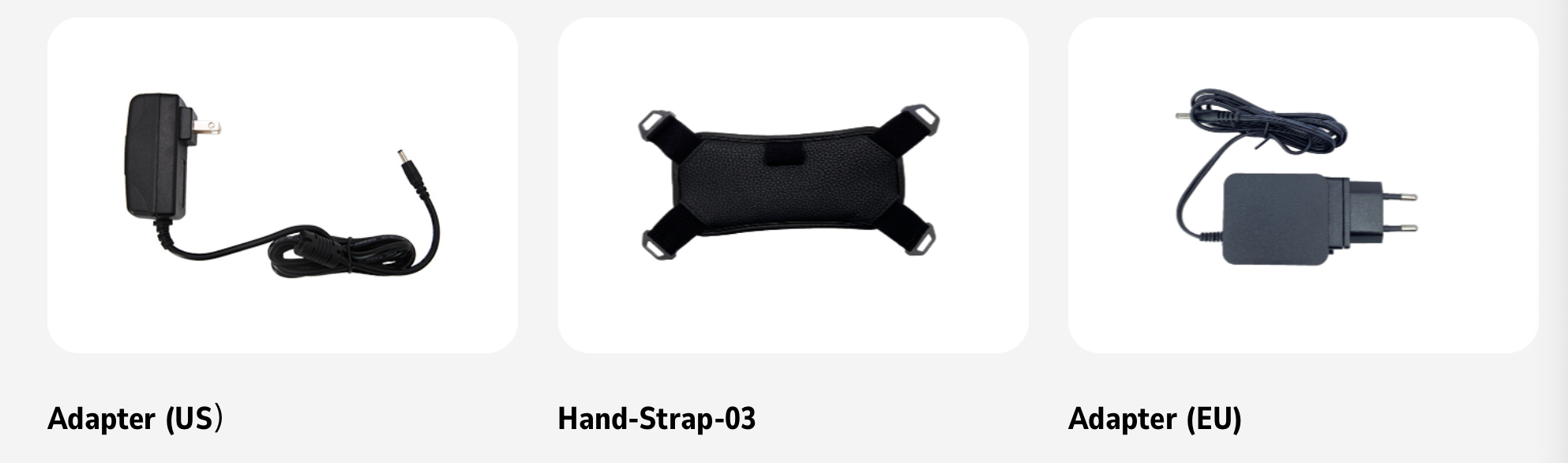

Accessories
Typical Application Scenarios:
Industrial on-site inspection & equipment maintenance
Factory workshop data collection and production management
Logistics warehousing inventory, goods scanning and distribution management
Field patrol for electric power, water conservancy, railway and municipal engineering
Outdoor geological survey, environmental monitoring and field operation
Law enforcement, emergency command and public security mobile law enforcement
Vehicle-mounted industrial terminal for transportation and fleet management
Construction site engineering mapping, project site management
Retail chain store inventory and mobile business office
Medical field mobile information collection and hospital on-site service
