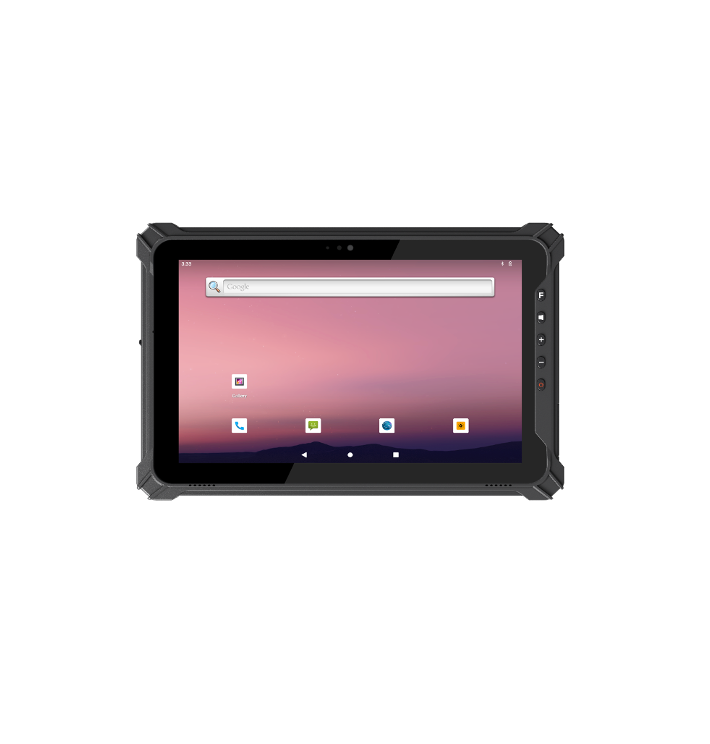

| Product Form | 10.1" Rugged Android Tablet |
| Material | ABS+PC Alloy |
| Dimension | 274.9*188.7*23.1mm |
| Weight | 1140g |
| Product Color | Black |
| CPU | MT6789 octa-core, 2*A76 2.2GHz |
| GPU | ARM G57 MC2 |
| Memory Storage | RAM 8GB LPDDR4 ROM 128GB Emmc |
| Operating System | Android 14 / GMS， option Android 12 / GMS |
| Display | Type: TFT Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G, hardness 7H |
| Camera | Front 5.0MP Rear 13.0MP |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *1 (Barcode Scanning) Home Key*1 |
| Indicator | Indicator lights * 2, R/G dual-color lights. 1. During charging, they will be constantly red. 2. When fully charged, they will display a constant green light. 3. When the battery is low, the red light will flash. |
| Speaker | Built-in 8Ω/1W *2 dual speakers |
| Microphone | Single MIC |
| Senssors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor, light sensor |
| Battery (Tablet) | Removable Lithium-ion polymer battery 10000mAh/3.8V 9 hours ( 50% volume sounds, connect to WiFi, 200 lumens brightness, 1080P HD video display by default ) |
| RTC battery | Built-in rechargeable 3V/1mAh lithium-ion battery. |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
| Bluetooth | Bluetooth BT5.1 (BLE) class1 Transmission distance: 10m |
| 4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
| GPS | Support: GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |
| I/O Interface | Standard USB 2.0 *1, Type C *1 (Data & Charing) |
| ∮3.5mm Standard earjack *1 | |
| SIM card *2 | |
| TF card *1，Max: 512GB | |
| 12PIN Pogo Pin *1 | |
| One out of Three Interface | RJ45 network port *1 (10/100M adaptive) Standard |
| DB9 serial port *1 (RS232) | |
| USB 2.0 *1 | |
| Adapter | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A, European standard, CE approval |
| Type-C cable | Type-C cable |
| Rugged Features | MIL-STD-810H: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810H | |
| FCC | |
| Data Collection | 2D Optional: Zebra SE4710 Optical resolution:5mil Scanning speed:50 times/sec Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 0-4cm |

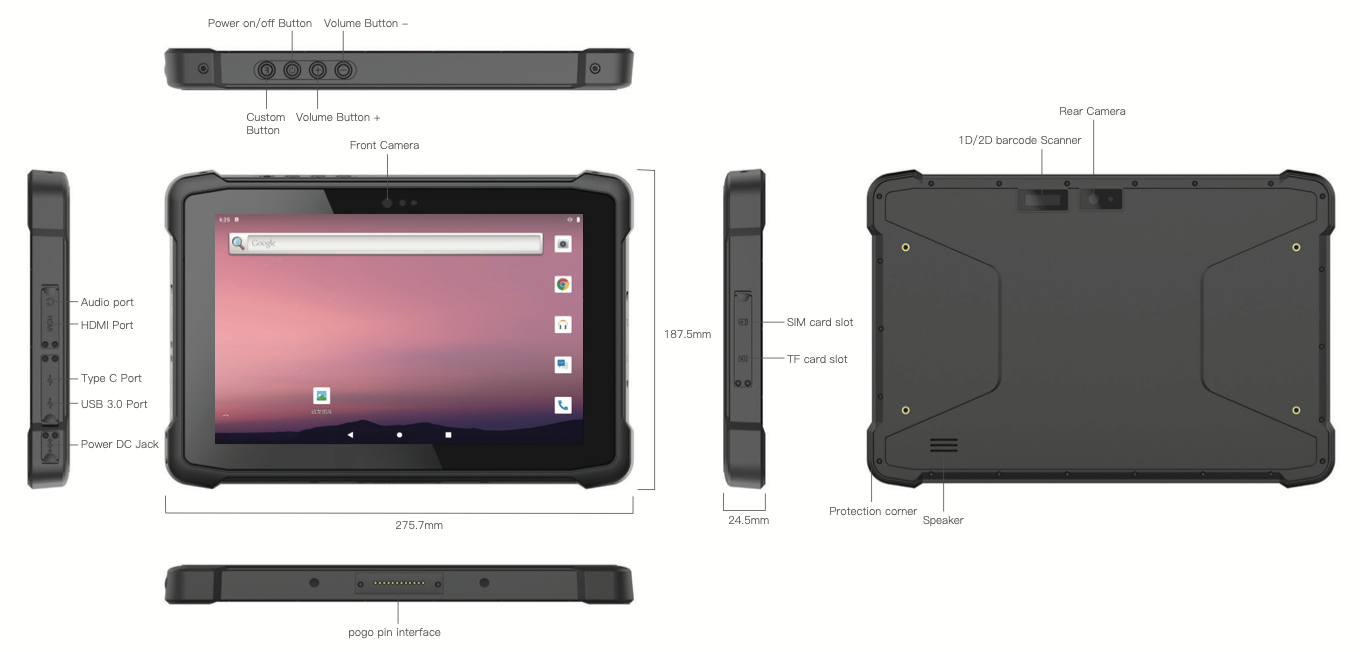

Product Six Views

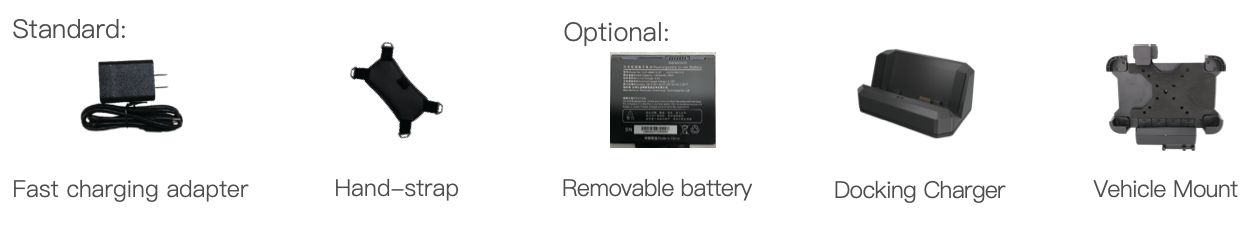

Accessories
Industrial Performance Efficiency
Powered by the Rockchip RK3568 SoC, the M10R features a Quad-Core architecture with ARM Cortex-A55 processors. This 2.0GHz industrial Android PC is equipped with 4GB+128GB memory to handle all mission-critical industrial tasks with Mali-G52 GPUacceleration.

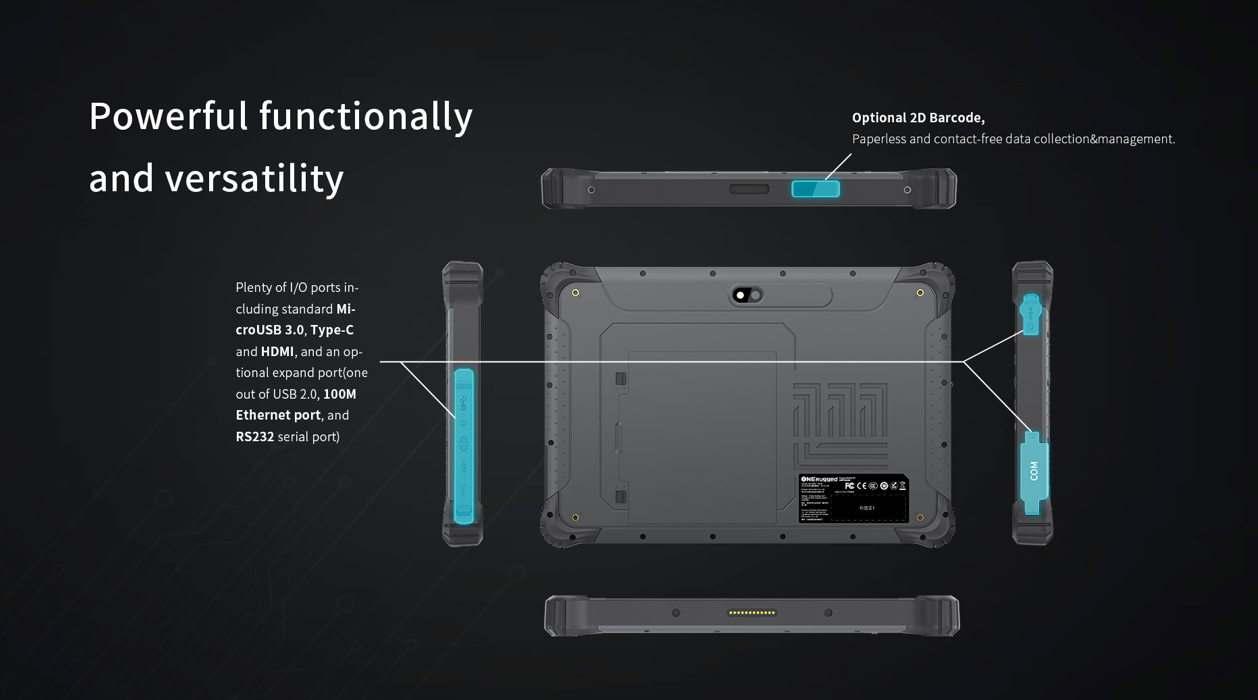

Industrial Versatility & Data Collection
Engineered for high-efficiency field work, the T11X features plenty of I/O portsincluding Micro USB 3.0, Type-C, and HDMI. This versatile industrial field PCsupports optional 2D barcode scanning and unique expansion for RS232/100M Ethernet.
