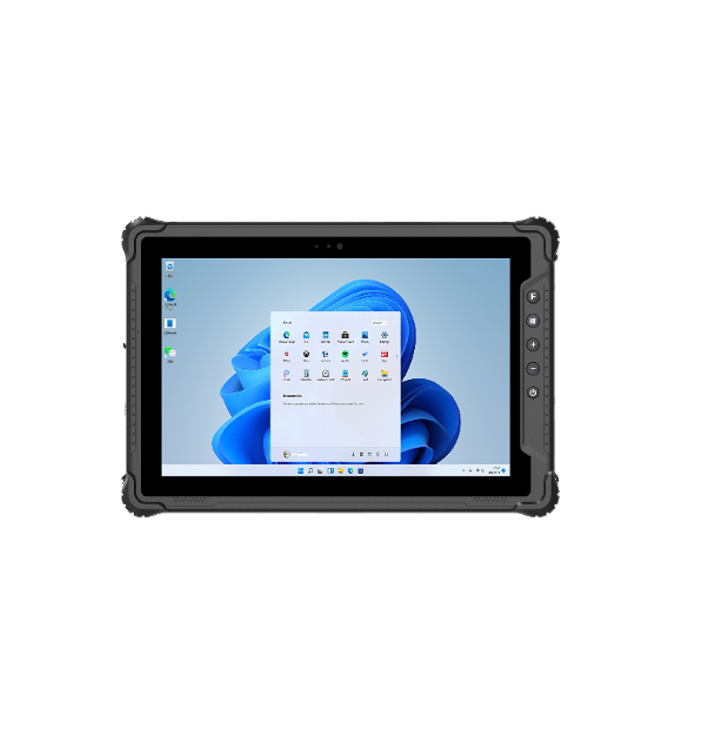

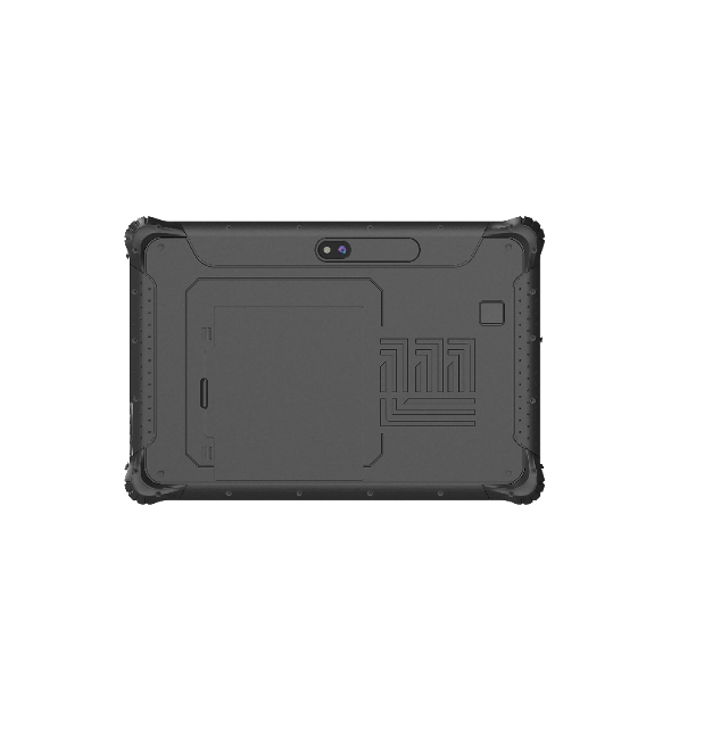

Product Form | 10.1" Rugged Windows Tablet |
Material | PC+TPU |
Dimensions | 274.9*188.7*22.2mm |
Weight | 1140g |
Product Color | Black |
CPU | Intel Alder LAKE N100 |
GPU | Intel® UHD Graphics |
Memory | RAM 8GB LPDDR5 Optional: 16G |
Operating System | Windows 11 Home |
Display | Type: IPS |
Touch Pannel | 10-Point Capacitive Screen, G+G, Panda Glass, Hardness Above 7H, Scratch-Resistant, COF, Supports Glove Touch |
Camera | Front 5.0MP |
Buttons | Power 1 |
Speaker | Built in 8Ω/1W Waterproof Speaker *2 |
Microphone | Sensitivity: -42dB, Output Impedance: 2.2kΩ |
Battery | Removable Polymer Lithium-ion Battery |
RTC | 3V 1mAH Rechargeable Surface-Mount |
G-Sensor | G-Sensor |
WIFI | WIFI6 802.11(a/b/g/n/acR2/ax 1x1) Frequency: 2.4G+5.8G Dual-band WIFI intel AX101 |
蓝牙 | BT5.2 (BLE) |
2G | NA |
3G | WCDMA: B1/5/8 |
4G | EURO： |
GPS | Supports GPS, Glonass; Capture Sensitivity: -140 dBm; Cold Start Time: <50 seconds, Hot Sstart Time: <5 seconds; GPS Frequency: 1575.42MHz |
Fingerprint | Standard |
2D |
|
NFC | Optional: NXP300/NFC 13.56MHz Supports 14443A/14443B/15693/18092/mifare protocols of ISO/IEC |
I/O Interfaces | USB 3.0 *1 (Type A) |
Type C *1 (Data & Charing) | |
∮3.5mm Standard Earphone Jack *1 | |
TF *1 | |
SIM Card *1 | |
DC 12V 4A Power Port x1 （Male Plug outer diameter 5.5mm） | |
HDMI 2.0 mini *1 | |
12PIN Pogo Pin *1 | |
Choose 1 from 3 | USB 2.0 *1 (4pin) |
RJ45 Adaptive, Recognizes 1000M Network Card (Standard） | |
RS232 Serial Port | |
Adapter | AC100V to 240V, 50Hz/60Hz output DC 12V/4A wall plug |
Rugged Features | MIL-STD-810H: 1.22m drop resistance |
Working temperature: -30 °C to 70 °C | |
Storage temperature: -40 °C to 80 °C | |
Humidity: 95% Non-Condensing | |
Certifications | IP65 |
CE NB | |
FCC（know the real situation） | |
RoHS | |
CCC（know the real situation） | |
MIL-STD-810H | |
Battery: UN38.3, MSDS, Air and Maritime Reports, IEC62133 |

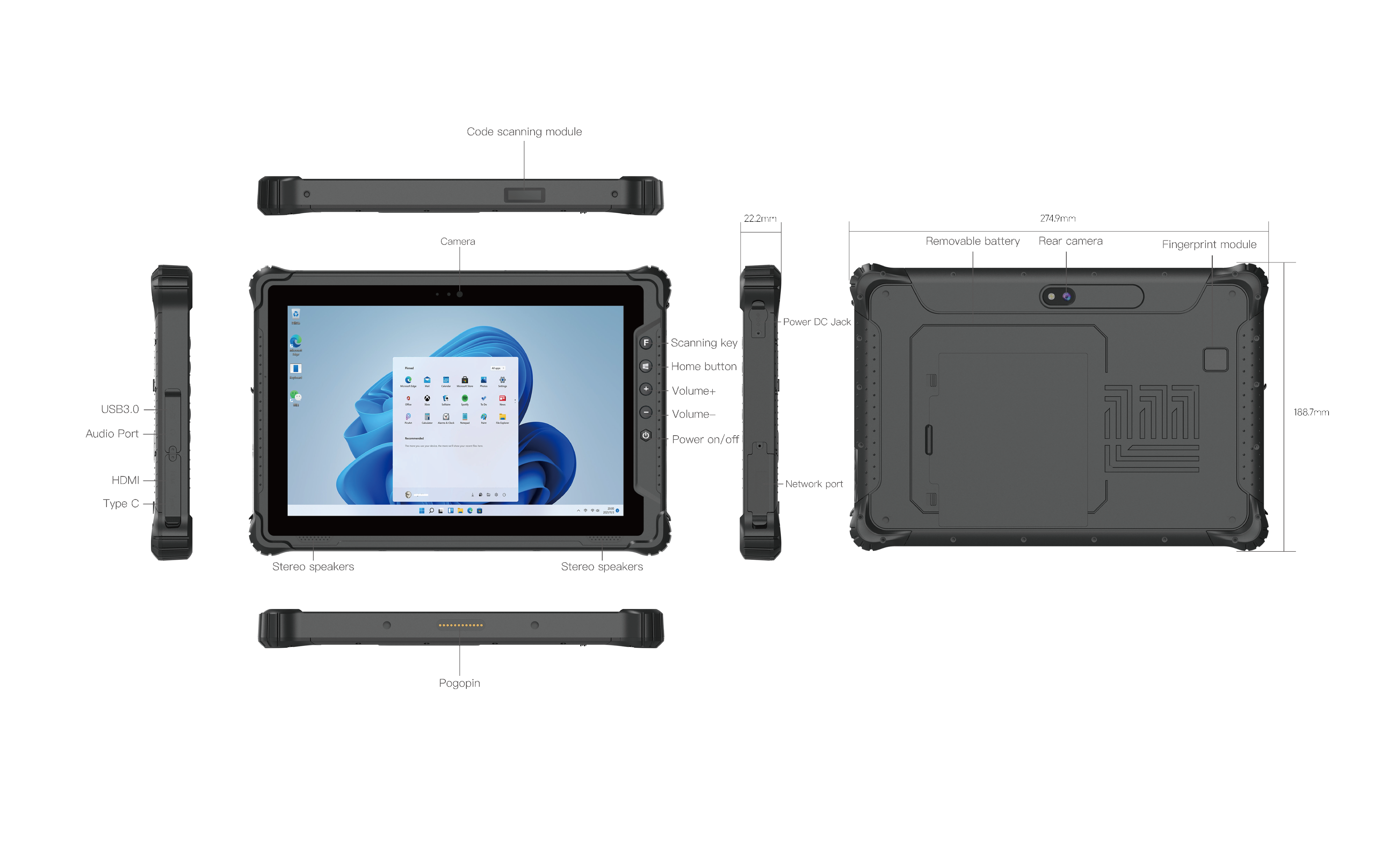

Product Six Views

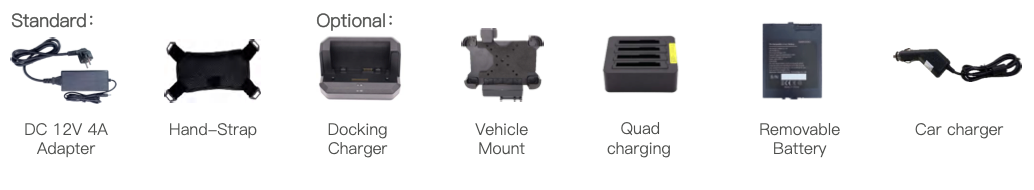

Accessories

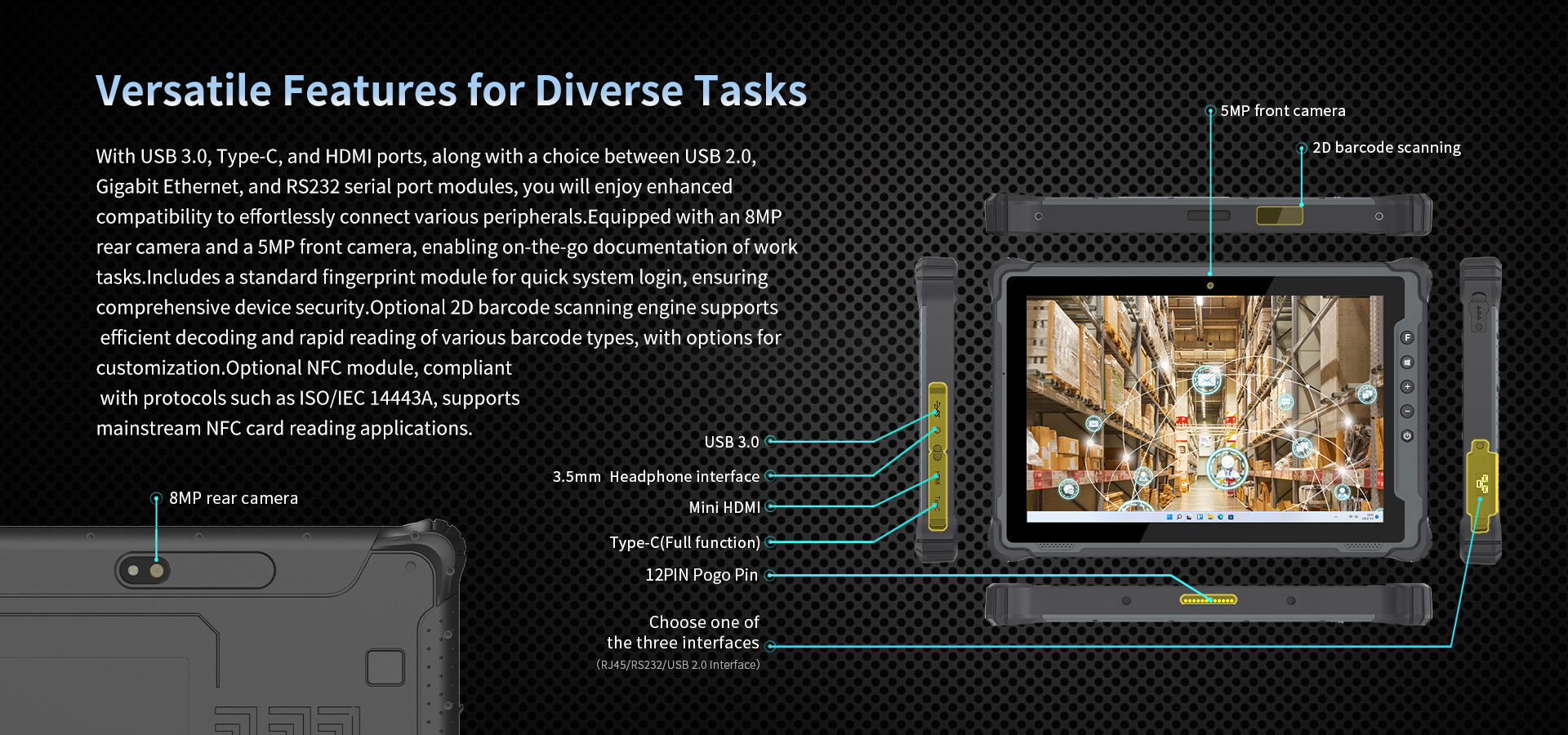

Versatile Features for Diverse Tasks
Ready to Confront Harsh Environments
Unleash Robust Production Power
High-Brightness for Clear Vision
Detachable Battery for Extended Runtime
Experience High-Speed Connectivity
The I18N 10.1-inch rugged Windows tablet combines solid performance, reliable connectivity, and durable construction for all‑day mobile industrial use.
On-site repair, inspection, and work order management
Access schematics, manuals, and cloud-based service systems
Real-time reporting and task dispatch for utilities, telecom, and facilities
Inventory counting, receiving, and put‑away
Barcode/QR code scanning and WMS operation
Delivery confirmation, electronic signature, and route navigation
Shop-floor data collection and digital work instructions
Quality inspection, process tracking, and machine status logging
Support for glove touch and harsh workshop environments
Mountable for trucks, vans, and service vehicles
Fleet tracking, ELD, and dispatching
Stable under vibration and outdoor conditions
Site survey, progress reporting, and blueprint viewing
Daily inspection and safety checklist management
Sunlight-readable display for outdoor use
Mobile patrol, inspection, and on-site documentation
Community services, field data collection, and record keeping
