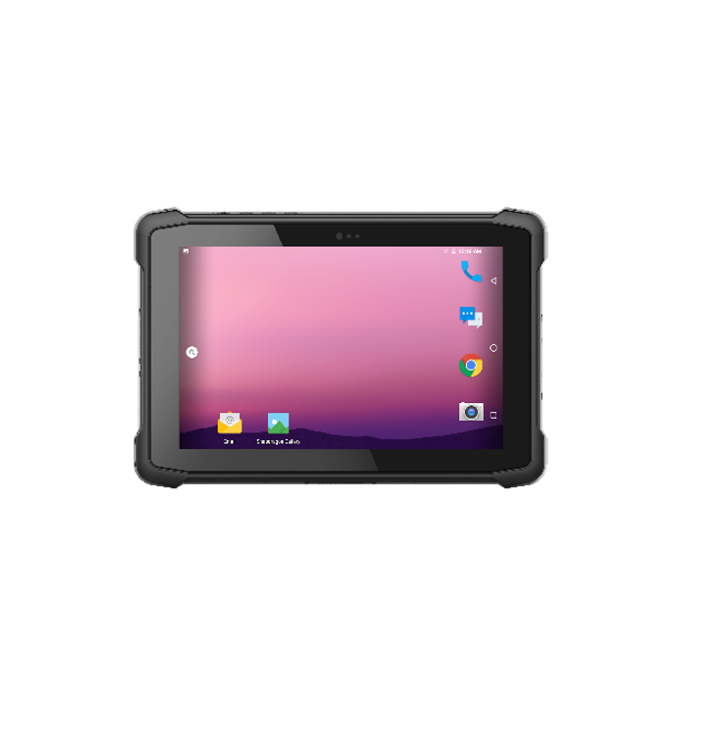

Product Form | 10.1" Rugged Android Tablet |
Material | PC+10%GF |
Dimension | 275.7*187.5*24.5 mm |
Weight | 970g |
Product Color | Black |
CPU | SM6350 OCTA core 2.0GHz |
GPU | Adreno GPU 619 |
Memory | RAM 4GB LPDDR3 ROM 64GB |
Operating System | Android 11.0 |
Display | Type: IPS |
Touch Pannel | 10 points capacitive screen, G+G, hardness 6H, anti scratch |
Camera | Front 5.0MP |
Buttons | Power 1 |
Speaker | 8Ω/0.8W Waterproof BOX Speaker *1 |
Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
Senssors | G_sensor, Light Sensor, Compass Sensor, Gyro Sensor |
Battery (Tablet) | Built-in Li-polyment Battery |
WIFI | WIFI 802.11 b/g/n/a/ac Dual frequency 2.4G+5.8G WIFI |
Bluetooth | BT5.1 (BLE) |
2G/3G/4G/5G | 5G(N1/N28/N41/N78/N79/NSA/SA) |
GPS | Built-in, GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS |
I/O Interface | Standard USB 3.0 1, Type C 1 (Data & Charing) |
∮3.5mm Standard earjack *1 | |
HDMI 1.4a Type C *1 | |
SIM card *1 | |
TF card *1，Max: 256GB | |
DC 5V 3A ∮3.5mm jack *1 | |
12PIN Pogo Pin *1 | |
Adapter | AC100V ~ 240V 50Hz/60Hz Output DC 5V 3A European regulations has passed CE certification |
Type-C cable | Type-C cable |
Rugged Features | MIL-STD-810G: 1.22m drop |
Working temperature: -30 °C to 70 °C | |
Storage temperature: -40 °C to 80 °C | |
Humidity: 95% Non-Condensing | |
Certification | IP65 |
CE NB | |
CCC | |
MIL-STD-810G | |
Battery: UN38.3, MSDS, Aviation report, Marine report, IEC62133 | |
Data Collection | QR Code Scanner |
NFC |

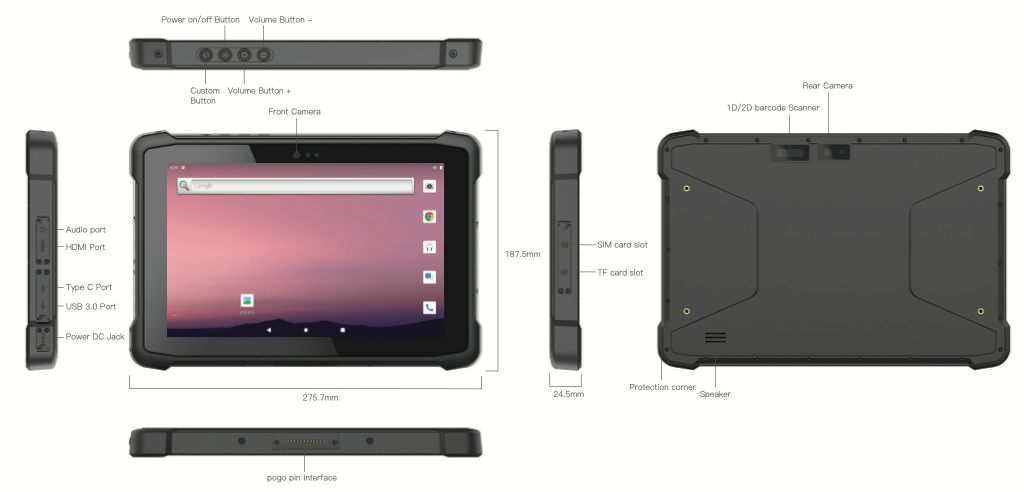

Product Six Views

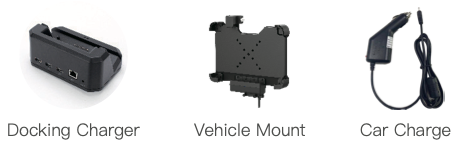

Accessories
Rugged Tablet T1 series Q115M
Delivering an Unmatched Performance

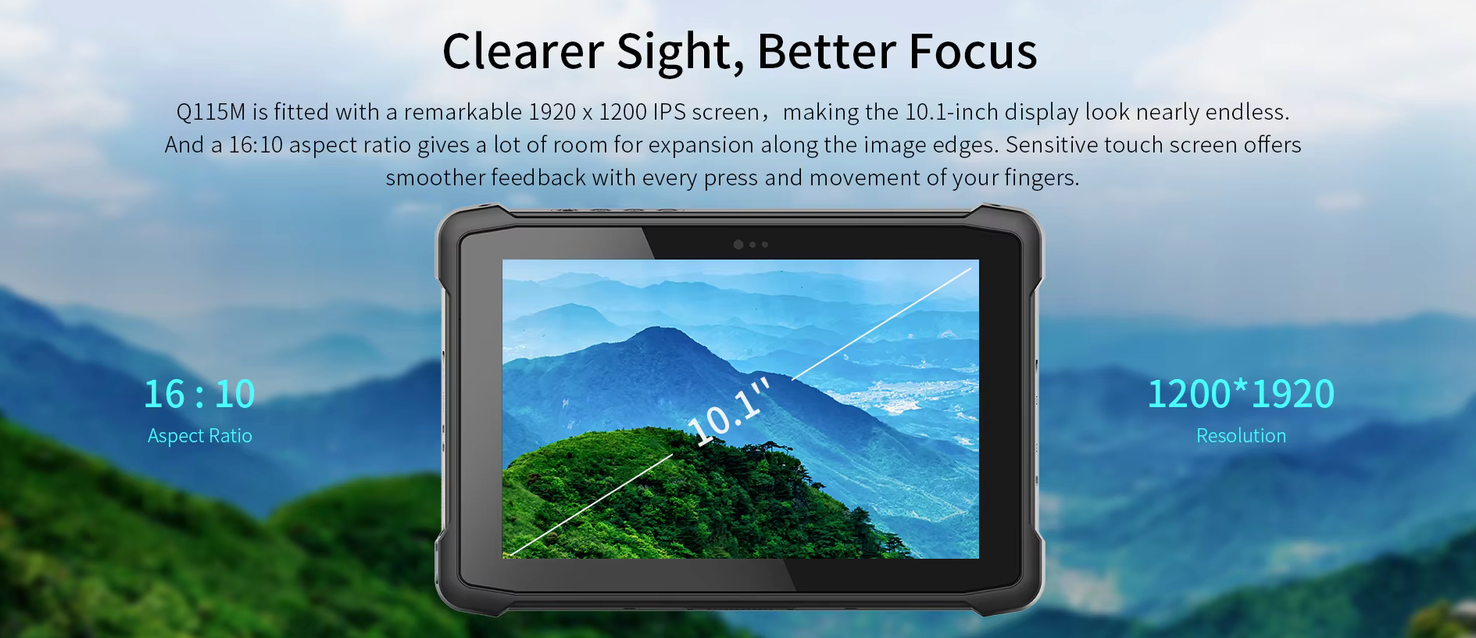

Clearer Sight, Better Focus
Master of speed

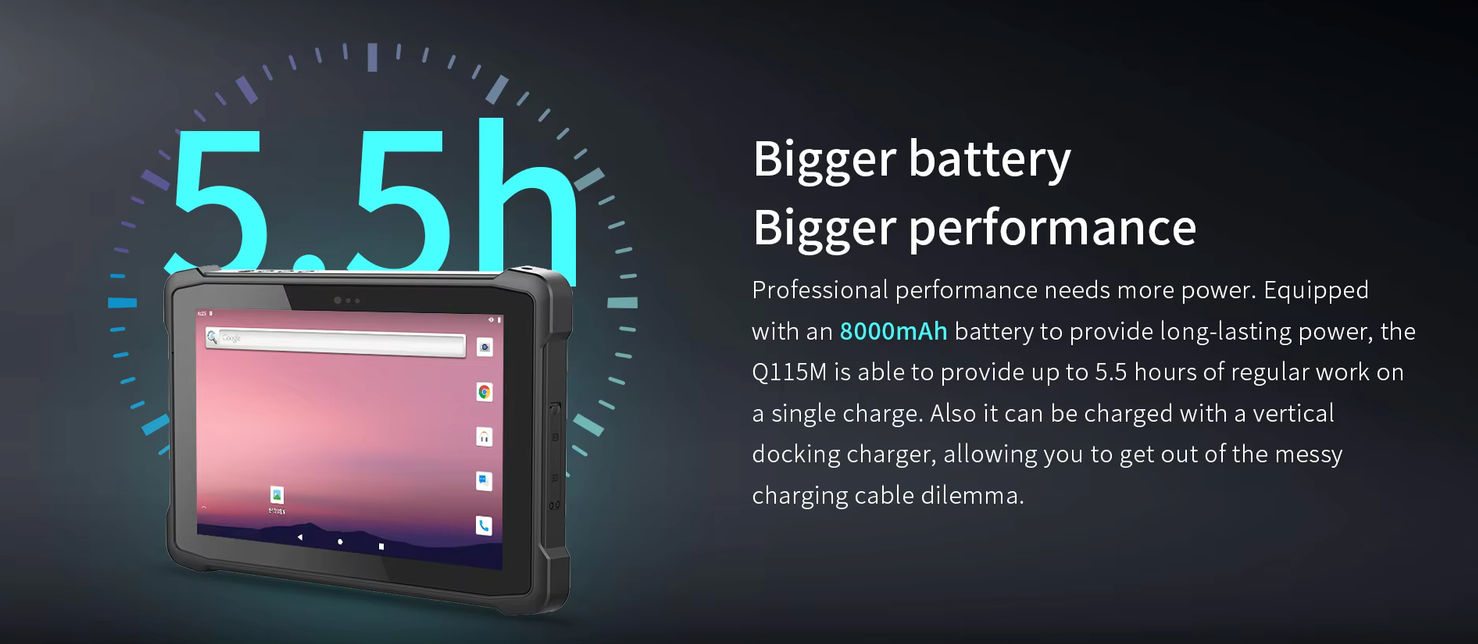

Bigger battery, Bigger performance

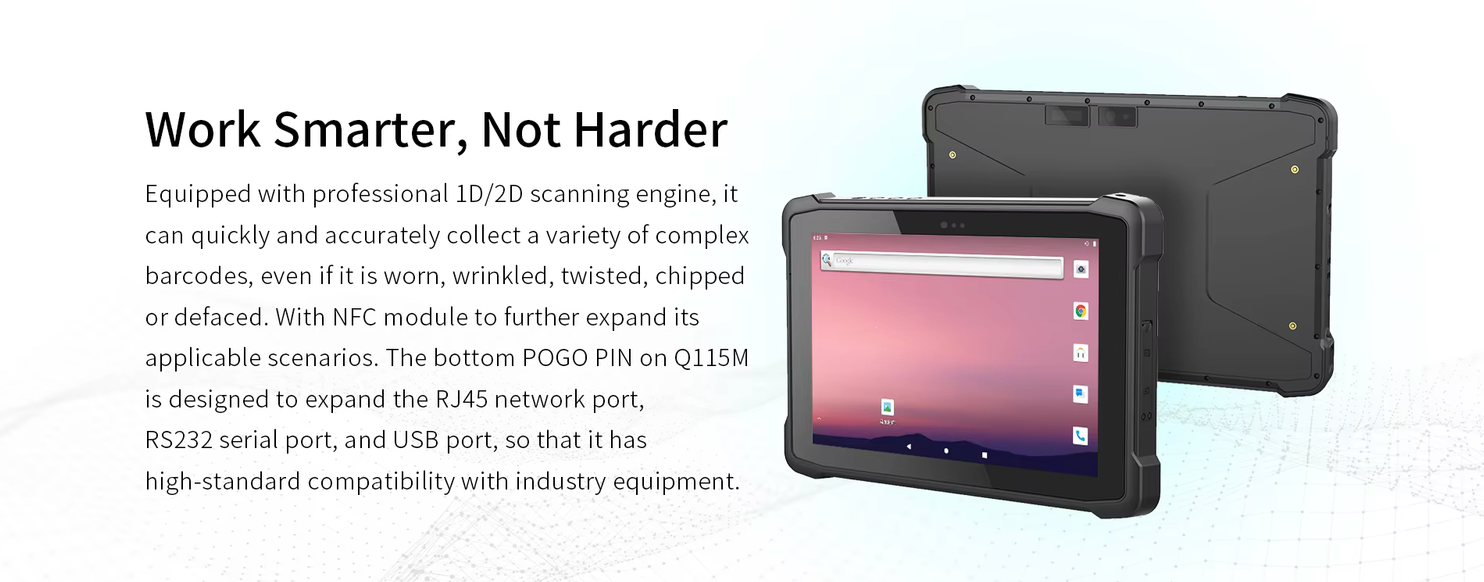

Work Smarter, Not Harder

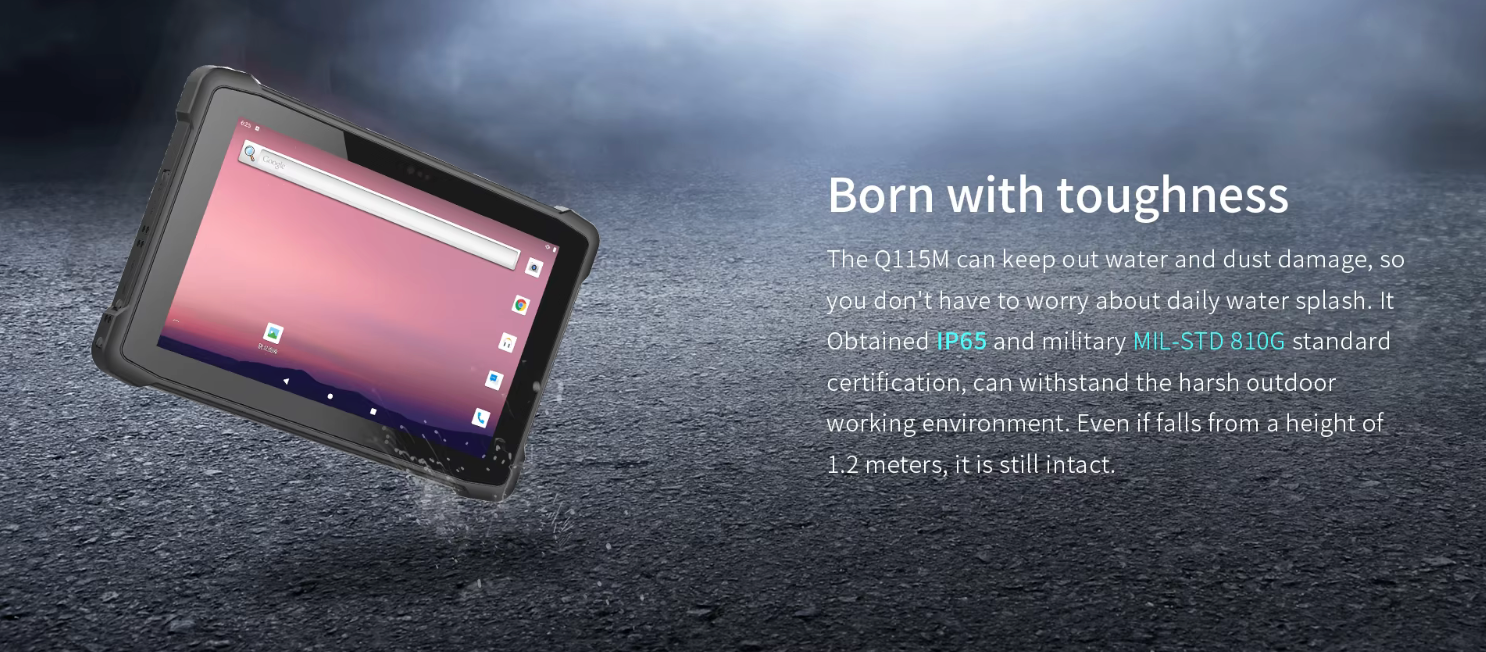

Born with toughness
The Q115M 10.1-inch Rugged Android Tablet features full rugged protection, lightweight portable design, stable Android system, and rich expandability. It is widely adopted for mobile field work, industrial onsite operation, logistics, public services and outdoor harsh environment scenarios.
Daily stocktaking, inbound and outbound goods registration
Barcode & QR code scanning for fast inventory verification
Warehouse management system operation, order picking and stock control
Handheld portable design for long-hour warehouse patrol
Courier order checking, route navigation and delivery scheduling
Electronic proof of delivery, on-site signature capture
Real-time data sync with logistics platform via 4G LTE
On-site drawing viewing, construction progress recording
Safety inspection checklist filling and site photo documentation
Outdoor sunlight-readable display for all-weather field use
Urban road, property, landscape and facility patrol inspection
Water supply, power and telecom onsite maintenance work order processing
Fault reporting, asset checking and real-time task feedback
Store shelf replenishment, commodity stock counting
Chain store offline data collection and promotional activity checking
Simple mobile cashier and membership inquiry support
Community and campus daily patrol recording
On-site incident registration, photo evidence saving
Portable rugged body-worn or vehicle-mounted deployment
Production progress recording and workshop daily inspection
Quality control checking, defect logging and process data entry
Dustproof, waterproof and drop-proof adapt to complex workshop environment
Industrial vocational mobile training classroom
Outdoor field research, data collection and mobile teaching
