Product Name |

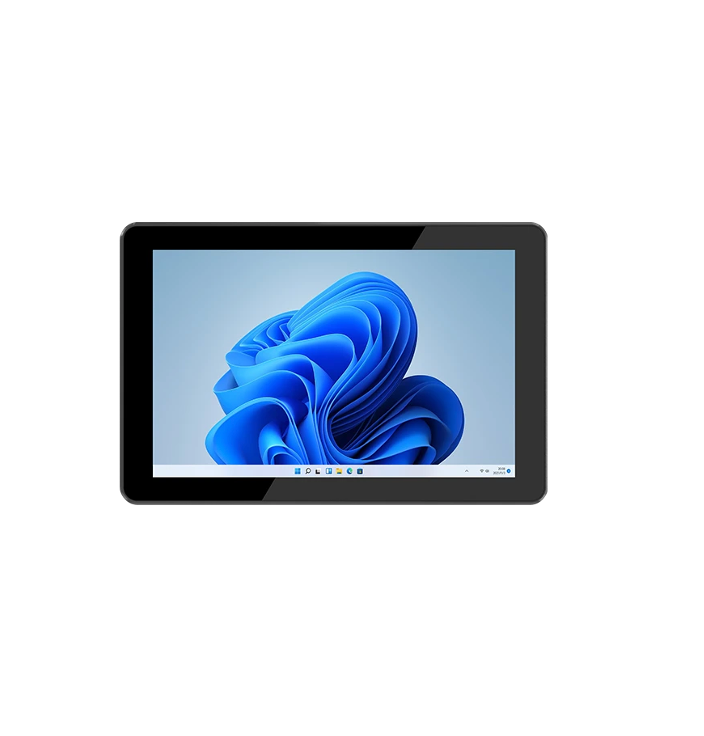

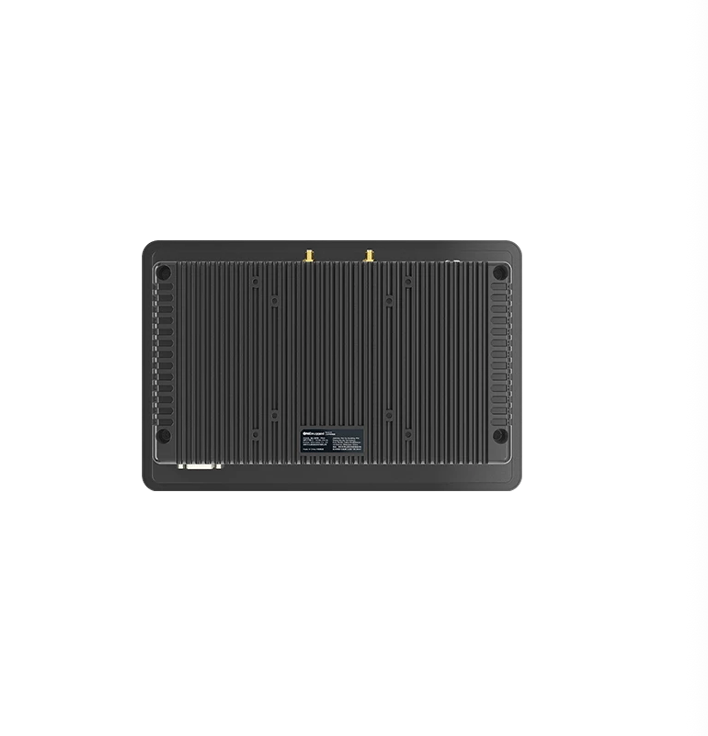

10.1" Industrial Panel PC i5-1235U |
Model |
VP-6517-101 |
Durability |
· Front panel IP65 compliant
· ±8kV contact discharge, ±15kV air discharge |
Operating
System |
· Windows 11 Pro
Optional Windows 11 Home/IOT |
Processor |
· Intel I5 1235U
(12MB Cache，up to 4.4GHz,10 Cores,12 threads,TDP 15W)
· Optional Intel I7 1255U
(12MB Cache，up to 4.7GHz,10 Cores,12 threads,TDP 15W) |
Graphics |
· Intel® Iris® Xe Graphics eligible |
Memory |
· 16GB LPDDR4x on board |
Storage |
· 128GB SATA SSD
Optional 256GB/512GB PCIe SSD |
Display |
· 10.1", HD (800x1280), 700 nits
· 10 point capacitive touch screen |
Audio |
· Optional 2W speaker |
Keyboard
& Input |
· Power key x1 |
Network
& Connectivity |
· Intel® Wi-Fi 6（802.11 ax）
· Bluetooth® V5.1
· Optional 4G LTE
LTE-FDD: B1/3/5/7/8/20
LTE-TDD: B40
WCDMA: B1/5/8
GSM: 900/1800
China (China Unicom, China Telecom, China Mobile),
Europe, Middle East, Africa, Taiwan, Japan |
Security |
· Integrated TPM2.0 |

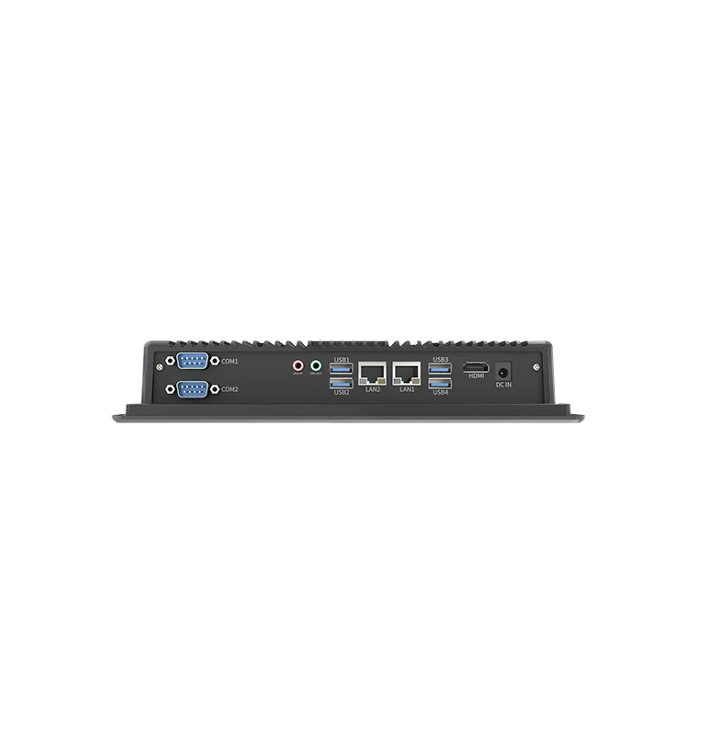

I/O Interface |
· SIM card x 1
· USB3.0 (Type-A) x 4
· 3.5mm AudioJack x 1
· HDMI 2.0 (Type-A) x 1
· 10/100/1000 Ethernet (RJ45) x 2
· Serial port (RS232: D-sub, 9-pin) x 2
Optional RS232 x 1/RS485 x 1
· DC5.5mm-In jack x 1 (support 12-24V)
· SMA x 2 |
Battery
& Charging |
· 100-240V, 50Hz-60Hz, 64.98Wut DC 19V/3.42A
· Separated 3V/220mAh RTC |
Environment |
· Operating temperature: -30°C to +70°C
· Storage temperature: -40°C to +80°C
· Humidity: 95% (non-condensing) |
Dimension |
· 257.2 mm(L) × 170 mm(W) × 45.95 mm(H) |
Weight |
· 1.2 kg |
Accessories |
· Standard: Adapter, Hook Assembly, Antenna |
