Product Parameters
Screen parameters | size | 10.1” |
Resolution | 1280*800 | |
view angle | 85/85/85/85(L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 600 :1 | |
Response time | 6.5 ms | |
Display area | 135.36(H) X216.576(V) mm | |
Pixel pitch (mm) | 0.1692(H) X 0.1692(V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | RTD2483 |
System language | English ,Chinese | |
Video input | PC-RGB:Format Up to 1920*1080@60HZ | |
PC-RGB:Color 16bit, 24bit, 32bit | ||
Key Function | AUTO, MENU, POWER, LEFT, RIGHT | |
interface | HDMI | Support HDMI data output, maximum up to 1080P |
RJ45 | Touch interface | |
VGA | 1 | |
Earphone holder | 3.5mm standard interface | |
DC | DC 12~24V | |
DVI | 1 | |
Product reliability | working temperature | -30 °C to +70 °C |
Storage temperature | - 40 °C to +80 °C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 15W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4 A |

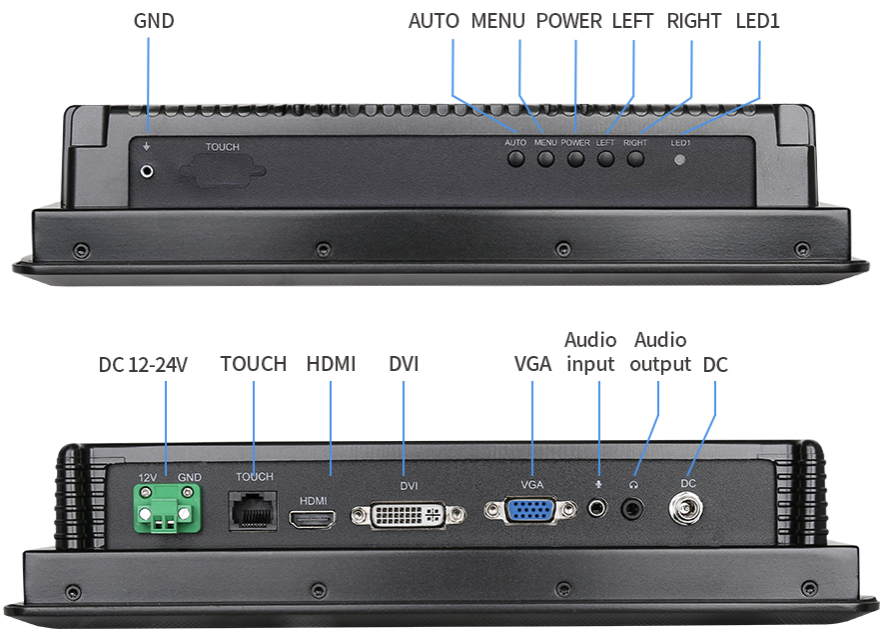

I/O Interface Panel

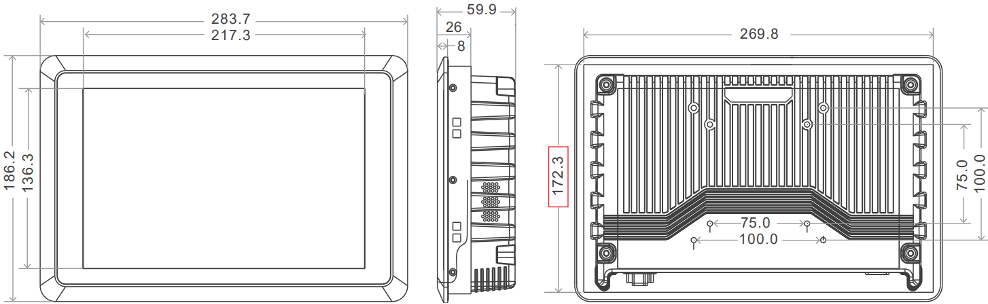

Dimensional drawing
Overall size：283.7*186.2*59.9mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- +70℃ Storage temperature: -40℃- +80℃ |
Working humidity | 20%-95% (relative humidity non condensing) |
Anti-interference | EMI/EMC interference detection standards |

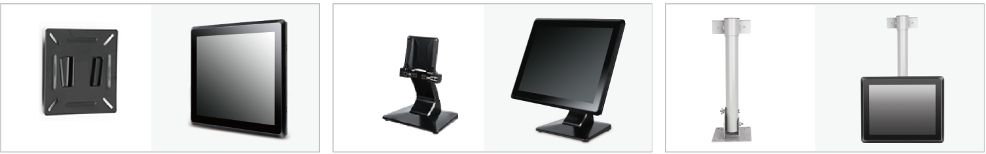

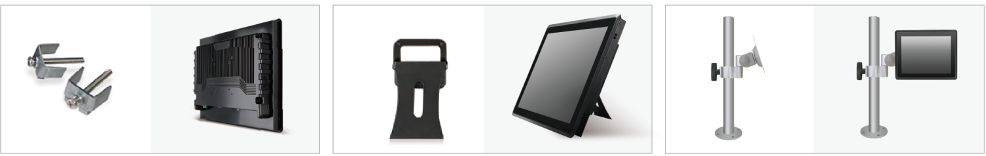

Installation method
Embedded installation | Tabletop type (louver) installation | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy base) | Boom type installation |

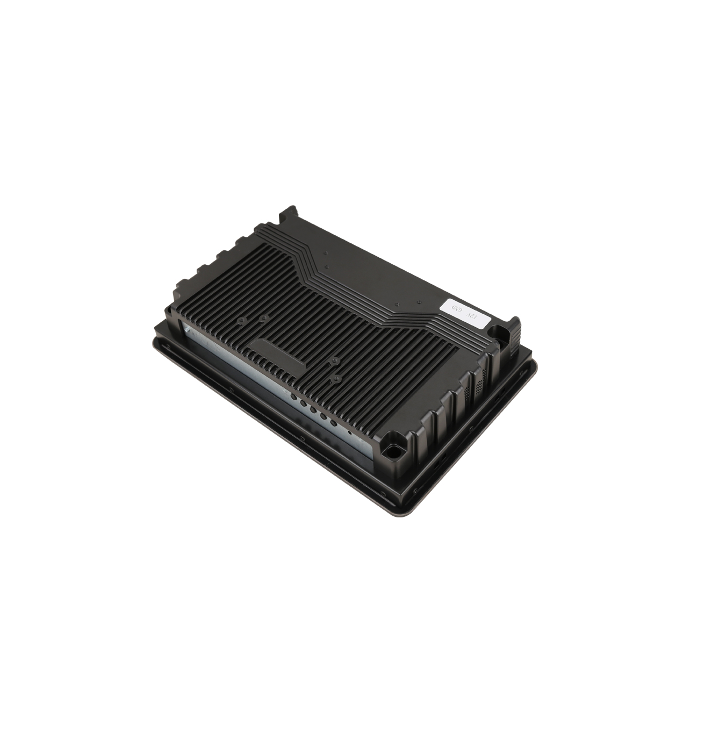

The 10.1" Industrial Monitor VD-1025-101 is designed for rugged, high-reliability environments, with key applications as follows:
Factory floor HMI panels, CNC machinery, and control stations.
Real-time monitoring of production lines, PLC/DCS visualization, and machine operation interfaces.
Panel mounting in control cabinets for SCADA and process control.
Patient monitors, portable diagnostic devices, and infusion pumps.
Clear display of vital signs, medical imaging, and device parameters in clinical environments.
Vehicle-mounted displays for logistics fleets, public transport, and construction machinery.
GPS navigation, telemetry data, and in-cab diagnostics for trucks, tractors, and heavy equipment.
Railway/metro onboard information terminals and station displays.
POS systems, kiosks, and vending machines.
Information displays for airports, hotels, and public buildings.
Charging pile interfaces and smart parking control panels.
Oscilloscopes, spectrum analyzers, and industrial diagnostic tools.
Data visualization for laboratory and field-testing equipment.
Central control panels for smart buildings (HVAC, lighting, security).
Wall-mounted HMI for industrial IoT and edge computing devices.
IP66 front panel (dust/water resistance).
Wide temperature tolerance (-30°C to 70°C).
High brightness (800+ nits) for sunlight readability.
Rugged aluminum alloy casing and fanless design.
