Product Parameters
Screen parameters | size | 7 " |
Resolution | 1024×600 | |
view angle | 75/75/70/75 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 500 :1 | |
Response time | 6.5 ms | |
Display area | 154.214 × 85.92 mm | |
Pixel pitch (mm) | 0.1506×0.1432 (H×V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | RTD2483 |
System language | English ,Chinese | |
Video input | PC-RGB:Format Up to 1920*1080@60HZ | |
PC-RGB:Color 16bit, 24bit, 32bit | ||
Key Function | AUTO, MENU, POWER, LEFT, RIGHT | |
interface | HDMI | Support HDMI data output, maximum up to 1080P |
RJ45 | Touch interface | |
VGA | 1 | |
Earphone holder | 3.5mm standard interface | |
DC | DC 12~24V | |
DVI | 1 | |
Product reliability | working temperature | -30 °C to 70 °C |
Storage temperature | -40 °C to 80 °C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 12W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4 A |

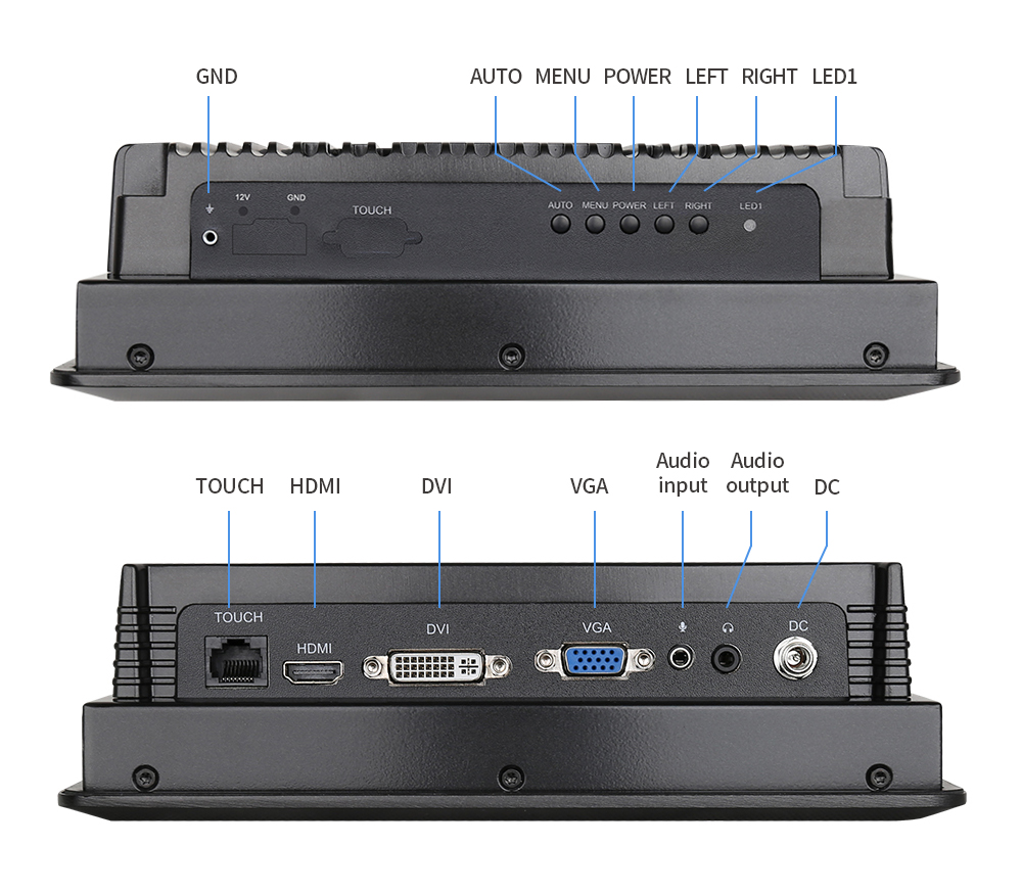

I/O Interface Panel

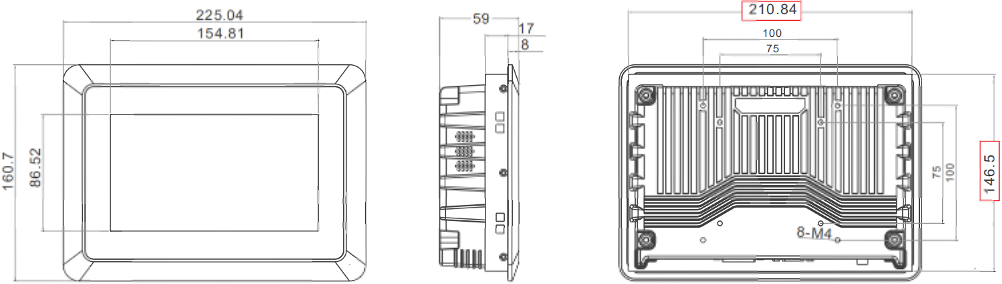

Dimensional drawing
Overall size：225.04*160.7*59mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-10℃- 60℃ Storage temperature: -20℃- 70℃ |
Working humidity | 20%-95% (relative humidity non condensing) |
Anti-interference | EMI/EMC interference detection standards |

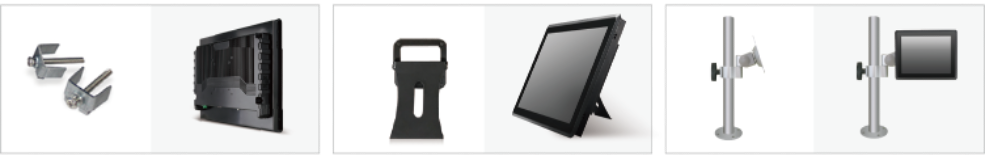

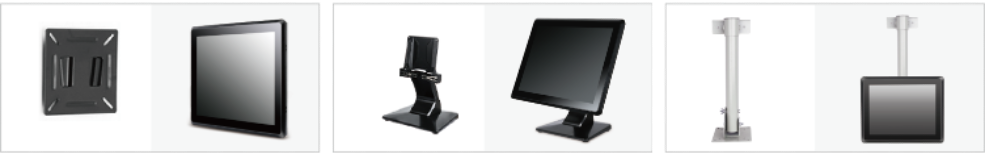

Installation method
Embedded installation | Tabletop type (louver) installation | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy base) | Boom type installation |
Industrial equipment display and external visual monitoring
Factory production line on-site display and auxiliary observation
Mechanical equipment, CNC machine tools and automation supporting display
Logistics warehouse scanning station and operating display screen
Smart cabinet, vending machine and self-service device display
Environmental monitoring, water quality and meteorological data display
Intelligent transportation, vehicle-mounted and roadside terminal display
Building automation, elevator and access control system display
Medical equipment supporting display and industrial instrument screen
IoT on-site data visualization and edge monitoring display
Commercial embedded display and industrial human-machine auxiliary screen
