Product Parameters
Screen parameters | size | 8 " |
Resolution | 1024×768 | |
view angle | 85/85/85/85 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 800 :1 | |
Response time | 6.5 ms | |
Display area | 162.048×121.536 mm | |
Pixel pitch (mm) | 0.15825×0.15825 mm (H×V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | RTD2483 |
System language | English ,Chinese | |
Video input | PC-RGB:Format Up to 1920*1080@60HZ | |
PC-RGB:Color 16bit, 24bit, 32bit | ||
Key Function | AUTO, MENU, POWER, LEFT, RIGHT | |
interface | HDMI | Support HDMI data output, maximum up to 1080P |
RJ45 | Touch interface | |
VGA | 1 | |
Earphone holder | 3.5mm standard interface | |
DC | DC 12~24V | |
DVI | 1 | |
Product reliability | working temperature | -30 °C to 70 °C |
Storage temperature | - 40 °C to 80 °C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 12W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4 A |

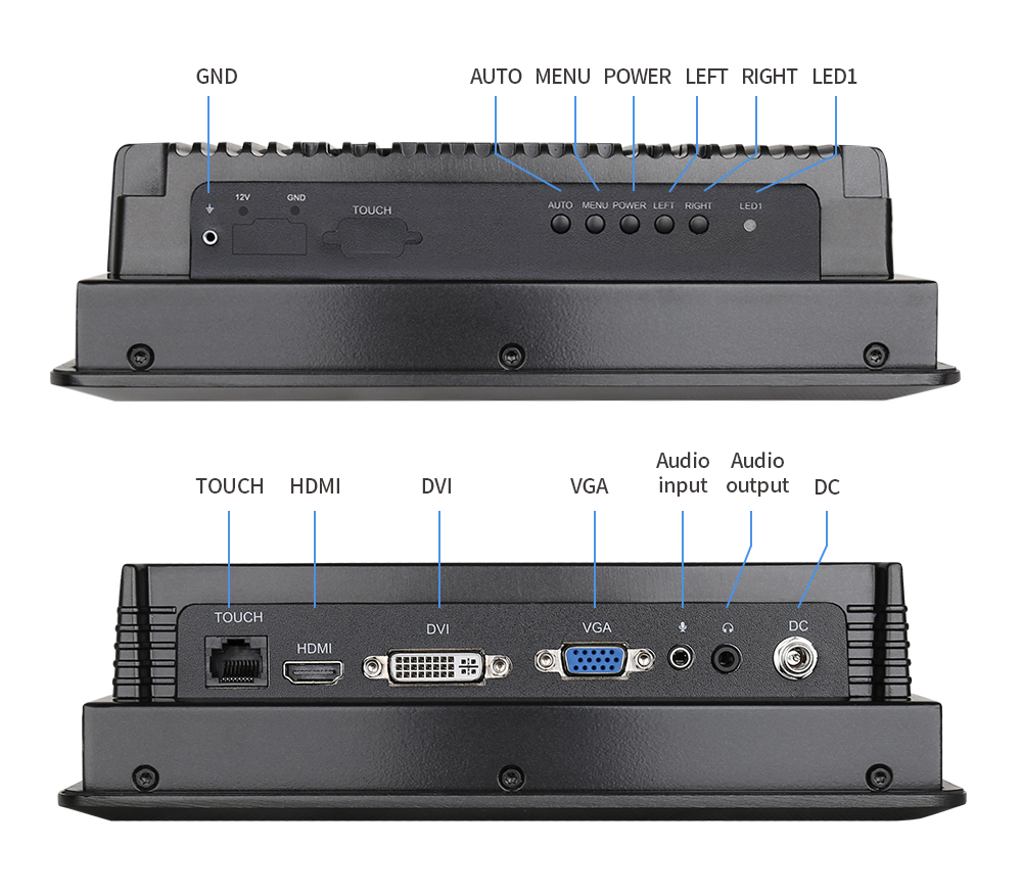

I/O Interface Panel

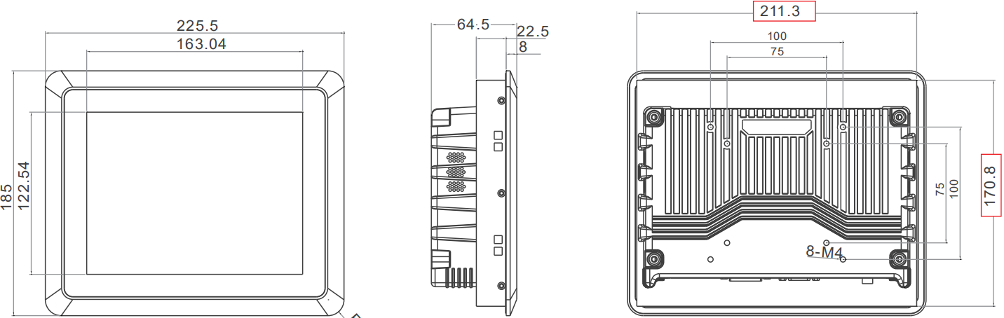

Dimensional drawing
Overall size：225.5*185*64.5mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- 70℃ Storage temperature: -40℃- 80℃ |
Working humidity | 20%-95% (relative humidity non condensing) |
Anti-interference | EMI/EMC interference detection standards |

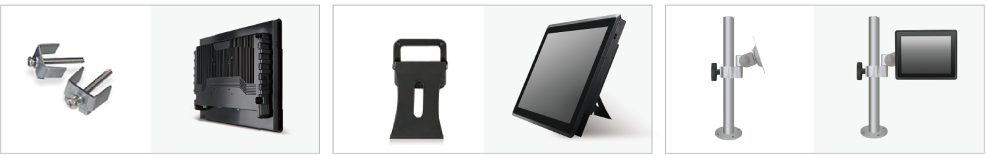

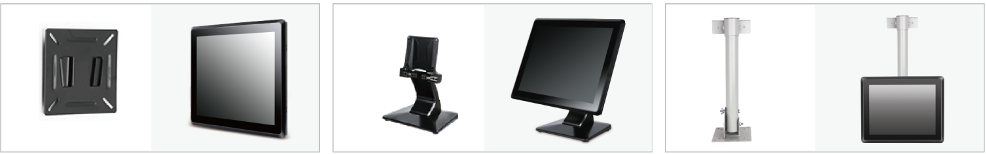

Installation method
Embedded installation | Tabletop type (louver) installation | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy base) | Boom type installation |
With its compact size, fanless design, and industrial-grade reliability, the VD-25-08 is widely used in various industrial fields, providing stable display support for intelligent transformation:
Industrial Automation: Embedded in production line control cabinets, CNC machine tools, and PLC control terminals, it displays real-time production parameters, equipment operation status, and process flow, facilitating on-site operators to monitor and adjust production processes in a timely manner.
Smart Logistics & Warehousing: Installed in automated sorting lines, AGV scheduling terminals, and warehouse management stations, it displays order information, inventory data, and sorting instructions, helping to improve sorting efficiency and inventory management accuracy.
Outdoor & Harsh Environment Monitoring: Applied in outdoor power monitoring, environmental monitoring terminals, and mining control rooms, it adapts to harsh environments such as high temperature, low temperature, and dust, realizing real-time display of monitoring data.
Precision Manufacturing & Medical Equipment: Used in precision component production workshops and medical equipment terminals, it provides clear data display and stable touch operation, meeting the high-precision requirements of related fields.
