SKU | TPRO-SE101 |
Screen Size | 10.1" |
Resolution | 1280*800 |
Viewing Angle | 85/85/85/85 |
Brightness | 400 cd/m2 |
Contrast Ratio | 800:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | 128G/256G/512G/1T |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485 and expansion to 5COMs) |
USB | 2 *USB3.0 + 2 *USB2.0 |
Display | 1 *HDMI, 1 *VGA |
Expansion | 1 *Mini PCIE WiFi&BT or 4G LTE |
Operating System | Windows / Linux |
Dimensions (mm) | 266.1*181.9*52 |
Recommended size of holes openning (mm) | 260*176 |
Gross weight (kg) | 3.00kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |

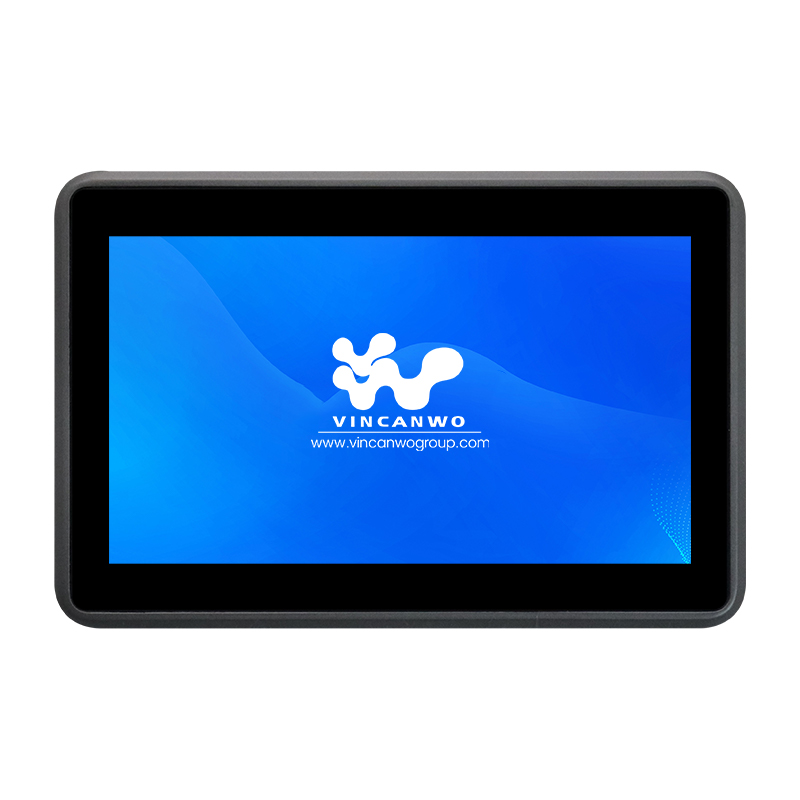

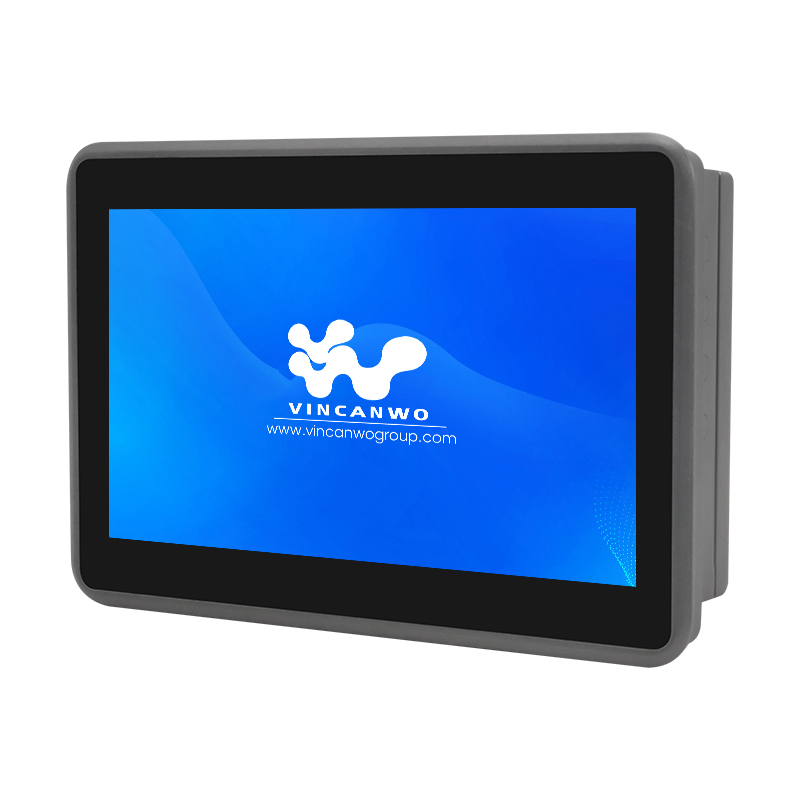

10.1 Inch Fanless Industrial Panel PC | TPRO-SE101

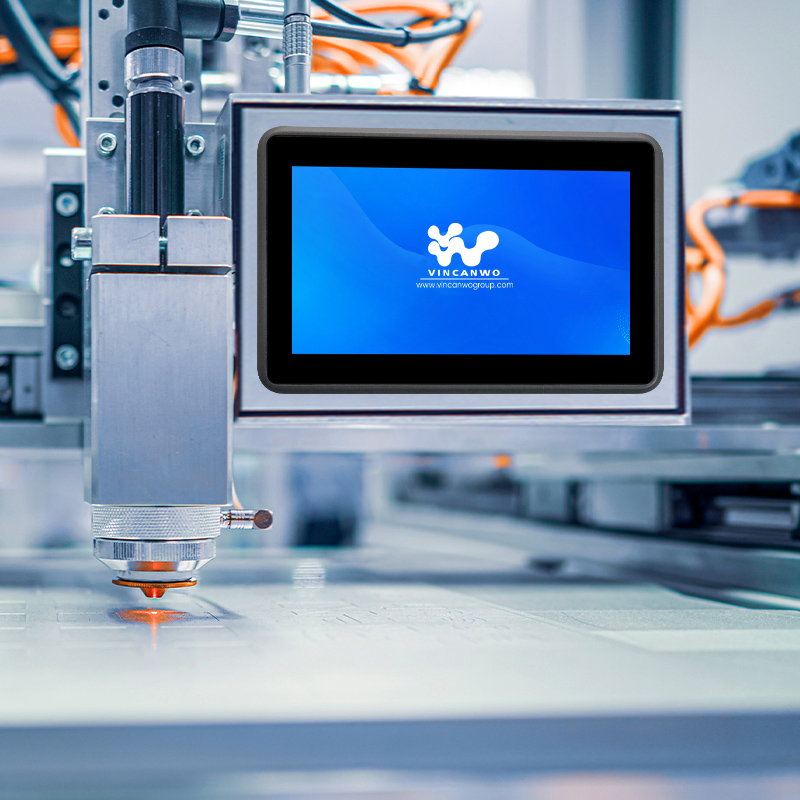

TPRO-SE101 is a 10.1-inch fanless industrial panel PC. Adopting a fully enclosed fanless design, the front panel reaches IP66 dustproof and waterproof grade, ensuring stable operation in complex and harsh industrial environments. It is widely used in industrial automation, equipment control, smart terminals, logistics sorting and other application scenarios.
Equipped with a 10.1-inch high-definition widescreen display, the panel PC supports multi-point capacitive touch by default, with sensitive response and high touch accuracy. The integrated ultra-narrow bezel aluminum alloy housing features compact size, good shockproof and anti-interference performance, suitable for limited installation space.
It adopts low-power industrial-grade processor, with optional memory and SSD storage configuration. Passive aluminum heat dissipation realizes zero fan operation, effectively avoiding dust accumulation and reducing maintenance frequency.
The device is built with rich industrial interfaces, including Gigabit Ethernet, multiple USB ports, RS232/RS485 serial ports, and audio interface. It supports Wi-Fi, Bluetooth and peripheral module expansion, and adopts wide voltage DC power input to adapt to industrial on-site power supply fluctuations.
