Features and Benefits of Ruggedized Computers
Why Are Ruggedized PCs Important?
Buying Guide & Key Technical Selection Criteria
Ruggedized computers integrate customized structural enclosures, fanless thermal architecture, and industrial components to deliver uninterrupted computing performance across extreme operating environments.
The foundational architecture of rugged PCs diverges significantly from standard commercial desktops and enterprise servers. Commercial systems depend heavily on high-airflow cooling fans, thin stamped sheet metal, and consumer-grade motherboard components optimized for ambient, controlled office settings. When deployed on factory floors, heavy transport platforms, or outdoor field installations, standard hardware suffers rapid failures caused by mechanical shock, fine particulate accumulation, corrosive humidity, and sudden thermal spikes. In contrast, industrial rugged PCs utilize heavy-duty extruded aluminum alloy or stainless steel chassis designs that double as passive heat sinks. This dynamic structural approach eliminates active cooling fans—the single most common point of mechanical hardware failure in compute nodes.
In European and North American industrial sectors, system engineers consistently emphasize structural reliability, long-term availability, and ingress prevention above raw burst processing speeds. Modern industrial computing hardware must maintain stable clock speeds without thermal throttling even under continuous, 100 percent processing loads. Passive conduction cooling technologies transfer localized thermal output from high-TDP central processing units directly to external heat sink fins, utilizing high-conductivity thermal interface materials. By omitting open chassis vents, fanless rugged PCs seal out air-borne particulates, airborne oils, and conductive dusts that otherwise degrade circuit traces. Consequently, rugged hardware dramatically reduces total cost of ownership by eliminating scheduled maintenance cycles required for fan replacement and internal dust removal.
Furthermore, internal architecture within rugged PCs is engineered with a strict minimal-cable philosophy. Traditional internal power and data cables are prone to disconnecting or suffering fretting corrosion when exposed to continuous mechanical motion or structural resonance. Advanced industrial hardware replaces cable runs with direct board-to-board interconnects, reinforced solder points, and surface-mount components. System architecture planning emphasizes high Mean Time Between Failures, extended operational thermal thresholds, and long product availability cycles spanning 7 to 10 years. This long-term lifecycle stability ensures that enterprise projects maintain consistent hardware baselines without necessitating frequent driver updates, system re-certifications, or mechanical redesigns of control cabinets.

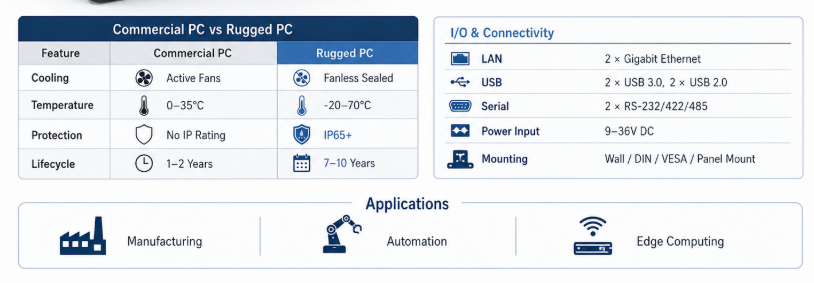

Core Architectural Feature | Commercial Grade Desktop PC | Industrial Ruggedized PC |
Enclosure Material | Molded ABS plastic, thin sheet steel | Heavy-duty extruded aluminum, stainless steel |
Thermal Management Strategy | Active internal fans, vented airflow | Passive fanless conduction, sealed chassis fins |
Vibration Mitigation | Unreinforced drive bays, standard sockets | Soldered components, cableless design, shock mounts |
Dust & Water Protection | Unsealed, no IP protection rating | IP65 to IP69K dust-proof and waterproof seals |
Operating Temperature Window | 10 to 35 degrees Celsius | -20 to 70 degrees Celsius |
Product Lifecycle Availability | 12 to 24 months average | 7 to 10 years long-term support |
Build quality in rugged PCs relies on heavy-grade metal enclosures engineered to absorb physical impacts and prevent environmental corrosion.
Industrial chassis construction employs high-density extruded aluminum or heavy-gauge steel shells designed to withstand continuous structural stresses. The physical casing serves dual purposes: providing high impact resistance against falling tools and machinery contact, while functioning as a primary passive cooling radiator. High-tier industrial enclosures often incorporate specialized surface treatments, such as hard anodizing or anti-corrosive powder coatings, to withstand chemical exposure, salt spray, and washdown protocols in heavy processing environments.
Internal layout engineering minimizes structural stress points on critical computing silicon. Circuit boards feature extra PCB layers with high-Tg resin to prevent board warping under extreme thermal cycling. Connectors and expansion slots utilize locking mechanisms or screw-down fasteners to guarantee uninterrupted trace continuity during field operation.
Shock and vibration resistance prevents physical damage and intermittent solder contact failures caused by constant mechanical motion.
Vibration profiles in industrial manufacturing, rail transit, and heavy equipment operation generate continuous structural stress that quickly damages conventional computing hardware. Rugged PCs are rigorously tested against military and industrial standards, such as MIL-STD-810G/H Method 514.6 for vibration and Method 516.6 for physical shock. System designs isolate fragile internal components through specialized rubber damping mounts, internal isolation dampers, and rigid chassis ribbing that dissipates mechanical energy away from primary system components.
Solid-state storage technology is fundamental to shock resistance in rugged PCs. Traditional rotating hard disk drives rely on delicate mechanical heads reading magnetic platters spaced nanometers apart; mechanical shock events inevitably lead to catastrophic head crashes and total data loss. Ruggedized systems exclusively deploy industrial-grade NVMe or SATA solid-state drives using Single-Level Cell or pseudo-Single-Level Cell NAND flash memory, which feature no moving parts and exhibit high tolerance to multidirectional acceleration forces up to 50G.
Dust and debris protection prevents conductive contamination and short-circuiting in harsh industrial operating environments.
Particulate management in heavy industrial facilities presents a major hardware engineering challenge. Microscopic metallic filings, graphite dust, wood flour, and chemical powder can quickly breach unsealed computing enclosures. Once inside, conductive dust settles on high-voltage components, causing electrical short-circuits, track arcing, and premature motherboard destruction. Rugged PCs prevent ingress by adopting completely fanless, fully sealed outer shell architectures.
Ingress Protection ratings clearly define the sealing efficacy of industrial chassis structures. System enclosures engineered to IP65 or higher standards block all solid particulate matter from penetrating the internal electronics chamber. Precision O-ring gaskets made from high-durability synthetic rubber or silicone are compressed along chassis joining seams, I/O panels, and cable pass-throughs. This creates an airtight seal capable of keeping out dry abrasive particulates as well as high-pressure washdown water sprays common in food processing and chemical manufacturing facilities.
Wide temperature tolerance allows ruggedized computing systems to boot up and run continuously under extreme thermal conditions.
Standard commercial computers are designed strictly for air-conditioned rooms, operating reliably only between 0 and 35 degrees Celsius. Outside this window, component thermal expansion, capacitor electrolyte degradation, and clock skew lead to unstable processing and hardware crashes. Rugged PCs are constructed using wide-temperature grade components qualified to maintain operational integrity across broad thermal ranges, typically from -20 to 70 degrees Celsius, with specialized extreme-environment builds reaching from -40 to 85 degrees Celsius.
Thermal management in these wide-temperature systems relies on advanced passive heat dissipation engineering. Heat pipes constructed from high-purity copper carry thermal energy away from the CPU die directly to the outer aluminum chassis fins. Additionally, internal power delivery stages use wide-temp solid capacitors, high-efficiency MOSFETs, and wide-range power inductors to maintain stable voltage regulation despite ambient environmental swings. For sub-zero operations, selected rugged PCs include internal thermal pre-heating circuits that safely bring storage drives and boot controllers up to minimum operating temperatures before executing cold power-on sequences.
Industrial grade components are explicitly selected and validated to deliver high operational durability under continuous electronic stress.
The reliability of a rugged PC depends directly on the bill of materials used across its circuit design. While commercial systems utilize lower-cost components rated for consumer usage cycles, industrial hardware incorporates high-grade silicon, multi-layer high-density PCBs, and high-reliability passives. Transistors, capacitors, and memory modules are rated for continuous 24/7/365 operation under high thermal loads, ensuring that clock speeds, signal integrity, and power transfer remain stable without unexpected performance degradation.
Industrial Grade Processors: Embedded lifecycle CPUs providing low power consumption, high processing efficiency, and guaranteed 10 to 15 year supply longevity.
Solid-State Capacitors: High-grade aluminum solid capacitors that eliminate liquid electrolyte leakage and drying issues, dramatically increasing component lifespan.
Wide-Temperature DRAM & NAND: Memory chips certified for stable operation under high thermal variation, featuring error-correcting code options to eliminate soft bit errors.
Heavy-Duty Power ICs: Industrial power regulators with built-in protection against over-voltage, over-current, surge currents, and reverse polarity connections.
System expandability and long lifecycle support ensure that industrial hardware remains compatible with long-term infrastructure deployments.
Modern industrial applications require specialized hardware interfaces to connect with legacy machinery, sensor arrays, fieldbus networks, and proprietary automation protocols. Rugged PCs accommodate these demands by integrating modular expansion capabilities, such as Mini PCIe, M.2 slots, and proprietary daughterboard expansion systems. System integrators can seamlessly add specialized fieldbus controller cards (CANbus, Profibus, EtherCAT), additional Gigabit Ethernet ports with Power over Ethernet support, or frame grabbers for machine vision capture without redesigning the core computing node.
System longevity is equally vital for industrial operations. Redesigning, re-testing, and re-certifying industrial control networks due to hardware end-of-life cycles is costly and time-consuming. Ruggedized computer manufacturers guarantee extended product lifecycles ranging from 7 to 10 years for a single hardware baseline. This long-term component availability allows system integrators to roll out standardized control architectures globally over multiple years without facing component obsolescence or driver incompatibility issues.
Wide power range compatibility enables industrial computers to accept variable direct current power sources found across factory floors and mobile equipment.
Industrial facilities and heavy mobile equipment rarely provide clean, regulated 120V AC wall power at the point of hardware installation. Instead, deployment sites rely on DC power networks that fluctuate significantly depending on system load, heavy motor starts, and alternator output. Rugged PCs incorporate advanced wide-range DC power input modules capable of accepting broad voltage spans, such as 9V to 36V DC, or extended 9V to 48V DC ranges, allowing seamless installation across varied industrial environments without requiring external voltage converters.
Integrated power conversion protection protects internal components against common electrical anomalies. Built-in Over-Voltage Protection prevents high-voltage spikes from burning out sensitive logic circuits, while Under-Voltage Protection safely shuts down the system if input voltage drops below minimal processing thresholds. Additionally, Reverse Polarity Protection prevents accidental hardware destruction if power wiring is inverted during installation, and dynamic surge protection suppresses electrical noise generated by nearby high-power electric motors and solenoid actuators.
Compact chassis designs and flexible mounting configurations allow ruggedized hardware to be installed directly into space-constrained control cabinets.
Space is at a high premium inside industrial automation enclosures, process equipment, and vehicle control bays. Rugged PCs feature highly optimized, compact footprints that maximize computing density while retaining essential external I/O interfaces. By eliminating internal fans, air ducts, and bulky ATX power supplies, industrial computers deliver high performance within chassis volumes a fraction of the size of standard desktop computers.
To ensure fast and secure deployment across diverse operating environments, industrial hardware supports standardized mechanical mounting methods:
DIN-Rail Mounting: Enables rapid snap-on mounting directly onto standard DIN rails alongside industrial relays, circuit breakers, and PLC controllers inside control panels.
VESA Wall Mounting: Utilizes standardized VESA hole patterns to mount systems securely onto the back of industrial monitors, swing arms, or structural machine walls.
Side Bracket Wall Mounting: Uses heavy-duty steel side brackets to screw the chassis firmly against flat surface walls, control cabinets, or vehicle bulkheads.
Rackmount Configurations: Integrates specialized adapter flanges to install compact units into standard 19-inch industrial server racks.
Robust wired and wireless connectivity interfaces enable high-speed data acquisition and edge network integration in industrial automation environments.
Industrial computing deployments require specialized connectivity to link physical machinery with enterprise networks and cloud platforms. Rugged PCs feature rich I/O panels equipped with high-density serial ports (RS-232/422/485) featuring auto-flow control, allowing direct communication with legacy sensors, motor drives, PLCs, and barcode readers. Multi-gigabit Ethernet interfaces—frequently powered by independent Intel network controllers—provide high bandwidth for real-time machine vision, network redundancy, and isolated OT network segmentation.
To support remote deployments, industrial systems incorporate internal expansion slots for wireless communications. Modules supporting Wi-Fi 6, Bluetooth, 5G cellular connectivity, and GNSS positioning allow edge hardware to transmit telemetry data in mobile, offshore, or geographically distributed setups. For extreme vibration or washdown environments, standard RJ45 and DB9 ports are often replaced with ruggedized M12 threaded connectors, ensuring that signal pins remain locked and waterproof under severe structural movement.
Maintenance Tip: Connective Port Shielding and Cable Strain Relief: System operators should ensure that unused external I/O ports are covered with IP65-rated rubber dust caps, and all signal cabling utilizes rigid strain relief brackets to prevent pin fatigue and ground loops caused by nearby industrial equipment.
Ruggedized PCs are essential components of modern industrial infrastructure because they prevent unplanned operational downtime and protect critical data processing at the network edge.
In commercial computing, a system crash or hardware failure usually results in mild inconvenience and brief employee downtime. In industrial manufacturing, automated processing, and critical infrastructure, a computer failure can halt an entire production line, destroy expensive materials, compromise safety protocols, and cause financial losses reaching tens of thousands of dollars per hour. Industrial operations require continuous uptime. Rugged PCs deliver the structural resilience and hardware reliability necessary to guarantee uninterrupted processing in environments where commercial hardware would fail within days or weeks.
Deploying industrial-grade hardware at the local site level enables real-time computing without latency dependencies on distant cloud networks. Edge computing nodes process high-volume machine sensor telemetry, run real-time AI computer vision models for quality inspection, and execute precision motor control commands locally with microsecond deterministic timing. By housing high-performance Intel or ARM processing platforms within sealed, vibration-proof chassis, ruggedized hardware brings advanced operational intelligence directly to the factory floor, remote oil field, or mobile transport fleet.
For demanding applications requiring complete ingress protection against high-pressure water washdowns and corrosive chemical exposure, systems like the Full IP65 Wall Mount 98M3-I7 Industrial Embedded Computer Box PC CWB-6614 provide complete IP65-rated stainless steel protection, wide thermal operational tolerance, and robust wall-mounting structures suited for harsh operational conditions.
In modern manufacturing plants, rugged computers serve as central control units managing physical production lines, robotics, and SCADA monitoring networks.
Manufacturing environments expose electronics to constant industrial hazards: mechanical vibration from heavy stamping presses, airborne coolant mist, ambient metallic dust, and sudden electrical line noise generated by high-power electric motors. Standard office computers deployed on factory floors quickly fail due to clogged cooling fans and shorted circuit boards. Sealed fanless rugged PCs eliminate these failure vectors, operating continuously inside control cabinets or mounted directly onto processing machinery.
These systems run Human-Machine Interface software, process continuous telemetry from sensor arrays, and interface directly with Programmable Logic Controllers (PLCs) via deterministic fieldbus networks. By providing a stable, high-reliability compute baseline, industrial PCs prevent process interruptions, maintain high product quality standards, and log operational data necessary for predictive maintenance algorithms.
Industrial automation and robotics rely on ruggedized PCs to calculate complex kinematics and control high-speed motion operations in real time.
Modern multi-axis industrial robots and automated conveyor networks require precision timing to perform assembly, welding, packaging, and material handling functions safely. The embedded computing hardware driving these systems must execute deterministic real-time operating systems while enduring continuous acceleration forces and electromagnetic interference emitted by nearby servo drives and high-voltage transformers.
Compact rugged PCs are engineered with specialized isolation circuits on serial and digital I/O lines to suppress ground loops and high-voltage electrical spikes. Their ruggedized, solid-state construction allows them to be mounted directly onto mobile robotic bases or integrated inside cramped articulated arm control enclosures, delivering high processing capabilities right at the mechanical action point.
Intelligent kiosk systems use compact rugged PCs to ensure continuous, unattended public operation across variable outdoor environments.
Self-service ticketing kiosks, outdoor interactive information terminals, automated EV charging stations, and smart parcel lockers demand 24/7/365 hardware availability. These systems operate in exposed public settings, subject to extreme ambient temperature fluctuations, high humidity, condensation, physical vandalism, and unstable grid power inputs.
Integrating a fanless rugged PC inside the kiosk enclosure guarantees reliable heat dissipation through passive conduction without pulling in wet, dirty, or ambient outside air. Wide-range DC power input stages protect system logic against power surges common in outdoor electrical infrastructure, while onboard cellular modem support ensures continuous payment processing and remote status telemetry monitoring.
Ruggedized computing hardware powers edge video analytics and multi-channel IP security recording in demanding field environments.
Modern security installations rely heavily on high-resolution IP cameras, thermal imaging arrays, and automated License Plate Recognition analytics. Deploying video surveillance platforms on transit buses, passenger trains, smart city light poles, and remote utility facilities requires specialized computing hardware capable of capturing and analyzing multiple high-bitrate video streams concurrently under harsh physical conditions.
Rugged PCs designed for video security integrate multiple Power over Ethernet (PoE+) Gigabit network ports directly into the chassis. This allows a single computer node to supply both DC power and high-speed data connectivity to multiple connected IP cameras, eliminating the need for bulky external PoE switches. Integrated hardware video decoders and optional discrete GPU accelerators enable local real-time AI object detection and facial recognition without overloading the system CPU.
Operational Principle: Thermal Conduction Dissipation in Edge AI Surveillance: High-performance discrete GPU cards inside sealed rugged chassis transfer high thermal loads directly through engineered copper vapor chambers and soft thermal pads onto the outer finned aluminum housing, maintaining maximum GPU tensor core performance without relying on internal cooling fans.
Automation inspection and high-precision testing equipment utilize high-performance rugged PCs to run real-time computer vision and data acquisition algorithms.
Quality control in high-speed manufacturing lines depends on automated visual inspection and high-frequency sensor measurement. Machine vision systems use high-resolution industrial cameras to scan manufactured items—such as semiconductor wafers, automotive assemblies, or pharmaceutical packaging—at speeds of hundreds of items per minute, checking for sub-millimeter surface defects or dimensional inconsistencies.
Executing complex computer vision models and digital signal processing functions locally requires high computing throughput. Systems configured like the Fanless Wall Mount Box PC CWB-6614 provide powerful Intel Core i7 computing capabilities coupled with expandability options, making them well-suited for automated visual metrology, sensor logging, and continuous automated quality assurance testing.
Selecting the optimal ruggedized computer requires matching environmental exposure levels, processing requirements, expansion needs, and mechanical footprint constraints against operational goals.
When procuring industrial hardware, procurement teams and automation engineers must evaluate complete operational parameters rather than focusing solely on processor benchmark scores. A system that offers extreme processing speed but lacks adequate ingress protection or thermal operating range will quickly suffer premature failure when deployed in harsh conditions. Hardware evaluation must begin with an audit of the physical deployment site: ambient thermal extremes, exposure to water or oil spray, vibration levels, space constraints, available DC power supply stability, and required legacy cable connections.
System engineers should also evaluate Total Cost of Ownership (TCO) versus initial capital outlay. Commercial-grade or semi-rugged computers often feature lower upfront purchasing costs, but incur high long-term expenses through unbudgeted operational downtime, emergency maintenance calls, short 18-month product lifecycles, and frequent hardware replacements. Purpose-built industrial rugged PCs deliver far lower TCO over 5 to 10 year operational horizons by ensuring continuous uptime, reducing maintenance overhead, and maintaining long-term component availability.
To assist engineering and procurement teams in evaluating hardware options, the following matrix outlines key technical selection parameters, testing standards, and their operational relevance across industrial deployment scenarios:
Technical Parameter | Industry Standard / Rating | Target Deployment Considerations | Key Operational Benefit |
Ingress Protection | IP65 / IP67 / IP69K | Food processing washdowns, chemical plants, dusty outdoor sites | Complete seal against abrasive airborne particulates and water jet exposure |
Shock & Vibration | MIL-STD-810G Method 514.6/516.6 | Heavy equipment cabs, rail transit, automated robotic platforms | Prevents component displacement and solder joint fractures during operation |
Thermal Range | -20°C to 70°C (Extended: -40°C to 85°C) | Unconditioned outdoor enclosures, desert/arctic oil fields | Eliminates thermal throttling and boot failure under extreme outdoor swings |
Input Power | Wide DC 9V-36V (or 9V-48V) with OVP/UVP | Vehicle electrical networks, solar installations, dirty factory DC grids | Protects sensitive logic circuits from high voltage spikes and line drops |
Processor TDP | Low Power Embedded (15W) to Performance (45W+) | Battery/Solar powered remote edge sites vs High-Speed Edge AI | Balances passive thermal dissipation capacity with real-time processing demands |
Expansion Slots | M.2 Key-B/Key-M, Mini PCIe, PCIe x16 | Real-time computer vision, 5G wireless modules, proprietary fieldbus | Customizes edge node capability without requiring complete system redesign |
Mounting Standard | DIN-Rail, VESA, Wall Mount Brackets | Electrical control panels, rear of industrial displays, machine frames | Optimizes cabinet installation density and simplifies field maintenance access |
Ruggedized computers are purpose-built industrial compute platforms engineered to deliver uninterrupted computing performance across extreme operating environments.
As industrial operations rapidly adopt digital automation, edge AI computing, real-time computer vision, and advanced robotics, the requirement for robust, reliable hardware baselines becomes increasingly critical. Commercial-grade hardware cannot endure the harsh physical stresses—such as severe mechanical vibration, high particulate dust, moisture exposure, thermal cycling, and electrical noise—inherent to factory floors and outdoor industrial deployments. Purpose-built fanless rugged PCs eliminate physical failure points while integrating specialized wide-temperature components, protective wide-DC power modules, and sealed all-metal enclosures.
By investing in high-reliability industrial computing hardware, global enterprises, automation integrators, and equipment manufacturers safeguard operational continuity, eliminate unexpected downtime, and secure maximum return on investment across long-term infrastructure projects. When selecting hardware for critical deployment, evaluating environmental ratings, passive cooling capabilities, modular expansion options, and long-term lifecycle support ensures that your computing platform delivers reliable, round-the-clock performance in any industrial setting.
