| Quantity: | |
|---|---|

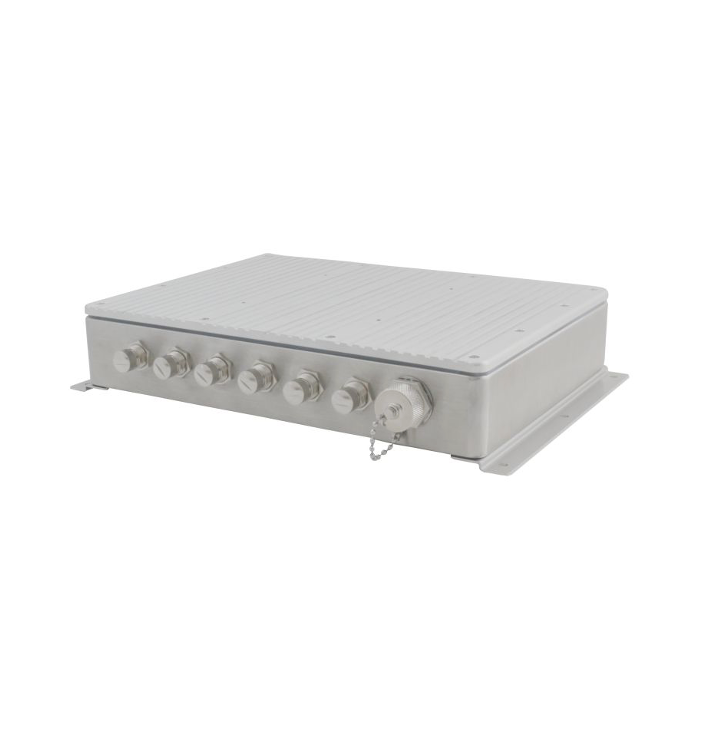

Product Name and Model | Full IP65 Wall Mount 98M3 I7 Industrial Embedded Computer Box PC | CWB-6614 | |
Primary Components | Processor Family | Intel Core I series 12th Generation Alder Lake |
Processor Model | Core i5-1245UE | |
Processor Speed | 2x Performance Cores @ 4.4 GHz, 8x Efficient Cores @ 3.3 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 NVME SSD Slot (2242/2260/2280) | |
Storage Support | M.2 SATA and 2.5": 128GB-1TB | |

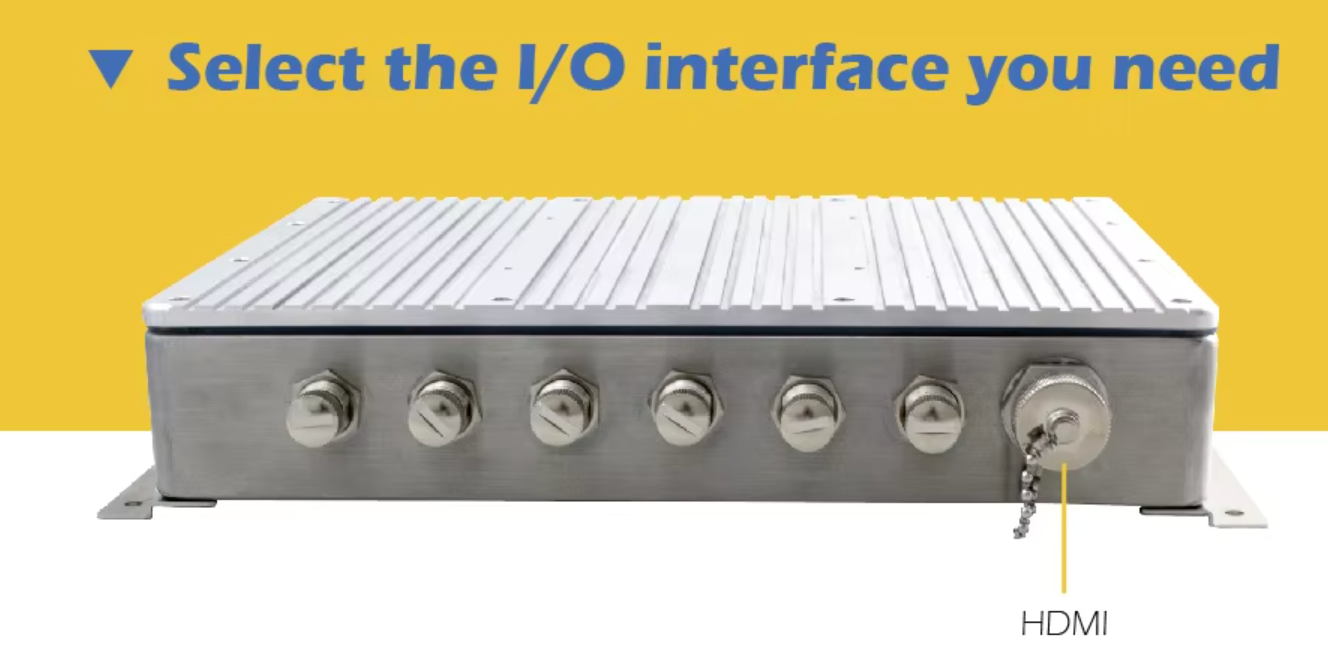

External I/O Ports | USB | 2x M12 8Pin for USB 1/2 and USB 3/4 |
Serial / Com | 2x M12 8-pin for COM | |
Ethernet / LAN | 1x M12 8pin RJ45 Gbe LAN | |
Power | Standard Power Adapter | Power Cord, AC Input 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option) |
Thermal & Environmental | Operating Temperature | -30℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ | |
Cooling Solution | Passive – Fanless | |
Humidity Range | 10% – 90% Non-condensing | |
Storage Humidity | 10% – 93% Non-condensing | |
Enclosure | Material | Stainless Steel |
IP Rating | IP65 | |
Color | Stainless Steel | |
Approved Cleaning Solutions | Warm Water | |
Peripherals & Wireless Connectivity | Bluetooth | Optional Bluetooth 5.3 |
Sim Card | 1x SIM Card Slot | |
Weight / Dimensions | Weight | 6.10kg |
Dimensions | 363 x 48 x 274 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |

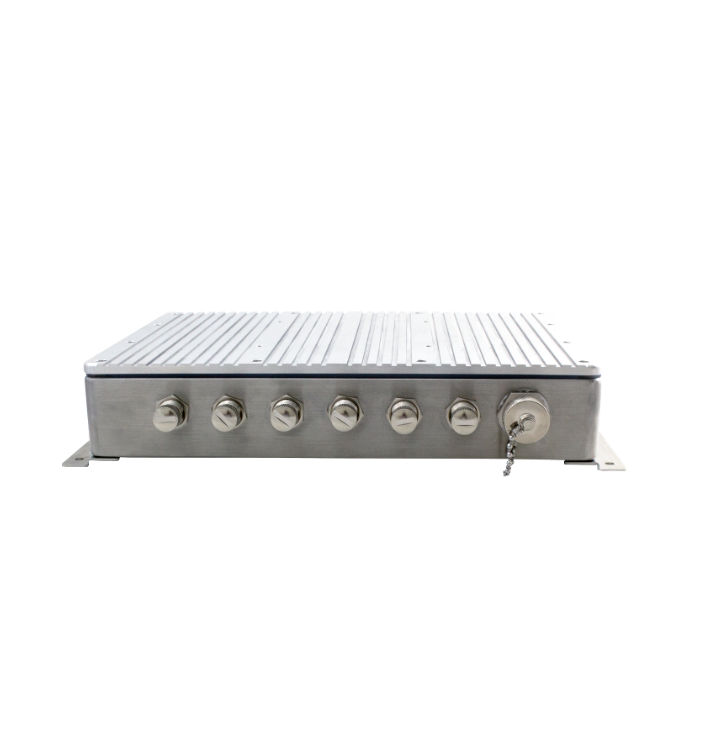

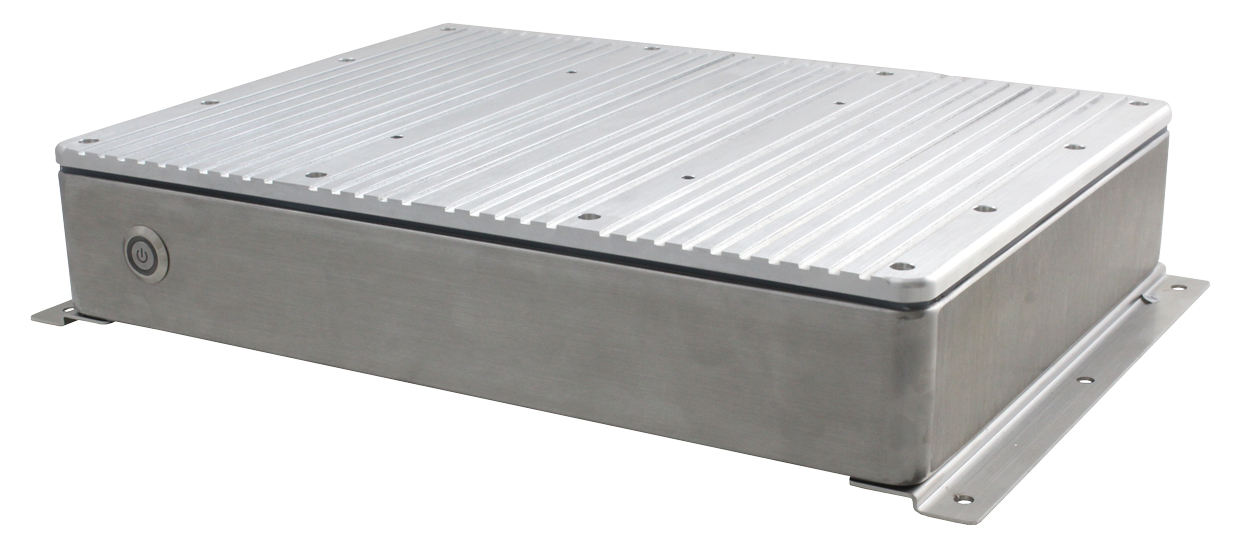

The CWB-6614 is a fully sealed IP65 wall-mount fanless embedded box PC, built around the 98M3 Intel Core i7 platform for high performance in wet, dusty, and vibration-prone industrial environments.
True IP65-rated chassis: dust-tight + protected against low-pressure water jets from any direction (front, sides, rear, bottom).
Washdown-safe: suitable for food & beverage, pharmaceuticals, chemical plants, and outdoor installations.
Fully sealed connectors: M12 or IP65-rated I/O ports; no exposed openings.
Corrosion-resistant aluminum alloy: withstands moisture, oil, and industrial chemicals.
CPU: Intel Core i7-98M3 (4 cores/8 threads, up to 4.2 GHz, 15W TDP).

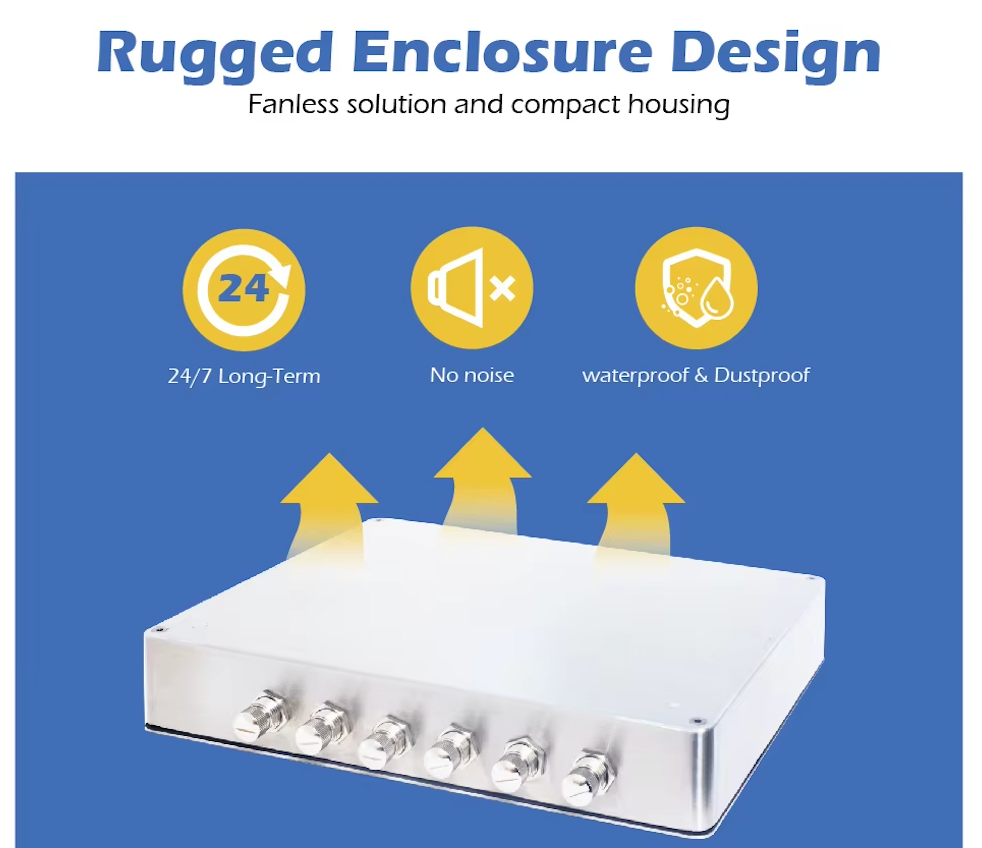

Fanless passive cooling: heatpipe + aluminum fin design; 0 moving parts, silent, dust-free, 24/7 reliability.
Wide temperature: -20°C to +60°C (extended option -40°C to +70°C).
Memory: Up to 32GB DDR4; storage: M.2 NVMe SSD (up to 1TB) + optional 2.5” SATA bay.

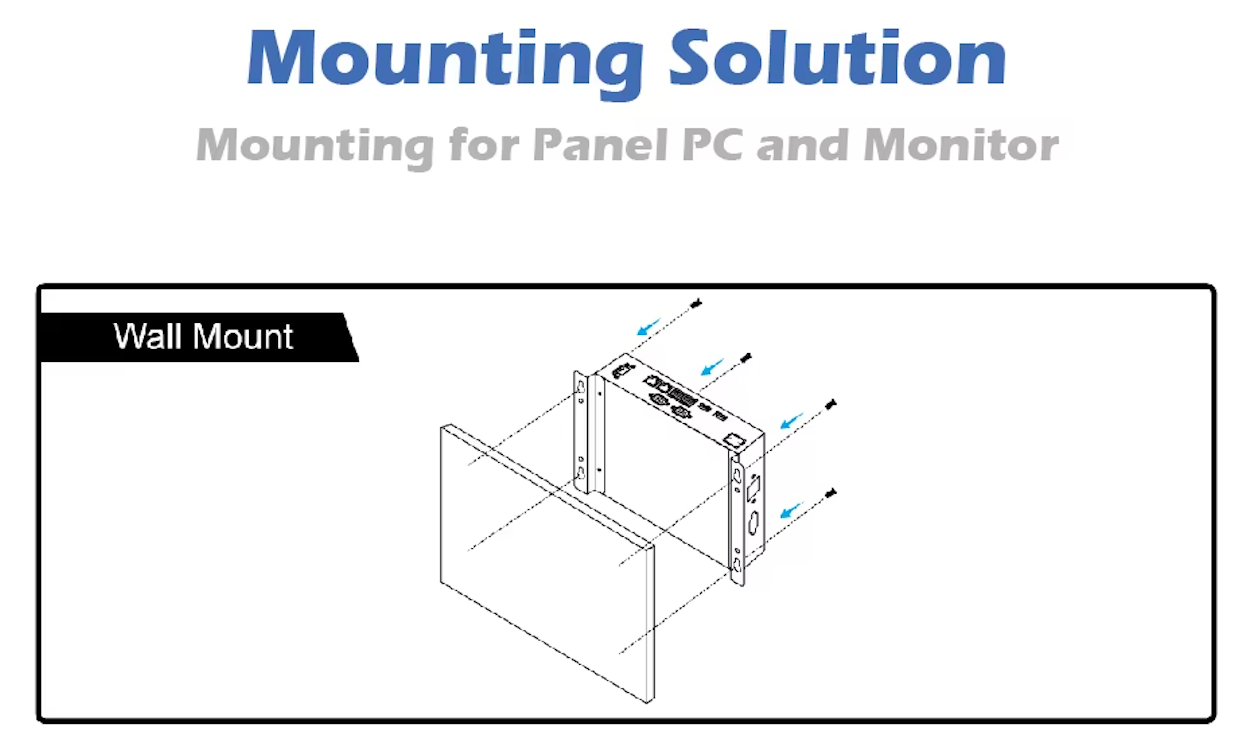

Compact & wall-mountable: heavy-duty steel brackets, VESA 75/100 compatible, easy installation on walls/machinery.
Vibration/shock resistance: meets MIL-STD-810G; withstands 5G vibration and 50G shock (ideal for production lines, AGVs, vehicles).
Fanless = zero maintenance: no fans to fail or clean; lower TCO.
Slim & lightweight: fits in space-constrained industrial cabinets.
Dual GbE LAN: Intel I210; PoE option for powering cameras/sensors.
Serial: 2× RS-232/485 (isolated, M12) for PLCs, scanners, meters.
USB: 4× USB 3.0 + 2× USB 2.0 (IP65).
Video: HDMI + DP for dual displays.
Wireless: M.2 slot for Wi-Fi 6/5G; Bluetooth 5.2.
GPIO/DI-DO: 8× isolated GPIO for sensors/actuators.
Wide voltage: 9–36V DC input; overvoltage/reverse polarity protection (vehicles/factories).
MTBF > 50,000 hours: 24/7 operation; 3-year warranty + 7-year availability.
CE/FCC/RoHS/ATEX certified; industrial EMI/EMC compliance.
OS support: Windows 10/11 Enterprise, Linux Ubuntu 20.04/22.04.
Customization: OEM/ODM for I/O, mounting, coating, and branding.
Factory automation: machine vision, production line control, HMI backend.
Food & beverage: washdown control panels, packaging machines.
Pharmaceuticals: cleanroom monitoring, data acquisition.
Logistics/AGVs: vehicle-mounted computing, warehouse automation.
Smart buildings/IIoT: edge gateway, environmental monitoring.
Marine/offshore: saltwater-resistant control systems.
The CWB-6614 combines full IP65 sealing, i7-98M3 performance, fanless cooling, and wall-mount ruggedness into a compact, maintenance-free embedded PC. It’s ideal for harsh industrial environments where dust, water, and vibration are constant challenges.
