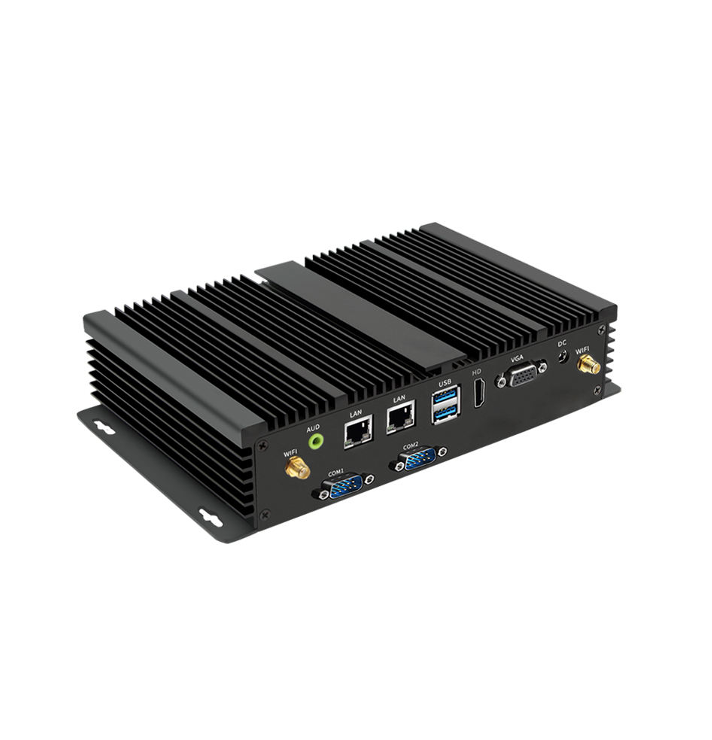

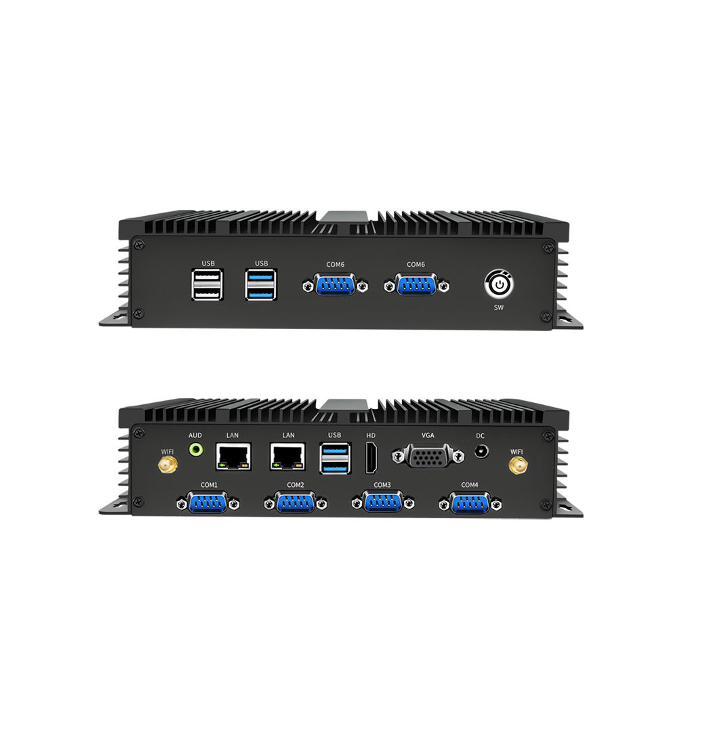

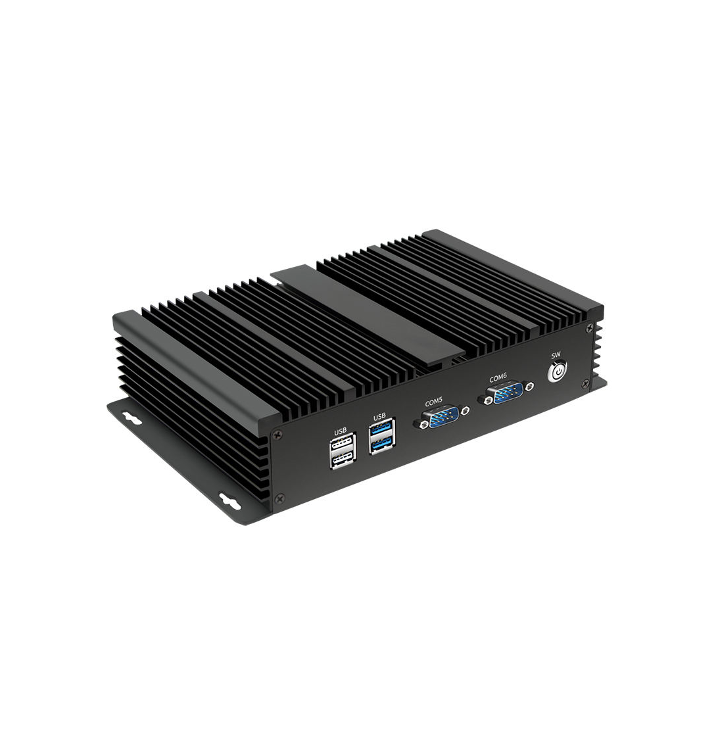

Product Name and Model | Rugged Mini PC | CB-6145 | |
Primary Components | Processor Family | Intel Celeron Apollo Lake |
Processor Model | N3350 Dual Core | |
Processor Speed | Up to 2.4 GHz | |
Memory Type | 1x DDR3L SO-DIMM | |
Memory Support | 4GB, 8GB | |
Storage Type | mSATA | |
Storage Support | 64GB (Standard), up to 256GB (Optional) | |
External I/O Ports | USB | 1x USB 2.0, 1x USB 3.0 type C, 2x USB 3.0 (with lock) |
Serial / Com | 2x COM | |
Serial Protocol Detail | 2x RS-232/422/485 | |
Ethernet / LAN | 2x RJ45 GbE LAN | |
Video Outputs | 1x DisplayPort | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Input Voltage Range | 9-36V DC |
Max Power Consumption | 33W | |
Standard Power Adapter | Optional 12V DC Adapter and power cable | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro |
Expansion Slots | Expansion Module support | Default expansion: 2 x COM (DB9); Optional expansion requires MOQ - 3 x COM (Terminal Block); 2 x USB 2.0; 16 channel GPIO |
SD card | 1x Micro SD Slot | |
Thermal & Environmental | Operating Temperature | -30℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ | |
Cooling Solution | Passive – Fanless with Heatsink | |
Humidity Range | 10% – 90% Non-condensing | |
Storage Humidity | 10% – 93% Non-condensing | |
Enclosure | Material | Aluminum |
Color | Black | |
Led Indicator Light | Power | |
Control Buttons | Power Button | |
Mounting Options | DIN Rail Mount, Wall Mount | |
Peripherals & Wireless Connectivity | WiFi | Optional |
Bluetooth | Optional Bluetooth 5.1 | |
Sim Card | 1x SIM Card Slot | |
Weight / Dimensions | Weight | 0.78kg |
Dimensions | 140 x 120 x 42 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
The CB-6145 is an ultra-compact, high-performance fanless rugged mini PC, designed for 24/7 operation in harsh industrial environments where reliability and space efficiency are critical.
Fanless Passive Cooling: All-aluminum alloy chassis with heatpipe technology; 0 moving parts, silent, dustproof, and maintenance-free.
Compact & Sturdy: Small footprint for tight spaces; heavy-duty construction withstands vibration/shock (MIL-STD-810G).
Wide Temperature Tolerance: -20°C to +60°C (extended to -30°C ~ +70°C optional).
Wide Voltage Input: 9–36V DC (suitable for vehicles, machinery, and unstable power grids).
CPU Options: Intel Celeron J4125 / J1900 or Core i3/i5/i7 (low-power 15W TDP).
Memory: Up to 16GB DDR4.
Dual Storage: M.2 NVMe SSD (up to 1TB) + 2.5” SATA bay for expandability.
Dual GbE LAN: Intel I210 NICs for stable networking; PoE option available.
Serial Ports: 2× RS-232/485 (isolated) for PLCs, sensors, and industrial devices.
USB: 4× USB 3.0 + 2× USB 2.0.
Display: HDMI + VGA (dual 4K display support).
Wireless: M.2 slot for Wi-Fi 6/5G + Bluetooth 5.2.
GPIO: 8× isolated GPIO for custom control.
Factory Automation: Machine vision, production line control, HMI backend systems.
IIoT Edge Gateways: Data acquisition, sensor monitoring, and protocol conversion.
Logistics & Mobility: AGVs, forklift terminals, and fleet management systems.
Smart Retail/Kiosks: 24/7 digital signage, self-service terminals.
Energy & Utilities: Power substation monitoring, renewable energy control.
The CB-6145 combines fanless reliability, compact ruggedness, and versatile I/O in a mini form factor. It is a high-performance, cost-effective solution for industrial edge computing, automation, and IoT deployments in challenging environments.
