Product Name and Model | Industrial Fanless Mini PC | CB-6143 | |
Primary Components | Processor Family | Intel Core I series 11th Generation Tiger Lake |
Processor Model | Core i3-1115G4E | |
Processor Speed | 2.2 GHz, Up to 3.9 GHz | |
Memory Type | 2x DDR4 SO-DIMM | |
Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB | |
Storage Type | 1x M.2 SATA3 2280 Slot | |
Storage Support | M.2: 256GB-1TB | |
External I/O Ports | USB | 4x USB 3.0 |
Serial / Com | 2x COM | |
Serial Protocol Detail | COM1 RS-232, COM2 RS-232/422/485 via Y-CABLE Included | |
Ethernet / LAN | 1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN | |
Video Outputs | 1x DP-1.4/HDMI combo Video Out | |
Audio Ports | 1x 3.5mm Audio Line-Out | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Input Voltage Range | 9-36V DC |
Max Power Consumption | 28W | |
Standard Power Adapter | 12Vdc, 5A, 60W | |
Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Other | Optional Daughter Boards for various I/Os | |
Thermal & Environmental | Operating Temperature | -30℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ | |
Cooling Solution | Passive – Fanless | |
Humidity Range | 10% – 90% Non-condensing | |
Storage Humidity | 10% – 93% Non-condensing | |
Enclosure | Material | Aluminum |
Color | Black | |
Mounting Options | VESA 100 Mount | |
Peripherals & Wireless Connectivity | WiFi | Wi-Fi 6 optional |
Bluetooth | Optional Bluetooth 5.1 | |
Sim Card | 1x SIM Card Slot | |
Weight / Dimensions | Weight | 0.95kg |
Dimensions | 252.7 x 158.7 x 36 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
The CB-6143 is a compact, rugged fanless mini PC built for reliable 24/7 operation in space-constrained, harsh industrial environments. It blends ultra-compact sizing, passive cooling, and rich I/O for edge computing and automation.
Fanless & Maintenance-Free:
No moving parts; dustproof, silent, and highly reliable. Eliminates fan failure and cleaning, ideal for dusty factories.
Ultra-Compact & Versatile Mounting:
Small footprint for tight cabinets; supports wall-mount, DIN-rail, or desktop installation.
Rugged Wide-Range Design:
Operating temp: -20°C to +60°C (extended to -30°C ~ +70°C optional)
9–36V DC wide voltage input (vehicles/machinery compatible)
Vibration/shock resistance (MIL-STD-810G)

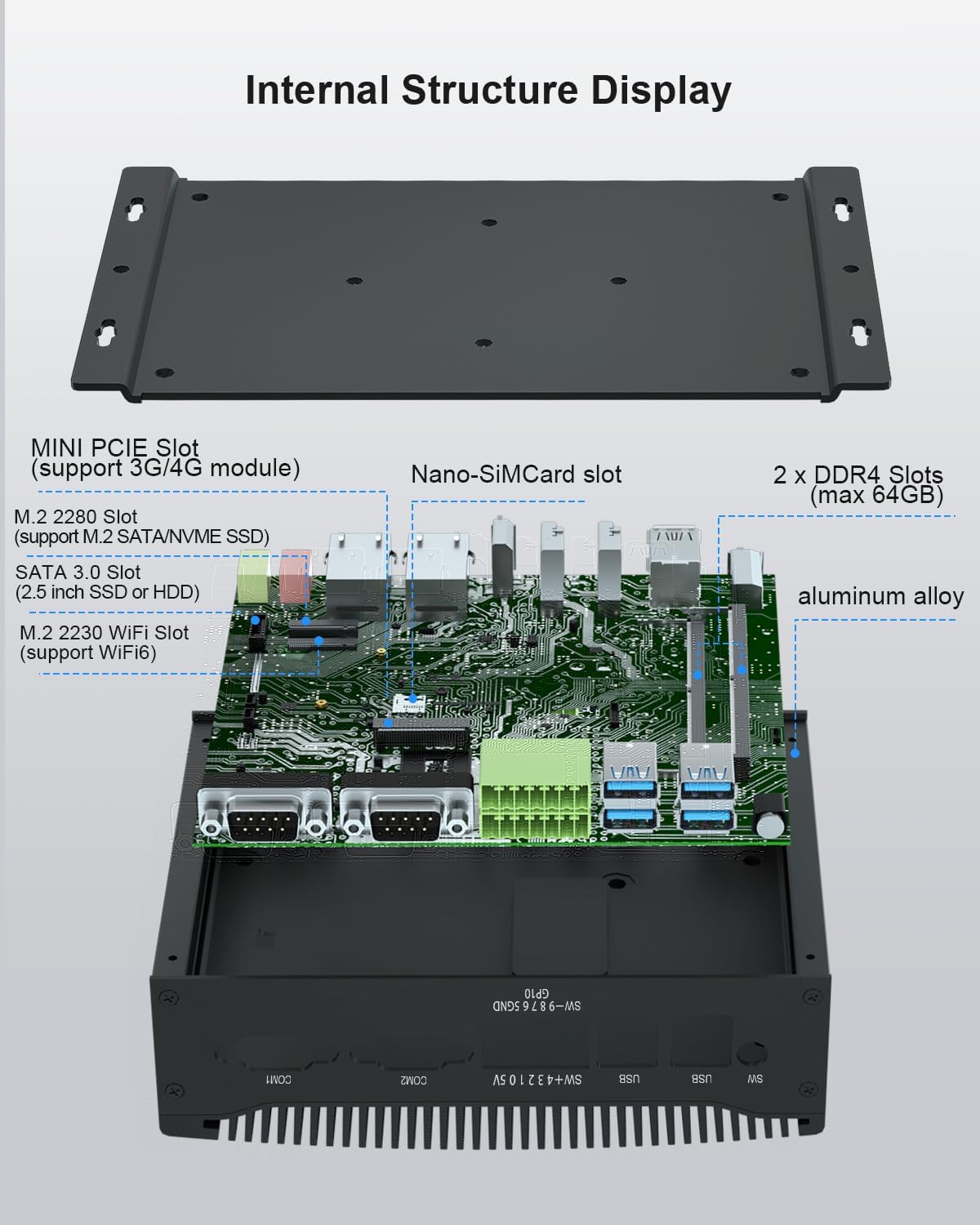

Solid Performance & Storage:
CPU: Intel Celeron/J4125 or Core i3/i5/i7 (low-power, 15W TDP)
Memory: Up to 16GB DDR4
Storage: M.2 NVMe + 2.5” SATA (dual storage, up to 1TB)

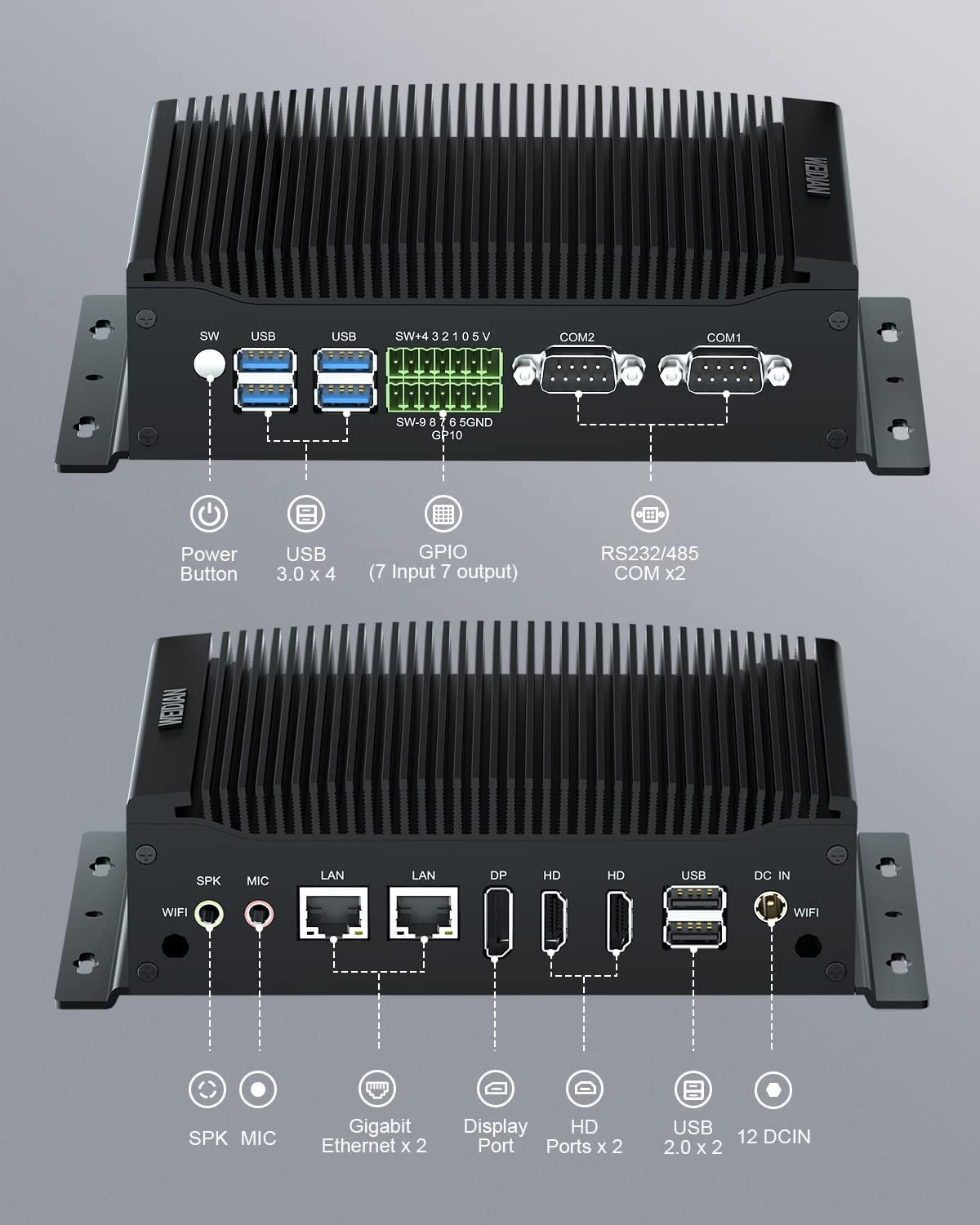

Rich Industrial I/O:
Dual GbE LAN (Intel I210) for networking

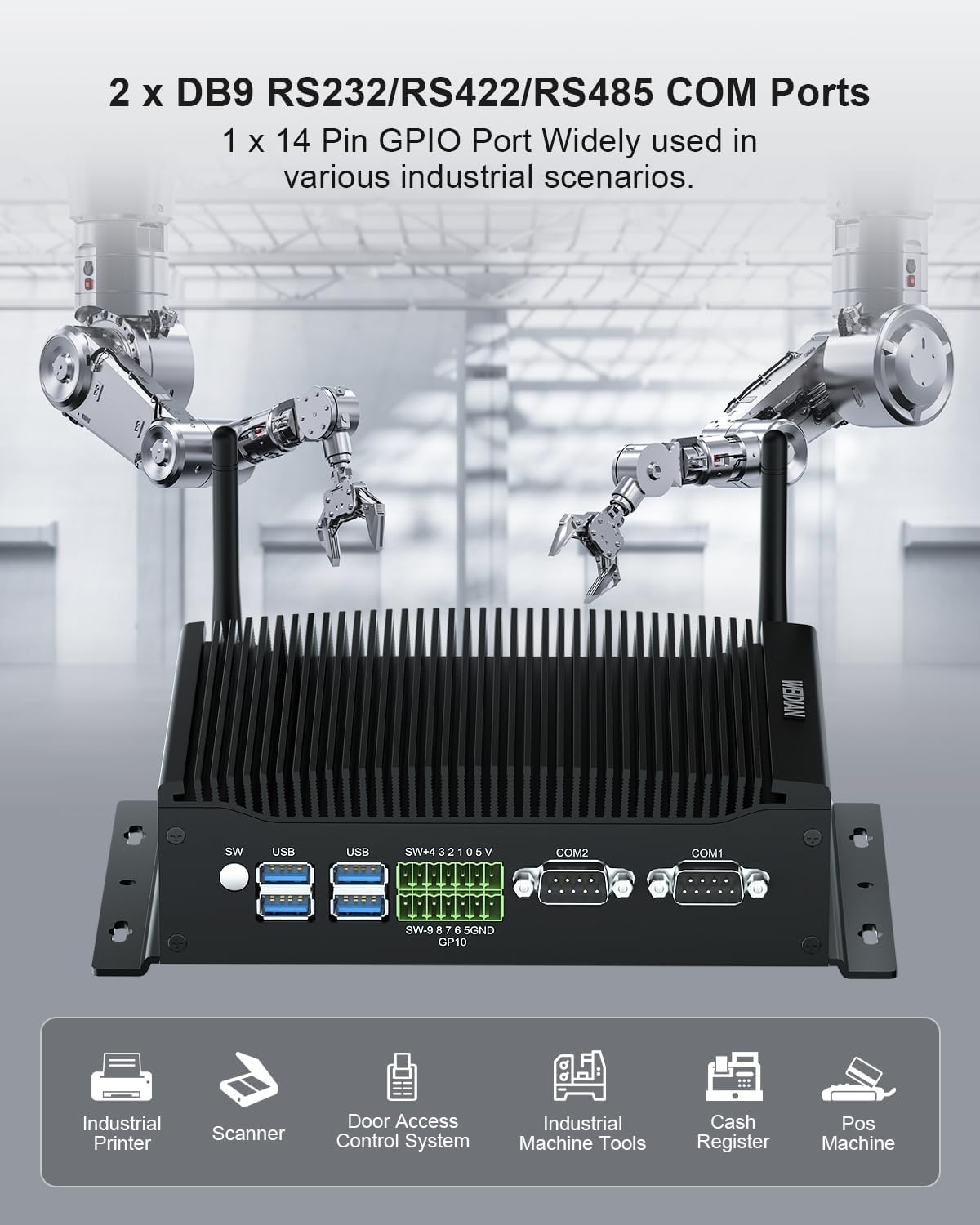

2× RS-232/485 (isolated) for PLCs/sensors
4× USB 3.0 + 2× USB 2.0
HDMI + VGA (dual display)
GPIO/DI-DO for industrial control
Wi-Fi 6/5G + Bluetooth 5.2 (wireless)
Factory Automation: Machine vision, production line control, HMI backend.
Smart IIoT Gateways: Edge data acquisition, sensor monitoring, protocol conversion.
Logistics & AGVs: In-vehicle computing, warehouse automation, fleet management.
Digital Signage/Kiosks: 24/7 advertising, information terminals (silent, reliable).
Energy & Utilities: Power substation monitoring, renewable energy control systems.
The CB-6143 delivers fanless reliability, compact ruggedness, and flexible I/O in a mini form factor. It’s a cost-effective, low-maintenance solution for industrial edge computing, automation, and IoT deployments.
