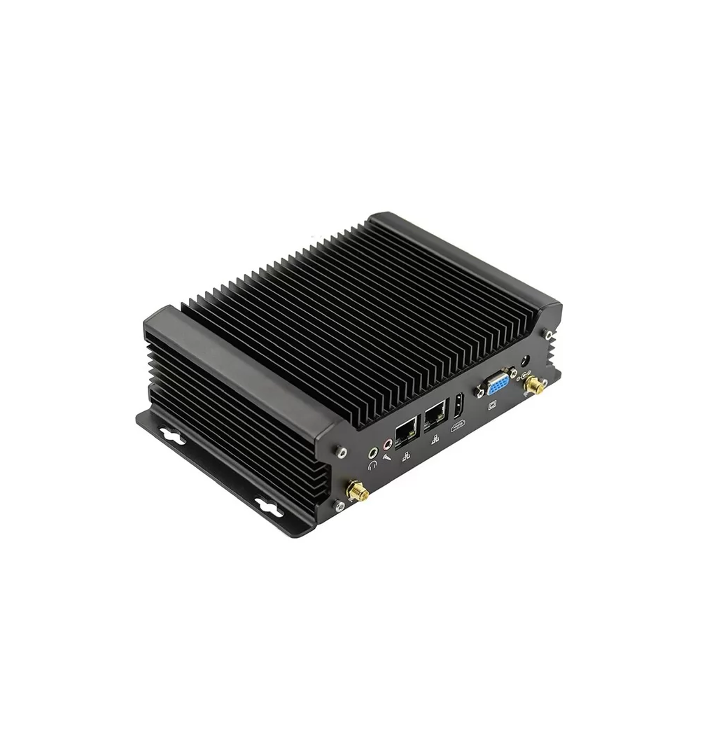

Product Name | Fanless embedded industrial Mini PC Core i7-10610U 8 x USB | VB-5713 |
CPU Optional | Intel® Core i5-4278U, 2 Cores, 4 Threads, Base 2.6GHz, Turbo 3.1GHz, Fanless |
CPU Optional | Intel® Core i7-4578U, 2 Cores, 4 Threads, Base 3GHz, Turbo 3.5GHz, Fanless |
CPU Optional | Intel® Core i3-6167U, 2 Cores, 4 Threads, Base 2.5GHz, Turbo 3.2GHz, Fanless |
CPU Optional | Intel® Core i3-7020U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.3GHz, Fanless |
CPU Optional | Intel® Core i5-7287U, 2 Cores, 4 Threads, Base 3.3GHz, Turbo 3.7GHz, Fanless |
CPU Optional | Intel® Core i3-8130U, 2 Cores, 4 Threads, Base 2.2GHz, Turbo 3.4GHz, Fanless |
CPU Optional | Intel® Core i5-8260U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 3.9GHz, Fanless |
CPU Optional | Intel® Core i7-8665U, 4 Cores, 8 Threads, Base 1.9GHz, Turbo 4.8GHz, Fanless |
CPU Optional | Intel® Pentium 5405U/5205U, 2 Cores, 4 Threads, Base 2.3GHz, Turbo 2.7GHz, Fanless |
CPU Optional | Intel® Core i3-10110U, 2 Cores, 4 Threads, Base 2.1GHz, Turbo 4.1GHz, Fanless |
CPU Optional | Intel® Core i5-10210U/10310U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless |
CPU Optional | Intel® Core i7-10610U, 4 Cores, 8 Threads, Base 1.8GHz, Turbo 4.9GHz, Fanless |
CPU Optional | Intel® Core i3-1215U, 6 Cores(Performance-core 2, Efficient-core 4), 8 Threads, Turbo frequency 4.4 GHz, Fanless |
CPU Optional | Intel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz, Fanless |
CPU Optional | Intel® Core i7-1255U/1265U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.8 GHz, Fanless |
CPU Optional | Intel® Core i7-1355U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHzz, Fanless |
Memory | Gen 4: DDR3L SODIMM x1 Max 8G
Gen 6/7: DDR4 SODIMM x1 Max 16G
Gen 8/10: DDR4 SOIMM x2 Max 32G |
Storage | Gen 4: 1x MSATA
Generation 6/7/8/10: 1x M.2 2280 (Support SATA and NVME protocols)
1x 2.5 inch HDD/SSD |
Display | 1x HDMI, 1x VGA |
Network | 2 x GbE RJ45 Realtek 8111H |

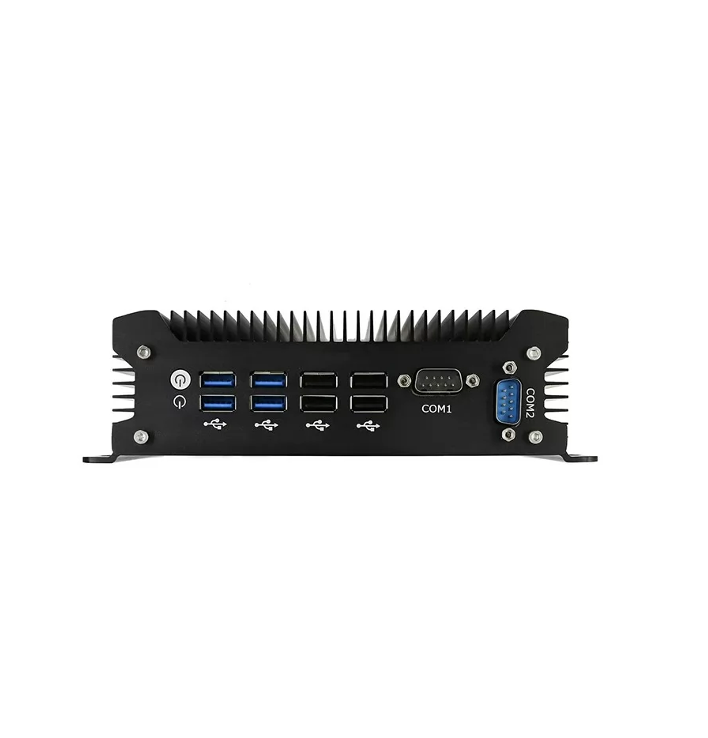

I/O | 4x USB3.0, 4x USB2.0, 2x DB9 COM RS232, 1x HDMI, 1x VGA(HDMI Optional), 1x Power button, 1x DC 12-19 V IN, 1x 3.5mm Jack, 1x Mic in |
Expansion Slot | 1x Mini-PCIe 1 half card/full card (6th generation and above with SIM card holder), support 3G/4G module, WIFI Bluetooth |
BIOS | AMI EFI BIOS |
WDT | Support hardware reset (256 level, 0-255 sec) |
Operation System | Windows® 10/11, WES 10, LINUX |
Power Supply | External Power Supply AC 100 - 240V |
Working voltage DC 12-19V |
Power consumption ≤20W |
Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 85°C |
Storage Humidity | 10%~95%, non-condensing |
Material | Aluminum |
Color | Black |
Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
Mounting Options | Wall Mount, Desktop stand, Embedded mount |
Weight | 1.00 kg |
Dimensions | 193.9 x 127 x 57.2 mm |
Certifications | CE, FCC |
