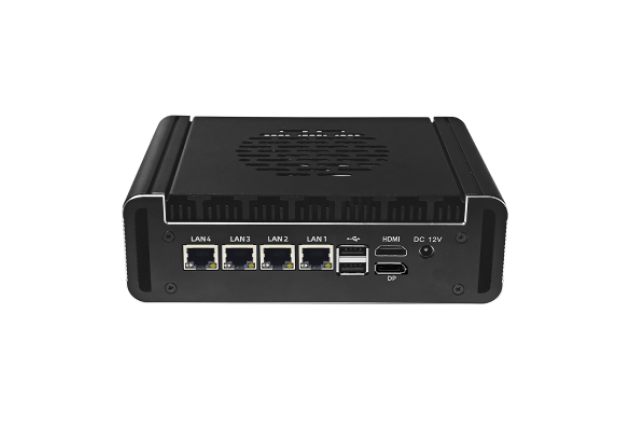

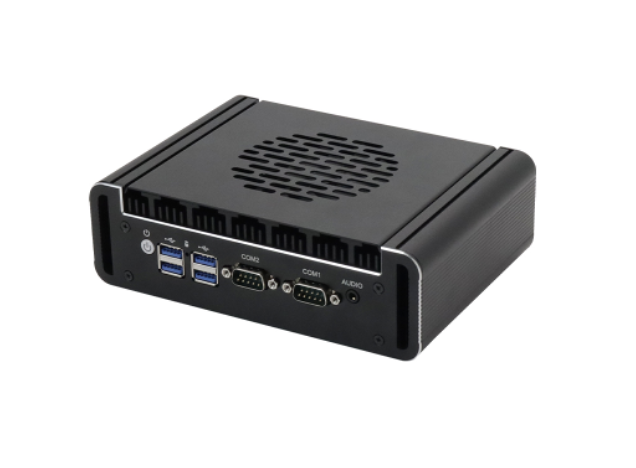

Rugged Mini PC 4x RJ45 2.5 GbE | NANO-I/4L

Name: Rugged Mini PC 4x RJ45 2.5 GbE | NANO-I/4L
Brand: VINCANWO GROUP
Rating: 5.0 (32 reviews)

Key Highlights:
• Intel 12th Generation Celeron N150 processor, or upgrade to Core i3/i5/i7
• Windows 11 Capabilities
• Many IOs in a compact, 4x RJ45 2.5 GbE LAN and more
• DDR5 Memory
• 2.5Gb Ethernet in four LAN ports

Model:
NANO-I/4L
Brand:
VINCANWO GROUP

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model		NANO-I/4L
Primary Components	Processor Family	Intel Processors
	Processor Model	12th/8th/7th/6th/5th/4th \| i3/i5/i7, J6412, N5095, N100, N150, N305
	Memory Type	DDR3, DDR4, DDR5
	Memory Support	4GB, 8GB, 16GB, 32GB
	Storage Type	1x MSATA \| 1x M.2 SATA
	Storage Support	MS:128GB~512GB \| M.2: 128GB~1TB
Operating Systems	Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
	Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)
Peripherals & Wireless Connectivity	WiFi	Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
	Bluetooth	Optional Bluetooth 5.3
External I/O Ports	USB	6x USB
	Serial/COM	2x RS232, option RS485
	Ethernet / LAN	4x RJ45 2.5 GbE LAN
	Video Outputs	1x HDMI, 1x VGA
	Other Ports	1x 4IN&xOUT GPIO option
	Power Input Port	DC-in Jack (Phoenix Type)
Expansion Slots	Others	1x MINI-PCIe (support WiFi/4G LTE), 4G module
Power	Standard Power Adapter	12V DC Adapter and power cable, 5A, 60W
	Input Voltage Range	/
Weight / Dimensions	Weight	0.90 kg
	Dimensions	178.4x127x60 mm
Thermal & Environmental	Operating Temperature	-30°C ~ 70°C
	Storage Temperature	-40°C ~ 80°C
	Cooling Solution	Passive – Fanless, Fan
	Humidity Range	10% – 95% Non-condensing
Enclosure	Material	Aluminum
	Color	Black
	Led Indicator Light	HDD Access, Power
	Mounting Options	Wall Mount, Desktop

Rugged Mini PC 4x RJ45 2.5 GbE | NANO-I/4L (Vincanwo Group)

The NANO-I/4L is a fanless rugged mini PC built for industrial networking and edge computing, featuring 4× 2.5 GbE RJ45 ports for high-speed, reliable connectivity in harsh environments. It delivers low-latency data transfer, wide-temperature operation, and flexible expansion—ideal for network security, edge routing, industrial IoT (IIoT), and embedded automation.

Core Product Overview

The NANO-I/4L combines a compact form factor with ruggedized hardware, optimized for 24/7 deployment in space-constrained industrial sites. Its 4× Intel i225-V 2.5 GbE ports enable multi-gigabit throughput for routing, firewall, or data acquisition, while the fanless aluminum chassis ensures silent, dust-free operation and passive heat dissipation.

Key Features

4× 2.5 GbE High-Speed Networking: Four dedicated Intel i225-V 2.5 GbE RJ45 ports with VLAN, QoS, and link aggregation support—perfect for high-bandwidth edge applications like software-defined networking (SDN) or video surveillance.
Rugged Fanless Design: Full aluminum alloy enclosure with passive cooling, IP40-rated dust resistance, and wide operating temperature (-20°C to 60°C) for industrial, outdoor, or harsh indoor environments.
Powerful & Efficient Processing: Equipped with Intel Celeron N100/J6412 or Core i3/i5 (10th Gen) processors, paired with DDR4 RAM (up to 32GB) and M.2 NVMe/SATA storage for fast boot and data access.
Flexible Expansion: M.2 slots (E-key for Wi-Fi/BT, B-key for 4G/5G, M-key for SSD) and optional RS232/485 serial ports for IoT module integration or legacy device connectivity.
Reliable Power & Security: Wide DC input (12–28V), optional redundant power, and TPM 2.0 for hardware-level data protection and system integrity.
OS Compatibility: Supports Windows 10 IoT/LTSC, Linux (Ubuntu, Debian), and network OS (pfSense, OpenWRT, pfSense) for versatile deployment as a router, firewall, or edge server.

Technical Specifications

Parameter	Details
Networking	4× Intel i225-V 2.5 GbE RJ45 (auto-sensing 10/100/1000/2500 Mbps)
Processor	Intel Celeron N100 (4-core, 1.1–3.4 GHz) / J6412 (4-core, 2.0–3.0 GHz)
Memory	1× DDR4 SO-DIMM, up to 32GB
Storage	1× M.2 2280 (NVMe/SATA) + optional 2.5" SATA SSD
Expansion	1× M.2 E-key (Wi-Fi 6/BT 5.2), 1× M.2 B-key (4G/5G with SIM slot), 1× M.2 M-key (SSD)
I/O Ports	4× 2.5 GbE RJ45, 2× USB 3.0, 2× USB 2.0, 1× HDMI 2.0, 1× RS232 (optional), DC-in (12–28V)
Power	12–28V DC, 60W adapter (AC 100–240V input); redundant power optional
Dimensions	180×120×50 mm (compact mini PC size)
Weight	1.2 kg (aluminum chassis)
Operating Temp	-20°C to 60°C (storage: -40°C to 85°C)
Certifications	CE, FCC, RoHS

Application Scenarios

Network Security & Firewall: Runs pfSense, OpenWRT, or IPFire for enterprise-grade security, VPN, and traffic management.
Industrial IoT Gateway: Aggregates data from sensors/PLCs via 2.5 GbE and forwards to cloud platforms (AWS, Azure) with low latency.
Edge Routing & SDN: Powers small-to-medium enterprise (SME) edge networks with high-speed inter-VLAN routing and link aggregation.
Video Surveillance: Acts as a NVR or video management system (VMS) for multi-camera 4K video streaming and storage.
Embedded Automation: Controls industrial equipment via serial/USB and monitors networked devices in manufacturing lines.

Key Selling Points

4× 2.5 GbE for All-Round Networking: No need for extra NICs—ideal for multi-port edge applications requiring high throughput.
Rugged & Silent Operation: Fanless design and wide temp range ensure 99.99% uptime in harsh industrial settings.
Flexible & Future-Proof: Expandable via M.2 slots for wireless (5G/Wi-Fi 6) or storage upgrades, compatible with major OS and network software.

For pricing, custom configurations (e.g., 5G module, redundant power), or technical support, contact Vincanwo Group’s industrial computing sales team.
