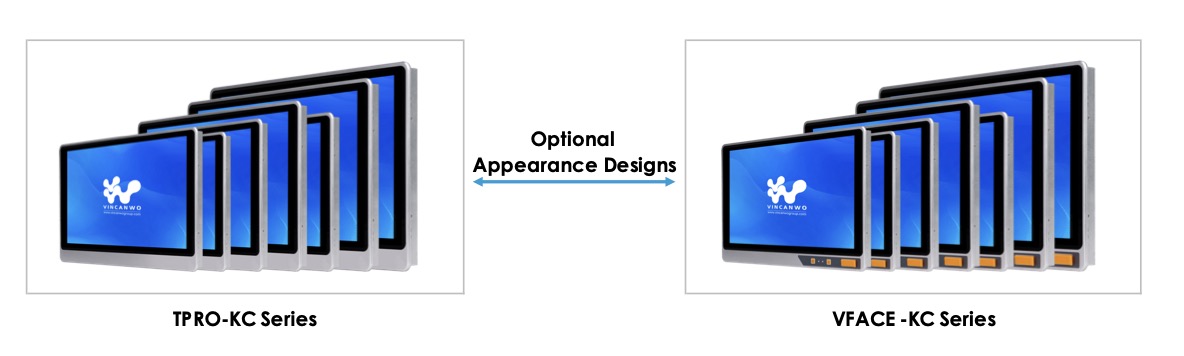

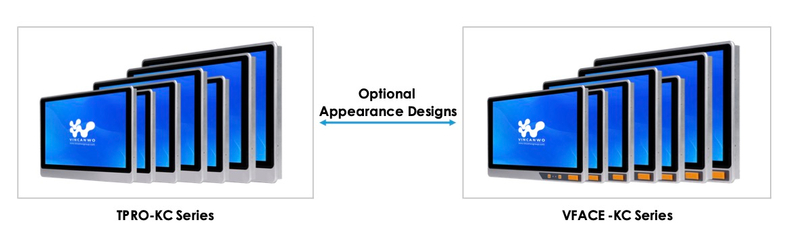

Panel PCs with Quick-release Hard Drive Panels | KC Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
SKU | KC-15 | KC156 | KC17 | KC173 | KC185 | KC19 | KC215 |
Screen Size | 15” | 15.6” | 17” | 17.3” | 18.5” | 19” | 21.5” |
Resolution | 1024x768 | 1920x1080 | 1280x1024 | 1920x1080 | 1920x1080 | 1280x1024 | 1920x1080 |
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 80/80/60/80 | 89/89/89/89 | 85/85/80/80 | 89/89/89/89 |
Brightness | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 400 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
Contrast Ratio | 1000:1 | 3000:1 | 1000:1 | 600:1 | 1000:1 | 1000:1 | 1000:1 |
Touchscreen | Capacitive, Resistive | ||||||
Controller | USB interface | ||||||
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times | ||||||
Processor Family | Intel® Processors | ||||||
Memory Type | Under 5th Generation: DDR3, 4G, 8G More than 6th Generation: DDR4, 4G, 8G, 16G, 32G | ||||||
Storage Type | Under 5th Generation: 1x mSATA, 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) More than 6th Generation: 1x M.2 / 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) | ||||||
Ethernet / LAN | 2x RTL8111 | ||||||
Serial / Com | 2x RS232 (COM 2 option RS485, expansion to 4COM) | ||||||
USB | Front 1x USB, Rear 4x USB or 4x USB | ||||||
Video Outputs | 1x HDMI, 1x VGA | ||||||
Expansion Slots | Under 5th Generation:1x Mini PCIE WiFi & Bluetooth or 4G LTE More than 6th Generation:1x M.2 (KEYE WiFi & Bluetooth 2230),1x M.2 (KEYE B4G/5G LTE 3052) | ||||||
Operating Systems | Windows, Linux | ||||||
Dimension | 366x310x62.4mm | 402.7x269.7x61.8mm | 397.8x354x62.4mm | 446.2x296.2x64.5mm | 476.4x339.3x61.7mm | 439x386.5x64mm | 550x365.7x63.8mm |
Mounting Hole Size | 352x298mm | 389x258mm | 384x343mm | 432x285mm | 464x327mm | 426x374mm | 533x347mm |
Gross Weight | 4 . 68kg | 4.84kg | 6.00kg | 5.68kg | 6.54kg | 7.00kg | 8.08kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | ||||||
Operating Temperature | -30℃ ~ +70℃ | ||||||
Storage Temperature | -40℃ ~ +80℃ | ||||||
Humidity Rage Non-condensing | 5% - 95% | ||||||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W | ||||||
Key Benefits of Panel PCs with Quick-release Hard Drive Panels | KC Series:

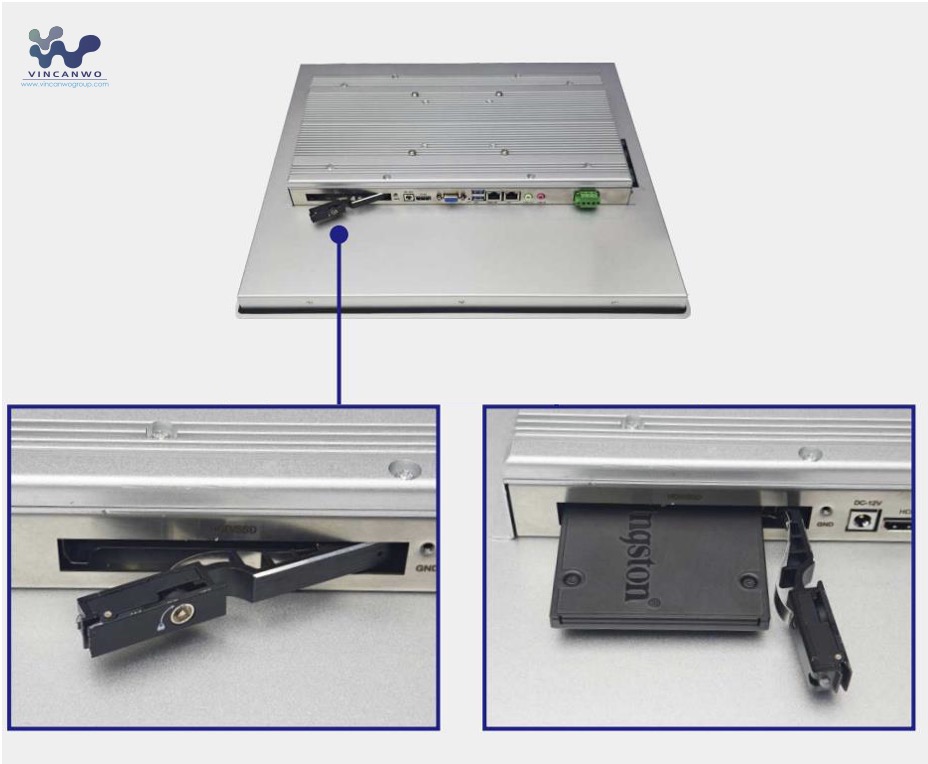

· Enhanced Data Security and Reliability: Minimizes downtime and risks of data loss by enabling rapid hard drive replacements or upgrades in the event of failure.
· Reduced Downtime and Enhanced Productivity: Allows for quick system maintenance or repairs, minimizing productivity losses.
· Convenience and Flexibility: Simplifies drive upgrades or replacements, making it a hassle-free experience.
· Versatility in Applications: Suitable for a wide range of uses, from factory automation to warehousing.
· Improved Efficiency: Contributes to streamlining operations and improving efficiency.
Common Applications:
Panel PCs with Quick-release Hard Drive Panels | KC Series are well-suited for a variety of demanding environments and industries due to their ability to provide reliable performance and easy maintenance. Here are some common applications:
· Industrial Automation and Control: Serving as HMIs (Human-Machine Interfaces) to monitor and control machinery and processes, enabling operators to manage operations in real-time.
· Manufacturing: Used as HMIs for machine control, production monitoring, and data visualization, improving efficiency and reducing downtime.
· Logistics and Warehouse Management: Deployed for inventory management, order tracking, and warehouse optimization to streamline operations.
· Food and Beverage Processing: Integral to process automation and quality control in this industry, often featuring robust, easy-to-clean designs.
· Transportation and Fleet Management: Used as onboard computers for real-time tracking, route optimization, and communication, contributing to efficient fleet operations.
· Building Automation: Serving as a central control system for various building systems like lighting, HVAC, and security.
· Data Visualization and Analysis: Providing robust computing solutions for displaying and analyzing large amounts of data, particularly important in sectors like energy.
· Other Industrial Fields: Suitable for use in the rubber machinery, solar photovoltaic, and automotive control industries.
· Hazardous Environments: Explosion-proof and safety-certified Panel PCs are used in hazardous areas like oil and gas facilities or chemical plants.
· Digital Signage and Interactive Displays: Used in retail, public spaces, and other areas requiring interactive information displays.
· Public Information Kiosks: Delivering information and services to the public in various locations like airports or train stations.
· Military and Aerospace: Applications requiring rugged and reliable computing solutions.
· Medical Facilities: Patient data collection and healthcare monitoring.
Panel PCs with Quick-release Hard Drive Panels | KC Series contribute
significantly to the practicality and effectiveness of Panel PCs in these settings by facilitating ease of maintenance, upgrades, and improved system uptime.
