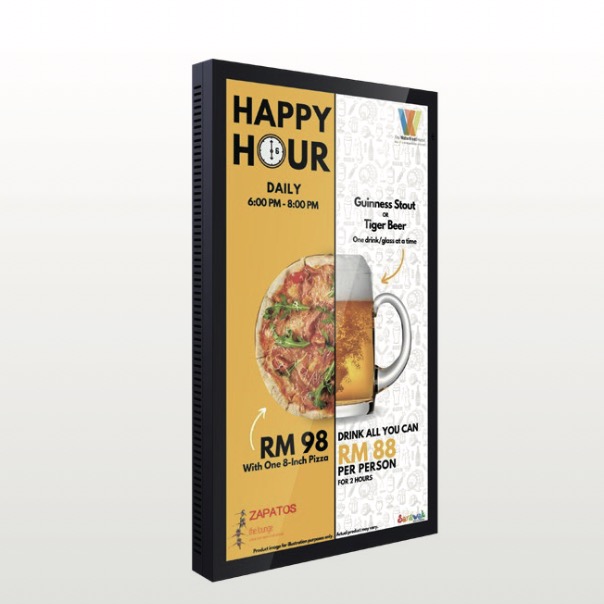

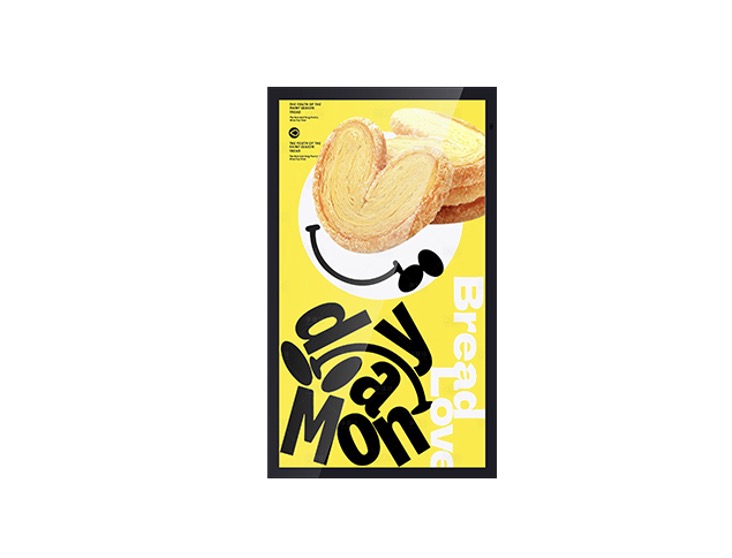

| SKU | V100 | ||||||||||
| Panel | |||||||||||
| Panel Type: | LCD | ||||||||||
| Panel Sizes: | 43"/49"/55"/65"/75"/86"/98" | ||||||||||
| Resolution: | 1080*1920 / 2160*3840 | ||||||||||
| Brightness (nits): | 2000 ~ 4000 | ||||||||||
| Contrast Ratio: | 1200:1 / 3000:1 | ||||||||||
| Operating Life (hours): | 50000 ~ 60000 | ||||||||||
| Orientation: | Portrait / Landscape | ||||||||||

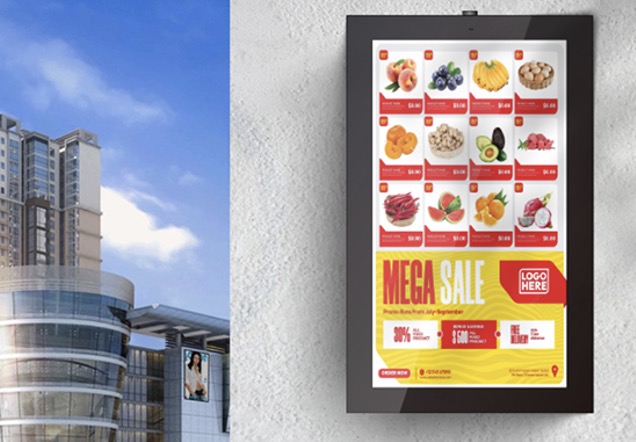

| Installation: | Wall Mounted / Hanging | ||||||||||
| Media Connectivity | |||||||||||
| Operating System | Driver Board Version | Standalone Version | Android Version | Windows Version | |||||||
| Interface | HDMI, VGA, DVI | HDMI, USB | HDMI, USB | HDMI, VGA, USB | |||||||
| Ram | None | 16G | 2G+16G / 4G+16G | 4G+128G ~ 32G+512G | |||||||
| Optional Configurations | |||||||||||
| Custom Colors | Yes | Camera | / | ||||||||
| Touch Screen | Yes | Printer | / | ||||||||
| WiFi Access Point | Yes | Card Reader | / | ||||||||
| Ethernet LAN | Yes | Scanner | / | ||||||||
| Touch | Enclosure | ||||||||||
| Touch Type | Capacitive | Dustproof & Waterproof | IP65/IP66/IP67 | ||||||||
| Number of Touch Points | 10 ~ 40 | Glass Type | IK 10 Anti-reflective Glass | ||||||||
| Interface | USB | Mechanical Material | Plate metal | ||||||||
| Electrical Data | |||||||||||
| Power | AC/100-240V, 50-60Hz | ||||||||||
| Power Comsumption | 150W for Android version for reference. The actual product serves as the standard. | ||||||||||
| Speaker Power | 2x 8Ω, 5W | ||||||||||
| Environmental | |||||||||||
| Operating Envinronment | Outdoor | ||||||||||
| Operating Temperature | -30℃ ~ 70℃ | ||||||||||
| Storage Temperature | -40℃ ~ 80℃ | ||||||||||
| Humidity | 10%~95% RH Non-condensing | ||||||||||
Display & Visibility:
Size: Typically 32" to 55" (V100 may indicate a 55" variant).
Brightness: ≥ 2,000 nits (standard), often 2,500-5,000 nits for direct sunlight readability. Critical for outdoor use.
Technology: High-Brightness LCD with anti-glare coating. Rarely OLED (due to burn-in risk).
Resolution: Full HD (1920x1080) or 4K UHD (3840x2160).
Viewing Angle: 178° horizontal/vertical (IPS panel technology).
Contrast Ratio: ≥ 4000:1 (enhanced for outdoor clarity).
Environmental Protection:
IP Rating: IP65/IP66/IP67 (dust-tight, protected against powerful water jets). Sealed front panel.
Operating Temp: -30°C to 70°C or wider.
Heating/Cooling: Integrated heaters & fans(thermostat-controlled) to prevent condensation/freezing.
Material: Rugged aluminum enclosure with corrosion-resistant coating (e.g., powder-coated steel).
Impact Resistance: Tempered glass (5-8mm thickness) with anti-shatter film.
"Maintenance-Free" Features:
Fanless Design: No vents (prevents dust/water ingress).
Solid-State Storage: eMMC or SSD (no moving HDDs).
Auto-Brightness Sensor: Adjusts brightness based on ambient light.
Remote Management: Cloud-based monitoring (power cycling, diagnostics).
Long-Life Components: Industrial-grade power supply (80,000+ hours), LED backlight (50,000+ hours).
Connectivity & Hardware:
Video Input: HDMI (often with loop-out).
Network: Dual Gigabit Ethernet, Wi-Fi 6, 4G/5G cellular (optional).
USB: Weatherproof USB-C/Type-A ports.
Audio: External speaker output (20-50W amplifier).
Media Player: Integrated ARM/x86 compute module (e.g., Rockchip RK3588, Intel Celeron).
OS: Android, Linux, or proprietary OS (supports remote updates).
I/O Ports:
Power: 100-240V AC input or PoE++ (802.3bt) for simplified wiring.
Mounting & Security:
VESA Mount: 400x400mm or 600x400mmheavy-duty bracket.
Anti-Theft: Lockable rear panel, Kensington lock, tamper-proof screws.
Sunhood: Optional fixed/retractable hood to reduce glare.
Transportation Hubs: Bus stops, train platforms, airport gates.
Public Spaces: Parks, city centers, stadiums, campuses.
Retail & QSR: Drive-thru menus, outdoor promotions (e.g., McDonalds, gas stations).
Smart Cities: Wayfinding, emergency alerts, traffic info.
Corporate Campuses: Building directories, event schedules.
| Feature | Benefit |
|---|---|
| Sealed Enclosure | No internal cleaning required; immune to rain, dust, insects. |
| Auto Diagnostics | Remote health monitoring (temp, brightness, storage health). |
| Solid-State Design | No HDD/mechanical failures; handles vibration (e.g., near roads). |
| Cloud Updates | Firmware/OS updates without physical access. |
| Heated Display | Prevents snow/ice buildup; avoids manual defrosting. |
Pro Tip: For 24/7 operation, ensure MTBF (Mean Time Between Failures) > 50,000 hours and redundant power inputs. Always deploy with a surge protector rated for outdoor use.
